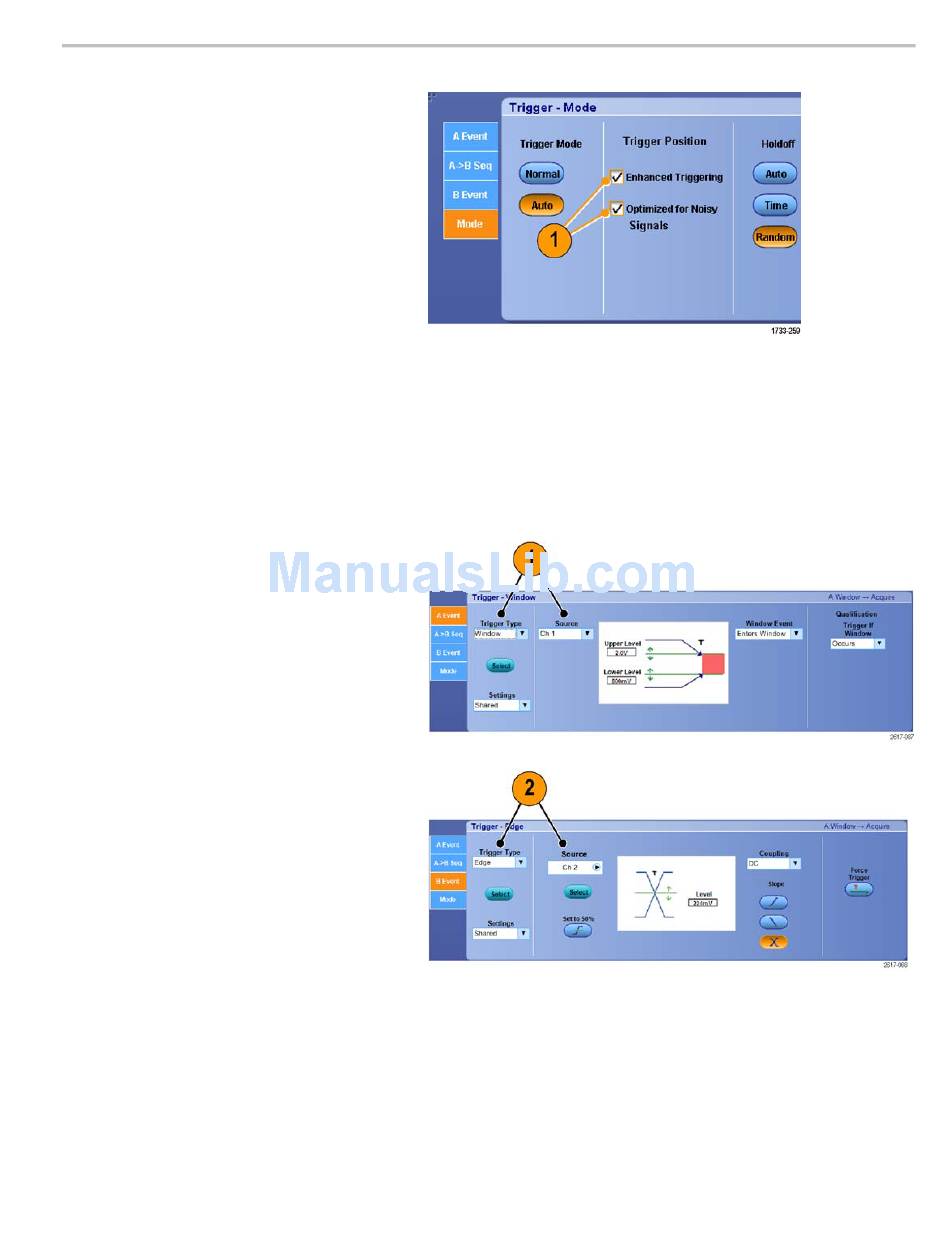

1. To more accurately place the trigger
on the display, check Enhanced
Triggering. To more accurately place
the trigger on noisy signals, also check
Optimized for Noisy Signals.
The Optimized for Noisy Signals
selection is only available if Enhanced
Triggering is selected.

Triggering with B-Event Scan

Use A->B Sequence B-Event Scan to create overlapped eye diagrams synchronized or initiated by an A trigger event.
Trig on nth Event captures the nth B-Event that occurs after the A-Event for all acquisitions. B-Event Scan automatically
advances the B-Event value to capture different portions of the signal.
1. Set the A trigger type and source in the
A Event tab.
2. Set the B trigger type and source in the
B Event tab.
