Acquisition

Using Autoset

Use Autoset to quickly and automatically set up the instrument (acquisition, horizontal, trigger, and vertical) based on the
characteristics of the input signal. Autoset makes adjustments to the signal such that the waveform displays two or three
cycles with the trigger level near the midlevel.
1. Connect the probe, and then select the
input channel. (See page 31, Setting Up
Analog Signal Input.)

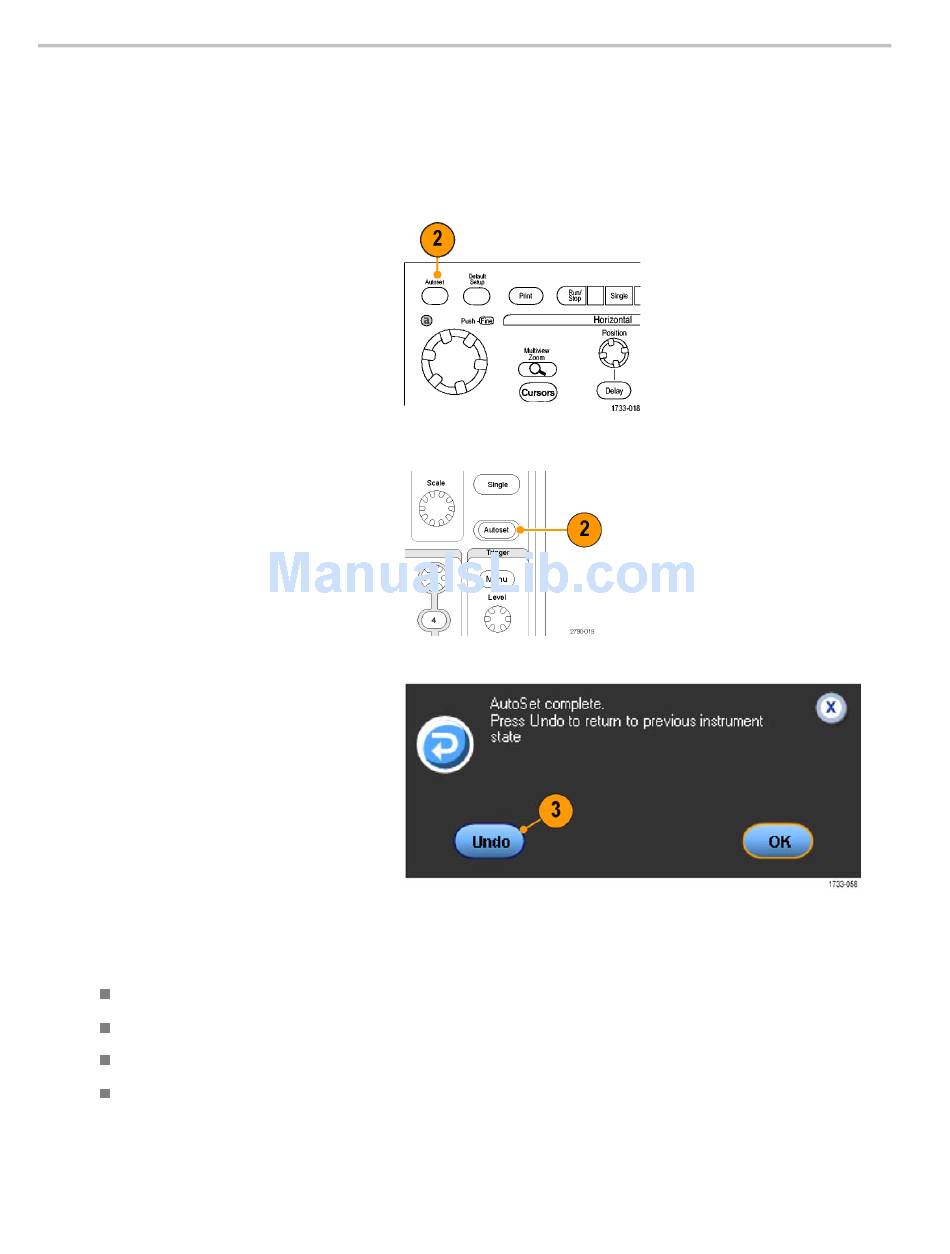

2. Push the AUTOSET button to execute
an Autoset.
3. Click Undo to undo the last Autoset.
Parameters that are not affected by
Autoset retain their settings.
Quick Tips
Autoset automatically sets up the analog channels.
On instruments with iCapture, autoset automatically sets up the iCapture channels.
To position the waveform appropriately, Autoset may change the vertical position. Autoset may also adjust vertical offset.
If you use Autoset when one or more channels are displayed, the instrument selects the lowest numbered channel for
horizontal scaling and triggering. You can individually control the vertical scaling of each channel.
