Acquisition

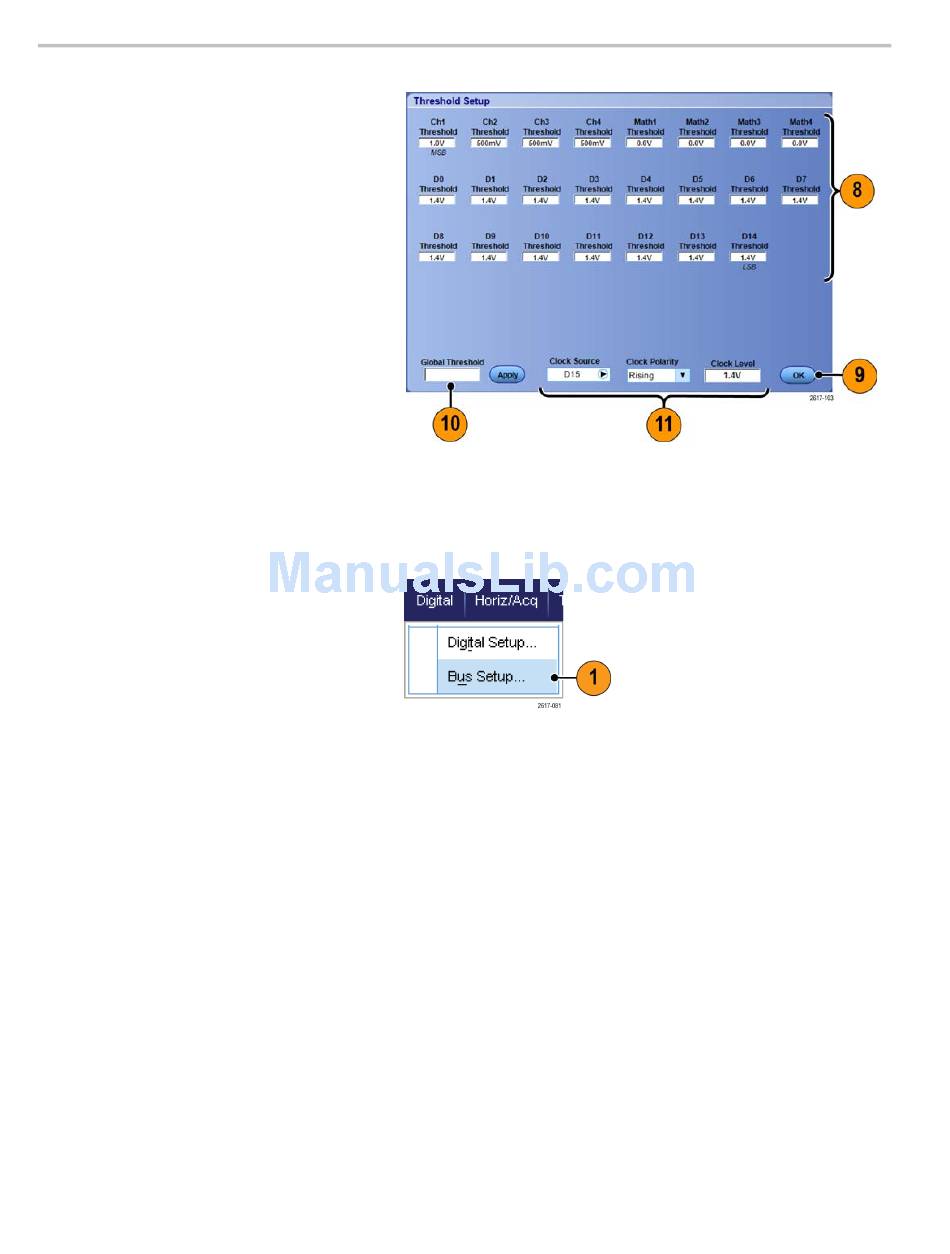

8. For each threshold you want to set,
double click the channel Threshold, and
enter the threshold using the keypad or
multipurpose knobs.
9. When the desired thresholds have been
set, click the OK button.
10. To set all channels to the same threshold,
double click Global Threshold and use
the keypad to enter a threshold. Then
click Apply.
11. On MSO70000/C instruments, to set the
clock source and polarity, double click the
item and select from the displayed list.
To set the clock level, double click the
Clock Level, and enter the level using the
keypad or multipurpose knobs.
Set Up Bus Display
You can set the bus style and decoding. You can use digital channels in bus definitions on MSO Series instruments only.
1. Select Digital > Bus Setup.
