Application Examples

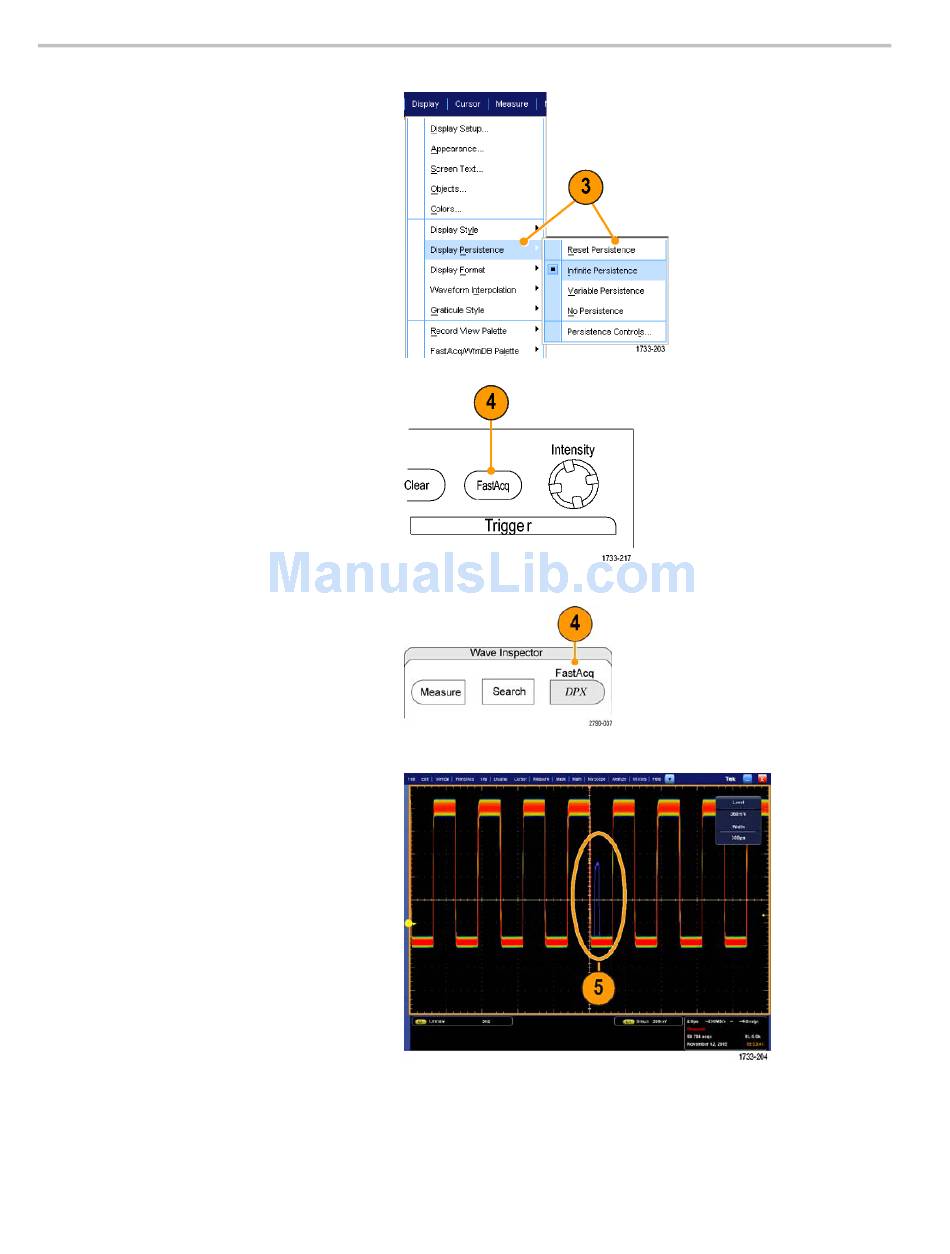

3. Select Display > Display Persistence >
Infinite Persistence. In this example,
you are looking at a clock signal. After
observing the signal for 1–2 minutes,
but before you look for the problem
elsewhere, go to step 4.
4. Push FastAcq.
5. Find glitches, transients, or other random
anomalies that are present in the signal.
In this example, FastAcq revealed an
≈300 ns positive glitch after only a few
seconds.
