Acquisition

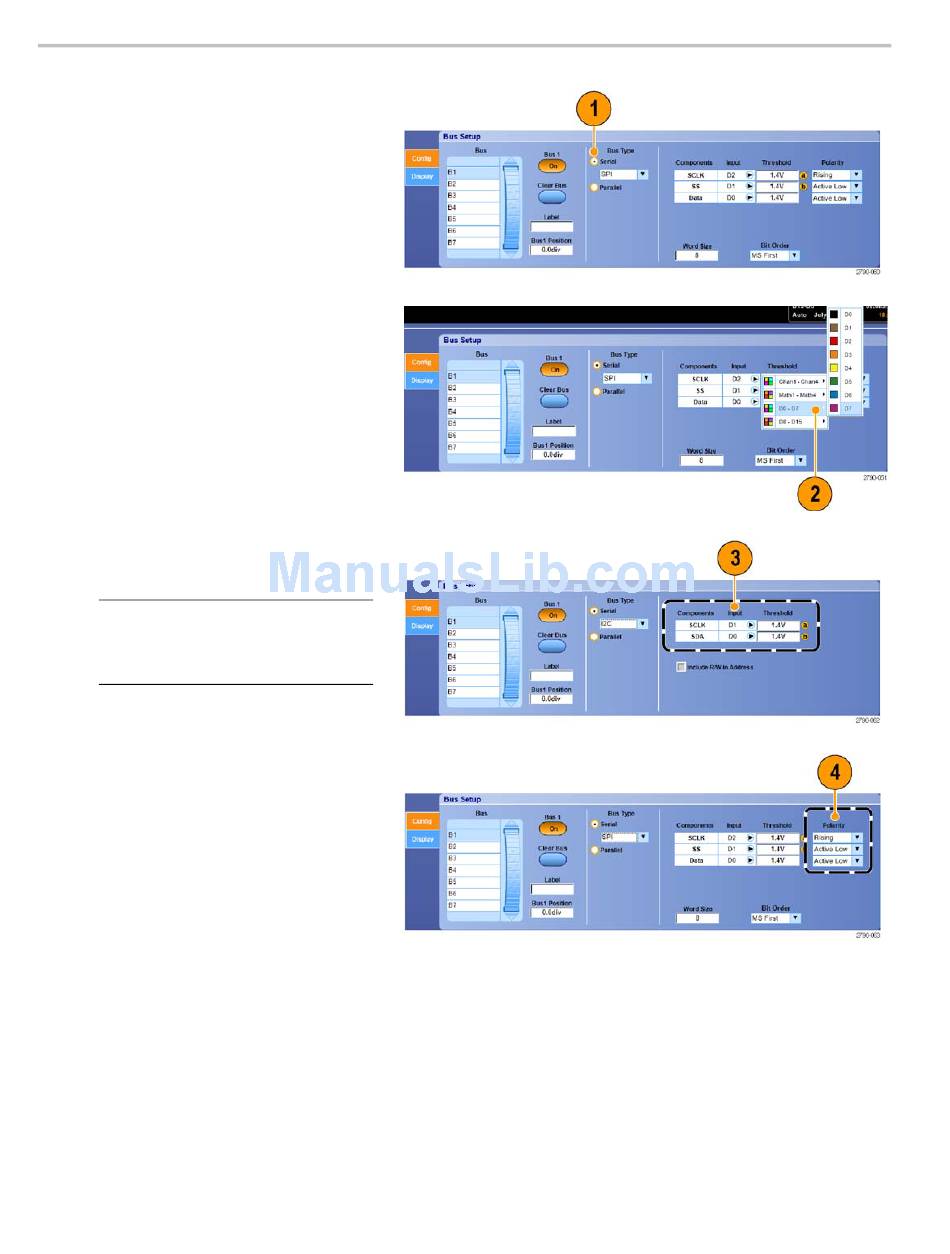

1. To set up a serial bus, select Bus Type
Serial and select the type of serial bus
from the drop-down list.
Each bus type has its own collection of
parameters that you set up. Set up other
bus types as appropriate for the selected
bus.
See the online help for additional help setting
up a bus.
2. To select the input for the displayed
components of the bus, click the
component Input and select from the
displayed list.
3. To set an input threshold, double click
Threshold and enter the threshold using
the keypad.
NOTE. To set thresholds independently
when they are currently shared, go to Trig >
A Event (Main) Trigger Setup and change
Settings to Independent.
4. To select the polarity for the displayed
components of the bus, click the
component Polarity and select from the
displayed list.
