Analyzing Waveforms

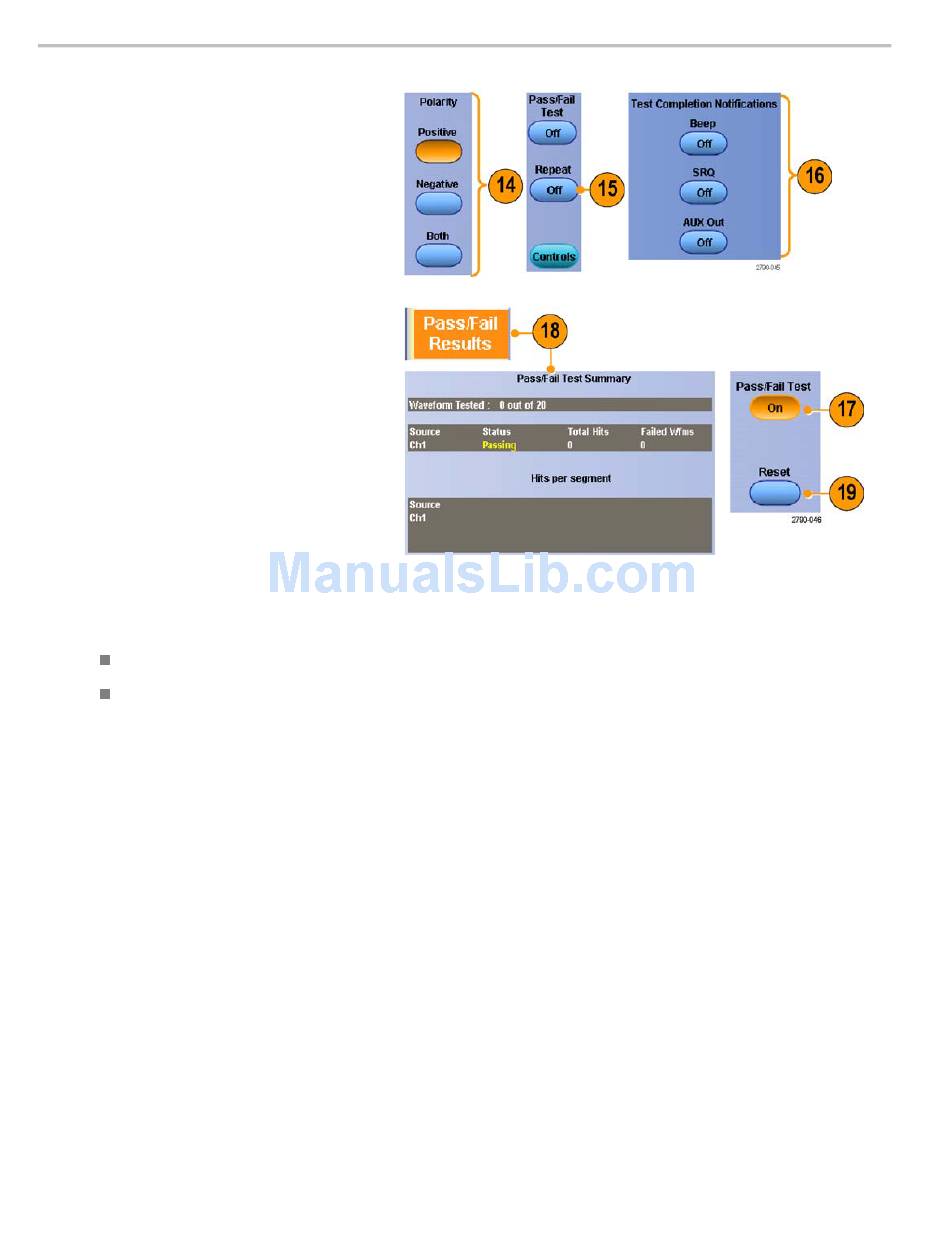

14. Select the polarity of the waveform you
want to test.
15. Toggle Repeat On to run the mask test
continuously.
16. Select the notice you want when the test
is complete.
17. Click the Pass/Fail Results tab to view
the test results.
18. Click Pass/Fail Test On to start the mask
test.
19. Click Reset to reset the totals and clear
any violations.
Quick Tips
Mask testing is not available on digital channel waveforms.
If the signal is not within the mask, enable Autoset to center the waveform in the mask.
