Analyzing Waveforms

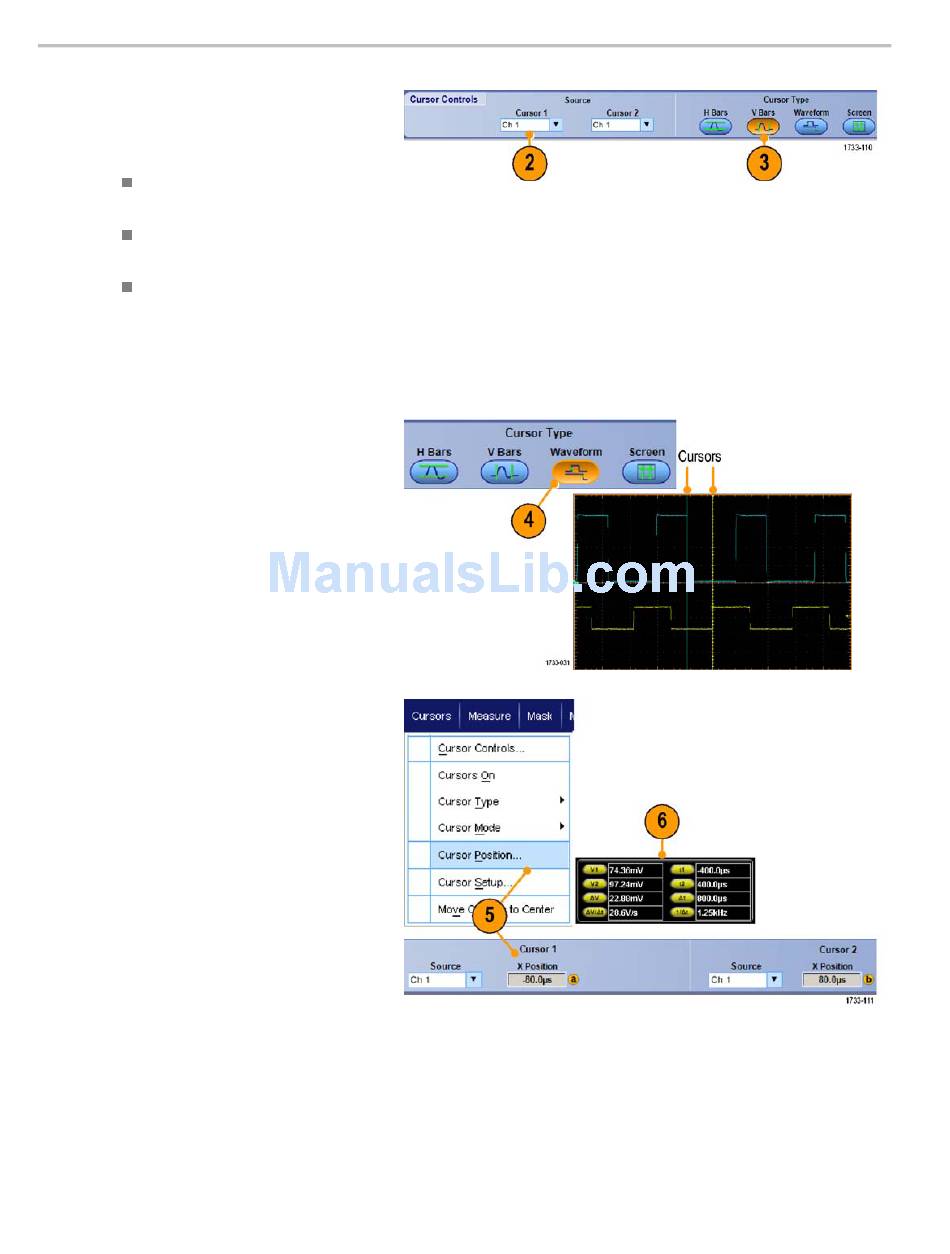

2. Select the Cursor Source.
3. Select a cursor type from one of the
following:
H Bars measure amplitude (typically
in volts or amperes)
V Bars measure horizontal
parameters (typically time)
Waveform and screen cursors
measure vertical and horizontal
parameters simultaneously.
Waveform cursors are attached to
the waveform, and screen cursors
float, unattached to the waveform.
4. To take measurements between two
waveforms, select Waveform, and then
select the waveform source for each
cursor.
5. Select Cursors > Cursor Position...,
and then use the multipurpose knobs to
adjust the cursor position.
6. Read cursor measurement results in the
display.
