Acquisition

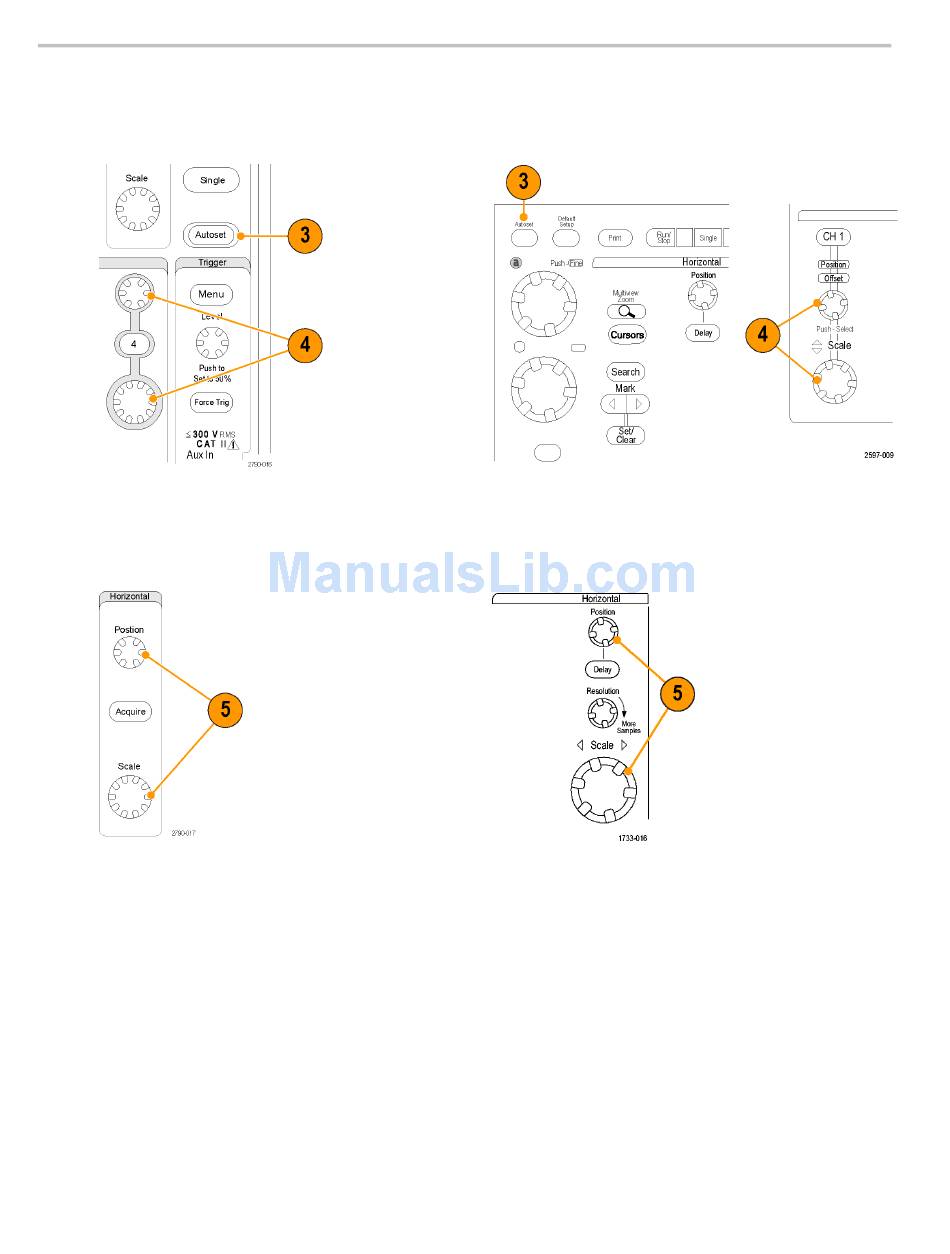

3. Push Autoset.
4. Adjust the vertical position, scale, and offset using the front-panel knobs.
MSO5000 and DPO5000 Series
5. Adjust the horizontal position and scale using the front-panel knobs.
The horizontal position determines the number of pretrigger and posttrigger samples.
MSO5000 and DPO5000 Series
32
MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000
Series
MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000
Series
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
