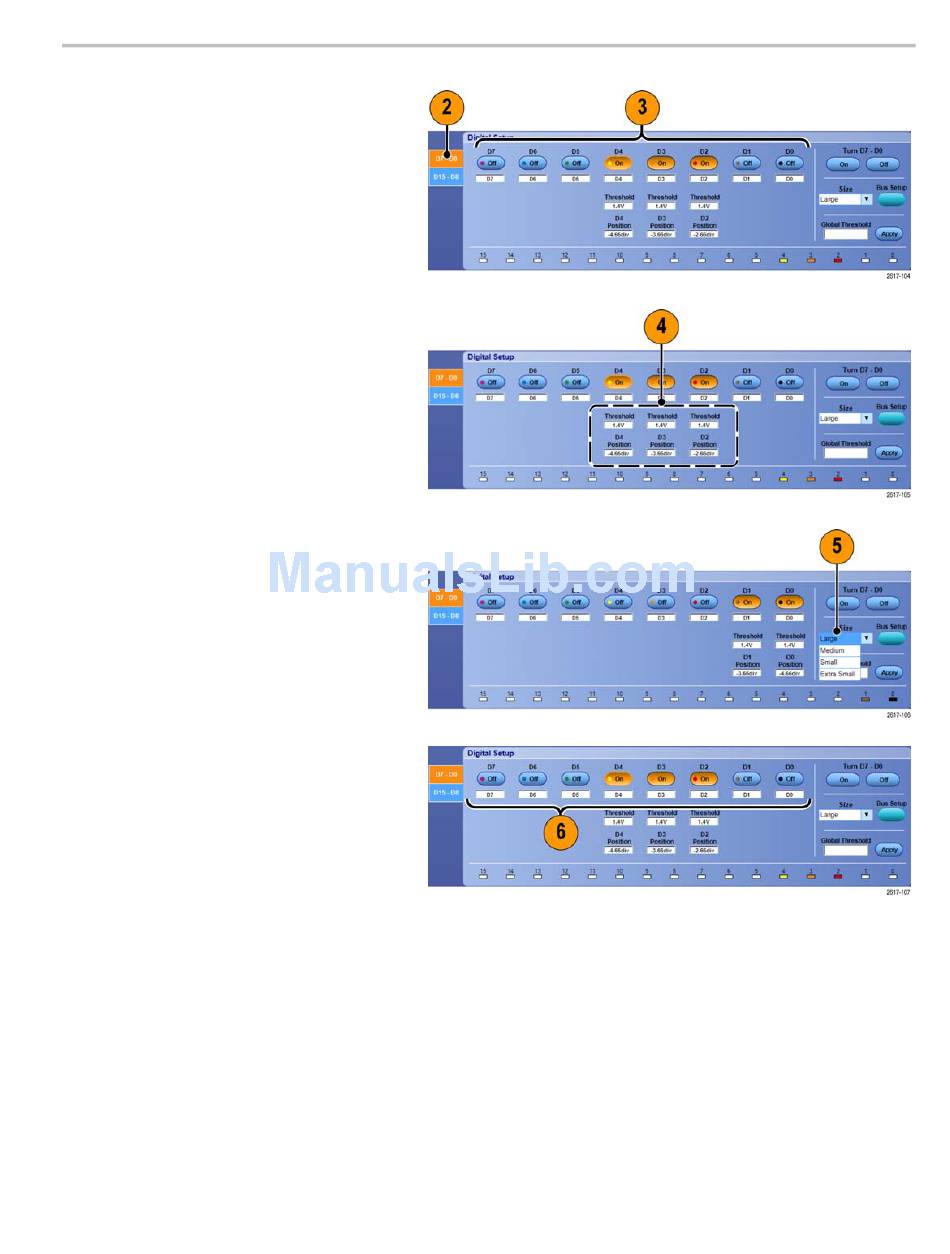

2. Select the D7 - D0 or D15 - D8 tab for
the digital channels you want to set up.
3. Click a digital channel button to toggle
the display of the digital channel on or off.
4. Click Threshold or Position and adjust
them using the keyboard or multipurpose
knobs. Or, set the threshold of all 16
channels by entering a Global Threshold
value and clicking Apply.
5. To change the displayed vertical size of
all digital channels, click Size and select
the display size from the list.
6. To change a digital channel label, click
the label and enter a new label using the
keyboard.
