Analyzing Waveforms

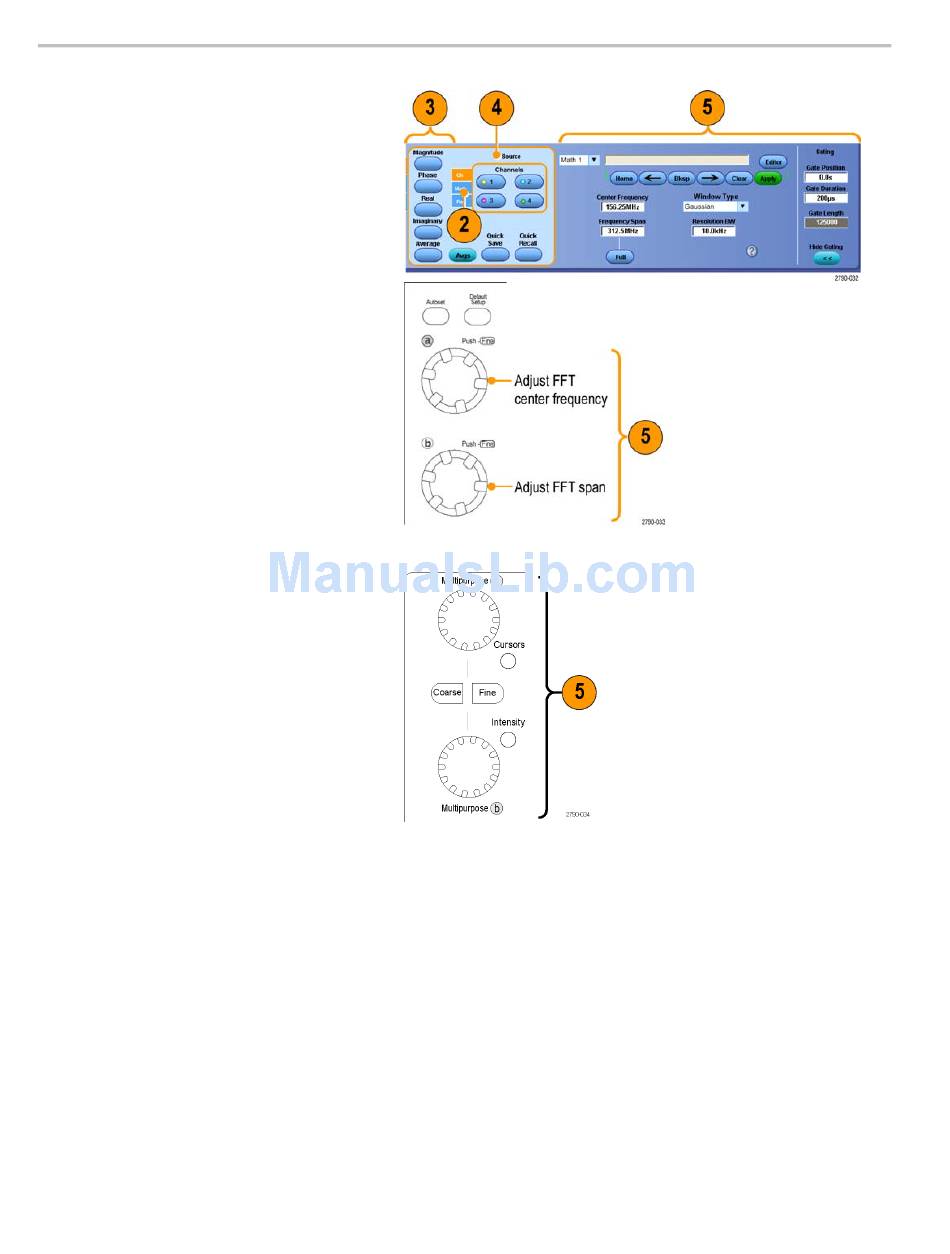

2. Select the math waveform that you want
to define.
3. Click the type of spectral waveform
that you want to create. To redefine a
waveform, click Clear.
4. Select the source waveform.
5. Adjust the spectral waveform, using the
controls in the Spectral Setup control
window and use the multipurpose knobs.
130
MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000 Series
MSO5000 and DPO5000 Series
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
