Analyzing Waveforms

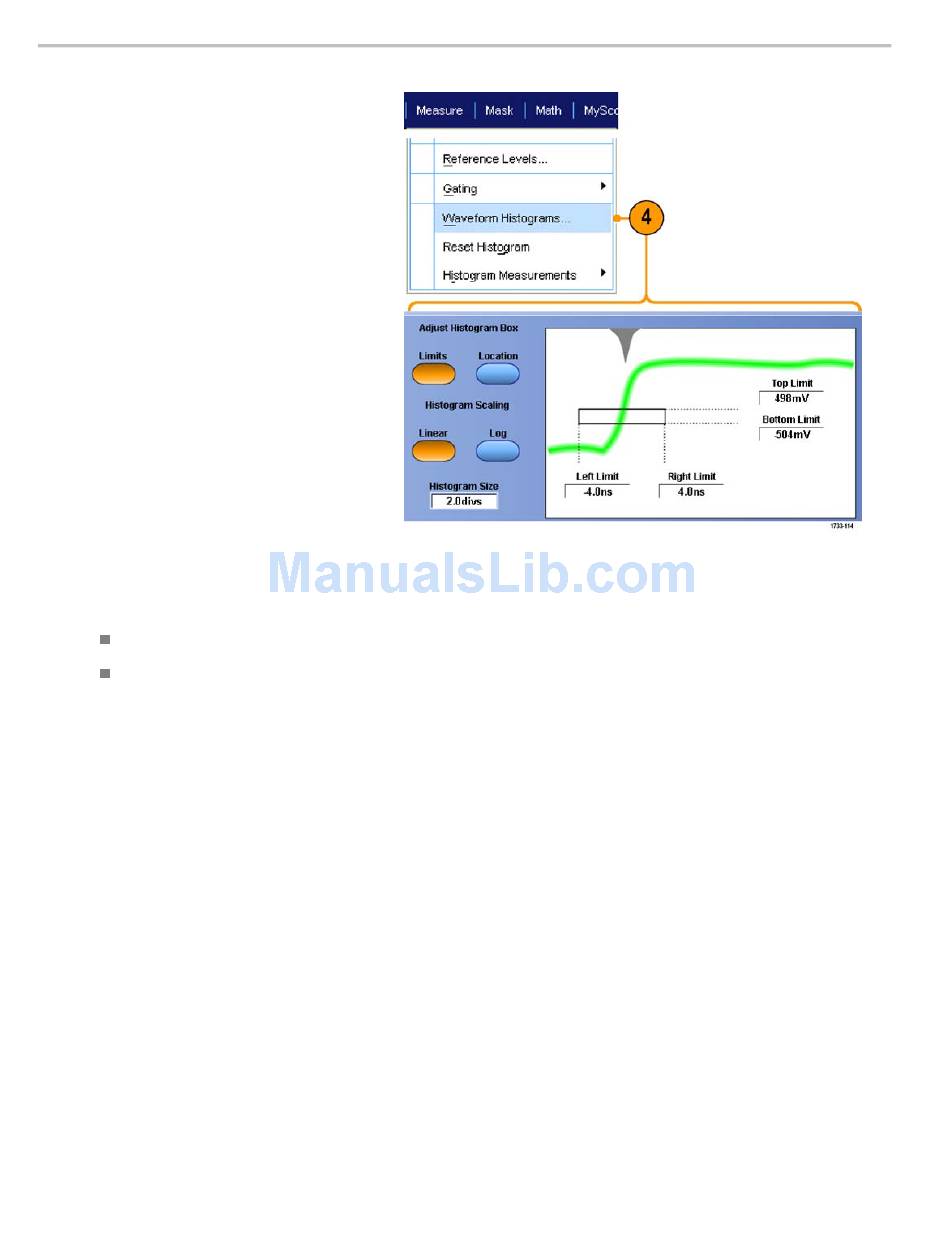

4. To make adjustments to the histogram
scale or the size and location of the
histogram box, select Measure >
Waveform Histograms, and then use
the Histogram Setup control window.
5. You can also take automated
measurements on histogram data.
(See page 113, Taking Automatic
Measurements.)
Quick Tips
Use vertical histograms to measure signal noise and horizontal histograms to measure signal jitter.
Use the click and drag procedure to activate the shortcut menu to turn the histogram display off.
124 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
