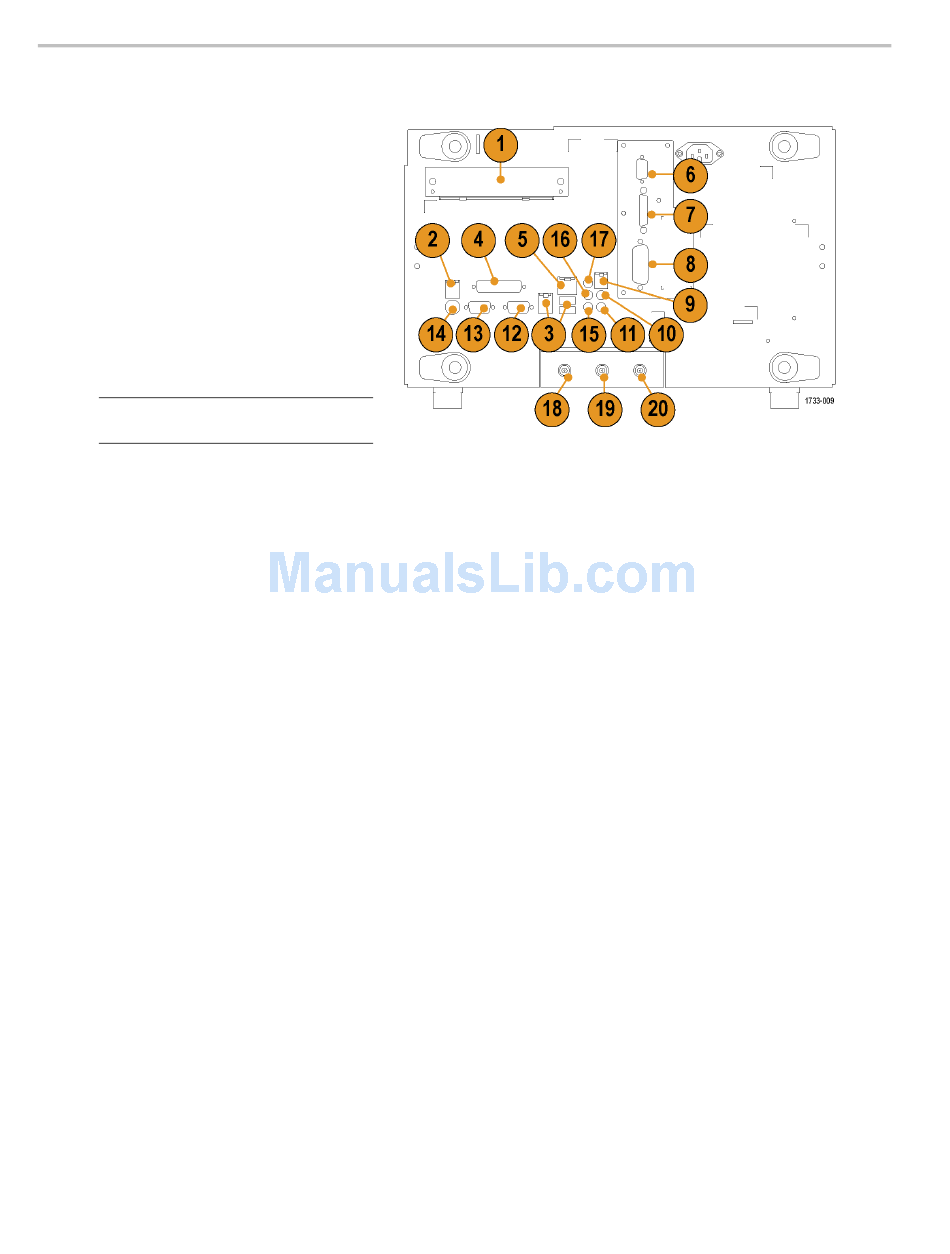

Getting Acquainted with Your Instrument
DSA70000B and, DPO70000B
1. Removable hard disk drive
2. PS-2 connector for mouse
3. USB host ports
4. Centronics Parallel Port
5. RJ-45 LAN connector to connect to
network
6. Video port to connect a monitor
7. TekLink connector
8. GPIB port to connect to controller
NOTE.
Some instruments may have
additional audio connectors.
9. Line In connector
10. Line Out connector for speaker
11. Mic connector for microphone
12. Video port to connect a monitor
13. COM 1 serial port
14. PS-2 connector for keyboard
15. CTR Bass speaker
16. Side speaker out
17. Rear speaker out
18. Auxiliary output
19. Reference output
20. External reference input
