Viewing Analog Characteristics of Digital Waveforms
iCapture allows you to view the analog characteristics of digital channel signals. Additional measurement capabilities are
available while viewing the analog characteristics of a waveform. iCapture is available on MSO70000/C Series instruments.

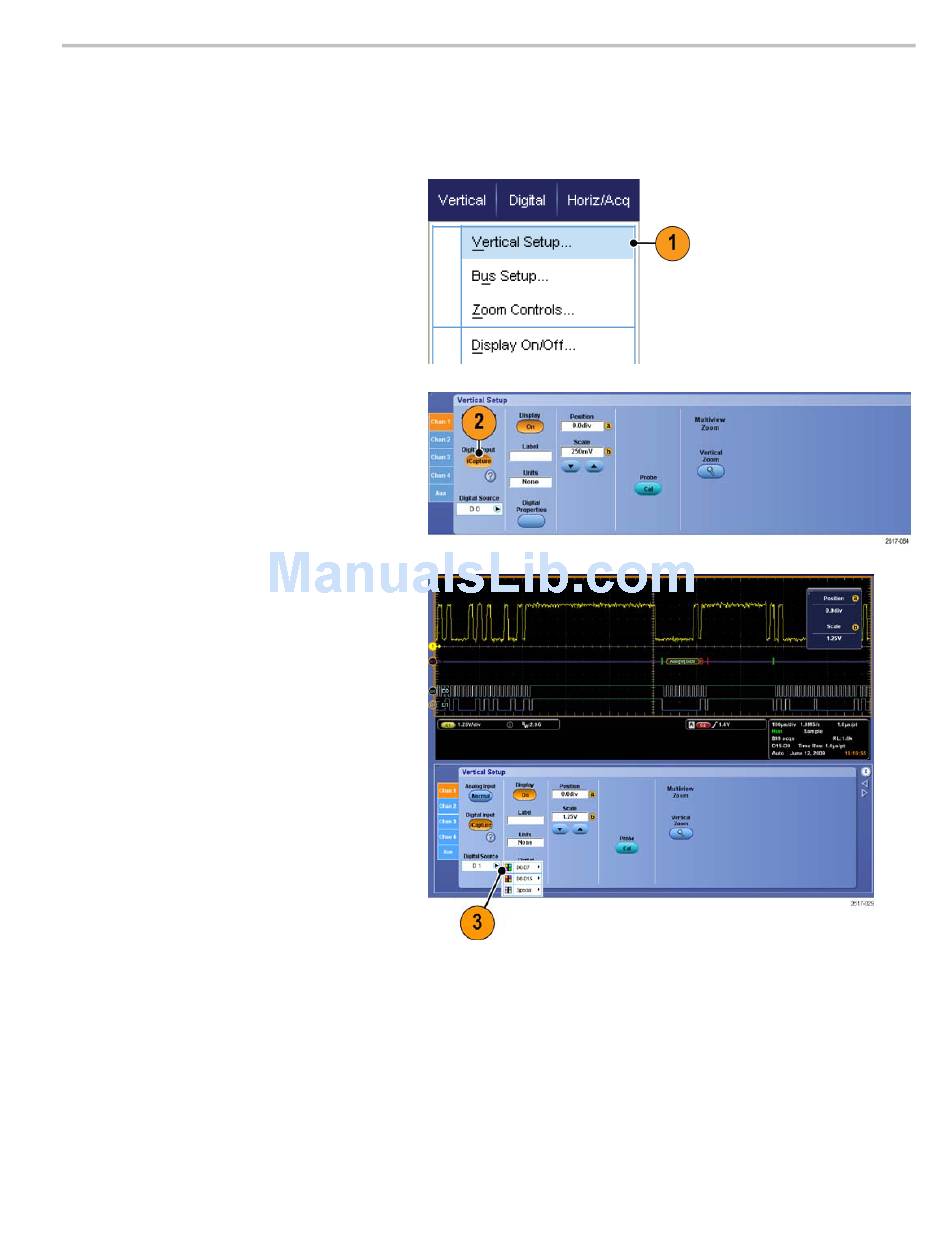

1. Select Vertical > Vertical Setup.
2. Press the Digital Input iCapture button.
3. Click Digital Source and select a digital
channel to send through the analog
input.
