Getting Acquainted with Your Instrument

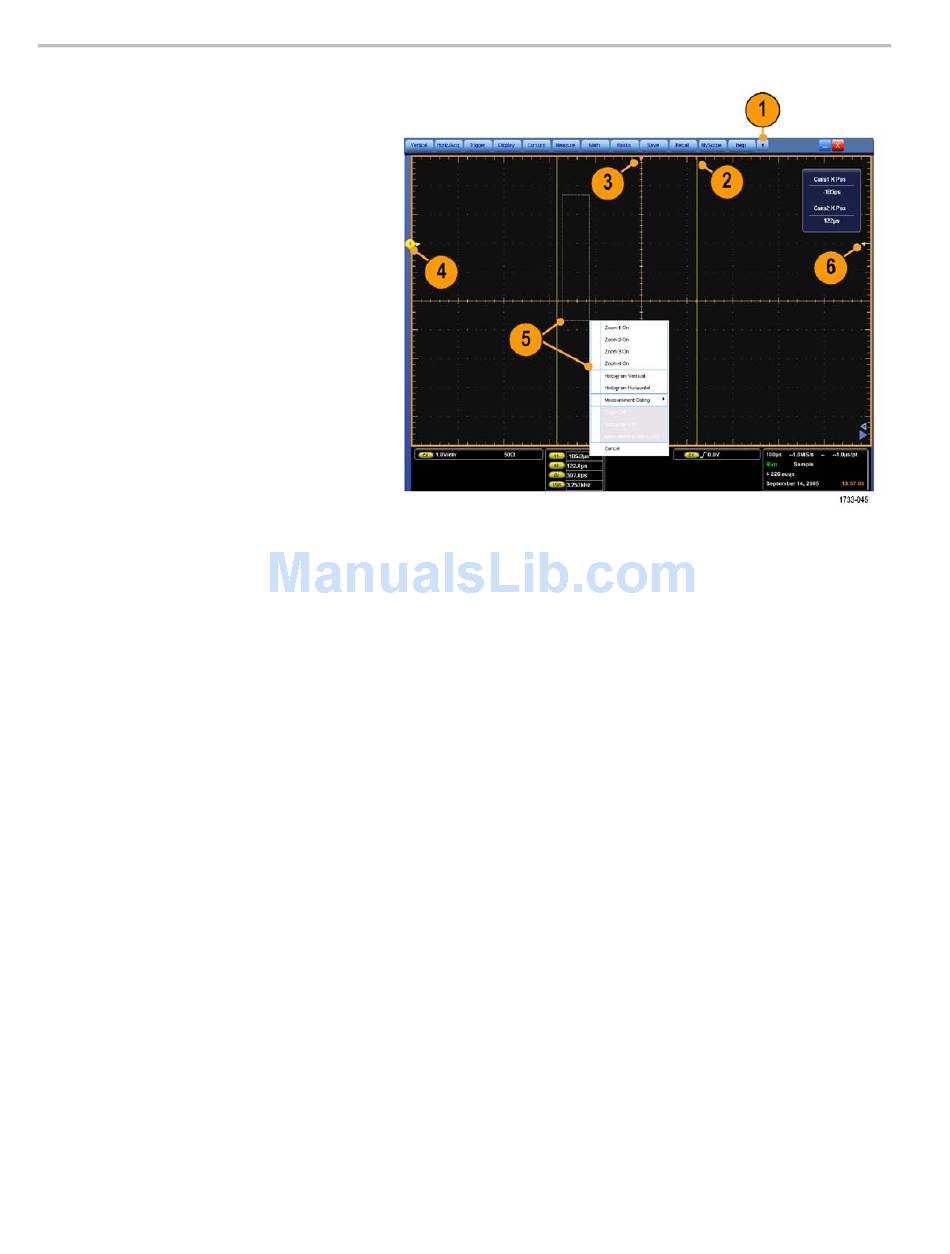

1. Buttons/Menu: Click to toggle between
toolbar and menu bar modes and to
customize the toolbar
2. Drag cursors to measure waveforms on
screen
3. Drag the position icons to reposition a
waveform
4. Click the icon to assign the multipurpose
knobs to waveform vertical position and
scale
5. Drag across the waveform area to create
a box for zooming, enabling/disabling
histograms, and gating measurements
6. Drag icon to change the trigger level
