Triggering on a Parallel Bus

Locate problems by triggering on a parallel bus. MSO instruments can use digital channels as components of a parallel bus.
But MSO5000, DPO5000, and MSO70000 instruments can use a parallel bus .

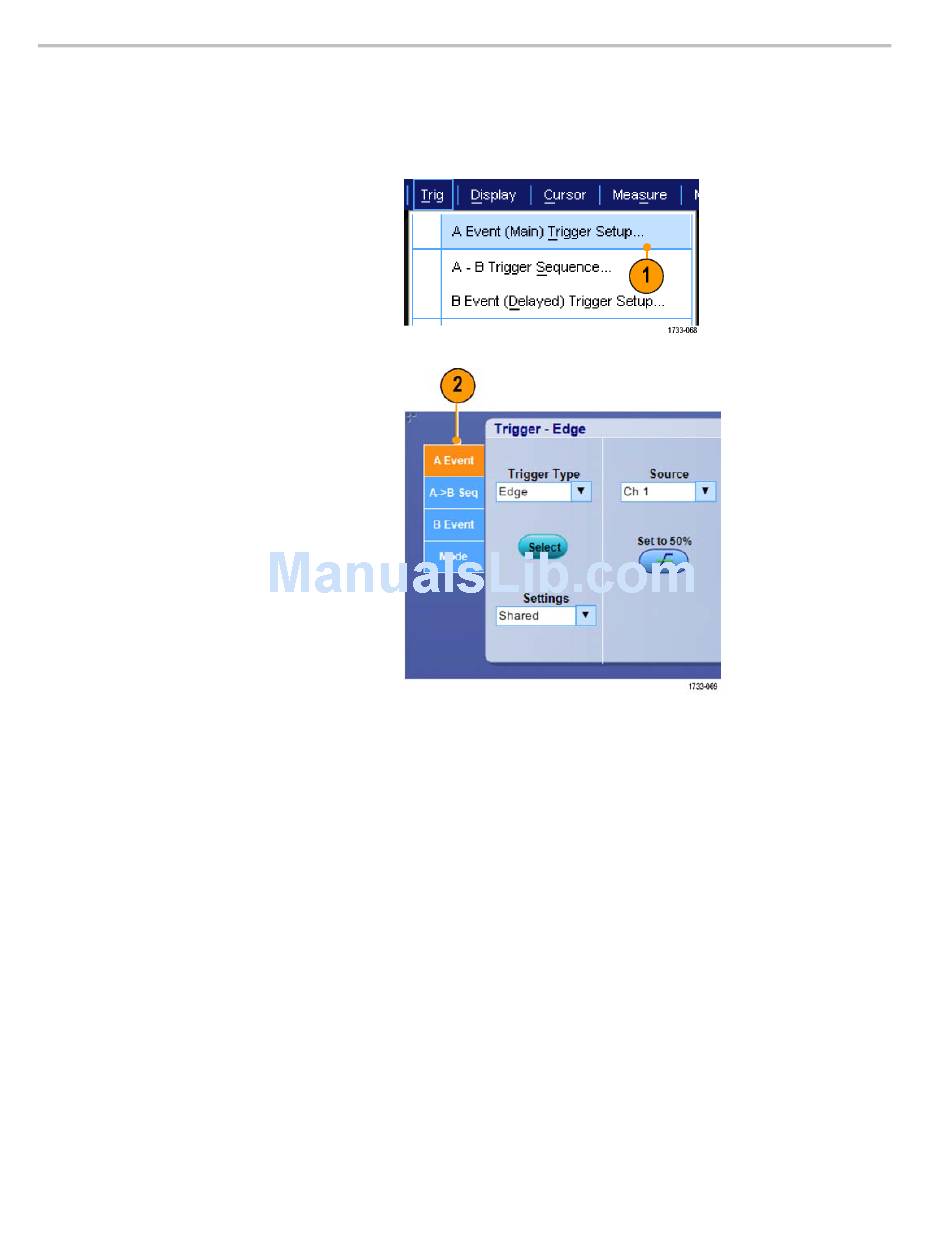

1. Set up a parallel bus. (See page 50,
Setting Up a Bus.) Select Trig > A Event
(Main) Trigger Setup....
2. Select the A Event tab.
