3. InStallatIon

When professional installation, OeM integration or assembly by a third-party is expected, the installation instructions and assembly re-
quirements approved for equipment approval must be provided to the integrators to clearly identify the specific requirements necessary
to maintain RF exposure compliance. the grantee of a transmitter, typically the manufacturer, is responsible for ensuring installers and
integrators have a clear understanding of the compliance requirements by including the required instructions and documentation with
the product and, if necessary, to provide further support to fulfil grantee responsibilities for ensuring compliance. the integrators must
be fully informed of their obligations and verify the resolution of any issues and concerns with each transmitter manufacturer or grantee.
• the system can be installed in a metal or non-flammable cabinet only. For a convenient installation, Me1 metal cabinet is highly recom-
mended. the metal cabinet must always be grounded as well as eSIM384 system's PCB by connecting one of the COM terminals to the
Pe contact of the metal cabinet.
• For the connection of 230V transformer, use 3x0.75 mm
grouped with low voltage cable group.
• For the connection of auxiliary and BeLL outputs, use 2x0.75 mm
• For the connection of zone/PGM output connectors, use 0.50 mm

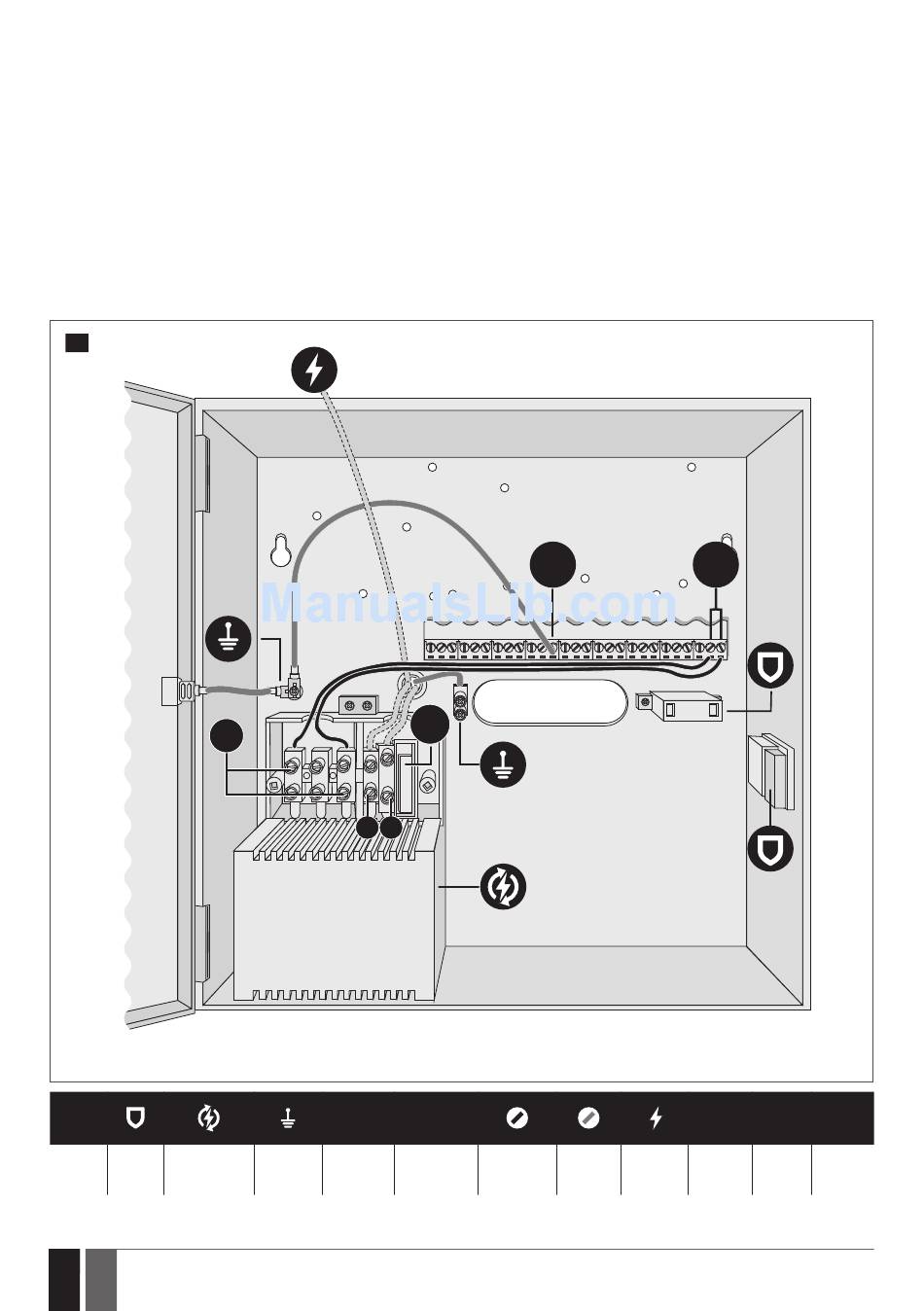

SYStEM InStallatIon In ME1 MEtal CaBInEt anD EnCloSUrE CoMPonEntS
17
18V
fUSE
Fuse
tamper transformer
315mA
24 24 EN
1 thread double isolated cable. 230V power supply cables must not be
2
AC230V
FUSE
N L
TRANSFORMER
CoM aC/DC
Main power
Pe Common
supply
terminal terminal
terminal
1 thread unshielded cable of up to 100m (328.08ft) length.
2
1 thread unshielded cable of up to 100m (328.08ft) length.
2
COM
AC/DC Main
230V
power GND wire
wire
wire
ESIM384 Installation and Configuration Manual v1.1
AC/DC
18V n l
AC
Null Phase
voltage
