Eldes ESIM264 Installation Manual

Gsm alarm and management system
Hide thumbs Also See for ESIM264:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Manual

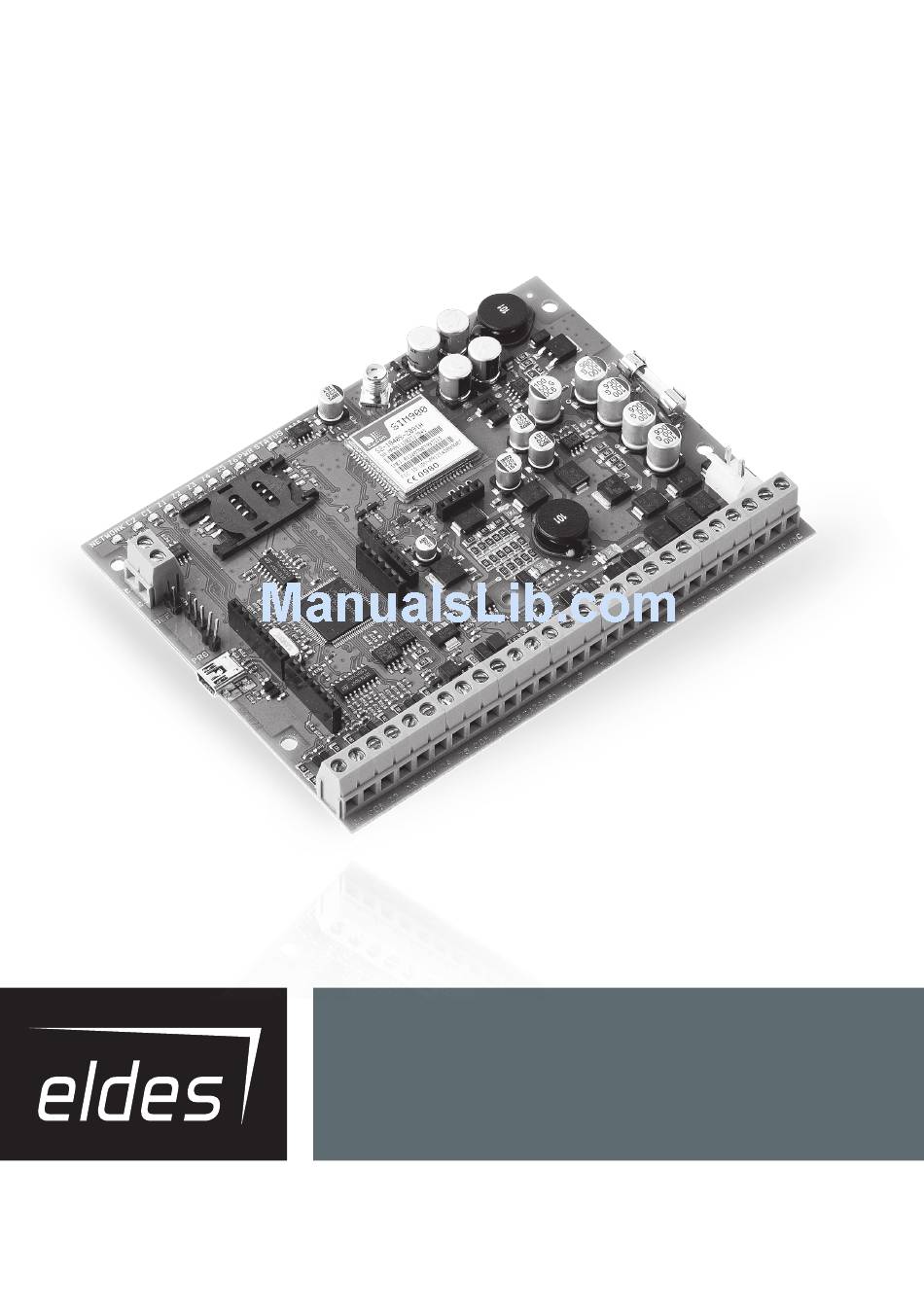

ESIM264
GSM ALARM AND MANAGEMENT SYSTEM
INSTALLATION MANUAL
COMPLIES WITH EN 50131-1 GRADE 2, CLASS II REQUIREMENTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESIM264 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes ESIM264

Summary of Contents for Eldes ESIM264

  • Page 1 ESIM264 GSM ALARM AND MANAGEMENT SYSTEM INSTALLATION MANUAL COMPLIES WITH EN 50131-1 GRADE 2, CLASS II REQUIREMENTS...
  • Page 2 Please read and follow these safety guidelines in order to maintain safety of operators and people around: • GSM alarm & management system ESIM264 (also referenced as alarm system, system or device) has radio transceiver operating in GSM 850/900/1800/1900 bands.

  • Page 3: Table Of Contents

    19.2. Wireless Device Information and Signal Status Monitoring ........................69 19.3. Disabling and Enabling Siren if Wireless Signal is Lost ..........................70 20. SIREN/BELL ....................................71 20.1. Bell Squawk ........................................72 20.2. Indication by EWS2 Indicators ..................................72 20.3. EWF1 Interconnection ....................................73 MANUAL ELDES ESIM264 V3.1...
  • Page 4 29. INDICATION OF SYSTEM FAULTS ............................91 30. MONITORING STATION ................................93 30.1. Data Messages – Events ....................................94 30.2. Communication ....................................... 98 31. ELDES WIRED DEVICES ............................... 108 31.1. RS485 Interface ......................................108 31.2. 1-Wire Interface ......................................121 31.3. Modules Interface ......................................121 32.

  • Page 5: Package Content

    “ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the cellular providers therefore is not responsible for the quality of cellular service.

  • Page 6: General Information

    * - A mixed combination of EKB2 and EKB3 keypads is supported. The combination can consist of up to 4 keypads in total. ** - Only 1 of these modules can be connected at a time if the module slots are implemented in ESIM264 unit.
  • Page 7 Default Value Configuration SMS EKB2 EKB3 Tool Alarm Duration 1 minute     EWS2 LED Disabled   Bell Squawk Disabled    Activate Siren if Wireless Device is Lost Disabled    MANUAL ELDES ESIM264 V3.1...
  • Page 8 Enabled     System Shutdown Enabled    Partitions Configurable by: Parameter Default Value Configuration SMS EKB2 EKB3 Tool Partition 0 Name PART0    Partition 1 Name PART1    MANUAL ELDES ESIM264 V3.1...
  • Page 9   Unit ID (GPRS) 0000    Test Period (GPRS) 180 seconds    Communication - Primary    Communication - Backup 1... 4    Protocol over GPRS EGR100  MANUAL ELDES ESIM264 V3.1...
  • Page 10 Show ARMED Status in Keypad (EKB2) Disabled  ELDES Smart Security Configurable by: Parameter Default Value Configuration SMS EKB2 EKB3 Tool ELDES Smart Security Disabled  Server Address ss.eldes.lt  Port 8082  180 seconds Ping Period  Time Zone  MANUAL ELDES ESIM264 V3.1...
  • Page 11 MANUAL ELDES ESIM264 V3.1...

  • Page 12: Technical Specifications

    Cable type for zone and pgm output connection Unshielded Communications SMS, Voice calls, GPRS network, RS485, CSD Supported protocols Ademco Contact ID, EGR100, Kronos, Cortex SMS Dimensions 140x100x18mm Operating temperature range -20...+55 °C Humidity 0-90% RH @ 0... +40 °C (non-condensing) MANUAL ELDES ESIM264 V3.1...

  • Page 13: Main Unit, Led & Connector Functionality

    Siren negative terminal BELL+ Siren positive terminal AUX- Negative power supply terminal for auxiliary equipment AUX+ Positive power supply terminal for auxiliary equipment AC/DC Main power supply terminal AKU- Backup battery negative terminal AKU+ Backup battery positive terminal MANUAL ELDES ESIM264 V3.1...

  • Page 14: Wiring Diagrams

    Based on the example given, in the event of an alarm, the smoke detector could be reset by turining OFF and ON the PGM output C1. For more details, please refer to 18.4. Turning PGM Outputs ON and OFF. NOTE: The system does NOT support 2-wire smoke detectors. MANUAL ELDES ESIM264 V3.1...
  • Page 15 5,6 k 3,3 k 5,6KΩ end-of-line resistor, 5,6KΩ end-of-line resistor with normally closed Magnet contact and 3,3KΩ end-of-line resistor with normally closed contact. +Vin TAMP See also 14.3. 6-Zone Mode and 14.4. ATZ (Advanced Technology Zone) Mode. MANUAL ELDES ESIM264 V3.1...
  • Page 16 2 Controlling BELL siren wire must be connected to BELL- terminal. 3 Connect positive +12V siren wire to BELL+ ter- BELL minal. SIREN/BELL +12V 1A max. See also 20. SIREN/BELL. NOTE: BELL- is the commuted terminal intended for siren control. MANUAL ELDES ESIM264 V3.1...
  • Page 17 2.3.6. Relay Finder 40.61.9.12 with Terminal Socket 95.85.3 to PGM Output 1 Wire up relay A1 terminal to PGM output Cx and A2 terminal to AUX+. 2 In addition, connect LED indicator‘s anode ter- minal to relay A2 terminal and cathode to A1 terminal. COIL RELAY MANUAL ELDES ESIM264 V3.1...
  • Page 18 You may connect only 1 EKB2/EKB3 keypad or a mixed combination of EKB2 and EKB3 keypads. The combination can consist of up to 4 keypads in total. For more details on RS485 device installation, please refer to 32.1. RS485 Interface MANUAL ELDES ESIM264 V3.1...
  • Page 19 If necessary, the RS485 devices can be powered from an external 12-14V DC power supply instead of AUX+ and AUX- terminals ATTENTION: The cable between ESIM264 and each RS485 device must be of the same length and can NOT exceed 100 meters. ATTENTION: When wiring more than 1 keypad, please ensure that the set address of each keypad is different.

  • Page 20: Installation

    Secondary voltage: 17V 2,35A) Tamper switch to AC/DC terminals of ESIM264 system 2. Insert the plastic standoffs into the appropriate mounting points and fix the board of ESIM264 on the holders as indicated below. mounting points MANUAL ELDES ESIM264 V3.1...
  • Page 21 3. If EPGM1 module is to be installed, please install it in the first place and ESIM264 alarm system afterwards. EPGM1 must be mounted on the shorter plastic standoffs, while ESIM264 – on the longer ones. The mounting points of EPGM1 module are indicated below.
  • Page 22 SIM card. For more details on how to disable these services, please contact your GSM operator. 6. Once the PIN code is disabled, place the SIM card into the SIM CARD slot of the alarm system. MANUAL ELDES ESIM264 V3.1...
  • Page 23 150 m in open areas device antenna For more details on how to install the wireless devices, please refer to 32. ELDES WIRELESS DEVICES and RADIO SYSTEM IN- STALLATION AND SIGNAL PENETRATION manual located at www.eldes.lt/download 9. Power up the system.

  • Page 24: General Operational Description

    SMS text message delivery service and phone call connection. NOTE: Even though alarm system ESIM264 installation process is not too complicated, we still recommend to perform it by a person with basic knowledge in electrical engineering and electronics to avoid any system damage.

  • Page 25: Configuration Methods

    SMS text message. In order to configure and control the system by SMS text message, send the text command to the ESIM264 system phone number from one of the preset user phone numbers. The structure of SMS text message consists of 4-digit SMS password (the default SMS password is 0000 –...
  • Page 26 Before configuring ESIM264 remotely via GPRS connection, make sure that: • SIM card is inserted into SIM CARD1 slot of ESIM264 device (see 2.2. Main Unit, LED & Connector Functionality). • Mobile internet service (GPRS) is enabled on the SIM card.
  • Page 27 In case it is necessary to establish a connection between ESIM264 system and a third-party Initiate the configuration server, send the following SMS text message. connection to third-party server SMS text message content: ssss_STCONFIG:add.add.add.add:Port ssss_STCONFIG:host-name:pprrt Value: ssss – 4-digit SMS password; add.add.add.add – public IP address of third-par- ty configuration server;...

  • Page 28: Passwords

    0000, which MUST be changed! • Administrator password – 4-digit password used for Configuration mode activation by keypad and logging in to ELDES Configuration Tool software. By default, Administrator password is 1470, which is highly recommended to change.

  • Page 29: System Language

    The system comes equipped with 2 languages for communication with the user by SMS text messages and a single language for EKB2 keypad menu display. The default EKB2 menu language depends on ESIM264 firmware, which is based on the user’s location, while one of languages for communication by SMS text messages is always English.

  • Page 30: User Phone Numbers

    Value: up – user phone number slot, range – [01... 05]; ttteeellnnuumm – up to 15 digits user phone number. Example: 17014417091111111# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: View user phone...

  • Page 31: System Control From Any Phone Number

    SETTINGS → OK → USERS → OK → USER 2... 5 → OK → PHONE NUMBER → OK → OK Value: aaaa – 4-digit administrator password. Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool ATTENTION: NEVER add a phone number of the device’s SIM card as a user phone number!
  • Page 32 Value: aaaa – 4-digit administrator password. Enter parameter 12 & parameter status value: 12 0 # EKB3 Example: 120# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool MANUAL ELDES ESIM264 V3.1...

  • Page 33: Date And Time

    When the system is connected to the monitoring station via GPRS network connection (see 30. MONITORING STATION) and/or when ELDES Smart Security feature is in use (see 35. ELDES Smart Security), the date and time will be automatically synchronized with the monitoring station or ELDES Smart Security server upon the system startup.

  • Page 34: User Passwords

    [0000... 9999]. Example: 15021111# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: OK → CONFIGURATION → OK → aaaa → OK → PRIMARY SETTINGS → OK → PASSWORDS →...
  • Page 35 Example: 7403# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool The Duress password is used when system disarming is demanded by force. When used, the system will disarm as well as it will silently transmit an alert to the monitoring station.

  • Page 36: Ibutton Keys

    An iButton key is a unique 64-bit ID code containing chip enclosed in a stainless steel tab usually implemented in a small plastic holder. ESIM264 system supports up to 5 iButton keys each holding a unique identity code (ID), which is used for system arming and disarming.
  • Page 37 18 1 # EKB3 Example: 181# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool To view the ID of the added iButton keys, please refer to the following configuration methods. Menu path: OK →...

  • Page 38: Arming And Disarming

    (-s). The system will then send an SMS text message, containing a list of violated zones/tampers, to user phone number that the system arming was initiated from. • If a combination of armed and disarmed ready partitions is present, the system will arm the disarmed ready partitions and skip the armed ones. MANUAL ELDES ESIM264 V3.1...

  • Page 39: Sms Text Message

    To disarm the system by SMS text message, send the following text to the system‘s phone number from any of 10 available user phone numbers: SMS text message content: ssss_DISARMp ssss_DISARMp,p Disarm the system Value: ssss – 4-digit SMS password; p – partition number, [1 – Partition 0, 2 – Partition 1]. Example: 1111_DISARM1,2 User ESIM264 MANUAL ELDES ESIM264 V3.1...

  • Page 40: Ekb2 Keypad And User Password

    If the user fails to enter a correct user password 10 times in a row, the system will block the keypad for 2 minutes and the keypad will display KEYPAD BLOCKED message. While the keypad is blocked, the system prevents from entering any user password. The keypad will automatically unblock once the 2-minute time has expired and display KEYPAD UNBLOCKED message. MANUAL ELDES ESIM264 V3.1...

  • Page 41: Ekb3 Keypad And User Password

    Hold the [*] key, release it after 3 short beeps & enter partition number: Use keypad partition switch Value: p – partition number, range – [0... 1] Example: *1 NOTE: By default, User Password 1 is preset as 1111 and assigned to Partition 0. MANUAL ELDES ESIM264 V3.1...

  • Page 42: Ibutton Key

    Partition 1. To arm a different partition than the EWK1/EWK2 wireless keyfob is assigned to, bind another EWK1/EWK2 keyfob to the system and assign it to a different partition. For more details on how to manage EWK1/EWK2 keyfob buttons, please refer to ELDES Configuration Tool software‘s HELP section.

  • Page 43: Arm-Disarm By Zone

    EKB3 Value: nn – on-board zone number, range – [01... 12]. Example: 3403# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Disable Arm-Disarm by OK → CONFIGURATION → OK → aaaa → OK → ZONES → OK → ARM/DISARM BY ZONE...

  • Page 44: Disabling And Enabling Arm/Disarm Notifications

    EKB3 Value: us – user phone number slot, range – [01... 05]. Example: 75030# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Enable arm/disarm OK → CONFIGURATION → OK → aaaa → OK → PRIMARY SETTINGS → OK → CALL/SMS...
  • Page 45 Value: aaaa – 4-digit administrator password. Enter parameter 22 & parameter status value: 22 1 # EKB3 Example: 221# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Disable arm/disarm Menu path: EKB2 notification for all OK →...

  • Page 46: Exit And Entry Delay

    Value: ext – exit delay duration, range – [0... 600] seconds. Example: 72259# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool NOTE: Alternatively, you can set exit delay value to 0 in order to arm the system without exit delay by any available method.
  • Page 47 Value: nn – zone number, range – [01... 44], eeeee – entry delay duration, range – [0... 65535] seconds Example: 5403259# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool For more details on zone types, please refer to 14.5. Zone Type Definitions. MANUAL ELDES ESIM264 V3.1...

  • Page 48: Zones

    14.3. 6-Zone Mode By default, ESIM264 alarm system runs in the 6-Zone mode under zone connection Type 1 allowing to connect up to 6 detection devices of NO (normally-open) type to the on-board zone terminals as indicated in the wiring diagram of Type 1. Once a different zone connection type is set, the detection device wiring must be done according to the wiring diagram of the associated type.

  • Page 49: Atz (Advanced Technology Zone) Mode

    – Type 3 Example: 392# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 14.4. ATZ (Advanced Technology Zone) Mode The ATZ mode is a software-based feature that doubles the number of on-board zones and enables two detection devices to be installed per 1 zone terminal.

  • Page 50: Zone Type Definitions

    38 2 # – Type 5 Example: 381# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool NOTE: The ATZ mode applies to on-board zones only when enabled. 14.5. Zone Type Definitions •...

  • Page 51: Zone Attributes

    Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool NOTE: The system will NOT activate siren/bell and keypad buzzer only when Panic/Silent zone type is violated. 14.6. Zone Attributes • Stay – If this attribute is enabled, the zone, regardless of type, will not cause an alarm if violated when the system is Stay armed. For more details on arming the system in the Stay mode, please refer to 15.
  • Page 52 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: On-board zone: OK → CONFIGURATION → OK → aaaa → OK → ZONES → OK → ONBOARD EKB2 Disable Stay attribute ZONES →...
  • Page 53 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Config Set Delay, ms atrribute This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Enable/disable Delay...

  • Page 54: Bypassing And Activating Zones

    Value: ssss – 4-digit SMS password; nn – zone number, range – [1... 44]; zone-name – up to 24 characters zone name. Example: 1111_Z3:Door sensor triggered Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: ssss_STATUS View zone names Value: ssss –...

  • Page 55: Disabling And Enabling Zones

    OK → EPGM1 ZONE 1... 16 → OK → NAME Value: aaaa – 4-digit administrator password. Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool ATTENTION: Colon, semi-colon characters, parameter names and/or values, such as PSW, STATUS, ON, OFF etc. are NOT allowed in zone...

  • Page 56: Stay Mode

    Value: nn – zone number, range – [01... 44]. Example: 52151# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 15. STAY MODE Stay mode allows the user to arm and disarm the alarm system without leaving the secured area. If the zones with Stay attribute enabled are violated when the system is Stay armed, no alarm will be caused.

  • Page 57: Tampers

    25 11 0 # - Wireless signal loss Example: 25110# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Tamper alarm: OK → CONFIGURATION → OK → aaaa → OK → SMS MESSAGES → OK →...

  • Page 58: Alarm Indications And Notifications

    To silent the siren/bell as well as to cease system phone calls and SMS text message sending to the user phone numbers, please disarm the system (see 12. ARMING AND DISARMING). SMS text message content: ssss_INFO View violated zones Value: ssss – 4-digit SMS password. Example: 1111_INFO Menu path: EKB2 OK → VIOLATED ZONES → OK → ZONE 1... 44 MANUAL ELDES ESIM264 V3.1...

  • Page 59: Enabling And Disabling Alarm Notifications

    29. INDICATION OF SYS- TEM FAULTS. Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool The systemwill automatically send an SMS text message, containing a violated tamper name, View violated tampers to user phone number.
  • Page 60 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool By, default the system will send SMS text message to preset user phone numbers in case of alarm. To disable/enable this feature, please refer to the following configuration methods.
  • Page 61 Regardles of the Call in Case of Alarm parameter status, the system will NOT ring the preset user phone number if the system is connected to the monitoring station (see 30. MONITORING STATION) and/or when ELDES Smart Security feature is in use (see 35.

  • Page 62: Programmable (Pgm) Outputs

    When a PGM output turns ON, the system triggers any device or relay connected to it. ESIM264 comes equipped with four open-collector PGM outputs allowing to connect up to four devices or relays. For more details on PGM output expanding, please refer to 18.2. PGM Output Expansion.

  • Page 63: Pgm Output Names

    EKB3 Example: 330# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 18.3. PGM Output Names Each PGM output has a name that can be customized by the user. Typically, the name specifies a device type connected to a determined PGM output, for Example: Lights.
  • Page 64 61 oo 1 # EKB3 Value: oo – PGM output number, range – [01... 76]. Example: 61031# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: Turn OFF PGM output/ ssss_Coo:OFF...

  • Page 65: Pgm Output Control By Event And Scheduler

    Partition 2 is disarmed. It means that the PGM output C1 will be turned ON when zone Z6 is violated, but only if system’s Partition 2 is disarmed. MANUAL ELDES ESIM264 V3.1...

  • Page 66: Wireless Pgm Output Type Definitions

    Manage PGM output Config control by event & This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool scheduler NOTE: When both - a system event is determined and a scheduler is selected, the PGM output will operate only if the determined event has occurred in the system during the scheduled time period.

  • Page 67: Wireless Devices

    The rest of attempts - every 2 minutes. Once the wireless device is bound, it will attempt to exchange data with ESIM264 system. Due to battery saving reasons, all ELDES wireless devices operate in sleep mode. The data exchange will occur instantly if the wireless device is triggered (zone alarm or tamper alarm) or pe- riodically when the wireless device wakes up to transmit the supervision signal, identified as Test Time, to the system as well as to accept the queued up command (if any) from the system.
  • Page 68 If you are unable to bind a wireless device, please restore the wireless device’s parameters to default and try again. For more details on how to restore the default parameters, please refer to the user manual provided along with the wireless device or visit www.eldes.lt/en/ download to download the latest user manual MANUAL ELDES ESIM264 V3.1...

  • Page 69: Wireless Device Information And Signal Status Monitoring

    In order to correctly remove the wireless device from the system, the user must remove the device using SMS text message or ELDES Configuration Tool software and restore the parameters of the wireless device to default afterwards. If only one of these actions is carried out, the wireless device and the system will attempt to exchange data to keep the wireless connection alive.

  • Page 70: Disabling And Enabling Siren If Wireless Signal Is Lost

    Enter parameter 76 & parameter status value: 76 1 # EKB3 Example: 761# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Disable Siren if EKB2 OK → CONFIGURATION → OK → aaaa → OK → PRIMARY SETTINGS → OK → SIREN SETTINGS Wireless Signal is Lost →OK →...

  • Page 71: Siren/Bell

    10 tt # EKB3 Value: tt – alarm duration, range – [00... 10] minutes. Example: 1007# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: ssss_SIREN View alarm duration Value: ssss –...

  • Page 72: Bell Squawk

    29 1 # EKB3 Example: 291# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: EKB2 OK → CONFIGURATION → OK → aaaa → OK → PRIMARY SETT INGS → OK → SIREN SETTINGS Disable Bell Squawk →...

  • Page 73: Ewf1 Interconnection

    EKB3 Example: 880# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 20.3. EWF1 Interconnection The interconnection feature automatically links all wireless smoke detectors to each other that are connected to the same alarm system unit.

  • Page 74: Backup Battery, Mains Power Supply Status Monitoring And Memory

    Enter parameter 25, notification number & parameter status value: 25 09 0 # EKB3 Example: 25090# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Enable Battery Failed EKB2 OK → CONFIGURATION → OK → aaaa → OK → SMS MESSAGES → OK → BATTERY FAIL EVENT notification →...
  • Page 75 Example: 25061# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool If the household electricity is unstable in the system installation area, the system may temporally lose its power supply and continue op- erating on the backup battery power.
  • Page 76 Enter parameter 25, notification number & parameter status value: 25 05 0 # EKB3 Example: 25050# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Enable mains power EKB2 OK → CONFIGURATION → OK → aaaa → OK → SMS MESSAGES → OK → MAIN PWR REST EV →...

  • Page 77: Gsm Connection Status Monitoring

    By default, the PGM output for GSM signal loss indication is not set. To set the PGM output and delay duration for GSM signal loss indication, please refer to the following configuration method. Manage GSM signal Config loss indication by PGM This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool output MANUAL ELDES ESIM264 V3.1...

  • Page 78: Partitions

    23. PARTITIONS ESIM264 system comes equipped with a partitioning feature that can divide the alarm system into two independently controlled areas identified as Partition 0 through 1, which are all supervised by one alarm system unit. Partitioning can be used in installations where shared alarm system is more practical, such as a house and a garage or within a single multi-storey building.

  • Page 79: Keypad Partition And Keypad Partition Switch

    Example: 51062# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Keypad partition switch allows to quickly change the keypad partition. When the keypad partition is changed and when 1 minute after the last key-stroke/key-touch expires, the system will return to the preset keypad partition.

  • Page 80: User Password Partition

    Value: uuuu – 4-digit user password; p – partition number, range – [0... 1]. Example: 8711110# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 23.5. iButton Key Partition iButton key partition determines which system partition can be armed/disarmed using a certain key. iButton key must be assigned to the partition (-s) that the user desires to arm.

  • Page 81: Temperature Sensors

    Value: mnn – MIN boundary, range – [-55... 125] C; mxx - MAX boundary, range – [-55... 125] C. 00 value stands for minus character, e. g. 0020 = -20 Example: 19001532# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool MANUAL ELDES ESIM264 V3.1...
  • Page 82 Value: aaaa – 4-digit administrator password. Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool By default, Temperature Info SMS is enabled. To disable/enable it, please refer to the following configuration methods.

  • Page 83: Remote Listening And 2-Way Voice Communication

    25. REMOTE LISTENING AND 2-WAY VOICE COMMUNICATION ESIM264 comes equipped with a microphone that allows the user to listen on his mobile phone to what is happening in the secured area. By installing one of the audio modules EA1 or EA2, the user will be able to have a 2-way voice communication (see 31.3.2. EA1 – Audio Output Module and 31.3.3.

  • Page 84: System Information. Info Sms

    Value: ssss – 4-digit SMS password. Example: 1111_INFO Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 26.1. Periodic Info SMS By default, the system sends Info SMS to User 1 phone number periodically once a day at 11:00 (frequency – 1 day; time – 11). The mini- mum period is every 1 hour (frequency –...
  • Page 85 EKB3 Example: 110000# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool ATTENTION: Unlike Info SMS upon request, periodic Info SMS text message does not included zone states, PGM output names and status.

  • Page 86: System Notifications

    When the system is running on backup battery power, it sends the SMS text message to the user before the backup battery power is fully depleted. ATTENTION: The following methods provide the configuration of the master parameters, which override the notification parameters described in 12.9. Disabling and Enabling Arm/Disarm Notifications. MANUAL ELDES ESIM264 V3.1...
  • Page 87 - System shutdown 25 14 0 # - Temperature fallen 25 15 0 # - Temperature exceeded Example: 25040# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool MANUAL ELDES ESIM264 V3.1...
  • Page 88 - System shutdown 25 14 1 # - Temperature fallen 25 15 1 # - Temperature exceeded Example: 25061# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool MANUAL ELDES ESIM264 V3.1...

  • Page 89: Smsc (Short Message Service Center) Phone Number

    Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits SMSC phone number. Example: 1111_SMS_+4417031111111 ATTENTION: Before setting the SMSC phone number, please check the credit balance of the system’s SIM card. The system will fail to reply if the credit balance is insufficient. MANUAL ELDES ESIM264 V3.1...

  • Page 90: Event Log

    To export the event log to .log file or clear it, please refer to the following configuration method. Config Export/clear event log This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool By default, event log is enabled. To disable/enable this feature, please refer to the following configuration methods.

  • Page 91: Indication Of System Faults

    To disable/enable the indication of a certain system fault, please refer to the following configuration method. Disable/enable Config individual system fault This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool indication on keypad NOTE: After enabling/disabling a certain system fault indication, it is necessary to restart the system by fully powering it down and power- ing it up again.
  • Page 92 Zone LED 3 = 3 Zone LED 9 = 24 Zone LED 4 = 4 Zone LED 10 = 30 Zone LED 5 = 5 Zone LED 11 = 36 Zone LED 6 = 6 Zone LED 12 = 42 MANUAL ELDES ESIM264 V3.1...

  • Page 93: Monitoring Station

    Enter parameter 23 & parameter status value: 23 1 # EKB3 Example: 231# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: ssss_SCNSET:OFF Disable MS mode Value: ssss – 4-digit SMS password.

  • Page 94: Data Messages - Events

    Transmitted in case the system is armed by SGS password. password) 1602 Test event/Kronos ping Transmitted for system online status verification purposes. 3626 Date/time not set Transmitted in case system date & time is not set. 1900 System started Transmitted on system startup. MANUAL ELDES ESIM264 V3.1...
  • Page 95 User Password 23 User Password 24 User Password 25 User Password 26 User Password 27 User Password 28 User Password 29 User Password 30 Remote Code (EGR100) KeyFob 1 KeyFob 2 KeyFob 3 KeyFob 4 KeyFob 5 MANUAL ELDES ESIM264 V3.1...
  • Page 96 – Temperature fallen 24 10 0 # – Temperature risen 24 13 0 # – System shutdown Example: 24080# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool MANUAL ELDES ESIM264 V3.1...
  • Page 97 – Temperature fallen 24 10 1 # – Temperature risen 24 13 1 # – System shutdown Example: 24031# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool MANUAL ELDES ESIM264 V3.1...

  • Page 98: Communication

    If a new data message, except Test Event (ping), is generated during Delay after last communication attempt time, the system will immediately attempt to transmit it to the monitoring station, regardless of Delay after last communication attempt being in progress. MANUAL ELDES ESIM264 V3.1...
  • Page 99 Waits for 600 seconds Transmits all queued up data Delay after last communication attempt Returns to PRIMARY Returns to PRIMARY NOTE: The number of attempts, indicated in the diagram, are default and depends on the determined communication method. MANUAL ELDES ESIM264 V3.1...
  • Page 100 – CSD 48 4 # – SMS Example: 484# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Set backup connection GPRS network: OK → CONFIGURATION → OK → aaaa → OK → MS SETTINGS → OK →...
  • Page 101 NOTE: The system is fully compatible with Kronos NET/Kronos LT monitoring station software for communication via GPRS network. When using a different monitoring station software, EGR100 middleware is required. EGR100 is freeware and can be downloaded at www.eldes.lt/ en/download 30.2.1. GPRS Network The system supports data transmission to the monitoring station via IP-based networks by GPRS network.
  • Page 102 EKB3 43 1 # - UDP Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Set DNS1 server IP OK → CONFIGURATION → OK → aaaa → OK → GPRS SETTINGS → OK → DNS1 → OK → add.
  • Page 103 Value: ssss – 4-digit SMS password; acc-point-name – up to 31 character APN (Access Point Name) provided by the GSM operator. Example: 1111_SETGPRS:APN:internet Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: ssss_SETGPRS:USER:usr-name Set user name Value: ssss –...
  • Page 104 EKB3 Value: tteessttpp – test period, range – [0... 65535] seconds. Example: 46120# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool NOTE: 0 value disables test period. Unit ID is a 4-digit number (By default – 0000) required to identify the alarm system unit by EGR100 middle-ware. It is MANDATORY to change the default Unit ID before using EGR100.
  • Page 105 Value: ps – phone number slot, range – [01... 03]; ttteeellnnuumm – up to 15 digits monito- ring station phone number. Example: 26014417091111111# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Delete monitoring OK →...
  • Page 106 → MICROPHONE GAIN → OK → mg → OK Value: aaaa – 4-digit administrator password; mg – microphone gain, range – [0... 15]. Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 30.2.3. CSD The system supports up to 5 monitoring station phone numbers for communication with the alarm system by CSD communication method.
  • Page 107 Enter parameter 84 & number of attempts: 84 at # EKB3 Value: at – number of attempts, range – [01... 10]. Example: 8403# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool MANUAL ELDES ESIM264 V3.1...

  • Page 108: Eldes Wired Devices

    Temperature display (see 31.1.1.1.2 Keys Functionality). • Time display (see 31.1.1.1.2 Keys Functionality). The system configuration is performed by accessing EKB2 menu and entering the required values. ESIM264 system allows to connect up to 4 EKB2 keypads. 31.1.1.1. Technical Specifications 31.1.1.1.1 Electrical &...
  • Page 109 A0 and A1 pins located on the back side of the keypad are intended to set keypad address. The keypad address is set by putting the jumper (-s) on the pins. ESIM264 system allows to connect up to 4 EKB2 keypads - each set under different address. Jumper combinations for dif- ferent keypad address configuration are indicated in the table below.
  • Page 110 Keypad 3 Keypad 2 Keypad 4 The address of each connected keypad is also indicated in ELDES Configuration Tool software. 31.1.1.2. Installation Remove the screw located on the bottom side of the enclosure (see Fig. No. 2. Detach keypad holder from EKB2 keypad by gently pulling the holder towards yourself (see Fig.
  • Page 111 Keypad EKB2 has one wired zone Z1 and one tamper button. By default, the keypad zone Z1 is disabled. The keypad zone can be enabled by SMS, EKB2 keypad, EKB3 keypad and ELDES Configuration Tool software (see 14.9. Disabling and Enabling Zones). When Z1 is enabled, it operates like any other system zone, therefore a sensor can be connected to it.

  • Page 112: Menu Tree

    PASSWORD [0000... 9999] PARTITION0 | PARTITION1 PARTITION USER PASSWORD 17... 30 PARTITION PARTITION0 | REMOVE PARTITION1 N/A | 1... 10 DURESS PASSWORD N/A | 1... 10 SGS PASSWORD [0000... 9999] REMOVE PASSWORD Continued in next page MANUAL ELDES ESIM264 V3.1...
  • Page 113 24-HOUR | DELAY | FIRE | PANIC/SILENT ENTRY DELAY [1... 65535] seconds GSM AUDIO DISABLE | ENABLE STAY MICROPHONE GAIN [0... 15] TAMPER NAME [0... 100] SPEAKER LEVEL PARTITION0 | PARTITION1 PARTITION FORCE DISABLE | ENABLE Continued in next page MANUAL ELDES ESIM264 V3.1...
  • Page 114 [1... 65535] 15 digits TEL. NUMBER1 ttteeellnnuumm [0.0.0.0] DNS1 ttteeellnnuumm 15 digits TEL. NUMBER2 [0.0.0.0] DNS2 USER TEL. NUMBER3 ttteeellnnuumm 15 digits TCP | UDP PROTOCOL PASSWORD [1... 65535] SERVER PORT PROFILE Continued in next page MANUAL ELDES ESIM264 V3.1...
  • Page 115 GPRS | VOICE CALLS | RS485 | CSD | SMS | N/A BACKUP CONNECTION3 GPRS | VOICE CALLS | RS485 | CSD | SMS | N/A BACKUP CONNECTION4 GPRS | VOICE CALLS | RS485 | CSD | SMS | N/A MANUAL ELDES ESIM264 V3.1...
  • Page 116 Keypad partition switch (see 23.3. Keypad Partition and Keypad Partition Switch). The system configuration by EKB3 keypad is performed by activating the Configuration mode (see 5. CONFIGURATION METHODS) and en- tering the required parameters & values. ESIM264 system allows to connect up to 4 EKB3 keypads. 31.1.2.1. Technical Specifications 31.1.2.1.1 Electrical &...
  • Page 117 Pins 3 and 2 located on the back side of the keypad are intended to set keypad address. The keypad address is set by putting the jumper (-s) on the pins. ESIM264 system allows to connect up to 4 EKB3 keypads - each set under different address. Jumper combinations for different keypad address configuration are indicated in the table below.
  • Page 118 5,6k Wire up keypad terminals to ESIM264 alarm system respectively – AUX+ to AUX+, AUX- to AUX-, Y to Y, G to G. (see Fig. No. 46). 4. Connect a sensor and the resistor across Z1 and COM terminalss in accordance with zone connection Type 1 or Type 2 (see 2.3.2. Zone Connection Types).
  • Page 119 31.1.3. EPGM1 - Hardwired Zone & PGM Output Expansion Module EPGM1 is a hardwired zone & PGM output expansion module intended for using with ELDES alarm systems. Main EPGM1 features: • hardwired zone expansion adding 16 additional zones • 2 PGM output expansion for electrical appliance connection 31.1.3.1.
  • Page 120 Disconnect ESIM264 alarm system main power supply and backup battery. 2. Connect EPGM1 DC+ terminal to ESIM264 AUX+ terminal, EPGM1 COM terminal to ESIM264 AUX- terminal, EPGM1 Y and G terminals must be connected to ESIM264 Y and G terminals respectively (see Fig. No. 48).

  • Page 121: 1-Wire Interface

    For more details on iButton key management, please refer to 11. iBUTTON KEYS. 31.3. Modules Interface 31.3.1. EPGM8 - Hardwired PGM Output Expansion Module EPGM8 is a PGM output expansion module intended for using with alarm system ESIM264. This module allows to connect up to additional 8 electrical appliances. Main EPGM8 features: •...
  • Page 122 D1 D2 D3 D4 D5 D6 D7 D8 31.3.1.2. Installation 1. Disconnect ESIM264 alarm system main power supply and backup battery. 2. Insert EPGM8 pins into appropriate ESIM264 alarm system slots (see Fig. No. 51) EPGM8 ESIM264 D1 D2 D3 D4 D5 D6 D7 D8...
  • Page 123 3. Connect EPGM8 12V positive power supply terminal with ESIM264 alarm system AUX+ terminal and EPGM8 GND terminal with ESIM264 alarm system AUX- terminal. (see Fig. No. 52). 4. Connect the electrical appliances to D1 – D8 PGM outputs. (see Fig. No. 52).
  • Page 124 31.3.2. EA1 – Audio Output Module EA1 audio output module enables a duplex audio connection for ESIM264 alarm system. Main EA1 features: • Two-way voice conversation during a phone call; • Possibility to connect headphones or desktop speakers. 31.3.2.1. Technical Specifications •...
  • Page 125 31.3.3. EA2 – Audio Output Module with Amplifier EA2 audio output module enables a duplex audio connection for ESIM264 alarm system. Main EA2 features: • Two-way voice conversation during a phone call; • Possibility to connect a speaker. 31.3.3.1. Technical Specifications •...

  • Page 126: Eldes Wireless Devices

    EWS1, wireless outdoor sirens EWS2, wireless magnetic door contacts EWD1, wireless magnetic door contacts/shock sensors EWD2, wireless smoke detectors EWF1 and wireless key-fobs EWK1 and EWK2. EWT1 enables ESIM264 alarm system to connect up to 16 wireless devices at a time. Maximum wireless connection range is 150 meters (in open areas).

  • Page 127: Ew1 - Wireless Zone & Pgm Output Expansion Module

    SMS text message or using software ELDES Configuration Tool. It is possible to connect up to 16 EW1 devices to ESIM264 alarm system at a time. The maximum wireless connection range is 150 meters (in open areas).

  • Page 128: Power Supply

    2. Wire up EW1 as indicated in Fig. No. 59. 3. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Configuration Tool software. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 129: Ewp1 - Wireless Motion Detector

    EWP1 is a wireless device with built-in PIR movement sensor and operates with ELDES wireless alarm systems. The user only needs to switch on the EWP1 sensor and bind it to ESIM264 alarm system by sending a corresponding command via SMS text message or using software ELDES Configuration Tool.
  • Page 130 3. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Configuration Tool software. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 131: Ewd1 - Wireless Magnetic Door Contact

    Silent zone and in case the panic button is pressed, the system causes silent alarm (no siren is activated). It is possible to connect up to 16 EWD1 devices to ESIM264 alarm system at a time. The maximum wireless connection range is 150 meters (in open areas).
  • Page 132 3. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Configuration Tool software. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 133: Ewk1 - Wireless Keyfob

    Sound indication by built-in mini buzzer. Keyfob EWK1 – is a wireless device intended to arm and disarm ESIM264 alarm system, to open and close the gates or to control any other de- vice connected to the alarm system. Wireless keyfob EWK1 is compatible with ELDES wireless alarm systems, therefore user can easily bind it to the alarm system using ELDES Configuration Tool software or sending a corresponding SMS command.
  • Page 134 4. Close and screw up the keyfob housing. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Configuration Tool soft- ware. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 135: Ews1 - Wireless Indoor Siren

    Audio alarm indication by built-in speaker. EWS1 is a wireless device with built-in siren speaker and operates with ELDES wireless alarm systems. EWS1 has to be bind to the alarm sys- tem by sending a corresponding SMS text message or using software ELDES Configuration Tool. Upon successful EWS1 binding, the system adds one wireless zone and one wireless PGM output.
  • Page 136 Close EWS1 enclosure. No tools are required for this action. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Configuration Tool software. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 137: Ews2 - Wireless Outdoor Siren

    In case of tamper violation, the alarm is caused regardless of system being armed or disarmed. The wireless connection loss between EWS1 and ESIM264 system leads to alarm. The system identifies this event as a tamper violation and sends alarm by SMS text message and phone call to the user (-s) by default.
  • Page 138 2. Once the enclosure is opened, remove the plastic tab inserted between one of the battery terminal and battery slot contact (see Fig. No. 77). 3. Fix the siren on the wall using the screws (see Fig. No. 78). MANUAL ELDES ESIM264 V3.1...
  • Page 139 4. Close EWS2 enclosure (see Fig. No. 76, Fig. No. 75) 5. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Configuration Tool soft- ware. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 140: Ew1B - Battery-Powered Wireless Zone & Pgm Output Expansion Module

    SMS text message or using software ELDES Configuration Tool. t is possible to connect up to 16 EW1B devices to ESIM264 alarm system at a time. The maximum wireless connection range is 150 meters (in open areas).
  • Page 141 6. Close EW1B enclsoure (see Fig. No. 81, Fig. No. 80). Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Configuration Tool software. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.
  • Page 142 EW1B module binding process, the system adds 2 wireless Instant zones intended for wired sensor connection and 2 wire- less PGM outputs intended for electrical appliance connection and control. The wireless connection loss between EW1B and ESIM264 alarm system leads to system alarm regardless of system being armed or disarmed.

  • Page 143: Ewf1 - Wireless Smoke Detector

    When the concentration of smoke in the optical chamber exceeds a given threshold, EWF1 sounds the alarm and sends out a signal to the ESIM264 alarm system using the wireless connection and the system triggers the alarm.
  • Page 144 If there is a basement: Install a wireless smoke detector on the basement ceiling at the bottom of the stairwell. Bedroom Bedroom Living Room Family Room LEGEND: Minimum required smoke Bedroom detector locations. Dining Room Kitchen Recommended additional smoke detector locations MANUAL ELDES ESIM264 V3.1...
  • Page 145 In rooms where temperatures may fall below 5 C or rise above 45 • In extremely dusty, dirty, or insect-infested areas where loose particles interfere with wireless smoke detector operation. ATTENTION: Incorrect placement will result in a decrease of operational effectiveness. MANUAL ELDES ESIM264 V3.1...
  • Page 146 DO NOT use an open flame to test this wireless smoke detector. You may ignite and dam age the wireless smoke detector or your home. • If the wireless smoke detector does not sound, please check the battery and signal level using ELDES Configuration Tool software. ATTENTION: Test all wireless smoke detectors weekly to ensure proper operation.
  • Page 147 NOTE: The battery status can be monitored in real-time using ELDES Configuration Tool software. NOTE: The system sends an SMS message to the preset user phone number as soon as the battery level runs below 5%.

  • Page 148: Ewk2 - Wireless Keyfob

    LED indicator flash stands for failed command and feedback signal failure. By default, one pair of buttons is already configured to arm and disarm the alarm system. It is possible to connect up to 5 EWK2 devices to ELDES alarm system at a time. The maximum wireless connection range is 150 meters (in open areas).
  • Page 149 2. Once the enclosure is opened, remove the PCB from the EWK2 enclosure and flip the PCB so that the back side would be facing up. 3. Insert the CR2032 type battery provided in the EWK2 package. Before inserting the battery, ensure that it is positioned plus-marked side up. BATTERY CR2032 MANUAL ELDES ESIM264 V3.1...
  • Page 150 EWK2 keyfob supports a Panic Button feature allowing to cause alarm at any time when the specified button is pressed. This feature can be configured using ELDES Configuration Tool by creating a virtual zone of Panic/Silent or 24-Hour type and assigning it to Virtual Alarm option.

  • Page 151: Ewd2 - Wireless Door Contact/Shock Sensor/Water Sensor

    ELDES Configuration Tool software or by sending a corresponding SMS text message to ELDES alarm system. It is possible to connect up to 16 EWD2 devices to ESIM264 alarm system. The maximum wireless connection range is 150 meters (in open areas).
  • Page 152 4. Wire up the external digital sensor (if any) or water sensor (if any) to Z and COM terminals, otherwise do not perform any wiring. Insert the PCB back into the enclosure MANUAL ELDES ESIM264 V3.1...
  • Page 153 8. Cover the magnet. No tools are required for this action. 9. Remove the plastic tab inserted between one of the battery terminals and battery slots of EWD2. 10. Close EWD2 enclosure using the cover. No tools are required for this action. MANUAL ELDES ESIM264 V3.1...
  • Page 154 11. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Configuration Tool software. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 155: Ews3 - Wireless Indoor Siren

    The configuration of this parameter is disabled for EWS3 in order to save the battery power. It is possible to connect up to 16 EWS3 devices to ESIM264 alarm system. The maximum wireless connection range is 150 meters (in open areas).
  • Page 156 Burglary, 24-Hour or tamper alarm in progress ALARM (red) flashing Fire alarm in progress 32.12.2. Installation 1. open EWS3 enclosure. a. Press and hold b. Pull down 2. Once the enclosure is opened, fix the siren to the wall using the screws. MANUAL ELDES ESIM264 V3.1...
  • Page 157 3. Remove the plastic tab inserted between one of the battery terminals and battery slot contacts. The wireless connection loss between EWS3 and ELDES alarm system leads to alarm. The system identifies this event as a tamper viola- tion and sends an alarm by SMS text message and phone call to the user (-s) by default. The SMS message contains the wireless device model, wireless ID code and tamper number.
  • Page 158 The system sends an SMS message to a preset user phone number as soon as the battery level runs below 5%. NOTE: The battery status can be monitored in real-time using ELDES Configuration Tool software. 32.12.5. Restoring default parameters 1. Remove one battery from EWS3.

  • Page 159: Remote System Restart

    In some critical situations, a system restart may be required. To remotely carry out system restart, please refer to the following configu- ration method. SMS text message content: ssss_RESET Restart the system Value: ssss – 4-digit SMS password. Example: 1111_RESET MANUAL ELDES ESIM264 V3.1...

  • Page 160: Technical Support

    If your problem could not be fixed by the self-guide above, please contact your local distributor. More up to date informa- tion about your device and other products can be found at the manufacturer’s website www.eldes.lt 34.2. Restoring Default Parameters Disconnect the power supply and backup battery.

  • Page 161: Updating Firmware Via Gprs Connection Remotely

    Comma character is NOT allowed to use in user name and firmware file name. ATTENTION: “ELDES UAB” does not run a FTP server and does not host the firmware files online. Please, contact your local distributor to request the latest firmware file: support@eldes.lt NOTE: It is strongly recommended to restore default parameters after the firmware update.

  • Page 162: Frequently Asked Questions

    Question Answer Yes, ESIM264 device can fully operate without any SIM card inserted. In this case Can ESIM264 operate as standalone device without SIM you will not be able to configure and control the device by SMS and calls nor to card inserted? receive any SMS reports and calls.
  • Page 163 ..bin file (must be located in the FTP server folder titled Firmware) and configure the device or update the firmware remotely. the mobile internet feature presence on the SIM card used with ESIM264. Whats wrong? If this does not solve the problem, please contact your GSM operator (and ISP - for remote configuration problems) in order to request a list of blocked TCP ports.

  • Page 164: Related Products

    35. RELATED PRODUCTS EKB2 - LCD keypad EKB3 - LED keypad EPGM1 - hardwired zone and PGM output expansion module ME1 - metal cabinet EPGM8 - hardwired PGM output expansion module EA1 - audio output module MANUAL ELDES ESIM264 V3.1...
  • Page 165 EA2 - audio output module with amplifier DS1990A-F5 - iButton key ED1T - plastic enclosure with iButton key reader DS18S20 - temperature sensor and temperature sensor EWP1 - wireless PIR sensor (motion detector) EWD1 - wireless magnetic door contact MANUAL ELDES ESIM264 V3.1...
  • Page 166 EWK1 - wireless keyfob EWF1 – wireless smoke detector EW1B - battery-powered wireless zone and EW1 - wireless zone and PGM output expansion module PGM output expansion module EWD2 - wireless door contact/shock sensor EWK2 - wireless keyfob MANUAL ELDES ESIM264 V3.1...
  • Page 167 EWS3 - wireless indoor siren MANUAL ELDES ESIM264 V3.1...
