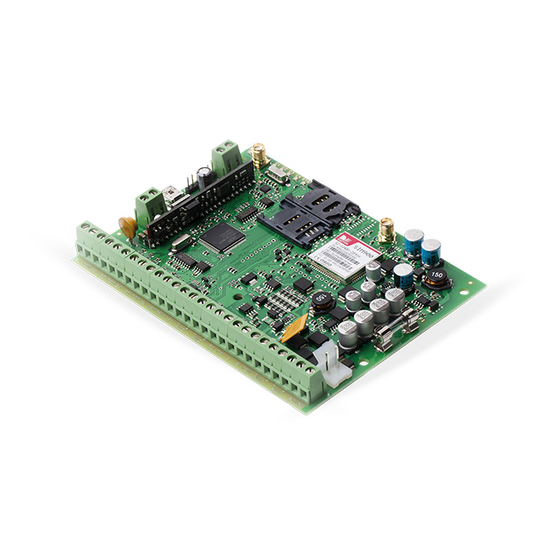

ESIM364
GSM ALARM AND MANAGEMENT SYSTEM
USER MANUAL
COMPLIES WITH EN 50131-1 GRADE 3, CLASS II REQUIREMENTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESIM364 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes ESIM364

Summary of Contents for Eldes ESIM364

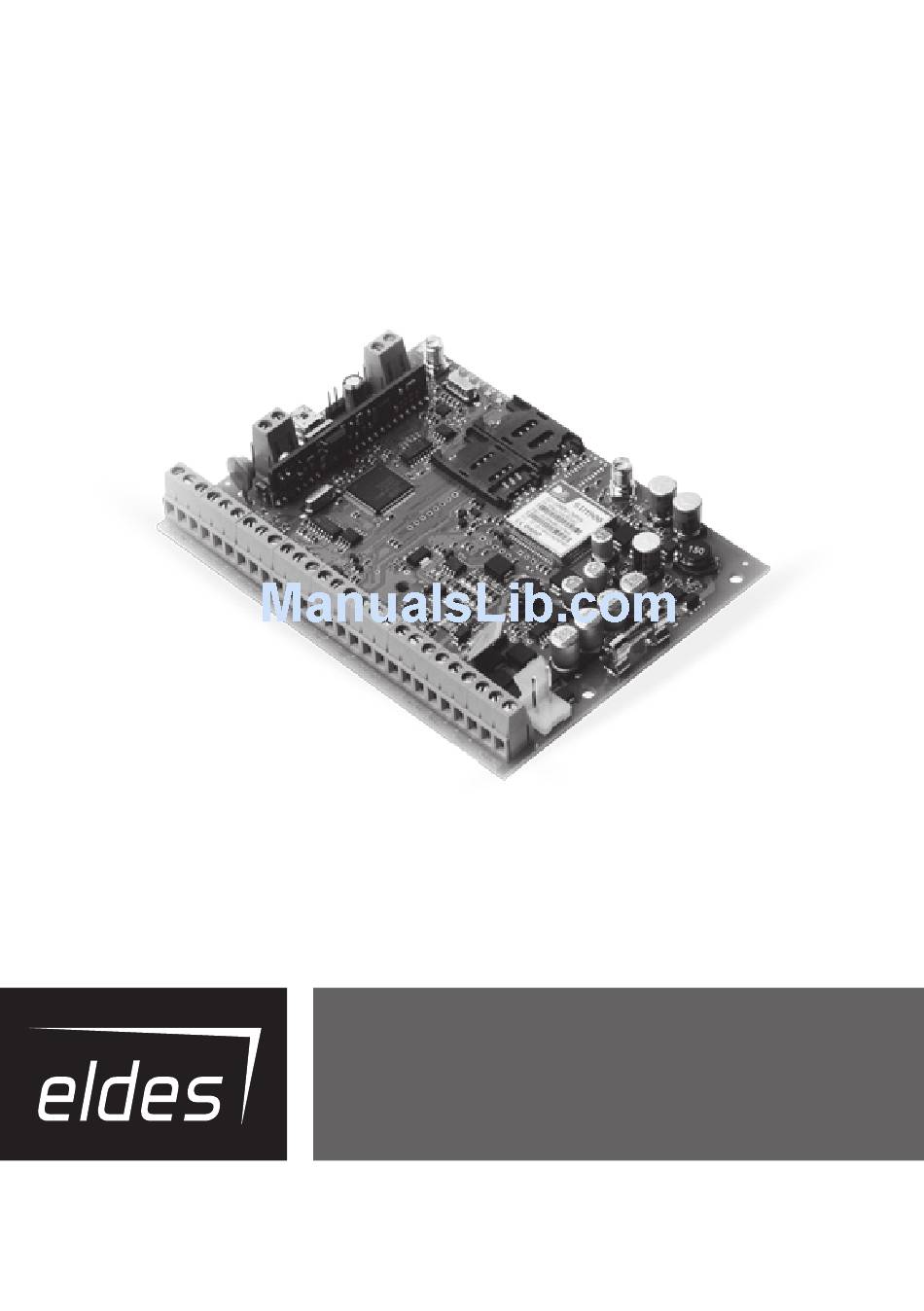

  • Page 1 ESIM364 GSM ALARM AND MANAGEMENT SYSTEM USER MANUAL COMPLIES WITH EN 50131-1 GRADE 3, CLASS II REQUIREMENTS...
  • Page 2 • DO NOT attempt to personally repair the system. • System label is on the bottom side of the device. GSM alarm system ESIM364 is a device mounted in limited access areas. Any system repairs must be done only by qualified, safety aware personnel.
  • Page 3 In any case, the liability of “ELDES, UAB”, as much as it is allowed by the laws in force, shall not exceed the price of acquisition of the product.

  • Page 4: Table Of Contents

    17. IF THE ALARM SYSTEM IS CONNECTED TO A MONITORING STATION ..................36 18. TECHNICAL SPECIFICATIONS ..............................37 18.1. Electrical and Mechanical Characteristics ..............................37 18.2. Main Unit, LED and Connector Functionality ..............................38 18.3. Wiring Diagrams ......................................... 39 ESIM364 USER MANUAL V1.6...
  • Page 5 It is strictly forbidden to copy and distribute the information contained in this document or to pass thereof to a third party without an a priori written authorization obtained from “ELDES, UAB”. “ELDES, UAB” reserves the right to update or modify this document and/or related products without an a priori warning.

  • Page 6: General Information

    1. GENERAL INFORMATION ESIM364 is an alarm system for private houses, cottages, village houses, garages, warehouses and other buildings, also capable of turning on/off the electrical appliances by SMS text message and alarm system keypad. This alarm system provides a simple thus effective way of use.

  • Page 7: Ekb2 Keypad Overview

    1.2. EKB2 Keypad Overview EKB2 is an LCD keypad intended for using with ESIM364 alarm system. Custom keypad Temperature partition title Digital clock GSM signal strength 20,2 00:45 GARAGE System status KITCHEN BEDROOM and alarm CORRIDOR indication Bypassed violated zone...

  • Page 8: Ekb3/Ekb3W Keypad Overview

    1.3. EKB3/EKB3W Keypad Overview EKB3/EKB3W is a LED keypad intended for using with ESIM364 alarm system. LED Functionality Steady ON - alarm system is armed / exit delay in progress; flashing - Configuration mode activated Steady ON - system is ready –...

  • Page 9: Partitions

    By default, the system is NOT partitioned and all user phone numbers, user codes (except for master code, which is assigned to all 4 system partitions by default), keypads, iButton keys, zones are assigned to Partition 1. ESIM364 USER MANUAL V1.6...

  • Page 10: Basic Configuration And Use

    • EWK2 wireless keyfob In order to configure and control the system using SMS text message, send the text command to the ESIM364 system phone number from one of the listed user phone numbers. In this user manual the underscore symbol ”_” represents one space char- acter.

  • Page 11: Master And User Codes

    Value: mmmm – 4-digit master code; uuuu – 4-digit user code. Press , enter the master code and the user code slot you wish to delete: EKB3/ mmmm us EKB3W Value: mmmm - 4-digit master code; us - user code slot, range - [02... 30]. Example: ESIM364 USER MANUAL V1.6...

  • Page 12: Setting Duress And Sgs Codes

    Example #3: The user wants to assign the master code to Partition 1, 3 and 4. According to the table value 1 reflects Partition 1, while values 4 and 8 reflect Partitions 3 and 4 respectively, therefore 1 + 4 + 8 = 13. He would then have to enter value 13. ESIM364 USER MANUAL V1.6...

  • Page 13: Setting Up Date And Time

    When the alarm system is connected to a monitoring station the date and time are set automatically. The system retrieves this data from the monitoring station by itself. 1. Send the following SMS text message to the phone number of ESIM364 alarm system: SMS text message content: ssss_yyyy.mm.dd_hr:mn...

  • Page 14: Arming, Disarming And Turning Off The Alarm

    By default, all listed user phone numbers are granted with permission to arm and disarm the system by free of charge phone call and SMS text message. To disable/enable arming or disarming for certain listed user phone numbers, please refer to the following configuration method. ESIM364 USER MANUAL V1.6...

  • Page 15: Sms Text Message

    Manage arming and Config disarming for listed This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool user phone numbers 5.2. SMS Text Message To arm the system by SMS text message, send the following text to the system‘s phone number from any of 10 available user phone numbers.

  • Page 16: Ekb2 Keypad And User/Master Code

    • the countdown timers will disappear. • user will be notified by SMS text message • in addition, the keypad may display icon next to the partition name that has been armed (by default – disabled). ESIM364 USER MANUAL V1.6...
  • Page 17 KEYPAD BLOCKED message. While the keypad is blocked, the system prevents from entering any user/master code. The keypad will automatically unblock once the 2-minute time period has expired and display KEYPAD UNBLOCKED message. ESIM364 USER MANUAL V1.6...

  • Page 18: Ekb3 Keypad And User/Master Code

    The disarmed-ready partitions will be armed and the pre-armed ones will be skipped. Hold the key, release it after 3 short beeps and enter user/ master code: Arm all 4 partitions uumm simultaneously Value: uumm – 4-digit user or master code. Example: ESIM364 USER MANUAL V1.6...
  • Page 19 NOTE: Before disarming all 4 partitions simultaneously, the user/master code must be assigned to all 4 partitions and the keypad partition switch feature enabled (please, contact your alarm system installer to set up this parameter). ESIM364 USER MANUAL V1.6...

  • Page 20: Ekb3W Keypad And User/Master Code

    • Partitioned system - disarming a single partition – To disarm and turn OFF the alarm in a different partition than the keypad is assigned to, use keypad partition switch feature (by default – disabled; please, contact your alarm system installer to set up this ESIM364 USER MANUAL V1.6...

  • Page 21: Ibutton Key

    For example, if iButton 5 is assigned to Partition 1 and 4, the user will be able to arm/ disarm Partition 1 and 4 by touching iButton 5 to the reader. For more details on how to set iButton key partition, please contact your alarm system installer. ESIM364 USER MANUAL V1.6...

  • Page 22: Ewk1/Ewk2 Wireless Keyfob

    For example, if EWK2 is assigned to Partition 1 and 4, the user will be able to arm/ disarm Partition 1 and 4 by pressing the corresponding button. For more details on how to set EWK1/EWK2 keyfob partition, please contact your alarm system installer. ESIM364 USER MANUAL V1.6...

  • Page 23: Arming In Stay Mode

    The system can be armed in Stay mode, only if at least one zone with Stay attribute enabled exists. Please contact your alarm system installer to set up this parameter. NOTE: The system can also be instantly Stay-armed using ELDES Cloud Services. NOTE: Stay mode is not supported by virtual zones.

  • Page 24: Alarm Indications And Notifications For User. Viewing Violated Zones And Tampers

    ESIM364 unit. This feature is provided by a microphone (if any) connected to ESIM364. The system will attempt to dial the first user phone number (presumably User 1) assigned to the partition that has been violated.

  • Page 25: Bypassing And Activating Zones

    • System status: partition armed (ON)/disarmed (OFF). • GSM signal strength level. • Mains power status. • Temperature of the area surrounding ESIM364 primary and secondary temperature sensors (if any). • State of zones (OK/alarm). • Name and status (ON/OFF) of PGM outputs.

  • Page 26: Managing Periodical System Information

    2. The system will reply to the user phone number that sent the SMS text message with the following up-to-date informa- tion: • System status: partition armed (ON)/disarmed (OFF). • Status of zones and PGM outputs (ON/OFF). • Zone alarm texts. • PGM output names. User ESIM364 ESIM364 USER MANUAL V1.6...

  • Page 27: Sms Text Message Delivery Restrictions

    11.2 SMS Forward ESIM364 comes up with a feature, called SMS forward. The system allows user to forward any received message from devices’ SIM card to the administrators’ mobile phone number. There are 4 basic SMS forwarding options: •...

  • Page 28: Managing And Viewing Temperature Information

    Enter valid user/master code and navigate through the following path using OK and arrow keys to view real-time temperature sensor values: EKB2 Menu path: OK → uumm → OK → TEMP SENSORS INFO → OK → 1... 8 Value: uuuu – 4-digit user or master code. ESIM364 USER MANUAL V1.6...

  • Page 29: Indication Of System Faults

    Example: 1111_ITEMP:4 Fore more about temperature information please refer to ESIM364 installation manual, located at eldesalarms.com. 13. INDICATION OF SYSTEM FAULTS The system comes equipped with self-diagnostic feature allowing to indicate the presence of any system fault by the keypad as well as by SMS text message notification to the listed user phone number.
  • Page 30 Zone LED 3 = 3 Zone LED 9 = 24 Zone LED 4 = 4 Zone LED 10 = 30 Zone LED 5 = 5 Zone LED 11 = 36 Zone LED 6 = 6 Zone LED 12 = 42 ESIM364 USER MANUAL V1.6...

  • Page 31: Controlling Electrical Appliances

    OK → mmmm → OK → PGM OUTPUTS → OK → out-name → ON → OK Wireless PGM output:OK → mmmm → OK → PGM OUTPUTS → OK → out-name → ON → OK Value: mmmm – 4-digit master code; out-name – up to 16 characters PGM output name. ESIM364 USER MANUAL V1.6...

  • Page 32: Turning On/Off The Electrical Appliances For A Determined Time Period

    PGM output can be turned ON for a determined time period only when it is in OFF state. NOTE: PGM output can be turned OFF for a determined time period only when it is in ON state. ESIM364 USER MANUAL V1.6...

  • Page 33: Power Consumption Monitoring

    ON/OFF LED indication Description EWM1 when Flashing (green) EWM1 is unpaired or wireless con- paired with ELDES nection with ELDES alarm system alarm system is lost Steady ON (red) Fault is present Type E, F or G outlet...
  • Page 34 Environmental temperature has dropped below -35°C (-31°F) or in- creased above +90°C (+194°F) In order to clear the existing faults, please press the button on EWM1, turn OFF the electrical appliance or turn OFF the wireless PGM output associated with EWM1. ESIM364 USER MANUAL V1.6...

  • Page 35: Viewing Event And Alarm Logs

    Value: FIRE - Fire-type zone alarm; P:4 - Partition 4; Z:9 - zone Z9. #4 example of alarm log record: WS LOST P:2 Z:14 Value: WS LOST - wireless signal loss alarm; P:2 - Partition 2; Z:14 - tamper 14. ESIM364 USER MANUAL V1.6...

  • Page 36: If The Alarm System Is Connected To A Monitoring Station

    Any fault indication by SMS text message and keypad. • Any other SMS text message generated by the system. NOTE: For complete system configuration and control, please refer to ESIM364 installation manual located at www.eldesalarms.com/ download ESIM364 USER MANUAL V1.6...

  • Page 37: Technical Specifications

    SMS, Voice calls, GPRS network, CSD, PSTN, Ethernet via ELAN3- Communications ALARM Supported protocols Ademco Contact ID, EGR100, Kronos, Cortex SMS, SIA IP Dimensions 140x100x18mm (5.51x3.94x0.71in) Operating temperature range -20...+55°C (-4... +131°F) Humidity 0-90% RH @ 0... +40°C (0-90% RH @ +32... +104°F) (non-condensing) ESIM364 USER MANUAL V1.6...

  • Page 38: Main Unit, Led And Connector Functionality

    Negative power supply terminal for auxiliary equipment AUX+ Positive power supply terminal for auxiliary equipment AC/DC Mains power terminals AKU- Backup battery negative terminal AKU+ Backup battery positive terminal * - Optional, implementable on request in advance ESIM364 USER MANUAL V1.6...

  • Page 39: Wiring Diagrams

    5,6KΩ end of line tact with 5,6KΩ end of resistor with normally and 3,3KΩ end of line with 3,3KΩ end of line resistor line resistor closed contact resistor with normally resistor and normally closed contact. closed contact ESIM364 USER MANUAL V1.6...
  • Page 40 Made in the European Union eldesalarms.com...
