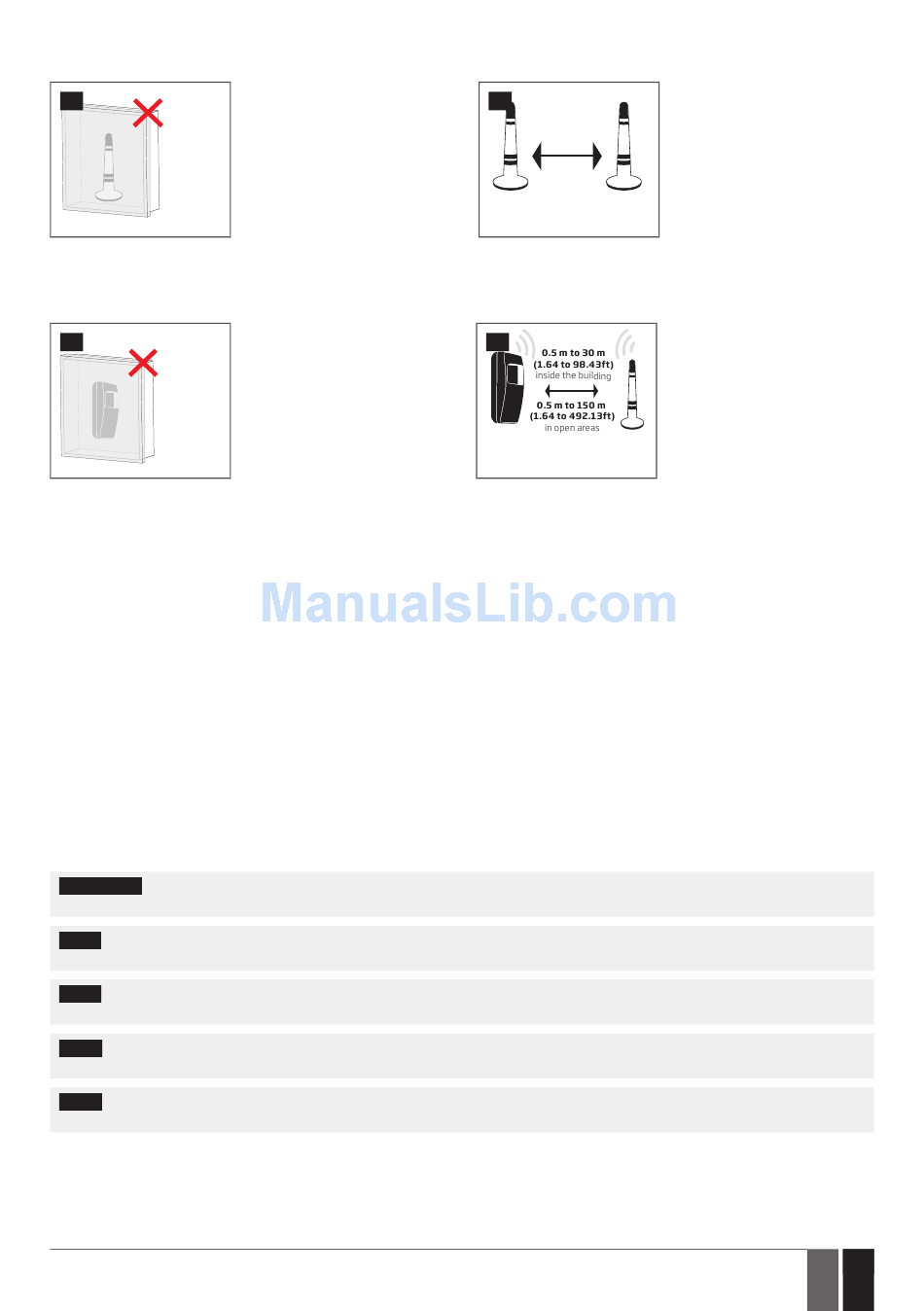

3. Connect the GSM/GPRS and wireless antennas and follow the recommendations for the installation:
27
GSM/
GPRS
and/or
wireless
antenna
4. If one or more wireless devices are to be paired, follow the recommendations for the installation to achieve the strongest wireless
signal:
29
Wireless
device
For more details on how to install the wireless devices, please refer to chapter 41.raDIo SYStEM InStallatIon anD SIGnal PEnE-
tratIon manual and the latest user manual of the wireless device located at www.eldesalarms.com
5. Power up the system and wait until indicator StAt lights up (see 2.2 Main Unit, lED Indicator and Connector functionality).
6. Indicator StAt should be flashing indicating successful micro-controller operation.
7. the illuminated indicator NetW indicates that the system successfully registered to GSM network. to find the strongest GSM signal,
place the GSM/GPRS antenna and follow the indications provided by NetW indicator (see 2.2 Main Unit, lED Indicator and Connec-
tor functionality).
8. Change the default SMS password (see 6. SMS PaSSWorD anD InStallEr CoDE for more details).
9. Set the phone number for User 1 (see 8. USEr PHonE nUMBErS for more details).
10. Set system date and time (see 9. DatE anD tIME for more details).
11. Once the system is fully configured, it is ready for use. However, if you fail to receive an SMS reply from the system, please check the
SMSC (Short Message Service Center) phone number. For more details regarding the SMS centre phone number, please refer to 27.1.
SMSC (Short Message Service Center) Phone number.
12. If it is required to change the batteries for the wireless devices or carry out other system maintenance tasks, please activate the Ser-
vice mode. For more detail regarding this mode, please refer to 33. SErVICE MoDE.
attEntIon: the system is not compatible with pure 3G SIM cards. Only 2G/GSM SIM cards and 3G SIM cards with 2G/GSM profile enabled
are supported. For more details, please contact your GSM operator.
notE: the installation of iButton key reader, eKB2/eKB3/eKB3W/eWKB4 keypad, eWK2 wireless keyfob is not mandatory. However, it
is recommended to have those devices installed as an emergency switch in case your mobile phone is switched off or missing.
notE:
For maximum system reliability we recommend you do NOt use a Pay As You Go SIM card. Otherwise, in the event of insufficient
credit balance on the SIM card, the system would fail to make a phone call or send messages.
notE: We advise you to choose the same GSM SIM provider for your system as for your mobile phone. this will ensure the fastest, most
reliable SMS text message delivery service and phone call connection.
notE: even though alarm system eSIM384 installation process is not too complicated, we still recommend to perform it by a person
with basic knowledge in electrical engineering and electronics to avoid any system damage.
ESIM384 Installation and Configuration Manual v1.1
Never install in the following
locations:
• inside the metal cabinet
• closer than 20cm (7.87in) from
the metal surface and/or power
lines
Never install in the following
locations:
• inside the metal cabinet
• closer than 20cm (7.87in) from
the metal surface and/or power
lines
28
20cm (7.87in)
or more
GSM/GPRS Wireless
antenna antenna
30
Wireless Wireless
device antenna
Recommended installation:
• keep the distance of at least
20cm (7.87in) or more.
Recommended installation:
• face the front side of the
wireless device towards the
antenna
• keep the distance: 0,5 to 30m
(1.64 to 98.43ft) inside the
building, 0,5 to 3000m (1.64 to
9842.6ft) in open areas
EN
