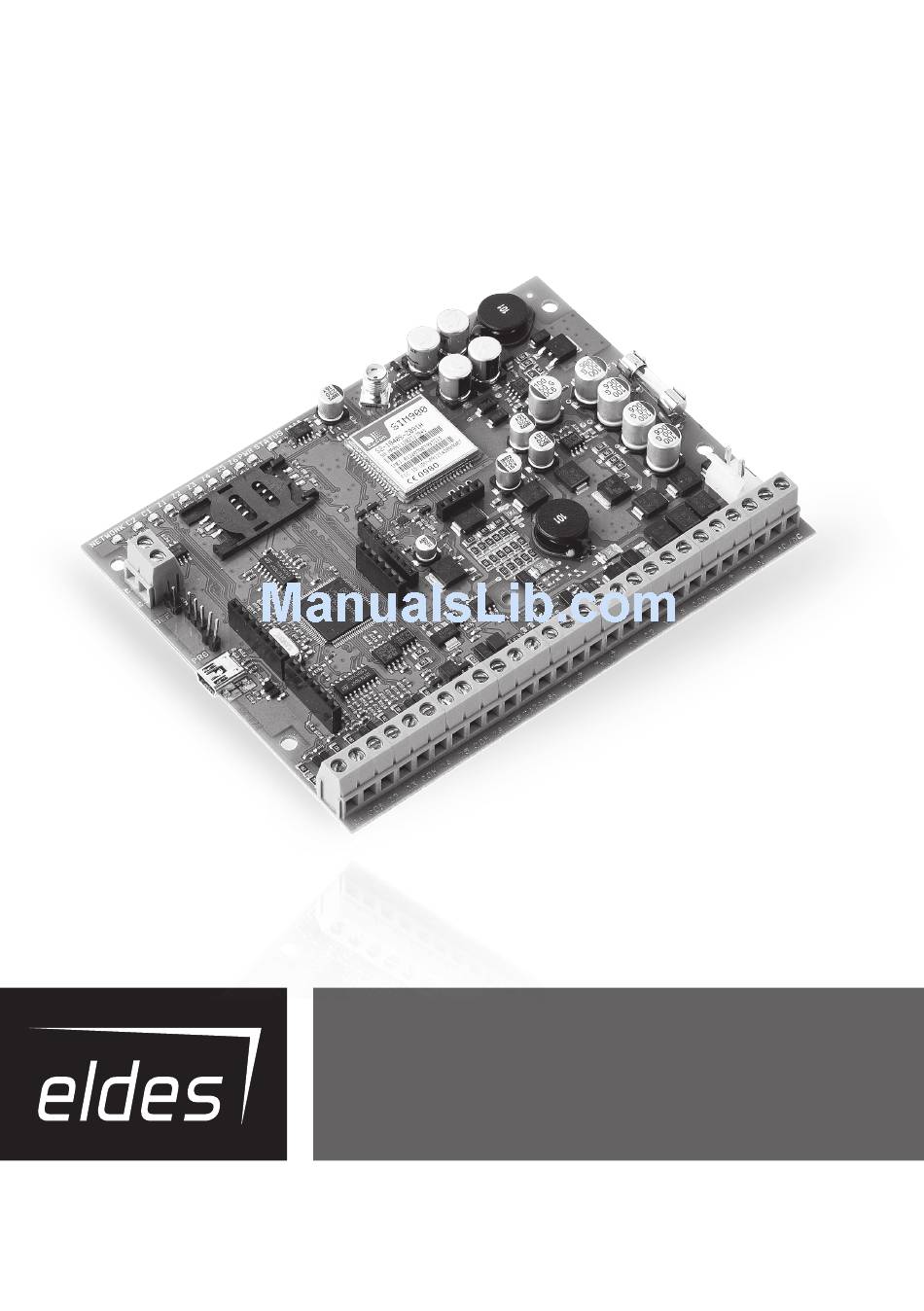

- Page 1 ESIM264 GSM ALARM AND MANAGEMENT SYSTEM USER MANUAL COMPLIES WITH EN 50131-1 GRADE 2, CLASS II REQUIREMENTS...
- Page 2 User Manual v2.3 Valid for ESIM264 v7.15.00 and up GSM alarm system ESIM264 is a device mounted in limited access areas. Any system repairs must be done only by qualified, safety aware personnel. The system must be powered by main 16-24V 50 Hz ~1.5A max or 18-24V 1,5A max DC power supply which must be approved by LST EN 60950-1 standard and be easily accessible nearby the device.
-
Page 3: Table Of Contents
12. IF THE ALARM SYSTEM IS CONNECTED TO A MONITORING STATION .................. 36 13. TECHNICAL SPECIFICATIONS ..............................37 13.1. Electrical & Mechanical Characteristics ...............................37 13.2. Main unit, LED and Connector functionality .............................. 38 13.3. Wiring Diagrams ......................................39 14. ADDITIONAL INFORMATION ..............................41 ESIM264 USER MANUAL V2.3... -
Page 4: General Information
1. GENERAL INFORMATION Functionality ESIM264 – micro-controller based alarm system for houses, cottages, country homes, garages and other buildings, also capable of manag- ing electrical appliances via cellular GSM/GPRS network. It can also be used as Intercom system. Examples of using the system: •... -
Page 5: Ekb2 - Lcd Keypad
• PGM output control • Temperature display • System information display • Time display For more details on technical specifications and installation, please refer to the latest installation manual of the device located at www.eldes. lt/download Icons and Messages Temperature... -
Page 6: Ekb3 - Led Keypad
1.3. Partitions ESIM264 system comes equipped with a partitioning feature that can divide the alarm system into two independently controlled areas identified as Partition 0 through 1, which are all supervised by one alarm system unit. Partitioning can be used in installations where shared alarm system is more practical, such as a house and a garage or within a single multi-storey building. -
Page 7: Basic Configuration And Use
3.1. SMS Text Messages In order to configure and control the system by SMS text message, send the text command to the ESIM264 system phone number from one of the listed user phone numbers. The structure of SMS text message consists of 4-digit SMS password (the default SMS password is 0000 –... -
Page 8: Password
The system comes equipped with 2 languages for communication with the user by SMS text messages and a single language for EKB2 keypad menu display. The default EKB2 menu language depends on ESIM264 firmware, which is based on the user’s location, while one of languages for communication by SMS text messages is always English. -
Page 9: User Phone Numbers
Value: up – user phone number slot, range – [01... 05]; ttteeellnnuumm – up to 15 digits user phone number. Example: 170144170911XXXX1# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: View user phone... - Page 10 SETTINGS → OK → USERS → OK → USER 1... 5 → OK → PHONE NUMBER → PHONE NUMBER Value: aaaa – 4-digit administrator password. Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content:...
-
Page 11: Date And Time
EKB3 Example: 120# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 3.5. Date and time The system comes equipped with internal real-time clock (RTC) that keeps track of the current date and time. Once the system is up and running, the user must set the correct date and time, otherwise the system will not operate properly. - Page 12 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: OK → CONFIGURATION → OK → aaaa → OK → PRIMARY SETTINGS → OK → PASSWORDS → EKB2 Delete user code OK →...
-
Page 13: Ibutton Keys
An iButton key is a unique 64-bit ID code containing chip enclosed in a stainless steel tab usually implemented in a small plastic holder. ESIM264 system supports up to 5 iButton keys each holding a unique identity code (ID), which is used for system arming and disarming. - Page 14 18 1 # EKB3 Example: 181# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool To view the ID of the added iButton keys, please refer to the following configuration methods. Menu path: OK →...
-
Page 15: Arming And Disarming
SMS text messages containing wrong SMS password even from a listed user phone number. For more details regarding arming/disarming the system from a non-listed phone number, please refer to 3.4.1 System Control from any Phone Number. ESIM264 USER MANUAL V2.3... -
Page 16: Free Of Charge Phone Call
To disarm the system by SMS text message, send the following text to the system‘s phone number from any of 10 available user phone numbers: SMS text message content: ssss_DISARMp ssss_DISARMp,p Disarm the system Value: ssss – 4-digit SMS password; p – partition number, range - [1 – Partition 0, 2 – Partition 1]. Example: 1111_DISARM1,2 User ESIM264 ESIM264 USER MANUAL V2.3... -
Page 17: Ekb2 Keypad And User Code
ARMED will light ON. When the system is successfully armed, the keypad’s buzzer will silent down. Enter user code: uuuu Arm the system Value: uuuu – 4-digit user code. Example: 1111 To cancel the system arming process, enter the user code again during exit delay countdown. ESIM264 USER MANUAL V2.3... -
Page 18: Ibutton Key
Alternatively, the violated zones can be bypassed (see 4.10. Bypassing and Activating Zones), disa- bled or a Force attribute enabled. Arm the system system To disarm the system, press 1 of 4 keyfob buttons set to disarm the system (by default, EWK1 - ; EWK2 - ESIM264 USER MANUAL V2.3... -
Page 19: Arm-Disarm By Zone
EWK1/EWK2 wireless keyfob is assigned to, pair another EWK1/EWK2 keyfob with the system and assign it to a different partition. For more details on how to manage EWK1/EWK2 keyfob buttons, please refer to ELDES Configuration Tool software‘s HELP section. - Page 20 EKB3 Value: up – user phone number slot, range – [01... 05]. Example: 75030# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Enable arm/disarm OK → CONFIGURATION → OK → aaaa → OK → PRIMARY SETTINGS → OK → CALL/SMS...
-
Page 21: Exit And Entry Delay
Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 4.9. Exit and Entry Delay When arming, the system initiates the exit delay countdown (by default – 15 seconds) intended for the user to leave the secured area. The exit delay is indicated by short beeps emitted by EKB2/EKB3 keypad buzzer and buzzer, connected to the alarm system. -
Page 22: Bypassing And Activating Zones
Value: nn – zone number, range – [01... 44], eeeee – entry delay duration, range – [0... 65535] seconds Example: 5403259# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 4.10. Bypassing and activating zones NOTE for EKB3: The Configuration mode must remain deactivated before bypassing a violated zone or activating a bypassed zone. -
Page 23: Stay Mode
Value: aaaa – 4-digit administrator password. Enter parameter 25, event number and parameter status value: 25 08 0 # EKB3 Example: 25080# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool ESIM264 USER MANUAL V2.3... -
Page 24: Alarm Indications And Notifications For User
25 08 1 # Example: 25081# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool For more details on how to view violated tamper, please refer to 4.13. Alarm indications and notifications for user. - Page 25 10. INDICATION OF SYS- TEM FAULTS. Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool The system will automatically send an SMS text message, containing a violated tamper name, View violated tampers to user phone number.
-
Page 26: Enabling And Disabling Alarm Notifications
Enter parameter 30 and parameter status value: 30 1# EKB3 Example: 301# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: EKB2 Enable call in OK → CONFIGURATION → OK → aaaa → OK → PRIMARY SETTINGS → OK → CALL/SMS case of alarm SETTINGS →... -
Page 27: Programmable (Pgm) Outputs
When a PGM output turns ON, the system triggers any device or relay connected to it. ESIM264 comes equipped with four open-collector PGM outputs allowing to connect up to four devices or relays. For more details on PGM output, please refer to ESIM264 installation manual at www.eldes.lt... -
Page 28: Wireless Devices
• The rest of attempts - every 2 minutes. Once the wireless device is paired, it will attempt to exchange data with ESIM264 system. Due to battery saving reasons, all ELDES wireless devices operate in sleep mode. The data exchange will occur instantly if the wireless device is triggered (zone alarm or tamper alarm) or periodically when the wireless device wakes up to transmit the supervision signal, based on Test Time value, to the system as well as to ac- cept the queued up command (if any) from the system. -
Page 29: Backup Battery, Mains Power Status Monitoring And Memory
To view the real-time temperature value measured by the temperature sensor, please refer to the following configuration methods. SMS text message content: ssss_INFO View real-time temperature value Value: ssss – 4-digit SMS password. Example: 1111_INFO EKB2 Refer to home screen view on the keypad. ESIM264 USER MANUAL V2.3... -
Page 30: Setting Up Min And Max Temperature Boundaries. Temperature Info Sms
Value: mnn – MIN boundary, range – [-55... 125] C; mxx - MAX boundary, range – [-55... 125] C. 00 value stands for minus character, e. g. 0020 = -20 Example: 19001532# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: View MIN and... - Page 31 EKB3 25 15 0 # - Temperature exceeded Example: 25140# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Menu path: Enable Temperature Temperature fallen: OK → CONFIGURATION → OK → aaaa → OK → SMS MESSAGES → OK →...
-
Page 32: System Information. Info Sms
Value: ssss – 4-digit SMS password. Example: 1111_INFO Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 8.1. Periodic Info SMS By default, the system sends Info SMS to the listed user phone number periodically once a day at 11:00 (frequency – 1 day; time – 11). The mini mum period is every 1 hour (frequency –... -
Page 33: Event Log
EKB3 Example: 110000# Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool ATTENTION: Unlike Info SMS upon request, periodic Info SMS text message does not included zone states, PGM output names and status. -
Page 34: Indication Of System Faults
Zone LED 3 = 3 Zone LED 9 = 24 Zone LED 4 = 4 Zone LED 10 = 30 Zone LED 5 = 5 Zone LED 11 = 36 Zone LED 6 = 6 Zone LED 12 = 42 ESIM264 USER MANUAL V2.3... -
Page 35: Controlling Electrical Appliances
Value: Cn – PGM output number, range – [C1... C44]; hr – hours, range – [00... 23], mn – minutes, range – [00... 59]; sc – seconds, range – [00... 59]. Example: 1111_C3:OFF:13.25:56 3. The system will reply with confirmation by SMS text message to the user phone number who sent the SMS message User ESIM264 ESIM264 USER MANUAL V2.3... -
Page 36: If The Alarm System Is Connected To A Monitoring Station
Violated zone/tamper name indication by SMS text message. • Temperature indication by SMS text message. • Periodical system information by SMS text message. • Any fault indication by SMS text message and keypad. • Any other SMS text message generated by the system. ESIM264 USER MANUAL V2.3... -
Page 37: Technical Specifications
SMS, Voice calls, GPRS network, RS485, CSD Supported protocols Ademco Contact ID, EGR100, Kronos, Cortex SMS Dimensions 140x100x18mm (5.51x3.94x0.71in) Operating temperature range -20...+55°C (-4... 131°F) Humidity 0-90% RH @ 0... +40°C (0-90% RH @ 32... 104°F) (non-condensing) ESIM264 USER MANUAL V2.3... -
Page 38: Main Unit, Led And Connector Functionality
Siren negative terminal BELL+ Siren positive terminal AUX- Negative power supply terminal for auxiliary equipment AUX+ Positive power supply terminal for auxiliary equipment AC/DC Mains power terminal AKU- Backup battery negative terminal AKU+ Backup battery positive terminal ESIM264 USER MANUAL V2.3... -
Page 39: Wiring Diagrams
5,6KΩ end-of- line resistor. +Vin Type 2 Example of magnetic door contact wiring 6-Zone mode: Nor- mally closed contact with 5,6KΩ end-of- line resistor Magnet NOTE: The system does NOT support 2-wire smoke detectors. ESIM264 USER MANUAL V2.3... - Page 40 Example of motion detector (Z1) and magnetic door contact (Z7) wiring ATZ mode: Tamper, 5,6 k 5,6 k 3,3 k 5,6KΩ end-of-line resistor, 5,6KΩ end- of-line resistor with normally closed Magnet contact and 3,3KΩ end-of-line resistor with normally closed contact. +Vin TAMP ESIM264 USER MANUAL V2.3...
-
Page 41: Additional Information
“ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the cellular provid- ers therefore is not responsible for the quality of cellular service. - Page 44 Made in the European Union www.eldes.lt...
