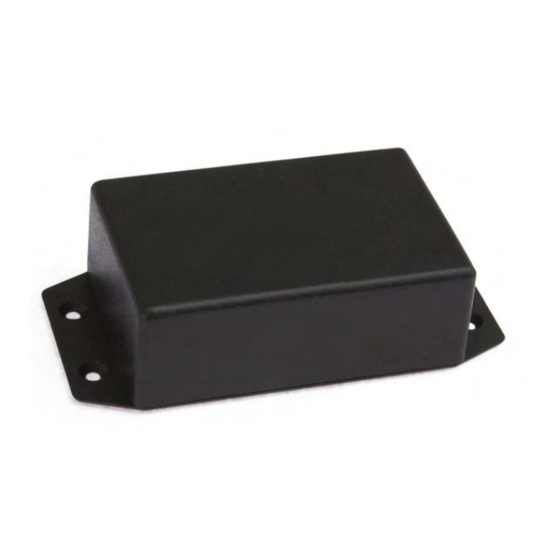

- Page 1 GSM SECURITY AND CONTROL SYSTEM ESIM021...
- Page 2 “ELDES UAB”. “ELSDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby, ELDES UAB declares that this GSM Alarm and control system ELDES ESIM021 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted...
-
Page 3: Limited Liability
1. General Information 1.1 Function ESIM021 is a microcontroller based device used to inform users about the alarm in automatic or security systems and control one electric appliance – open collector. 1.2 Operation description The GSM security and control system ESIM021 uses the GSM network for transmission of inputs (alarms generated by one of the system zones) to authorised users. In addition to being informed about triggers/resets of the inputs, the users can manage the system and use the... -
Page 4: Technical Specifications
1.2.3 Entering users by SMS text message The SIM card should be inserted into the ESIM021. Users can enter phone numbers via the following SMS format: NRx:yyyyyyyy, where x - 1 or 2 (User1 or User2), yyyyyyyy - user phone number. This method can be used to enter both User1 and User2 phone numbers. This method may be used to change entered users numbers with new ones. NOTE: this method can be used only from authorized numbers – User1 and/or User2, so if there is no any entered user – this method will not work. -
Page 5: System Installation
SIM card will be automatically deleted during system start. Connect the circuit as shown in Fig. No.2. Power supply cables are connected last. When connecting ESIM021 to security cen- tral system power supply, usually the security system AUX output is used. Security system power supply must be disconnected before connecting ESIM021. -
Page 6: System Control Commands
It is worth to choose the same GSM cellular provider as most users use assuring fast and reliable SMS message delivery and phone call connection. Even though alarm system ESIM021 installation is not complicated, it is recommended to be performed by a person with basic knowledge in electrical engineering and electronics to avoid any system damage. -
Page 7: Technical Support
2.3 Managing Output Controller Alarm system ESIM021 has open-collector controlled output. It can be used to control various electrical devices such as electric pumps, heating, lighting, etc. When outputs are enabled, it corresponds to output pins being pulled to ground (GND). Enabling output: OUT:ON ESIM 021 ZONE1:OFF or ZONE2: Disabling output: OUT:OFF 3. Technical Support 3.1 Technical Support...
