Eldes ESIM384 Installation Manual

Gsm alarm and management system
Hide thumbs
Table of Contents

Advertisement

Quick Links

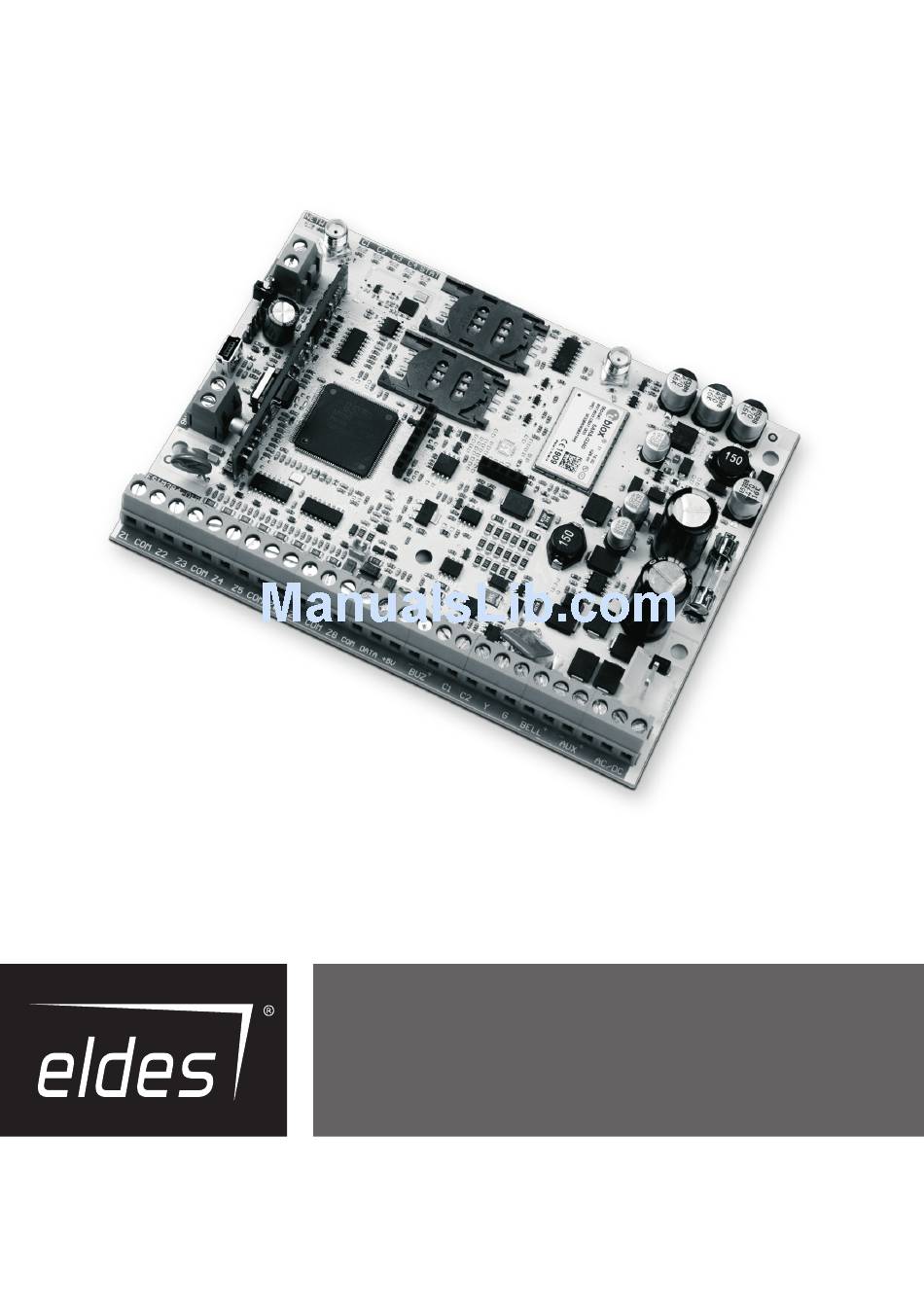

ESIM384
GSM ALARM AND MANAGeMeNt SYSteM
INStALLAtION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESIM384 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eldes ESIM384

Summary of Contents for Eldes ESIM384

  • Page 1 ESIM384 GSM ALARM AND MANAGeMeNt SYSteM INStALLAtION MANUAL...
  • Page 2 • DO NOt attempt to personally repair the system. • System label is on the bottom side of the device. GSM alarm system eSIM384 is a device mounted in limited access areas. Any system repairs must be done only by qualified, safety aware personnel.

  • Page 3: Table Of Contents

    17.1. enabling and Disabling Alarm Notifications ..............................71 17.2. Audio Files and Introduction Audio ................................72 18. ProGraMMaBlE (PGM) oUtPUtS ............................73 18.1. PGM Output Numbering ....................................73 18.2. PGM Output expansion ....................................73 18.3. PGM Output Names ......................................74 ESIM384 Installation and Configuration Manual v1.1...
  • Page 4 31.2. Automatic Mode ......................................157 32. WIrED DEVICES ................................... 158 32.1. RS485 Interface ......................................158 32.2. 1-Wire Interface ......................................167 32.3. Modules Interface ......................................167 33. SErVICE MoDE ..................................170 34. rEMotE SYStEM rEStart ..............................170 ESIM384 Installation and Configuration Manual v1.1...
  • Page 5 38. GloSSarY – aPPEnDIX 1 ..............................178 39. EKB3/EKB3W/EWKB4 CoMManDS - aPPEnDIX 2 ......................180 40. SMS CoMManDS - aPPEnDIX 3 ............................191 41. raDIo SYStEM InStallatIon anD SIGnal PEnEtratIon - aPPEnDIX 4 ..............194 ESIM384 Installation and Configuration Manual v1.1...
  • Page 6 In any case, the liability of eLDeS, UAB, as much as it is allowed by the laws in force, shall not exceed the price of acquisition of the product.
  • Page 7 Buzzer; Microphone. about Installation Manual this document describes detailed installation and operation process of alarm system eSIM384. It is very important to read the installation manual before starting to use the system. Copyright © ElDES, UaB, 2017. all rights reserved It is strictly forbidden to copy and distribute the information contained in this document or to pass thereof to a third party without an a priori written authorization obtained from eLDeS, UAB.

  • Page 8: General Information

    * - A mixed combination of eKB2 and eKB3 keypads is supported. the combination can consist of up to 4 keypads in total. ** - Only 1 of these modules can be connected at a time if the module slots are implemented in eSIM384 unit.
  • Page 9    Low battery – User 1... 10 enabled    Low battery – SMS delivery report enabled    Siren fail/restore – User 1... 10 Disabled    ESIM384 Installation and Configuration Manual v1.1...
  • Page 10 Software EWKB4 on Board Z1... Z8 zone name Zone1... Zone8   Z1 type Delay    Z1... Z8 zone status enabled     Z2... Z8 type Instant    ESIM384 Installation and Configuration Manual v1.1...
  • Page 11   Force Disabled    tamper name tamper X  Delay-type zone – entry delay 15 seconds    Partition Partition 1    Shared Disabled  Audio track  ESIM384 Installation and Configuration Manual v1.1...
  • Page 12 IP Server 1... 3 – server IP 0.0.0.0     IP Server 1... 3 – server port 20000     IP Server 1... 3 – encryption key - status Disabled  ESIM384 Installation and Configuration Manual v1.1...
  • Page 13 GSM/GPRS antenna fail/restore – code  GSM/GPRS antenna fail/restore – status Disabled    System shutdown – code  System shutdown – status enabled    Communication bus fail/restore – code  ESIM384 Installation and Configuration Manual v1.1...
  • Page 14 1... 8 min. temperature     temperature sensor 1... 8 max. temperature     Primary No.1     Secondary No.2     iButton Keys iButton key name  ESIM384 Installation and Configuration Manual v1.1...
  • Page 15 DNS2     lan Settings DHCP Disabled  LAN IP address 0.0.0.0  LAN net mask 0.0.0.0  Default gateway 0.0.0.0  Primary DNS server 0.0.0.0  Secondary DNS server 0.0.0.0  ESIM384 Installation and Configuration Manual v1.1...

  • Page 16: Technical Specifications

    SMS, Voice calls, GPRS network, CSD, PStN, ethernet via eLAN3-ALARM Supported protocols Ademco Contact ID, eGR100, Kronos, Cortex SMS, SIA IP Dimensions 140x100x18mm (5.51x3.94x0.71in) Operating temperature range -20...+55°C (-4... +131°F) Humidity 0-90% RH @ 0... +40°C (0-90% RH @ +32... +104°F) (non-condensing) ESIM384 Installation and Configuration Manual v1.1...

  • Page 17: Main Unit, Led Indicator And Connector Functionality

    Negative power supply terminal for auxiliary equipment AUX+ Positive power supply terminal for auxiliary equipment AC/DC Main power supply terminals AKU- Backup battery negative terminal AKU+ Backup battery positive terminal * - Optional, implementable on request in advance ESIM384 Installation and Configuration Manual v1.1...

  • Page 18: Wiring Diagrams

    Based on the example given, in the event of an alarm, the smoke detector could be reset by turning OFF and ON the PGM output C1. For more details, please refer to 18.4. turning PGM outputs on and off. ESIM384 Installation and Configuration Manual v1.1...
  • Page 19 AtZ mode: tamper, 5,6KΩ end-of-line Magnet resistor, 5,6KΩ end-of-line resistor with normally closed contact and 3,3KΩ end-of-line resistor with normally closed +Vin contact. TAMP See also 14.3. 8-Zone Mode and 14.4. atZ (advanced technology Zone) Mode. ESIM384 Installation and Configuration Manual v1.1...
  • Page 20 Siren status monitoring feature supervises the resistance across BEll+ and BEll- terminals. the resistance must be ranging from 1kΩ through 3,3kΩ, otherwise the system will indicate system fault. In order to view the siren resistance value, please refer to Diagnostic Management feature available on ELDES Configuration software. ESIM384 Installation and Configuration Manual v1.1...
  • Page 21 1 Wire up relay a1 terminal to PGM output Cx and a2 terminal to aUX+. 2 In addition, connect the switching diode to re- lay‘s a2 and a1 terminals. COIL RELAY notE: We highly recommend using switch- ing diode model 1N4148 or similar. ESIM384 Installation and Configuration Manual v1.1...
  • Page 22 You may connect only 1 eKB2/eKB3 keypad or a mixed combination of eKB2 and eKB3 keypads. the combination can consist of up to 4 keypads in total. For more details on RS485 interface, please refer to 32.1. rS485 Interface ESIM384 Installation and Configuration Manual v1.1...
  • Page 23 EKB2/EKB3 attEntIon: the cable between eSIM384 and each RS485 device must be of the same length and can NOt exceed 100m (328.08ft). attEntIon: When wiring more than 1 keypad and/or ePGM1 module, please ensure that the set address of each keypad and/or ePGM1 module is different.

  • Page 24: Installation

    • the system can be installed in a metal or non-flammable cabinet only. For a convenient installation, Me1 metal cabinet is highly recom- mended. the metal cabinet must always be grounded as well as eSIM384 system’s PCB by connecting one of the COM terminals to the Pe contact of the metal cabinet.
  • Page 25 Elan3-alarM TRANSFORMER TRANSFORMER ESIM384 + EPGM1 TRANSFORMER TRANSFORMER ESIM384 Installation and Configuration Manual v1.1...
  • Page 26 In order to appropriately install ePGM1 module, please install it in the first place and eSIM384 alarm system afterwards. ePGM1 must be mounted on shorter plastic standoffs, while eSIM384 and eLAN3-ALARM – on the longer ones. the mounting points of ePGM1 module and eSIM384 system are indicated in pics on page 25.
  • Page 27 SMS text message delivery service and phone call connection. notE: even though alarm system eSIM384 installation process is not too complicated, we still recommend to perform it by a person with basic knowledge in electrical engineering and electronics to avoid any system damage.

  • Page 28: General Operational Description

    If the user does not disarm the system in time, the alarm system will cause an instant alarm. notE: the alarm will be caused even if a tamper is violated while the system is disarmed. For more details, please refer to 12. arMInG anD DISarMInG. ESIM384 Installation and Configuration Manual v1.1...

  • Page 29: Configuration Methods

    5.1. SMS text Messages In order to configure and control the system by SMS text message, send the text command to the eSIM384 system phone number from one of the listed user phone numbers. the structure of SMS text message consists of 4-digit SMS password (the default SMS password is 0000 –...

  • Page 30: Ekb3/Ekb3W/Ewkb4 Led Keypads

    1470, while the default master code is 1111. By activating 6-digit password/code format, it will be neces- sary to extend the installer code, master code and user code by adding 2 extra digits using ELDES Configuration software.

  • Page 31: System Configuration By Usb Cable

    In order to start using the remote configuration feature, please run the step-by-step wizard and follow the steps provided in the start page of ELDES Configuration software. Please, note that based on the selected method, it might be necessary to send an SMS text message to the system’s phone number in order to initiate the remote connection.

  • Page 32: Sms Password And Installer Code

    Restart system remotely. Installer code – 4-digit password used for system configuration by eKB2/eKB3/eKB3W/eWKB4 keypad and ELDES Configuration soft- ware. By default, installer code is 1470, which is highly recommended to change. Installer code is authorized to carry out the following: •...

  • Page 33: System Language

    SMS text messages and eKB2 keypad menu display. the system language depends on eSIM384 firmware, which is based on the user’s location. list of currently available system languages (firmwares): • Czech...

  • Page 34: User Phone Numbers

    International (with 00) – the phone numbers must be entered starting with 00 and an international country code in the following format: 00[international code][area code][local number], example for UK: 0044170911XXXX1. this format can be used when set- ting up the phone number by SMS text message, eKB2/eKB3/eKB3W/eWKB4 keypad and ELDES Configuration software. •...

  • Page 35: User Phone Number Names

    GSM USeR 2... 10 → OK → PHONe NUMBeR → OK → OK Value: iiii – 4-digit installer code; ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software attEntIon: NeVeR add a phone number of the device’s SIM card as a user phone number! attEntIon: Once User 1 phone number is set, it will be restricted to modify it only.

  • Page 36: Date And Time

    MUSt enter the Configuration mode first! ELDES Configuration software provides the ability to select the time Zone option. the user may also choose Get PC time option, which instantly provides the exact PC time.
  • Page 37 ElDES Enable/disable Config- synchronization via this operation may be carried out from the PC using the ELDES Configuration software. uration GSM network software By default, synchronization by SMS text message is disabled. to enable/disable automatic date and time synchronization by SMS text mes- sage, please enter/remove device phone number using one of the following configuration methods.

  • Page 38: Master And User Codes

    Value: vvvv – 4-digit existing master code; mmmm – 4-digit new master code, range – [0000... 9999]. Example: 6311112222# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software ESIM384 Installation and Configuration Manual v1.1...
  • Page 39 - [0000... 9999]. Example: 01111092556# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: EKB2 OK → mmmm → OK → CODeS → OK → ReMOVe CODe → OK → uuuu → OK Delete user code Value: mmmm –...

  • Page 40: Master And User Code Names

    ElDES Config- uration this operation may be carried out from the PC using the ELDES Configuration software. soft- ware 10.1. Master and User Code names When the system is armed or disarmed by entering a master or user code using a keypad, the system sends a confirmation by SMS text mes- sage to user phone number, sharing the same partition (-s) as the keypad and user/master code.

  • Page 41: Ibutton Keys

    An iButton key is a unique 64-bit ID code containing chip enclosed in a stainless steel tab usually implemented in a small plastic holder. eSIM384 system supports up to 16 iButton keys each holding a unique identity code (ID), which is used for system arming and disarming.

  • Page 42: Ibutton Key Names

    EKB3W/ EWKB4 Example: 181# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software to view the ID of the added iButton keys, please refer to the following configuration methods. Menu path: EKB2 OK →...

  • Page 43: Arming And Disarming

    SMS password even from a listed user phone number. For more details regarding arming/disarming the system from a non-listed phone number, please refer to 8.2. System Control from any Phone number. notE: the system remembers the last status (armed/disarmed) of all partitions even after complete shut down. ESIM384 Installation and Configuration Manual v1.1...

  • Page 44: Free Of Charge Phone Call

    Manage arming and ElDES disarming for listed Config- this operation may be carried out from the PC using the ELDES Configuration software. user phone numbers uration software 12.2. SMS text Message to arm the system by SMS text message, send the following text to the system‘s phone number from any of 10 available user phone numbers (see 8.

  • Page 45: Ekb2 Keypad And User/Master Code

    ElDES Manage arming and Config- disarming for listed this operation may be carried out from the PC using the ELDES Configuration software. uration user phone numbers software 12.3. EKB2 Keypad and User/Master Code icon displayed next to the partition name in the home screen view of eKB2 keypad indicates that no violated zones and/or tampers are present, therefore the partition is ready for arming.
  • Page 46 ElDES Enable/disable Show Config- arMED status in uration this operation may be carried out from the PC using the ELDES Configuration software. keypad soft- ware notE: If the user fails to enter a correct user/master code 10 times in a row, the system will block the keypad for 2 minutes and the keypad will display KEYPaD BloCKED message.

  • Page 47: Ekb3 Keypad And User/Master Code

    (by default - disabled). ElDES Enable/disable Show Config- arMED status in this operation may be carried out from the PC using the ELDES Configuration software. uration keypad software notE: If the user fails to enter a correct user/master code 10 times in a row, the system will block the keypad for 2 minutes and the keypad will display KEYPaD BloCKED message.
  • Page 48 • Partitioned system – disarming a single partition – to disarm a different partition than the keypad is assigned to, use keypad partition switch feature (by default – disabled; see 23.3. Keypad Partition and Keypad Partition Switch) before the disarming process. ESIM384 Installation and Configuration Manual v1.1...

  • Page 49: Ekb3W/Ewkb4 Keypads And User/Master Code

    ON. When the system is successfully armed, the keypad’s buzzer will silent down. Enter user/master code: uumm arm the system Value: uumm – 4-digit user/master code. Example: 2222 ESIM384 Installation and Configuration Manual v1.1...
  • Page 50 If the user fails to enter a correct user/master code 10 times in a row, the system will block the keypad for 2 minutes. While the keypad is blocked, the system prevents from entering any user/master code. the keypad will automatically unblock once the 2-minute time has expired. ESIM384 Installation and Configuration Manual v1.1...

  • Page 51: Ibutton Key

    For example, if iButton 5 is assigned to Partition 1 and 4, the user will be able to arm/ disarm Partition 1 and 4 by touching iButton 5 to the reader. For more details on how to set iButton key partition, please refer to 23.5. iButton Key Partition. ESIM384 Installation and Configuration Manual v1.1...

  • Page 52: Ewk1/Ewk2 Wireless Keyfob

    (-s) assigned to the button with Partition Selection action followed by a button with Arm the System/Disarm the System action. For more details on how to set the keyfob partition, please refer to ELDES Configuration software‘s HeLP section. notE: Single eWK1/eWK2 keyfob button can be configured to carry out Partition Selection and Control Output/Output toggle/Output Pulse actions.

  • Page 53: Arm-Disarm By Zone

    Value: z – on-board zone slot for Arm-Disarm by Zone method; range - [1... 4]; nn – on-board EWKB4 zone number, range – [01... 16]. Example: 34023# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Disable arm-Disarm by EKB2 OK →...
  • Page 54 55 02 0 # Value: up - user phone number slot, range - [01... 10]. Example: 2502040# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Enable arm/disarm System armed:...

  • Page 55: Exit And Entry Delay

    Example: 7203259# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software notE: Alternatively, you can set exit delay value to “0” in order to arm the system without exit delay by any available method.
  • Page 56 Example: 5403259# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software notE: Due to battery power saving reasons, eKB3W/eWKB4 keypad buzzer will not sound during entry delay if the violated Delay type zone is not of the associated eKB3W/eWKB4 keypad.

  • Page 57: Zones

    14.3. 8-Zone Mode By default, eSIM384 alarm system runs in the 8-Zone mode under zone connection type 1 allowing to connect up to 8 detection devices of NO (normally-open) type to the on-board zone terminals as indicated in the wiring diagram of type 1. Different zone connection types of 8-Zone mode can be individually assigned to each on-board zone.

  • Page 58: Atz (Advanced Technology Zone) Mode

    ElDES Set zone connection Config- type of “non atZ” this operation may be carried out from the PC using the ELDES Configuration software. uration mode for on-board and soft- EPGM1 zones ware notE: type 3 is NOt supported by keypad zones.

  • Page 59: Zone Attributes

    Value: nn – zone number, range – [01... 80] Example: 53125# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software notE: the system will NOt activate siren and keypad buzzer only when Panic/Silent, Report/Control or Instant Silent zone type is violated.
  • Page 60 Value: nn – zone number, range – [01... 80]. EWKB4 Example: 56041# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: On-board zone: OK → iiii → OK → ZONeS → OK → ONBOARD ZONeS → OK → ZONe 1... 16 →...
  • Page 61 ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: On-board zone: OK → iiii → OK → ZONeS → OK → ONBOARD ZONeS → OK → ZONe 1... 16 → OK...
  • Page 62 EKB3W/ EWKB4 Example: 320# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Enable Chime attribute OK →iiii → OK → ZONeS → OK → CHIMe → OK → eNABLe → OK EKB2 Value: iiii –...

  • Page 63: Bypassing And Activating Zones

    Value: ssss – 4-digit SMS password; nn – zone number, range – [1... 80]; zone-name – up to 24 characters zone name. Example: 1111_Z3:Door sensor triggered ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software ESIM384 Installation and Configuration Manual v1.1...

  • Page 64: Disabling And Enabling Zones

    32 → OK → NAMe Value: iiii – 4-digit installer code. ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software attEntIon: Colon, semi-colon characters, parameter names and/or values, such as PSW, StAtUS, ON, OFF etc. are NOt allowed in zone...

  • Page 65: Viewing Zone State

    14.10. Viewing Zone State the zone state (violated/restored) is indicated in real-time by all available configuration methods. However, the most convenient way to view the zone state is using the graphical interface of ELDES Configuration software as follows: • Red - zone is violated.

  • Page 66: Stay Mode

    Stay mode is not supported by virtual zones. notE: the system can also be instantly StAY-armed using eLDeS Cloud Services. For more details on how to enable Stay attribute for zone, please refer to 14.6. Zone attributes. ESIM384 Installation and Configuration Manual v1.1...

  • Page 67: Tampers

    ElDES Disable/enable Config- this operation may be carried out from the PC using the ELDES Configuration software. tamper uration software the system will automatically send an SMS text message, containing a violated tamper View violated tampers name, to user phone number.

  • Page 68: Tamper Names

    Example: 2513041# ElDES Config- uration this operation may be carried out from the PC using the ELDES Configuration software. soft- ware For more details on how to view violated tamper, please refer to 17. alarM InDICatIonS anD notIfICatIonS for USEr.

  • Page 69: Alarm Indications And Notifications For User

    GSM operator. By default, the system will continue dialling the next listed user phone numbers in the priority order until one is available. the system ESIM384 Installation and Configuration Manual v1.1...
  • Page 70 29. InDICatIon of SYStEM EWKB4 faUltS. ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software the system will automatically send an SMS text message, containing a violated tamper name, View violated tampers to user phone number.

  • Page 71: Enabling And Disabling Alarm Notifications

    EKB3W/ Value: us - user phone number slot, range - [01... 10]. EWKB4 Example: 30081# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: EKB2 Enable call in OK → iiii → OK → PRIMARY SettINGS → OK → CALL/SMS SettINGS → OK → CALL IN CASe case of alarm ALARM →...

  • Page 72: Audio Files And Introduction Audio

    Example: 2503101# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software By, default the system will not ring the listed phone number via PStN in case of alarm. to manage this feature, please refer to 30.2.3.

  • Page 73: Programmable (Pgm) Outputs

    When a PGM output turns ON, the system triggers any device or relay connected to it. eSIM384 comes equipped with four open-collector PGM outputs allowing to connect up to four devices or relays. For more details on PGM output expanding, please refer to 18.2. PGM output Expansion.

  • Page 74: Pgm Output Names

    EWKB4 Example: 330# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software 18.3. PGM output names each PGM output has a name that can be customized by the user. typically, the name specifies a device type connected to a determined PGM output, for Example: Lights.
  • Page 75 Value: oo – PGM output number, range – [01... 80]. EWKB4 Example: 61031# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software this operation may be carried out from the wireless keyfob if pre-assigned using the PC run- EWK1/ EWK2 ning ELDES Configuration software.

  • Page 76: Pgm Output Control By Event And Scheduler

    System fault restored - A determined system fault is restored (for complete list of system faults, please refer to 29. InDICatIon of SYStEM faUltS). the user can also set a custom text, which will be sent by SMS text message to user phone number when the automatic PGM output action is carried out. ESIM384 Installation and Configuration Manual v1.1...

  • Page 77: Schedulers

    Partition 2 is disarmed. ElDES Manage PGM output Config- control by event & this operation may be carried out from the PC using the ELDES Configuration software. uration scheduler software attEntIon: If the date and time are not set, the system will NOt be able to automatically control the PGM outputs. For more details on how to set date and time, please refer to 9.

  • Page 78: Wireless Devices

    - every 10 minutes. Once the wireless device is paired, it will attempt to exchange data with eSIM384 system. Due to battery saving reasons, all eLDeS wireless devices operate in sleep mode. the data exchange will occur instantly if the wireless device is triggered (zone alarm or tamper alarm) or periodically when the wireless device wakes up to transmit the supervision signal, based on test time value, to the system as well as to ac- cept the queued up command (if any) from the system.

  • Page 79: Pairing, Removing And Replacing Wireless Device

    In order to correctly remove the wireless device from the system, the user must remove the device using SMS text message or ELDES Configuration software and restore the parameters of the wireless device to default afterwards. If only one of these actions is carried out, the wireless device and the system will attempt to exchange data to keep the wireless connection alive.

  • Page 80: Wireless Device Information

    4 hours. However, a custom wireless signal loss timeout can be set up that must be at least 3 times longer than the longest test time period of a wireless device currently paired with the system. In addition, ELDES Configu- ration software indicates a timer of the last test time signal delivered by a paired and unpaired wireless device.
  • Page 81 55 18 0 # Value: up - user phone number slot, range - [01... 10]. Example: 2518030# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Enable wireless User phone number: OK →...
  • Page 82 Value: up - user phone number slot, range - [01... 10]. Example: 252530# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software attEntIon: Once a certain tamper is disabled, the system will NOt deliver any SMS text message regarding the physical tamper violation nor wireless signal loss or restore.

  • Page 83: Disabling And Enabling Siren If Wireless Signal Is Lost

    76 1 # EKB3W/ EWKB4 Example: 761# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Disable Siren if EKB2 OK → iiii → OK → PRIMARY SettINGS → OK → SIReN SettINGS →OK → SRN IF WLeSS LOSS Wireless Signal is lost →...
  • Page 84 Due to battery power saving reasons, most of the time eKB3W/eWKB4 keypad operates in sleep mode and periodically wakes up (by default - every 5 minutes) to transmit the supervision signal, identified as test time, to the eSIM384 system. However, when the keypad wakes up, it will NOt activate its buzzer and/or the LeD indicators.

  • Page 85: Ewr2 - Wireless Signal Repeater

    In order for eWR2 to function properly, W-less signal the wireless signal level between eWR2 and Level 18% eLDeS alarm system must be at least 40%. EWR2 Wireless signal repeater EWR2 ALARM...

  • Page 86: Ewf1/Ewf1Co - Wireless Smoke/Co Detector

    EWR2 ALARM SYSTEM EWR2 If more then one repeater is connected to eldes alarm system at a time, the one that receives the strongest signal from a wireless device, will be used W-less signal to expand it’s signal range. New generation wireless...
  • Page 87 50 0 # EKB3W/ EWKB4 Example: 500# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Enable EKB2 OK → iiii → OK → PRIMARY Sett INGS → OK → SIReN SettINGS → OK → eWF1 SIReN INteRC.

  • Page 88: Ew2 - Wireless Zone And Pgm Output Expansion Module

    (see 29. InDICatIon of SYStEM faUltS) In order to start using eWM1, it has to be paired with eLDeS alarm system using ELDES Configuration software or by sending a corresponding SMS text message to eLDeS alarm system.

  • Page 89: Ewkb5 Wireless Touchpad Overview

    5,6kΩ nominal must be connected across Z1 and COM connectors. It is possible to connect up to 4 eWKB5 devices to the alarm system eSIM384. the maximum wireless connection range is 1000m (~984ft) (in open areas).
  • Page 90 Sleep mode. Due to battery power saving reasons, most of the time eWKB5 touchpad operates in sleep mode and periodically (by default – every 30 seconds) transmits the supervision signal, identified as test time, to the eSIM384 system. When the touchpad operates in the sleep mode, the LCD display is switched OFF, but the touchpad permanently stays alert in case of alarm event.
  • Page 91 If more than 1 Partition is being used, then after entering a valid 4-digit user/master code PIN user will get access to the additional Partition select menu to choose Partitions which he wants to Arm or Disarm. Note that the user must enable/assign the Partition by using eldes Configuration software first.
  • Page 92 Fire Settings 3. Once the system is successfully disarmed, the icon displayed on the Partition button will turn to followed by SMS text message confir- mation delivered to the listed phone number (by default). ESIM384 Installation and Configuration Manual v1.1...
  • Page 93 In case the user attempts to arm the system, while a violated zone/tamper exists, the touchpad will automatically re-direct the user to the Bypass section, which lists the violated zones/tampers, and deny system arming unless the violated zone/tamper is bypassed. Alternative- ly, the user can navigate through the menu as indicated below. ESIM384 Installation and Configuration Manual v1.1...
  • Page 94 Advanced section beforehand. Alternatively, the user can enable an individual button for each available PGM output in order to control it directly from the main menu. the button title reflects the PGM output name that can be changed using eLDeS Configuration software.
  • Page 95 Zone Alarm: HOME, Alarm Zone1 2016.09.06 10:39 Stay Armed over KEYBOARD: HOME User1 Bypass Events Zones Outputs Faults 2016.09.06 09:47 Disarmed over KEYBOARD: HOME For more details on event log feature, please refer to section 28.1. Event log ESIM384 Installation and Configuration Manual v1.1...
  • Page 96 Users button menu. to add a new user, please navigate through the menu as follows. Please, note that this action requires Master PIN code (only for the entrance to Settings menu). User con gurtion Master ADD NEW USER Zones Outputs Faults Users Advanced PIN: Pin must be 4 digits Home Garage Basment ESIM384 Installation and Configuration Manual v1.1...
  • Page 97 Using eWKB5 , it is possible to: edit Master settings, change Master name and Master PIN code; manage Partitions; delete selected users. User con gurtion Master ADD NEW USER Zones Outputs Faults Users Advanced Master| Master| PIN: Home Garage Basment space enter 1111| space enter ESIM384 Installation and Configuration Manual v1.1...
  • Page 98 In this mode, system does not check for tamper faults so it won’t start siren alarm. About - section of additional information about the touchpad model, alarm system model, hardware and firmware. ESIM384 Installation and Configuration Manual v1.1...
  • Page 99 75 % Sound volume 30 % Wake up time 10 s Speech on re Quick Menu Service mode Quick arm Service mode Panic Fire About Model: EWKB5 Connected to: ESIM384, FW: V1.0.17 Firmware version: V0.0 ESIM384 Installation and Configuration Manual v1.1...

  • Page 100: Wired Siren/Bell

    For siren/bell wiring diagram, please refer to 2.3.3. Siren. notE: the maximum supported alarm duration is 30 minutes that can be set up using ELDES Configuration software only. “0” value disables the siren/bell. notE: Due to battery power saving reasons, the wireless siren will sound for up to 6 minutes max. regardless of the set up alarm duration value when it is longer than 6 minutes ESIM384 Installation and Configuration Manual v1.1...

  • Page 101: Bell Output Status Monitoring

    Value: up - user phone number slot, range - [01... 10]. Example: 2508021# ElDES Config- uration this operation may be carried out from the PC using the ELDES Configuration software. soft- ware Menu path: Disable Siren fail/ User phone number: OK →...

  • Page 102: Bell Squawk In Stay Mode

    EWKB4 Example: 291# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: OK → iiii → OK → PRIMARY Sett INGS → OK → SIReN SettINGS → OK → BeLL SQUAWK → OK...

  • Page 103: Indication By Ews2 - Wireless Outdoor Siren Indicators

    EKB3W/ EWKB4 Example: 881# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Disable EWS2 lED OK → iiii → OK → PRIMARY Sett INGS → OK → SIReN SettINGS → OK → eWS2 LeD → OK →...

  • Page 104: Indication By Ews3 - Wireless Indoor Siren Indicators

    Fire alarm LeD: 93 1 # EWKB4 Example: 931# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Disable EWS3 lED Burglary/24-hour/tamper alarm LeD: OK → iiii → OK → PRIMARY Sett INGS → OK → SIReN...

  • Page 105: Backup Battery, Mains Power Status Monitoring And Memory

    55 05 0 # Value: up - user phone number slot, range - [01... 10]. Example: 2105010# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Enable Battery failed User phone number: OK →...
  • Page 106 55 06 0 # Value: up - user phone number slot, range - [01... 10]. Example: 5506070# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Enable Battery Dead User phone number: OK →...

  • Page 107: Mains Power Status Monitoring

    For more details on how Send SMS text message to all users simultaneously and SMS Cascade parameters affect the SMS text massage transmission, please refer to 27. SYStEM notIfICatIonS. notE: In order to view the backup battery voltage, resistance, please refer to Diagnostic Management feature available on ELDES Configu- ration software. 21.2. Mains Power Status Monitoring If the household electricity is unstable in the system installation area, the system may temporally lose its power supply and continue oper- ating on the backup battery power.
  • Page 108 Value: lllll – mains power loss delay duration, range - [0... 65535] seconds. EWKB4 Example: 7043# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Set mains power OK → iiii → OK → PRIMARY Sett INGS → OK → MAIN POWeR StAtUS → OK → ReStORe DeLAY...

  • Page 109: Gsm Connection And Antenna Status Monitoring

    55 11 1 # Value: up - user phone number slot, range - [01... 10]. Example: 21111# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Disable GSM User phone number: OK →...

  • Page 110: Gsm/Gprs Antenna Status Monitoring

    55 12 1 # Value: up - user phone number slot, range - [01... 10]. Example: 2512031# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Disable GSM/GPrS User phone number: OK →...

  • Page 111: Partitions

    23. PartItIonS eSIM384 system comes equipped with a partitioning feature that can divide the alarm system into four independently controlled are- as identified as Partition 1 through 4, which are all supervised by one alarm system unit. Partitioning can be used in installations where shared alarm system is more practical, such as a house and a garage or within a single multi-storey building.

  • Page 112: Keypad Partition And Keypad Partition Switch

    User/Master Code, 12.4. EKB3 Keypad and User/Master Code and 12.5. EKB3W/EWKB4 Keypad and User/Master Code. ElDES Set EKB3 partition Config- mode as 2-partition or uration this operation may be carried out from the PC using the ELDES Configuration software. 4-partition soft- ware Menu path: eKB2 partition: OK →...

  • Page 113: User/Master Code Partition

    EKB3W/ EWKB4 Example: 771# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Disable keypad OK → iiii → OK → PRIMARY SettINGS → OK → KeYPAD PARtItION → OK → PARtItION SWItCH...

  • Page 114: Ibutton Key Partition

    EWKB4 Example: 60059# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software 23.6. EWK1/EWK2 Wireless Keyfob Partition eWK1/eWK2 wireless keyfob partition determines which system partition can be armed/disarmed using a certain eWK1/eWK2 wireless keyfob.

  • Page 115: Temperature Sensors

    Power up the system. d) Run ELDES Configuration software, check if the temperature sensor has been recognized by the system and assign it to the desired temperature sensor slot. e) If more than one temperature sensor is required, shut down the system again and wire another sensor in parallel to the previous one.

  • Page 116: Primary And Secondary Temperature Sensors

    ElDES remove/replace Config- individual uration this operation may be carried out from the PC using the ELDES Configuration software. temperature sensor soft- ware 24.2. Primary and Secondary temperature Sensors Any out of 8 available temperature sensors can be set as primary or secondary. the real-time temperature values of the primary and sec- ondary temperature sensors are included in the Info SMS text message (see 26.

  • Page 117: Setting Up Min And Max Temperature Thresholds. Temperature Info Sms

    ... → teMP SeNSORS INFO → OK → 1... 8 tm.p C (SeC) Value: uumm - 4-digit user/master code; tm.p – real-time temperature value. ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software SMS text message content:...

  • Page 118: Temperature Sensor Names

    Value: iiii – 4-digit installer code ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software For more details on how Send SMS text message to all users simultaneously and SMS Cascade parameters affect the SMS text message transmission, please refer to 27.

  • Page 119: Remote Listening And 2-Way Voice Communication

    25. rEMotE lIStEnInG anD 2-WaY VoICE CoMMUnICatIon eSIM384 can be equipped with a microphone (not InClUDED!), that allows the user to listen on his mobile phone to what is happening in the secured area. By installing the audio module eA2, the user will be able to have a 2-way voice communication (see 32.3.2. Ea2 – audio output Module with amplifier).

  • Page 120: System Information. Info Sms

    By default, the system sends Info SMS to User 1 phone number periodically once a day at 11:00 (frequency – 1 day; time – 11). the minimum period is every 5 minutes, which can be set using ELDES Configuration software. typically, this feature is used to verify the power supply and online status of the system.
  • Page 121 EWKB4 Example: 110000# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software attEntIon: Unlike Info SMS upon request, periodic Info SMS text message does not include zone states, PGM output names and status.

  • Page 122: System Notifications

    SMS text message sent to user in case the system ends up with all unsuccessful attempts by all con- Communication with nections to deliver data message to the monitoring station. this event can be managed using eLDeS MS failed Configuration software only.
  • Page 123 ... → RF JAMMeR DeteCteD → OK → SMS tO ALL → OK → DISABLe → OK SMS delivery report: ... → RF JAMMeR DeteCteD → OK → SMS RePORt → OK → DISABLe → OK ESIM384 Installation and Configuration Manual v1.1...
  • Page 124 → WLeSS SIGN LOSS eV → OK → SMS tO ALL → OK → DISABLe → OK SMS delivery report: ... → WLeSS SIGN LOSS eV → OK → SMS RePORt → OK → DISABLe → OK ESIM384 Installation and Configuration Manual v1.1...
  • Page 125 SMS delivery report: 55 04 0 # Battery failed User phone number: 25 05 up 0 # SMS text message to all users simultaneously: 21 05 0 # SMS delivery report: 55 05 0 # ESIM384 Installation and Configuration Manual v1.1...
  • Page 126 SMS delivery report: 55 16 0 # Periodical info User phone number: 25 17 up 0 # SMS text message to all users simultaneously: 21 17 0 # SMS delivery report: 55 17 0 # ESIM384 Installation and Configuration Manual v1.1...
  • Page 127 55 25 0 # Value: up - user phone number slot, range - [01... 10]. Example: 2517040# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software ESIM384 Installation and Configuration Manual v1.1...
  • Page 128 ... → RF JAMMeR DeteCteD → OK → SMS tO ALL → OK → eNABLe → OK SMS delivery report: ... → RF JAMMeR DeteCteD → OK → SMS RePORt → OK → eNABLe → OK ESIM384 Installation and Configuration Manual v1.1...
  • Page 129 ... → WLeSS SIGN LOSS eV → OK → SMS tO ALL → OK → eNABLe → OK SMS delivery report: ... → WLeSS SIGN LOSS eV → OK → SMS RePORt → OK → eNABLe → OK ESIM384 Installation and Configuration Manual v1.1...
  • Page 130 SMS delivery report: 55 04 1 # Battery failed User phone number: 25 05 up 1 # SMS text message to all users simultaneously: 21 05 1 # SMS delivery report: 55 05 1 # ESIM384 Installation and Configuration Manual v1.1...
  • Page 131 SMS delivery report: 55 17 1 # Wireless signal loss/restore User phone number: 25 18 up 1 # SMS text message to all users simultaneously: 21 18 1 # SMS delivery report: 55 18 1 # ESIM384 Installation and Configuration Manual v1.1...
  • Page 132 55 25 1 # Value: up - user phone number slot, range - [01... 10]. Example: 2517041# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software ESIM384 Installation and Configuration Manual v1.1...

  • Page 133: Sms Text Message Delivery Restrictions

    27.3. SMS forward eSIM384 comes up with a feature, called SMS forward. the system allows user to forward any received message from devices’ SIM card to the administrators’ mobile phone number. there are 4 basic SMS forwarding options: •...

  • Page 134: Event And Alarm Log

    .log file or clear it, please refer to the following configuration method. ElDES Config- Export/clear event log this operation may be carried out from the PC using the ELDES Configuration software. uration software By default, event log is enabled. to disable/enable this feature, please refer to the following configuration methods.

  • Page 135: Alarm Log

    Value: FIRE - Fire-type zone alarm; P:4 - Partition 4; Z:9 - zone Z9. #4 example of alarm log record: WS LOST P:2 Z:14 Value: WS LOST - wireless signal loss alarm; P:2 - Partition 2; Z:14 - tamper 14. ESIM384 Installation and Configuration Manual v1.1...

  • Page 136: Indication Of System Faults

    ElDES Disable/enable Config- individual system fault this operation may be carried out from the PC using the ELDES Configuration software. uration indication on keypad software attEntIon: After enabling/disabling a certain system fault indication, it is necessary to restart the system locally by powering down and powering up the system the system or remotely (see 34.
  • Page 137 LeD #7 LeD #8 LeD #9 LeD #10 LeD #11 LeD #12 B (steady ON) A (flashing) LeD #1 LeD #2 LeD #3 LeD #4 LeD #5 LeD #6 ESIM384 Installation and Configuration Manual v1.1...

  • Page 138: Monitoring Station

    Account is a 4-character combination (By default – 9999) required to identify the alarm system unit by the monitoring station. the combi- nation may consist of digits [0... 9] and letters [A... F] (can be set using ELDES Configuration software only). Server 2 Account and Server 3 Account are used only when necessary to set up to 3 server IP addresses (see 30.2.1.

  • Page 139: Data Messages - Events

    ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software attEntIon: the system will NOt send any data to the monitoring station while remote connection, remote firmware update or remote listening/2-way voice communication is in progress. However, during the remote connection session or remote listening/2-way voice com-...
  • Page 140 Disarmed by user transmitted in case the system is disarmed by user/master code, wireless keyfob, iButton key, SMS text message, free of charge phone call, eLDeS Cloud Services, eL- DeS Configuration software, eGR100 middle-ware or Arm-Disarm by Zone method. 3401...
  • Page 141 User Code 23 User Code 9 on eLDeS Cloud Services User Code 27 on eLDeS Cloud Services 84 User Code 24 User Code 10 on eLDeS Cloud Services 67 User Code 28 on eLDeS Cloud Services 85 User Code 25...
  • Page 142 24 38 0 # – Armed/disarmed automatically 24 39 0 # – SMS sending limit reached/removed Example: 24080# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software ESIM384 Installation and Configuration Manual v1.1...
  • Page 143 Configuration via remote connection started: ... → CFG VIA ReMOte eV → OK → eNABLe → OK Panic/Silent zone alarm/restore: ... → PA/SIL ALM/ReSt eV → OK → eNABLe → OK Value: iiii – 4-digit installer code. ESIM384 Installation and Configuration Manual v1.1...
  • Page 144 24 38 1 # – Armed/disarmed automatically 24 39 1 # – SMS sending limit reached/removed Example: 24031# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software ESIM384 Installation and Configuration Manual v1.1...

  • Page 145: Communication

    If a new data message, except test event (ping), is generated within the Delay after last communication attempt time-frame, the system will immediately attempt to transmit it to the monitoring station, regardless of Delay after last communication attempt being in progress. ESIM384 Installation and Configuration Manual v1.1...
  • Page 146 When using Dual-SIM feature, the Secondary SIM card is involved in the communication process. For more details, please refer to 31. DUal SIM ManaGEMEnt. ESIM384 Installation and Configuration Manual v1.1...
  • Page 147 – eLAN3-ALARM - Server 2 48 9 # – eLAN3-ALARM - Server 3 Example: 484# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Set backup connection GPRS network - Server 1... 3: OK →...
  • Page 148 By default, this feature is disabled, therefore the system will switch to the next IP address (if set up and selected in the connection priority sequence) in the event of failed connection with the previous server. For detailed step-by-step instructions on how to establish the communication between eSIM384 alarm system and eGR100 middleware, please refer to the middleware’s HeLP file.
  • Page 149 96 03 add add add add # Value: add add add add – server IP address. Example: 40065082119005# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software SMS text message content: Server 1:...
  • Page 150 EKB3W/ EWKB4 Value: add add add add – DNS2 server IP address Example: 42065082119002# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software SMS text message content: Server 1: ssss_SetGPRS:PROtOCOL:ptc Set protocol Value: ssss –...
  • Page 151 Example: 6809# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software to report the online status, the system periodically transmits (by default – every 180 seconds) test event data message (ping) to the mon- itoring station via GPRS network or ethernet.
  • Page 152 ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software For communication via GPRS network, the GPRS parameters provided by the GSM operator are necessary to be set up. to set those param- eters, please refer to the following configuration methods.
  • Page 153 EWKB4 Example: 96011# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: OK → iiii → OK → MS SettINGS → OK → IP SettINGS → OK → PARAL.DS.MODe → OK →...
  • Page 154 Value: iiii – 4-digit installer code. ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software By default, if the initial attempt to transmit data to the monitoring station’s tel Number 1 via Voice Calls or SMS method is unsuccessful, the system will make up to 2 additional attempts.
  • Page 155 Value: ps – phone number slot, range – [01... 03]; ttteeellnnuumm – up to 15 digits monitor- EWKB4 ing station phone number. Example: 58020044170911XXXX1# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software Menu path: Delete monitoring EKB2 OK →...
  • Page 156 ElDES Enable/disable treat Config- this operation may be carried out from the PC using the ELDES Configuration software. PStn Call as User Call uration software 30.2.4. CSD the system supports up to 5 monitoring station phone numbers for communication with the alarm system by CSD communication method.

  • Page 157: Dual Sim Management

    – the system switches between the SIM cards in case of a GSM connection or one of the SIM cards failure. ElDES Manage Dual -SIM Config- this operation may be carried out from the PC using the ELDES Configuration software. feature uration software notE: Regardless of the selected mode, only one of the two SIM cards can operate at the same time.

  • Page 158: Wired Devices

    (see 32.1.1.1. Icons and Messages). time display (see 32.1.1.1. Icons and Messages). • For more details on technical specifications and installation, please refer to the latest user manual of the device located at www.eldesalarms.com ESIM384 Installation and Configuration Manual v1.1...
  • Page 159 Home screen One or more violated view Fire-type zones bypassed zone violated One or more partitions StAY-armed One or more Fire-type zones violated Alarms in alarm log present SErVICE MoDE Service mode activated ESIM384 Installation and Configuration Manual v1.1...
  • Page 160 CURRENT | RELAY FAULT | TEMP. FAULT | KeYPAD LOSt | CO LeVeL CRItICAL | eWM1 FAULt | WLeSS BAtt LOW | RF RESET COUNTER YES | NO Continued on next JAMMeR DeteCteD page ESIM384 Installation and Configuration Manual v1.1...
  • Page 161 [0000... 9999] CODE PARTITION DURESS CODE N/A | USeR CODe 2... 10 SGS CODE N/A | USeR CODe 2... 10 [0000... 9999] REMOVE CODE ALARM LOG CONFIGURATION iiii installer code see 32.1.1.3. Installer Menu tree ESIM384 Installation and Configuration Manual v1.1...
  • Page 162 [1... 65535] STAY DISABLe | eNABLe EXIT DELAY seconds [0... 600] PARTITION 1... 4 TAMPER NAME SIREN SETTINGS partition value PARTITION Continued on next page minutes [1... 10] ALARM DURATION DISABLe | eNABLe FORCE ESIM384 Installation and Configuration Manual v1.1...
  • Page 163 STAY DISABLe | eNABLe TAMPER NAME FW RELEASE ERROR RATE SIGNAL BATTERY partition value PARTITION IBUTTON KEYS DISABLe | eNABLe FORCE NEW IBUTTON IBUTTON 1... 16 REMOVE PARTITION partition value Continued on next page ESIM384 Installation and Configuration Manual v1.1...
  • Page 164 SMS TO ALL DISABLe | eNABLe ZONE BYPASS EV DISABLe | eNABLe CO SENS LFTIME EXC DISABLe | eNABLe SMS REPORT DISABLe | eNABLe CO LEVEL CRITICAL Continued on next page REPORT DISABLe | eNABLe ESIM384 Installation and Configuration Manual v1.1...
  • Page 165 CLEAR TAMPER FAULT TAMPER ALARM RESET TO DEFAULT DISABLe | eNABLe GSM USER 1... 10 uumm user or master code DISABLe | eNABLe SMS TO ALL Continued on next page DISABLe | eNABLe SMS REPORT ESIM384 Installation and Configuration Manual v1.1...
  • Page 166 GSM USER 1... 10 DISABLe | eNABLe SMS TO ALL SMS REPORT DISABLe | eNABLe WRLESS FAIL 20MIN. DISABLe | eNABLe GSM USER 1... 10 DISABLe | eNABLe SMS TO ALL DISABLe | eNABLe SMS REPORT ESIM384 Installation and Configuration Manual v1.1...

  • Page 167: 1-Wire Interface

    • EPGM8 - hardwired PGM output expansion module (for more details on technical specifications and installation, please refer to the latest user manual of the device located at www.eldesalarms.com) • EA1 - audio output module (see 32.2.1. Ea1 - audio output Module) • EA2 - audio output module with amplifier (see 32.2.2. Ea2 - audio output Module with amplifier) ESIM384 Installation and Configuration Manual v1.1...
  • Page 168 32.3.1. Ea1 – audio output Module eA1 audio output module enables a duplex audio connection for eSIM384 alarm system. Main features: • Two-way voice conversation during a phone call; • Possibility to connect headphones or desktop speakers. 32.3.1.1. technical Specifications • 3,5 mm female jack • Dimensions: 35x33x12mm (1.38x1.30x0.47in) 32.3.1.2. Installation 1. Disconnect eSIM384 alarm system main power supply and backup battery.
  • Page 169 32.3.2. Ea2 – audio output Module with amplifier eA2 audio output module enables a duplex audio connection for eSIM384 alarm system. Main features: • Two-way voice conversation during a phone call; • Possibility to connect a speaker. 32.3.2.1. technical Specifications • 1W 8Ω audio amplifier • Dimensions: 41x40x24mm (1.61x1.57x0.95in) 32.3.2.2. Installation 1. Disconnect eSIM384 alarm system main power supply and backup battery.

  • Page 170: Service Mode

    EKB3/ 67 1 # EKB3W/ EWKB4 Example: 671# ElDES Config- this operation may be carried out from the PC using the ELDES Configuration software. uration software SMS text message content: Deactivate Service ssss_SeRVICeMODe:OFF mode Value: ssss - 4-digit SMS password.

  • Page 171: Eldes Cloud Services

    Cloud Services website. When adding the device to your account, you will be prompted for Cloud Services ID, which can be obtained using ELDES Configuration software or by sending the following SMS text message to the system’s phone number.

  • Page 172: Technical Support

    · temperature sensor broken · Connection wires too long 24H and/or Fire zones do not work · Specified zone must be enabled by SMS, ELDES Configuration, eKB2, eKB3 or eK- B3W/eWKB4 No sound during remote listening · Microphone not connected ·...

  • Page 173: Updating Firmware Via Gprs Connection Remotely

    Value: ssss - 4-digit SMS password; ftp-server-io - public IP address of FtP server where eSIM384 firmware file is stored; port - port number of FtP server (usually - 21); firmware-file- name - name of the firmware file without file extension. Allowed max. file name length - up to 27 characters;...
  • Page 174 AtZ mode. 9. I connect the wired siren to eSIM384 and I hear a silent sound alarm even when the alarm system is disarmed. Please, connect the resistor of 3,3 kΩ nominal to the BeLL- / BeLL+ contacts In case of alarm system alarm the siren provides a loud this should solve the problem.

  • Page 175: Related Products

    - hardwired zone and PGM output expansion module Me1 - metal cabinet ePGM8 - hardwired PGM output expansion module eA1 - audio output module eA2 - audio output module with amplifier DS1990A-F5 - iButton key ESIM384 Installation and Configuration Manual v1.1...
  • Page 176 - wireless external siren eWK1 - wireless keyfob eWF1 - wireless smoke detector eKB3W/eWKB4 – wireless LeD keypad eWF1CO – wireless smoke and CO detector eWD2 - wireless door contact/shock sensor/flood sensor eWK2 - wireless keyfob ESIM384 Installation and Configuration Manual v1.1...
  • Page 177 - wireless signal repeater eWK2A - wireless keyfob eW2 - wireless zone and PGM output expansion module eWP2/eWP3 - wireless motion detector Vinson DS18B20 - digital thermometer with 3m (9.84ft) wire eSR100 - digital receiver ESIM384 Installation and Configuration Manual v1.1...

  • Page 178: Glossary

    A unique 64-bit ID code containing chip enclosed in a stainless steel tab usually implemented in a small plastic holder. eSIM384 system supports up to 16 iButton keys each holding a unique identity code (ID), which is used for system arming and disarming.
  • Page 179 PGM output state change manually. Ping period Sets period of time defining how often eSIM384 sends ping data packet to the Cloud Services server. Protocol A formal specification for communicating; an IP address the special set of rules that end points in a telecommunication connection use when they communicate.

  • Page 180: Ekb3/Ekb3W/Ewkb4 Commands

    Hold the [1]... [2] key and ber 1... 2 respectively. release it after 3 short beeps (for eKB3W/eWKB4 keypads) Arm the system/ Dis- uumm uumm – 4-digit user/ 2222 arm the system and master code. turn OFF the alarm ESIM384 Installation and Configuration Manual v1.1...
  • Page 181 24070 #/ 24071 # alarm/restore data message Disable/enable Instant 24080 #/ 24081 # Silent zone alarm/re- store data message Disable/enable Kronos 24090 #/ 24091 # ping data message Disable/enable System 24100 #/ 24101 # started data message ESIM384 Installation and Configuration Manual v1.1...
  • Page 182 Disable/enable Zone 24310 #/ 24311 # bypassed/activat- ed data message Disable/enable CO 24320 #/ 24321 # sensor lifetime exceed- ed data message Disable/enable CO level 24330 #/ 24331 # critical data message ESIM384 Installation and Configuration Manual v1.1...
  • Page 183 - user phone number slot, 2503060# sage in case of alarm 25 03 up 1 # range - [01... 10]. SMS text message to all users simultaneously: 21 03 1 # SMS delivery report:55 03 1 # ESIM384 Installation and Configuration Manual v1.1...
  • Page 184 - user phone number slot, 2509040# detected notification 25 09 up 0 # range - [01... 10]. SMS text message to all users simultaneously: 21 09 0 # SMS delivery report:55 090 # ESIM384 Installation and Configuration Manual v1.1...
  • Page 185 - user phone number slot, 2514031# fail/restore notification 25 14 up 1 # range - [01... 10]. SMS text message to all users simultaneously: 21 14 1 # SMS delivery report:55 14 1 # ESIM384 Installation and Configuration Manual v1.1...
  • Page 186 - user phone number slot, 2520030# pass notification 25 20 up 0 # range - [01... 10]. SMS text message to all users simultaneously: 21 20 0 # SMS delivery report:55 20 0 # ESIM384 Installation and Configuration Manual v1.1...
  • Page 187 - user phone number slot, 2525011# cation failed notification 25 25 up 1 # range - [01... 10]. SMS text message to all users simultaneously: 21 25 1 # SMS delivery report:55 25 1 # ESIM384 Installation and Configuration Manual v1.1...
  • Page 188 Server 3: 96 05 pprrt# Set test period Server 1: 46 tteessttpp# tteessttpp – test period, 46120# Server 2: 96 10 tteessttpp # range – [0... 65535] seconds. Server 3: 96 11 tteessttpp # ESIM384 Installation and Configuration Manual v1.1...
  • Page 189 – [01... 10]; pv – parti- tion value, range - [1... 15] Set iButton key partition 60 is pv # is – iButton key slot, range – 60057# [01... 16]; pv – partition value, range - [1... 15] ESIM384 Installation and Configuration Manual v1.1...
  • Page 190 – [01... 10]. Set monitoring station 85 ps ttteeellnnuumm # ps – phone number slot, 85010044170911XXXX1# phone number (for CSD) range – [01... 05]; ttteeel- lnnuumm – up to 15 digits monitoring station phone number. ESIM384 Installation and Configuration Manual v1.1...

  • Page 191: Sms Commands

    Set entry delay for delay zone 1111 eNtRYDeLAY:1,25;54,14;12,20 ZonES: Set zone name 1111 Z3:Door sensor triggered View zone names 1111 StAtUS Disable zone 1111 Z13:OFF enable zone 1111 Z6:ON alarM InDICatIonS anD notIfICatIonS: View violated zones 1111 INFO ESIM384 Installation and Configuration Manual v1.1...
  • Page 192 SYStEM InforMatIon. Info SMS: Request for system information 1111 INFO Set periodic info SMS frequency and time 1111 INFO:3.15 Disable periodic info SMS 1111 INFO:00.00 SMSC (short message service center) phone number 1111 SMS +4417031111111 ESIM384 Installation and Configuration Manual v1.1...
  • Page 193 Start Remote Config 1111 StCONFIG end Remote Config 1111 eNDCONFIG Start Remote Config via eLAN 1111 StCONFIG:eLAN CloUD SErVICES: Cloud Services ID 1111 SMARt ID Cloud Services settings – Smart On/Off, server, port, ping 1111 SMARt:ON,ss.eldes.lt,8082,180 ESIM384 Installation and Configuration Manual v1.1...

  • Page 194: Radio System Installation And Signal Penetration

    • Know you overall system gain required to meet the distance. the more the distance between the radios, the more the overall system gain needs to be. If the signal level between the system and your wireless device is equal or lower than 30%, then you must additionally ESIM384 Installation and Configuration Manual v1.1...
  • Page 195 • When using Alarm System with an external antenna, the ideal antenna installation place is a central location in the room. Where possible the antenna should be at least 10 – 15 cm away from the wall corner or concrete ceiling. Ceiling Min. 0,5 m Intermediate ceiling Antenna holding Min. 0,1 m Antenna ESIM384 Installation and Configuration Manual v1.1...
  • Page 196 • Metal separation walls: It can be noticed that radio transmission even works with metal indoor separation walls. this happens through reflections: Walls made of metal or concrete reflect the electromagnetic waves. the radio waves reach the next room or floor via a non metallic opening. Wall Alarm Metal System sheet Wireless device Wall ESIM384 Installation and Configuration Manual v1.1...
