GSM ALARM AND MANAGEMENT SYSTEM
ESIM264
COMPLIES WITH EN 50131-1 GRADE 2, CLASS II REQUIREMENTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESIM264 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes ESIM264

Summary of Contents for Eldes ESIM264

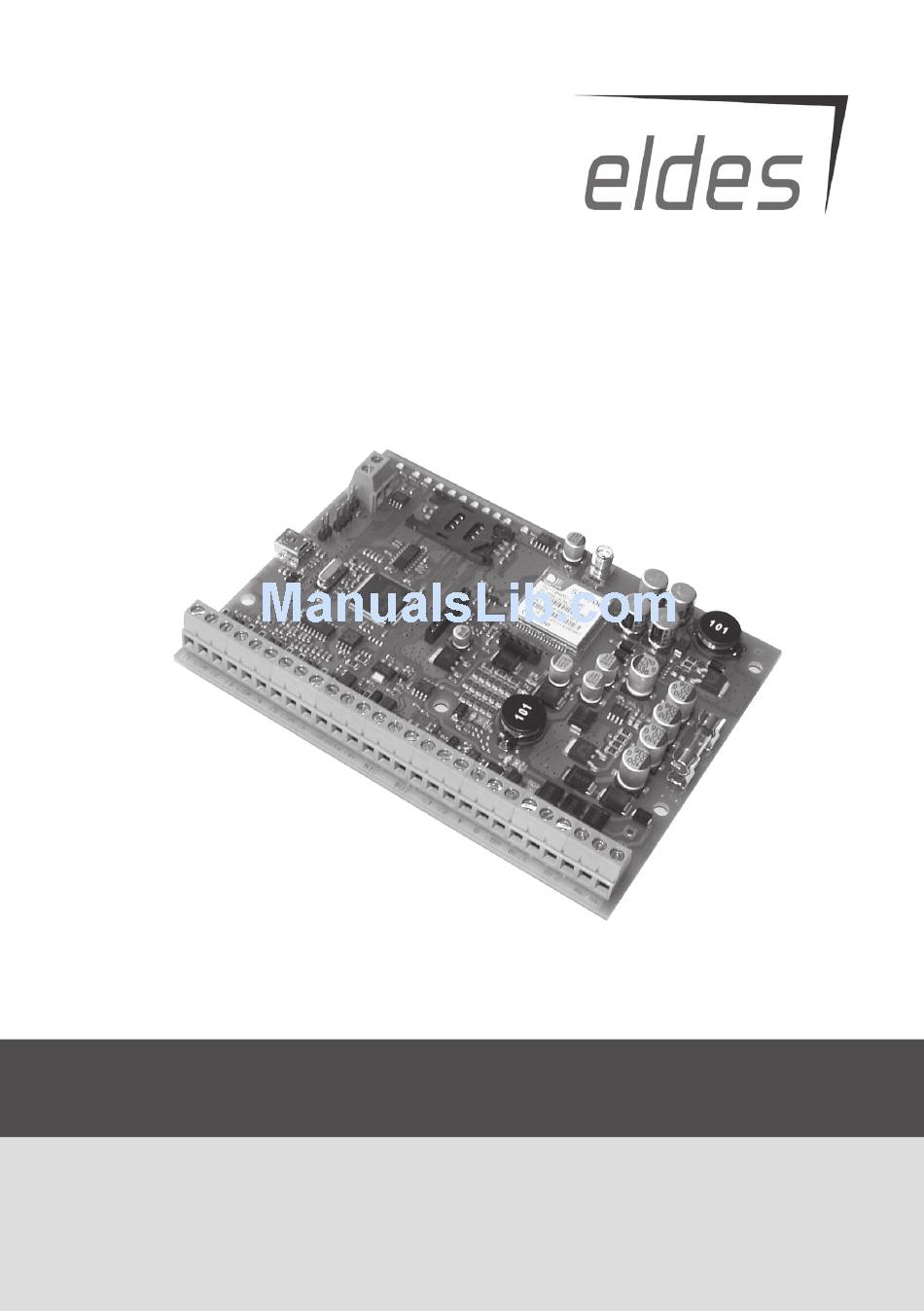

  • Page 1 GSM ALARM AND MANAGEMENT SYSTEM ESIM264 COMPLIES WITH EN 50131-1 GRADE 2, CLASS II REQUIREMENTS...

  • Page 2: Table Of Contents

    5.3 Remote System Configuration via GPRS Connection ..............................23 5.3.1 Establishing Remote Connection Between ESIM264 System and Configuration Server.................24 5.3.2 Connecting to ELDES Configuration Server using ELDES Configuration Tool Software .................24 5.3.3 Ending the Configuration Process .......................................24 5.4 Parameter Configuration Set (SMS, EKB2, EKB3) ................................25 5.4.1 SMS Language ............................................25...
  • Page 3 7.6 EA2 – Audio Output Module with Amplifier ..................................95 7.6.1 Technical Specifications ...........................................95 7.6.2 Installation ..............................................95 7.7 iButton® Key Reader & Keys ........................................96 7.7.1 Technical Specifications ..........................................96 7.7.1.1 Electrical & Mechanical Characteristics ..................................96 7.7.2 Installation ..............................................96 7.7.3 Managing iButton® Keys..........................................97 MANUAL ELDES ESIM264 V2.0...
  • Page 4 8. ELDES Wireless Devices ..................................100 8.1 EWT1 - Wireless Transmitter-Receiver ....................................102 8.1.1 Technical Specifications ........................................102 8.1.1.1 Electrical & Mechanical Characteristics ..................................102 8.1.2 Installation ..............................................102 8.2 EW1 - Wireless Zone & PGM Output Expansion Module .............................. 103 8.2.1 Technical Specifications ........................................
  • Page 5 MANUAL ELDES ESIM264 V2.0...
  • Page 6 • System label is on the bottom side of the device. GSM alarm system ESIM264 is a device mounted in limited access areas. Any system repairs must be done only by quali- fied, safety aware personnel. The system must be powered by main 16-24V 50 Hz ~1.5A max or 18-24V 1,5A max DC power supply which must be approved by LST EN 60950-1 standard and be easily accessible nearby the device.

  • Page 7: Package Content

    “ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the cellular providers therefore is not responsible for the quality of cellular service.

  • Page 8: General Information

    1. General Information 1.1 Functionality ESIM264 – micro-controller based alarm system for houses, cottages, country homes, garages and other buildings, also capable of managing electrical appliances via cellular GSM/GPRS network. It can also be used as Intercom system. The system can be used in the following applications: •...

  • Page 9: Default Parameters & Ways Of Parameter Configuration

    Siren Configurable by: Parameter Default Value EKB2 EKB3 Configuration Tool Siren Alarm Duration 1 minute     Bell Squawk Disabled    Siren ON if RF Signal is Lost Disabled    MANUAL ELDES ESIM264 V2.0...
  • Page 10 Periodic Info SMS, Alarm Notifications & Arm/Disarm Notifications Configurable by: Parameter Default Value EKB2 EKB3 Configuration Tool Periodic Info SMS Period – 1; Time - 11     Disable Call in Case of Alarm Disabled    Disable SMS in Case of Alarm Disabled ...

  • Page 11: Technical Specifications

    Event Log Size 1000 events Maximum Supported Quantity of Zones Maximum Supported Quantity of PGM Outputs Communications SMS, Ademco Contact ID®: Voice calls (GSM audio channel), GPRS network, RS485, CSD * only for system ESIM264 with module EWT1 MANUAL ELDES ESIM264 V2.0...

  • Page 12: Main Unit, Led & Connector Functionality

    2.2 Main Unit, LED & Connector Functionality ANTENNA Main Unit Functionality GSM MODEM GSM network 850/900/1800/1900MHz CARD modem MODEM SIM CARD SIM card slot / holder Pins for restoring default settings Mini USB port EWT1 FOR EA1/ FUSE F1 3A fuse EA2/EPGM8 ANTENNA GSM antenna SMA type connector...

  • Page 13: Wiring Diagrams

    1. Connect positive siren wire (red) to BELL+ contact. 2. Controlling BELL siren wire must be connected to BELL- contact. 2. Connect negative siren wire 3. Connect positive +12V siren wire to BELL+ contact. (black) to BELL- contact. MANUAL ELDES ESIM264 V2.0...

  • Page 14: Ibutton® Key Reader & Mini Buzzer

    Supported iButton® Key Model: Maxim®/Dallas® DS1990A The iButton® key reader can be installed with mini buzzer or separately. The mini buzzer is ESIM264 intended for audio indication of Entry/Exit Delay countdown providing short beeps. 1. Connect iButton® key reader contact wires to 1-Wire® interface: COM and DATA contacts respecti vely.

  • Page 15: Relay Finder® 40.61.9.12 With Terminal Socket 95.85.3

    Fig. No. 7 ESIM264 AUX+ COIL RELAY 1. Wire up relay A2 contact to PGM output Cx and A1 contact to AUX+. 2. In addition, connect LED anode contact to relay A2 contact and cathode to A1 contact. MANUAL ELDES ESIM264 V2.0...

  • Page 16: Keyboards

    2.3.7 Keyboards Parallel Wiring Fig. No. 8 ESIM264 AUX- AUX+ 5,6k EKB2 AUX- AUX+ EKB3 5,6k ATTENTION: When wiring more than 1 keyboard, please, make sure that the set address of each keyboard is different. NOTE: You may connect only 1 EKB2/EKB3 keyboard or a mixed combination of EKB2 and EKB3 keyboards. The combination can consist of up to 4 keyboards in total.
  • Page 17 NOTE: You may connect only 1 EKB2/EKB3 keyboard or a mixed combination of EKB2 and EKB3 keyboards. The combination can consist of up to 4 keyboards in total. For more details, please, refer to chapters 7.1 EKB2 - LCD Keyboard and 7.2 EKB3 - LED Keyboard MANUAL ELDES ESIM264 V2.0...

  • Page 18: Installation

    In addition it is recommended to disable call forwarding and voice mail feature. It is highly recommended to choose the same GSM cellular provider both for users and for ESIM264 system in order to assure fast and reliable SMS message delivery and phone call connection.

  • Page 19: Operation Description

    NOTE: There is no Exit Delay countdown when arming the alarm system by phone call, SMS message or EGR100 GPRS software. For more details, please, refer to chapter 5.4.5 Arming & Disarming the System. 4.2 Zones ESIM264 alarm system has 6 built-in on-board zones with expansion possibility for additional sensor connection. The number of zones can be expanded by: •...

  • Page 20: Programmable Outputs

    For more details, please, refer to ELDES Configuration Tool software’s HELP section and chapter 5.4.6 Zones. 4.3 Programmable Outputs (PGM) The system ESIM264 has 4 built-in on-board PGM outputs allowing to connect and control various electrical appliances: water pumps, heating, lighting, blinds etc. The number of PGM outputs can be expanded by: •...

  • Page 21: Wireless Devices

    EW1, sirens EWS1 & EWS2, magnetic door contact EWD1 and key-fob EWK1. Up to 16 ELDES wireless devices located at up to 30 meters (up to 150 meters in open areas) radius range from ESIM264 alarm system with EWT1 can be connected at a time. Accord- ing to wireless device type and quantity the system adds wireless zones (RF zones) and wireless PGM outputs (RF outputs), therefore totally 32 wireless zones and/or 32 wireless PGM outputs can be added to the system.

  • Page 22: Configuration & Control

    5.2 Ways of System Configuration In order to configure and control the system using SMS message, send the text command to the ESIM264 system phone number from one of the preset user phone numbers. The structure of SMS message consists of 4 digit SMS password (the default SMS password is 0000 –...

  • Page 23: Remote System Configuration Via Gprs Connection

    RATION TOOL lowing to use a personal computer in the process. Before starting to use ELDES Configuration Tool, please, read user guide available in the software’s HELP section. ELDES Configuration Tool is freeware and can be downloaded from ELDES website at: www.eldes.lt 5.3 Remote System Configuration via GPRS Connection...

  • Page 24: Establishing Remote Connection Between Esim264 System And Configuration Server

    SMS text: XXXX_stconfig Example: 1111_stconfig Initiate the In case it is necessary to establish a connection between ESIM264 system and a third-party Connection to configuration server, send the following SMS message. Third-Party Server SMS text: XXXX_stconfig:IPaddress:Port Value: Ipaddress –...

  • Page 25: Parameter Configuration Set (Sms, Ekb2, Ekb3)

    [3504#] - Latvian [3505#] - Czech [3506#] - Slovakian [3507#] - Greek NOTE: In order to change the SMS language in a configured system (after changing the SMS password), please, use ELDES Configu- ration Tool software. MANUAL ELDES ESIM264 V2.0...

  • Page 26: Passwords

    5.4.2 Passwords NOTE: All passwords consist of 4 digits. Non-numerical characters like letters, dots, colons, spaces are not allowed. The 4-digit SMS password intended for system configuration and control by SMS messages. Set SMS Password Manufacturer default SMS password is 0000 (four zeros) which is NECESSARY to change. SMS text: YYYY_PSW_XXXX Value: YYYY –...
  • Page 27 OK → CONFIGURATION → PRIMARY SET → PASSWORD → KEYBOARD PSW → DURESS PSW → N/A / [1... 10] Enter parameter 73 & user (keyboard) password number: EKB3 [73xx#] Value: xx – user (keyboard) password number, range - [01... 10] MANUAL ELDES ESIM264 V2.0...

  • Page 28: User Phone Numbers

    This command assigns one of the user (keyboard) passwords which is used to notify the Set Security Guard monito ring station about the arrival of security guards. The system transmits a data message Service Password to the monitoring station and disarms the alarm system after entering this password. Menu path: EKB2 OK →...
  • Page 29 This feature allows to check the list of added user phone numbers to the system. Numbers SMS text: XXXX_HELPNR Example: 1111_HELPNR Menu path: EKB2 OK → CONFIGURATION → PRIMARY SET → CALL/SMS SET → USER → USER [1... 5] EKB3 See also chapter 5.4.16 Partitions. MANUAL ELDES ESIM264 V2.0...

  • Page 30: Date & Time

    5.4.4 Date & Time In order to receive SMS messages containing correct date and time, please, set date and time Set Date & Time of the system. SMS text: XXXX_YYYY.MM.DD_HH:MM Value: YYYY– year; MM – month, range – [01... 12]; DD – day, range - [01... 31]; HH –...

  • Page 31: Arming & Disarming The System

    Value: 1 - system partition 0; 2 - system partition 1 Example: 1111_DISARM2 Enter user (keyboard) password: EKB2 [NNNNN] Value: NNNNN - 4-digit user (keyboard) password Enter user (keyboard) password: EKB3 [nnnnn] Value: nnnnn - 4-digit user (keyboard) password See also chapter 5.4.16 Partitions. MANUAL ELDES ESIM264 V2.0...
  • Page 32 This feature allows to set a zone for arming and disarming the alarm system when the zone Enable Arm- gets violated and restored. Violating and restoring the zone leads to system arming and by Disarm by Zone repeating this action the system becomes disarmed. This mode can be set for 1 on-board zone only.

  • Page 33: Zones

    - Fire sensor triggered, Z4 - Motion1 sensor triggered, Z5 - Motion2 sensor triggered, Z6 - Motion3 sensor triggered etc. Alarm text can be edited by SMS or ELDES Configuration Tool software only. The length of zone alarm text for each zone can be up to 24 characters including <space> symbol.
  • Page 34 This feature provides the list of violated tampers. List Violated Tampers The system notifies by SMS containing violated tamper number (unless tamper name is erased). Menu path: EKB2 TAMPERS -> TAMPER [1... 44] [CODE2] EKB3 For violated tamper 13 - 44 indication, please, refer to chapter 6.1 Trouble In- dication.
  • Page 35 Enter parameter 28 & parameter status value: EKB3 [281#] This command disables ATZ mode. Disable ATZ Mode Menu path: EKB2 OK → CONFIGURATION → ZONES → ATZ MODE → DISABLE Enter parameter 28 & parameter status value: EKB3 [280#] MANUAL ELDES ESIM264 V2.0...
  • Page 36 Set Zone Connection Specify zone aconnection type when ATZ mode is disabled. Available types: Type when ATZ Type 1 – Normally open (NO) contact with 5,6KΩ end-of-line resistor. Mode Disabled Type 2 – Normally closed (NC) contact with 5,6KΩ end-of-line resistor Type 3 –...
  • Page 37 This command enables a particular zone. By default, all keyboard zones and virtual zones are Enable Zone disabled. Virtual zones can be enabled using ELDES Configuration Tool only. SMS text: XXXX_Zn:ON Value: Zn – zone number, range – [Z1... Z44]...
  • Page 38 Zone bypassing allows to temporally disable a particular violated zone. Bypass Zone Menu path: OK → BYPASS → BYPASS LIST [1... 3] → [ZONE 1... 44] → BYPASS EKB2 Enter zone number & user (keyboard) password: EKB3 [BYPSxxyyyy#] Value: xx – zone number, range – [01... 44]; yyyy – 4-digit user (keyboard) pass- word This command allows to bypass all violated zones at once.
  • Page 39 Enter parameter 53, zonos number & zone type number: EKB3 [53xx1#] - Follow [53xx2#] - Instant [53xx3#] - 24H [53xx4#] - Delay [53xx5#] - Fire [53xx6#] - Silent Value: xx – zone number, range – [01... 44] MANUAL ELDES ESIM264 V2.0...
  • Page 40 Stay mode enables the users to arm and disarm the alarm system while staying inside the se- Enable Stay Mode cured premises. The system goes into Stay mode in case the Delay zone is not violated during for a Specified Zone the Exit Delay countdown (the user does not leave the secured area) and the zones which are configured as Stay will not be secured.
  • Page 41 OK → CONFIGURATION → ZONES → EPGM ZONES → EPGM ZONE [1... 16] → FORCE → ENABLE Enter parameter 82, zone number & parameter status value: EKB3 [82xx1#] Value: xx – zone number, range – [01... 44] MANUAL ELDES ESIM264 V2.0...
  • Page 42 This command disables Force mode for a specified zone. Disable Force Mode for a Specified Zone Menu path: EKB2 OK → CONFIGURATION → ZONES → WIRED ZONES → [ZONE 1... 12] → FORCE → DISABLE OK → CONFIGURATION → ZONES → WIRELESS ZONES →...
  • Page 43 The mini buzzer connected to ESIM264, together with EKB2 and EKB3 buzzers provides three Disable Chime short beeps every time when any Delay zone is being violated. Chime feature applies even when alarm system is disarmed. By default, this feature is enabled.
  • Page 44 This command enables Chime feature. Enable Chime Menu path: EKB2 OK → CONFIGURATION → PRIMARY SET → CALL/SMS SET → CHIME → ENABLE Enter parameter 32 & parameter status value: EKB3 [321#] This feature provides the list of zone and PGM output statuses (enabled/disabled, turned on/ List Zone &...

  • Page 45: Pgm Outputs

    PGM Output Name Controll2, C3 – Controll3, C4 – Controll4 etc. PGM output name can be edited by SMS or ELDES Configuration Tool software only. The length of each PGM output name can be up to 10 characters. SMS text: XXXX_Cn:NewOutputName Value: Cn –...
  • Page 46 Turn OFF PGM Output This command turns on a specified PGM output and sets its‘ status to OFF on system startup. / Set PGM Output Startup Status (OFF) SMS text: XXXX_Cn:OFF XXXX_OutputName:OFF Value: Cn – PGM output number, range – [C1... C44] Example: 1111_C2:OFF Menu path: EKB2...
  • Page 47 Value: xx – rule number, range – [01... 16] NOTE: Automatic PGM output control can be fully configured using ELDES Configuration Tool software. The number of wired PGM outputs can be expanded to 12 by connecting EPGM8 - 8 PGM out- Enable EPGM8 put expan sion module.

  • Page 48: Siren

    This command disables EPGM8 module mode. Disable EPGM8 Module Mode Menu path: OK → CONFIGURATION → USING EPGM8 → DISABLE EKB2 Enter parameter 33 & parameter status value: EKB3 [3302#] 5.4.8 Siren In case of alarm the system activates the siren connected to alarm system (depending on Set Siren Alarm zone type).
  • Page 49 Disable Bell Squawk Menu path: EKB2 OK → CONFIGURATION → PRIMARY SET → SIREN SET → BELL SQUAWK → DISABLE Enter parameter 29 & parameter status value: EKB3 [290#] NOTE: Bell Squawk feature applies to wired sirens only. MANUAL ELDES ESIM264 V2.0...
  • Page 50 When the system is armed, the siren is activated in case of wireless connection loss between Enable Siren ON if the alarm system and any wireless device. By default this feature is disabled. RF Signal is Lost Menu path: EKB2 OK →...

  • Page 51: Info Sms

    - [1... 23] Enter parameter 11, SMS sending time & period: EKB3 [11xxyy#] Value: xx – SMS sending period in hours, range - [1... 23]; yy - SMS sending period in days, range - [1... 99] MANUAL ELDES ESIM264 V2.0...

  • Page 52: Notification In Case Of Alarm

    This command disables Periodic Info SMS. Disable Periodic Info SMS SMS text: XXXX_INFO:00.00 Example: 1111_INFO:00.00 Menu path: OK → CONFIGURATION → PRIMARY SET → INFO SMS SCHED → PERIOD → [0] EKB2 OK → CONFIGURATION → PRIMARY SET → INFO SMS SCHED → TIME → [0] Enter parameter 11 &...
  • Page 53 This command enables SMS messages in case of alarm. Case of Alarm Menu path: EKB2 OK → CONFIGURATION → PRIMARY SET → CALL/SMS SET → DIS SMS DUR ALM. → DISABLE Enter parameter 31 & parameter status value: EKB3 [310#] MANUAL ELDES ESIM264 V2.0...
  • Page 54 Enable SMS to All In case of alarm, the system simultaneously sends SMS messages to all preset users as the sys- Users Simultaneously tem does not require SMS message delivery confirmation. By default, this function is disabled. in Case of Alarm SMS text: XXXX_SMSALL:ON Example: 1111_SMSALL:ON...

  • Page 55: Notification About Arming & Disarming

    (by any method). By default, this feature is disabled. Simultaneously SMS text: XXXX_MASTER:ON Example: 1111_MASTER:ON Menu path: EKB2 OK → CONFIGURATION → PRIMARY SET → CALL/SMS SET → INF ABOUT ARM/DARM → ENABLE Enter parameter 22 & parameter status value: EKB3 [221#] MANUAL ELDES ESIM264 V2.0...

  • Page 56: Notification About Temperature Change

    Temperature Limit Info SMS is sent to all preset users when temperature exceeds the min. or Disable Temperature max. set temperature value. By default, this SMS message is enabled Limit Info SMS The temperature is measured by temperature sensor connected to ESIM264 alarm system. SMS text: XXXX_TEMP:0:0 Example: 1111_TEMP:0:0...
  • Page 57 Keyboard keys P1 or P2 are used to enter minus symbol, e.g. -20 Enter parameter 20 & temperature value: EKB3 [20x#] Value: x - lowest temperature limit boundary in C, range - [-55... 125] 00 stands for minus symbol, i. e. 0020 = -20 MANUAL ELDES ESIM264 V2.0...

  • Page 58: Notification About Main Power Supply Status

    See Temperature This command indicates the lowest. & highest temperature limit boundaries set. Limit Min. & Max Values SMS text: XXXX_TEMP Example: 1111_TEMP Menu path: EKB2 OK → CONFIGURATION → PRIMARY SET → TEMP SENSOR → TEMP. MIN OK → CONFIGURATION → PRIMARY SET → TEMP SENSOR → TEMP. MAX EKB3 5.4.13 Main Power Supply Status Notifications After the main power is lost or restored, the system notifies all preset users by SMS message.
  • Page 59 POWER STATUS → AC FAILURE DELAY → [XXXXX] Value: [XXXXX] – main power failure delay in seconds, range - [0... 65535] Enter parameter 70 & duration in seconds: EKB3 [70x#] Value: x – main power failure delay in seconds, range - [0... 65535] MANUAL ELDES ESIM264 V2.0...

  • Page 60: Remote Listening

    Alternative way 2: the system answers the phone call from a preset user phone number (if this feature is enabled). For more details on this feature, please, refer to ELDES Configuration Tool software‘s HELP section. SMS text:...

  • Page 61: System Control From Any Phone Number

    Enable Allow Only Preset Users SMS text: XXXX_STR:ON Example: 1111_STR:ON Menu path: OK → CONFIGURATION → PRIMARY SET → EKB2 PASSWORD → ALLOW ONLY PRS USR → ENABLE Enter parameter 12 & parameter status value: EKB3 [121#] MANUAL ELDES ESIM264 V2.0...

  • Page 62: Partitions

    5.4.16 Partitions System partition which every keyboard is assigned to. By default, new added keyboard is as- Set Keyboard Partition signed to partition 0. Menu path: EKB2 OK → CONFIGURATION → PRIMARY SET → KEYBOARD PARTITION → KBRD [1... 10] → PARTITION [0... 1] Enter parameter 51, keyboard number &...
  • Page 63 OK → CONFIGURATION → PRIMARY SET → CALL/SMS SET → USER → USER [1... 5] → PARTITION → PARTITION [0... 1] Enter parameter 59, user number & partition: EKB3 [59xxy#] Value: xx – user number, range – [01... 05]; y – partition, range – [0... 1] MANUAL ELDES ESIM264 V2.0...
  • Page 64 System partition which every zone is assigned to. By default, every zone is assigned to par- Set Zone Partition tition 0. Menu path: EKB2 OK → CONFIGURATION → ZONES → WIRED ZONES → ZONE [1... 12] → PARTITION → PARTITION [ 0... 1] OK →...

  • Page 65: Additional Parameters

    .log file. The size of log file is up to 1000 records. By default, this feature is enabled. Menu path: EKB2 OK → CONFIGURATION → PRIMARY SET → LOG SET → DISABLE Enter parameter 36 & parameter status value: EKB3 [360#] MANUAL ELDES ESIM264 V2.0...
  • Page 66 This command enables Event Log feature. Enable Event Log Menu path: OK → CONFIGURATION → PRIMARY SET → LOG SET → ENABLE EKB2 Enter parameter 36 & parameter status value: EKB3 [361#] This command allows to set microphone connected to alarm system volume level. Default Microphone Level microphone volume level is 12.
  • Page 67 After this procedure all set phone numbers will be lost. Menu path: OK → CONFIGURATION → RESET TO DEFAULT → [XXXX] EKB2 Value: [XXXX] – keyboard password Enter parameter 62 & administrator password: EKB3 [62xxxx#] Value: xxxx – administrator password MANUAL ELDES ESIM264 V2.0...

  • Page 68: Technical Support

    6. Technical Support 6.1 Trouble Indication Message TBL displayed in the lower left side of the main screen view indicates presence of system troubles. EKB2 In order to find out more on the particular system problem, please, open menu section TROUBLES. The description on each system problem is indicated in the table below.
  • Page 69 Zone LED 3 = 3 Zone LED 9 = 24 Zone LED 4 = 4 Zone LED 10 = 30 Zone LED 5 = 5 Zone LED 11 = 36 Zone LED 6 = 6 Zone LED 12 = 42 MANUAL ELDES ESIM264 V2.0...

  • Page 70: Frequently Asked Questions

    6. What happens if I switch backup battery pole termi- What happens if I switch backup battery pole termi- What happens if I switch backup battery pole termi- this will lead to blown fuse and ESIM264 alarm system will have to be nals places? repaired.

  • Page 71: Troubleshooting

    This happens due to wireless connection loss. There might be several reasons: 14. One of wireless devices connected to ESIM264 1. ELDES wireless device is installed too close or too far from system sends a tamper alarm from time to time, ESIM264 system.

  • Page 72: Restoring Default Parameters

    · Temperature sensor broken · Connecting wires too long 24H and/or Fire zones do not work · Specified zone must be enabled by SMS, ELDES Configuration Tool, EKB2 or EKB3 No sound during remote listening · Microphone not connected · Improper microphone connection 6.4 Restoring Default Parameters...

  • Page 73: Upgrading The Firmware Via Gprs Connection (Fota)

    For product warranty repair service, please, contact your local retail store where this product was purchased. If your problem could not be fixed by the self-guide above, please, contact your distributor or ELDES technical support by email support@ eldes.lt . More up to date information about your device and other products can be found at the manufacturer’s website www.eldes.lt...

  • Page 74: Wired Devices

    • displays system status information on LCD screen • informs about system status via built-in mini buzzer The system configuration is performed by accessing EKB2 menu and entering the required values. ESIM264 system allows to connect up to 4 EKB2 keyboards.

  • Page 75: Connector And Main Unit Functionality

    A0 and A1 pins located on the back side of the keyboard are intended to set keyboard address. The keyboard address is set by putting the jumper (-s) on the pins. ESIM264 system allows to connect up to 4 EKB2 keyboards - each set under different address. Jumper combinations for different keyboard address configuration are indicated in the table below.

  • Page 76: Installation

    3. Fix the keyboard holder on the wall using the screws. (see Fig. No. 14) 4. Disconnect ESIM264 main power supply and backup battery. 5. Wire up keyboard contacts to ESIM264 alarm system respectively – Vin Fig. No. 12 to AUX+, COM to AUX-, Y to Y, G to G.

  • Page 77: Operation Description

    Keyboard EKB2 has one built-in zone Z1 and one tamper button. By default, the keyboard zone Z1 is disabled. The keyboard zone can be enabled by SMS, EKB2 keyboard, EKB3 keyboard and ELDES Configuration Tool. When Z1 is enabled, it operates like any other system zone, therefore a sensor can be connected to it.

  • Page 78: Keyboard Partition

    In order to find out the keyboard’s partition, please, check the partition title displayed on the main screen view – PART0 (partition 0) or PART1 (partition 1). The partition title of up to 15 characters length can be customized using ELDES Configuration Tool software.
  • Page 79 MANUAL ELDES ESIM264 V2.0...

  • Page 80: Menu Tree

    7.1.4 Menu Tree MAIN SCREEN VIEW PART [0... 1] | [custom name] TAMPERS TAMPER [1... 44] BYPASS VIOLATED ZONES ZONE [1... 44] BYP VIOLATED ZONES TROUBLES Z [1... 12] BYPASS LIST 1 T [1... 6] UNBYPASS / BYPASS DATE/TIME SET Z [13...44] BYPASS LIST 2 [YYYY-MM-DD HH:MM]...
  • Page 81 LITHUANIAN / RUSSIAN / ENGLISH / ESTONIAN / PARTITION PARTITION [0... 1] LATVIAN / CZECH / SLOVAKIAN / GREEK MIC LEVEL [0... 15] GSM AUDIO DATE/TIME SET SPEAKER LEVEL [0... 100] [YYYY-MM-DD HH:MM] LOG SET DISABLE / ENABLE MANUAL ELDES ESIM264 V2.0...
  • Page 82 MAIN SCREEN VIEW / OK / CONFIGURATION / ZONES ZONES WIRED ZONES WIRELESS ZONES ZONE [1... 12] RF ZONE [1... 16] STATUS NAME NAME STATUS DISABLE / ENABLE DISABLE / ENABLE ENTRY DELAY ENTRY DELAY FOLLOW / INSTANT / 24H / FOLLOW / INSTANT / 24H / TYPE TYPE...
  • Page 83 OUTPUT [13... 44] STATUS NAME STATUS NAME DISABLE / ENABLE DISABLE / ENABLE MAIN SCREEN VIEW / OK / CONFIGURATION / IBUTTON KEYS IBUTTON KEYS NEW IBUTTON IBUTTON [1... 5] DISABLE / ENABLE PARTITION REMOVE PARTITION [0... 1] MANUAL ELDES ESIM264 V2.0...
  • Page 84 MAIN SCREEN VIEW / OK / CONFIGURATION / ARC SET ARC SET ACCOUNT CID MESSAGES [0000... 9999] CID ENABLED ALARM/RESTORE EV ARC STATION NUM DISABLE / ENABLE DISABLE / ENABLE EXT.PWR L/R EV BATTERY STATUS EV EXT.PWR L/R EV ATTEMPTS DISABLE / ENABLE DISABLE / ENABLE [XXXXXXXXXXXXXXX]...
  • Page 85 MANUAL ELDES ESIM264 V2.0...

  • Page 86: Ekb3 - Led Keyboard

    LED indicators • informs about system status via built-in mini buzzer The system configuration is performed by accessing EKB2 menu and entering the required values. ESIM264 system allows to connect up to 4 EKB3 keyboards. 7.2.1 Technical Specifications 7.2.1.1 Electrical &...

  • Page 87: Keyboard Address

    DIP switches located on the back side of the keyboard are intended to set keyboard address. The keyboard address is configured by setting the DIP switch positions. ESIM264 alarm system allows to connect up to 4 EKB3 keyboards - each set under different address.

  • Page 88: Installation

    5,6k 3. Wire up keyboard contacts to ESIM264 alarm system respectively – AUX+ to AUX+, AUX- to AUX-, Y to Y, G to G. (see Fig. No. 19). 4. Z1 and COM contacts must be connected with resistor of 5,6kΩ nominal (see Fig. No. 19). As keyboard zone Z1 is disabled by de- fault, it can be enabled by SMS, ELDES Configuration Tool, EKB2 and EKB3 keyboard.

  • Page 89: Operation Description

    Keyboard EKB3 has one built-in zone Z1 and one tamper button. By default, the keyboard zone Z1 is disabled. The keyboard zone can be enabled by SMS, EKB2 keyboard, EKB3 keyboard and ELDES Configuration Tool. When Z1 is enabled, it operates like any other system zone, therefore a sensor can be connected to it.

  • Page 90: Epgm1 - Zone & Pgm Output Expansion Module

    7.3 EPGM1 - Zone & PGM Output Expansion Module EPGM1 is a hardwired zone & PGM output expansion module intended for using with ELDES GSM alarm systems. Main EPGM1 features: • hardwired zone expansion adding 16 additional zones • 2 PGM outputs for electrical appliance connection •...

  • Page 91: Wiring Diagram

    1. Disconnect ESIM264 alarm system main power supply and backup battery. 2. Connect EPGM1 DC+ contact to ESIM264 AUX+ contact, EPGM1 COM conta- ct to ESIM264 AUX- contact. EPGM1 Y and G contacts must be connected to ESIM264 Y and G contacts respectively (see Fig. No. 21).

  • Page 92: Epgm8 - Pgm Output Expansion Module

    7.4 EPGM8 - PGM Output Expansion Module EPGM1 is a PGM output expansion module intended for using with ELDES GSM alarm system ESIM264. This module allows to connect up to additional 8 electrical appliances. Main EPGM8 features: • PGM output expansion adding 8 additional PGM outputs.

  • Page 93: Installation

    AKU- Fig. No. 23 3. Connect EPGM8 12V positive power supply contact with ESIM264 alarm system AUX+ contact and EPGM8 GND contact with ESIM264 alarm system AUX- contact. (see Fig. No. 24). 4. Connect the electrical appliances to D1 – D8 PGM outputs. (see Fig. No. 24).

  • Page 94: Ea1 - Audio Output Module

    7.5 EA1 – Audio Output Module EA1 audio output module enables a duplex audio connection for ESIM264 alarm system. Main EA1 features: • bi-directional voice conversation during a phone call • possibility to connect headphones or desktop speakers 7.5.1 Technical Specifications •...

  • Page 95: Ea2 - Audio Output Module With Amplifier

    7.6 EA2 – Audio Output Module with Amplifier EA2 audio output module enables a duplex audio connection for ESIM264 alarm system. Main EA1 features: • bi-directional voice conversation during a phone call • possibility to connect a speaker 7.6.1 Technical Specifications •...

  • Page 96: Ibutton® Key Reader & Keys

    +12V 7.7.2 Installation BELL 1. Disconnect ESIM264 alarm system main power supply and backup battery. 2. Connect iButton® key reader contact wires to 1-Wire® interface on ESIM264 alarm system: COM and DATA contacts respectively. Fig. No. 29 ESIM264 DATA iButton®...

  • Page 97: Managing Ibutton® Keys

    The procedure of adding an iButton® key to the system is performed by touching the iButton® key to the iButton® key reader when New iButton® Key mode is enabled (see Fig. No. 30). Alarm system ESIM264 supports up to 5 iButton® keys with different IDs.
  • Page 98 This function enables New iButton® Key mode allowing to add the iButton® key IDs to the sys- Enable New iButton® tem. iButton® key1 can be added without New iButton® Key mode being enabled. Key Mode SMS text: XXXX_IBPROG:ON Example: 1111_IBPROG:ON Menu path: EKB2 OK →...
  • Page 99 SMS text: XXXX_RESETIB This feature removes ALL added iButton® key IDs at once. Example: 1111_RESETIB Menu path: EKB2 OK → CONFIGURATION → IBUTTON KEYS → IBUTTON [1... 5] → REMOVE EKB3 See also chapter 5.4.16 Partitions MANUAL ELDES ESIM264 V2.0...

  • Page 100: Eldes Wireless Devices

    8. ELDES Wireless Devices Main features: • Up to 16 ELDES wireless devices per alarm system unit ESIM264 with EWT1 module installed. • Two-way wireless communication. • Supervised communication link with configurable self-test period. • 4 wireless connection frequency modes.
  • Page 101 XXXX_DEL:yyyyyyyy tem, please, restore the parame- Value: yyyyyyyy – 8-digit wireless device ID ters of ELDES wireless device to default AND remove it from the number. Example: 1111_DEL:535185D system. If the wireless device pa-...

  • Page 102: Ewt1 - Wireless Transmitter-Receiver

    EWS1, wireless outdoor sirens EWS2, wireless magnetic door contacts EWD1 and wireless key-fobs EWK1. EWT1 enables ESIM264 alarm system to connect up to 16 wireless devices at a time. Maximum wireless connection range is 150 meters (in open areas).

  • Page 103: Ew1 - Wireless Zone & Pgm Output Expansion Module

    EW1 to the alarm system by sending a corresponding command via SMS message or using software ELDES Configuration Tool. It is possible to connect up to 16 EW1 devices to ESIM264 alarm system at a time. The maximum wireless connection range is 150 meters (in open areas).

  • Page 104: Ew1 Zones, Pgm Outputs & Tamper

    ELDES Configuration Tool. User can also monitor temperature of the surrounding areas in real-time as EWP1 has a built-in temperature sensor. It is possible to connect up to 16 EWP1 devices to ESIM264 alarm system at a time. The maximum wireless connection range is 150 meters (in open areas).

  • Page 105: Installation

    2. Fix EWP1 sensors mounting holder with two screws to the wall and attach the sensor. 3. Bind the device to ESIM264 alarm system. Use a software ELDES Configuration Tool or send corresponding SMS messages. Please refer to software‘s HELP section or refer to chapter 8. ELDES Wireless Devices for more details.

  • Page 106: Technical Specifications

    By default panic button zone is configured as Silent zone and in case the panic button is pressed, the system causes silent alarm (no siren is activated). It is possible to connect up to 16 EWD1 devices to ESIM264 alarm system at a time. The maximum wireless connection range is 150 meters (in open areas).

  • Page 107: Ewd1 - Wireless Magnetic Door Contact

    See Fig. No. 38 for the incorrect ways of fixing the magnetic door contact. Fig. No. 38 3. Bind the device to ESIM264 alarm. Use a software ELDES Configuration Tool or send corresponding SMS messages. Please refer to software‘s HELP section or refer to chapter 8. ELDES Wireless Devices for more details.

  • Page 108: Technical Specifications

    8.5 EWK1 - Wireless Key-Fob Key-fob EWK1 – is a wireless device intended to arm and disarm ESIM264 alarm system, to open and close the gates or to control any other device connected to the alarm system. Wireless key-fob EWK1 is compatible with ELDES wireless alarm systems, therefore user can easily bind it to the alarm system using ELDES Configuration Tool software or sending a corresponding SMS command.

  • Page 109: Ewk1 - Wireless Key-Fob

    EWK1 key-fob supports a Panic Button feature allowing to cause alarm at any time when the specified button is pressed. This feature can be configured using ELDES Configuration Tool by creating a virtual zone of Silent or 24H type and assigning it to Virtual Alarm option.

  • Page 110: Ews1 - Wireless Indoor Siren

    8.6 EWS1 – Wireless Indoor Siren EWS1 is a wireless device with built-in siren speaker and operates with ELDES wireless alarm systems. EWS1 has to be bind to the alarm system by sending a corresponding SMS message or using software ELDES Configuration Tool. Upon successful EWS1 binding, the system adds one wireless zone and one wireless PGM output.
  • Page 111 Push the screwdriver down to the right carefully in order to detach the enclosure parts from each other (see Fig. No. 45) Fig. No. 45 2. Once the enclosure is opened, remove the plastic tab inserted between one of the battery terminals and battery slot contact (see Fig. No. 46). Fig. No. 46 MANUAL ELDES ESIM264 V2.0...
  • Page 112 In case of tamper violation, the alarm is caused regardless of system being armed or disarmed. The wireless connection loss between EWS1 and ESIM264 system leads to alarm. The system identifies this event as a tamper violation and sends alarm by SMS message and phone call to the user (-s) by default.

  • Page 113: Battery Replacement

    Dispose old batteries only into special collection sites. Do not charge, disassemble, heat or incinerate old batteries. NOTE: The battery status can be monitored in real-time using ELDES Configuration Tool software. 8.6.5 Restoring Default Parameters 1.

  • Page 114: Ewk1 Zones (Panic Button)

    8.7 EWS2 – Wireless Outdoor Siren EWS2 outdoor siren is externally powered siren with integrated wireless module EW1. This wireless module EW1 connects to ELDES wireless alarm systems and managing EWS2 siren to work with alarm system. EWS2 is bind it to alarm system by sending a corre- sponding command via SMS message or using software ELDES Configuration Tool and configure zones and PGM outputs.

  • Page 115: Installation

    4. Bind EW1 device to alarm system by sending a corresponding command via SMS message or using ELDES Configuration Tool software. Please, refer to the software‘s HELP section or refer to chapter 8. ELDES Wireless Devices for more details. If attempt to bind is unsuccessful, try to move siren EWS2 closer to central monitoring station and bind anew.

  • Page 116: Monitoring Station

    The system supports 1 primary communication and up to 3 backup communications. All of the aforementioned communication methods can be set up as primary or backup in any sequence order by EKB2 keyboard, EKB3 keyboard and ELDES Configuration Tool software. For more details, please, refer to software’s HELP section and chapter 9.3 Monitoring Station Parameter Configuration (SMS, EKB2, EKB3).

  • Page 117: Monitoring Station Parameter Configuration (Sms, Ekb2, Ekb3)

    *** - contains violated tamper number with a star “*” character. 9.3 Monitoring Station Parameter Configuration (SMS, EKB2, EKB3) 9.3.1 Main Parameters This mode enables data transmission from alarm system ESIM264 to the monitoring station. Enable CID mode By default, this mode is disabled.
  • Page 118 This command enables a particular CID message. Enable CID Messages Menu path: EKB2 OK → CONFIGURATION → ARC SET → CONTACT ID MSG → ALARM/RESTORE EV → ENABLE OK → CONFIGURATION → ARC SET → CONTACT ID MSG → EXT. PWR L/R EV → ENABLE OK →...
  • Page 119 Enter parameter 25, event number & parameter status value: EKB3 [25011#] - Alarm Event [25021#] - Disarmed Event [25031#] - Armed Event [25041#] - Main Power Loss Event [25051#] - Main Power Restore Event [25061#] - Backup Battery Status Event [25071#] - Test Event MANUAL ELDES ESIM264 V2.0...
  • Page 120 This command disables particular User Messages. Disable User Messages Menu path: EKB2 OK → CONFIGURATION → ARC SET → USER MESSAGE → ALARM EVENT → DISABLE OK → CONFIGURATION → ARC SET → USER MESSAGE → ARMED EVENT → DISABLE OK →...
  • Page 121 Enter parameter 83, backup communication entry number & communi- EKB3 cation type value: [83xx0#] - GPRS Network [83xx1#] - Voice Calls [83xx2#] - RS485 [83xx3#] - CSD [83xx4#] - N/A Value: xx - backup communication entry number, range - [01... 03] MANUAL ELDES ESIM264 V2.0...
  • Page 122 This feature allows to set a delay period of time between data message sending at tempts to Delay Between monitoring station in case the initial attempt was unsuccessful. By default, this time period Attempts is 600 seconds. Menu path: EKB2 OK →...

  • Page 123: Gprs Network Settings

    OK → CONFIGURATION → ARC SET → GPRS SETTINGS → DNS2 → [0.0.0.0] EKB2 Value: [0.0.0.0] – DNS2 IP address digits Enter parameter 42 & DNS2 IP address: EKB3 [42xxxxxxxxxxx] Value: xxxxxxxxxxxx – DNS2 IP address digits MANUAL ELDES ESIM264 V2.0...
  • Page 124 Server port number for communication. Server Port (GPRS) SMS text: XXXX_setgprs:port:yyyyy Value: yyyyy - server port number, range - [1... 65535] Menu path: OK → CONFIGURATION → ARC SET → GPRS SETTINGS → SERVER PORT → [XXXXX] EKB2 Value: [XXXXX] – server port number, range - [1... 65535] Enter parameter 44 &...
  • Page 125 OK → CONFIGURATION → ARC SET → GPRS SETTINGS → APN EKB3 User name provided by GSM operator. User (GPRS) User name can be set and edited using ELDES Configuration Tool and SMS only. SMS text: XXXX_setgprs:user:yyy Value: yyy - User name provided by GSM operator.
  • Page 126 Profile name for current GPRS configuration. Profile (GPRS) Profile name can be set and edited using ELDES Configuration Tool and SMS only. SMS text: XXXX_setgprs:profile:yyy Value: yyy - profile name for current GPRS configuration. Menu path: OK → CONFIGURATION → ARC SET → GPRS SETTINGS → PROFILE...

  • Page 127: Voice Calls Settings

    The 4-digit ID code of the alarm system intended for system identification by EGR100 softwa- Device ID (GPRS) re. This ID code is indicated as Unit ID in EGR100 software. This parameter can be set and edited using ELDES Configuration Tool and SMS only. Menu path: EKB2 OK →...
  • Page 128 Delete Monitoring This command removes the selected monitoring station phone number. Station Phone Number (Voice Calls) Menu path: EKB2 OK → CONFIGURATION → ARC SET → ARC STATION NUM → TEL. NUMBER [1... 3] → OK → OK EKB3 The system attempts to make additional calls to monitoring station telephone number in case Call Attempts the initial call fails.

  • Page 129: Csd Settings

    OK → CONFIGURATION → ARC SET→ CSD SETTINGS→ATTEMPTS → [XX] EKB2 Value: [XX] - number of CSD attempts, range - [0... 10] Enter parameter 84 & number of CSD attempts: EKB3 [84xx#] Value: xx - number of CSD attempts, range - [00... 10] MANUAL ELDES ESIM264 V2.0...
  • Page 130 For notes...
  • Page 131 For notes MANUAL ELDES ESIM264 V2.0...
  • Page 132 1-Wire is a registered trademark of Maxim Integrated Products, Inc. Made in Lithuania. iButton is a registered trademark of Maxim Integrated Products, Inc. www.eldes.lt Dallas is a registered trademark of Maxim Integrated Products, Inc. Ademco Contact ID is a registered trademark of Pittway Corporation.

Table of Contents
