Eldes EWS4 - Outdoor Wireless Siren Manual

Compatible with

• ESIM384 firmware version V1.05.12 and up.
• Pitbull Alarm Pro firmware version V1.04.05 and up.

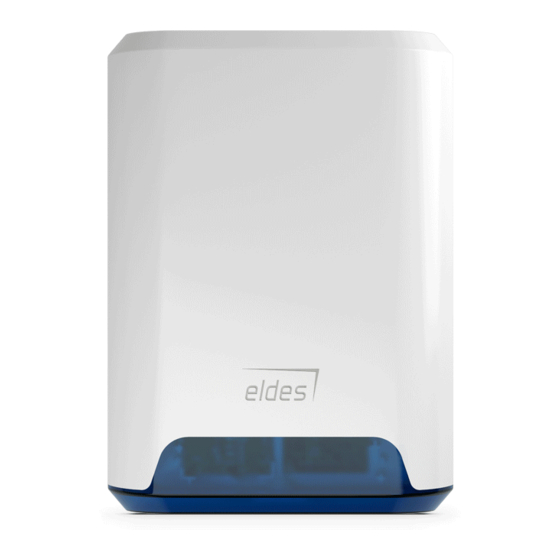

EWS4 is a wireless outdoor device with a built-in siren speaker, LED indicators and operates with ELDES alarm systems. The de vice is designed to notify the user by audio and visual signals in the event of alarm. EWS4 has to be bind to the alarm system using software ELDES Utility (alternatively - by sending a corresponding SMS message). Upon successful EWS4 binding process, the system adds one wireless zone and one tamper zone. In case of alarm, the siren provides a sound alarm ( up to 6 minutes long). When you connect EWS4 to an external power supply, it is highly recommended to insert 4 or 6 batteries into device. This way you will ensure the functionality of the device in case when the external power supply is lost. The battery positioning (sequence) doesn't matter when just 4 batteries are in use. Connecting to an external power supply won't affect the regular process of battery level monitoring and the user will be notified about the battery low event as usual. The user must change the batteries whenever the battery low notification is received or if the batteries expiration date has passed (even if those batteries are still usable). Additionally, user can connect the EWS4 siren to ESIM384 AUX+/AUX- power supply terminals (max. 2 sirens per alarm system) or use a separate power supply adapter (the one like is used for Pitbull Alarm Pro system). Pitbull Alarm Pro alarm system supports up to 2 EWS4 devices, ESIM384 - up to 8 EWS4 sirens. The maximum wireless connection range is 3000 meters (in open areas).

Contents of Pack

Element

1. EWS4 x1
2. Battery 3V Lithium CR123 type.. 4 /6*
   * optional, added on request

Quantity

1. User manual x1
2. Screws x4

Electrical & Mechanical Characteristics

* This operation time might vary in difference conditions; indicated battery operation time value corresponds when external power supply is not in use.

Main Unit, LED & Connector Functionality

Installation

1. Open EWS4 enclosure:

1. Unscrew the front side of the enclosure (release the screw by a couple of counterclockwise turns). See Fig. No 2;


2. Pull the front side of the enclosure up and put it aside by pulling the lid up. See Fig. No. 3;


3. Unlock 4 braces (pull each one down separately); pull up and remove the protecitve plastic lid. See Fig. No. 4.


2. Once the enclosure is opened and the protecitve plastic is removed, pull out all plastic tabs, inserted between battery's terminal and battery's slot contact. See Fig. No. 5.


3. Fix the siren on the wall using the screws. Pay attention, that when external power supply is needed, then you must pull those wires through the enclosure's hole in first place, and only then to fix the siren on the wall. See Fig. No. 6.


NOTE: If you are unable to bind the wireless device, please, restore the parameters of the wireless device to default and try again. See chapter 5. RESTORING DEFAULT PARAMETERS for more details.
ATTENTION: For more information about device's functions and use, please read user manual, which can be found at eldesalarms.com

Battery Replacement

1. Open EWS4 enclosure.
2. Remove all old batteries from the battery slots.
3. Position all new 3V Lithium CR123 type batteries according to the appropriate battery slot positive/negative terminals indicated on the PCB (printed-circuit-board) of EWS4.
4. Batteries replaced.

ATTENTION: When removing any batteries (for instance, while changing batteries), please wait at least 1 minute for the siren to restart properly.

ATTENTION: Only 3V Lithium CR123 type batteries can be used. Install only new, high quality and unexpired batteries. Do not mix the old batteries with the new ones.
ATTENTION: In order to avoid wrong battery case, special care must be taken when connecting positive and negative battery terminals.
ATTENTION: In order to avoid fire or explosion hazards, the system must be used only with approved battery. All batteries must be removed if the device is not in use. Dispose old batteries only into special collection sites. Do not charge, disassemble, heat or incinerate old batteries.
NOTE: The system informs user via Eldes Security App (or sends an SMS message to a preset User 1) as soon as the battery level runs below 5%.
NOTE: The battery status can be monitored in real-time using ELDES Utility software.

Restoring Default Parameters

1. Open EWS4 enclosure.
2. Short circuit (connect) DEF pins for approximately 5 seconds, until LED indicator starts blinking.
3. Remove DEF pins.
4. Parameters reset to default.
