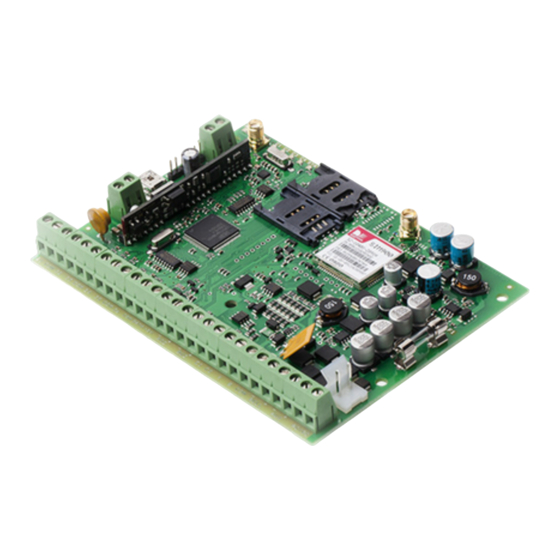

GSM ALARM AND MANAGEMENT SYSTEM

ESIM364

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESIM364 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes ESIM364

Summary of Contents for Eldes ESIM364

  • Page 1: Esim364

    GSM ALARM AND MANAGEMENT SYSTEM ESIM364 USER MANUAL...
  • Page 2 • System label is on the bottom side of the device. GSM alarm system ESIM364 is a device mounted in limited access areas. Any system repairs must be done only by quali­ fied, safety aware personnel. The system must be powered by main 16-24V 50 Hz ~1.5A max or 18-24V 1,5A max DC power supply which must be approved by LST EN 60950-1 standard and be easily accessible nearby the device.

  • Page 3: Table Of Contents

    It is not allowed to copy and distribute information in this document or pass to a third party without advanced written authorization by “ELDES UAB”. “ELDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby, “ELDES UAB”...

  • Page 4: General Information

    1. General Information ESIM364 is an alarm system for private houses, cottages, village houses, garages, warehouses and other buildings, also capable of turning on/off the electrical appliances by SMS text message and alarm system keypad. This alarm system provides a simple thus effective way of use.

  • Page 5: Ekb2 Keypad Overview

    1.2 EKB2 Keypad Overview EKB2 is an LCD keypad intended for using with ESIM364 alarm system. Temperature Keys Functionality GSM Signal Digital Clock One menu level back / cancel Strength 20,2 00:45 Menu navigation – up System Status Home Screen...

  • Page 6: Resistor 3,3Kω

    EKB2 LCD screen is intended for displaying alarm system status messages and alerts. Message READY is displayed on the screen that no zones are violated or no faults are present and the system is prepared for arming. Message NOT READY (and FLT) shows up in case of zone violation or if system faults are present.

  • Page 7: Ekb3/Ekb3W Keypad Overview

    1.3 EKB3/EKB3W Keypad Overview EKB3/EKB3W is a LED keypad intended for using with ESIM364 alarm system. LED Functionality ARMED READY STAY SYSTEM BYPS ARMED Alarm system is armed /Configuration mode BYPS READY System is prepared for arming SYSTEM System faults / valid command is being entered...

  • Page 8: Technical Specifications

    Number of Zones on Board 6 (ATZ mode: 12) Nominal Zone Resistance 5,6kΩ (ATZ Mode: 5,6kΩ and 3,3kΩ) Number of PGM Outputs on Board ESIM364 PGM Output Circuit Open Collector Output. Output is pulled to COM when turned ON. Maximum Commuting PGM Output Values Voltage –...

  • Page 9: Main Unit, Led & Connector Functionality

    Negative power supply terminal for auxiliary equipment AUX+ Positive power supply terminal for auxiliary equipment AC/DC Main power supply terminals AKU­ Backup battery negative terminal AKU+ Backup battery positive terminal * - Optional, implementable on request in advance MANUAL ELDES ESIM364 V1.2...

  • Page 10: Wiring Diagrams

    2.3 Wiring Diagrams 2.3.1 General Wiring AKU+ Backup Battery AKU- 12V 1.3-7Ah Metal cabinet PE terminal Fuse 500 mA ~16-24V ~230V 50Hz SIREN/BELL EPGM1 Fig. No. 2 1A max. iButton® key reader Relay module EKB3 EKB2 Temperature sensor 2.3.2 Zone Connection Types Type 1 Type 2 Type 3...

  • Page 11: Basic Configuration & Use

    EWK1 wireless keyfob. In order to configure and control the system using SMS text message, send the text command to the ESIM364 system phone number from one of the preset user phone numbers. In this user manual the underscore symbol ”_” represents one space character.

  • Page 12: Resistor 5,6Kω

    CALL User ESIM364 Fig. No. 7 3. When attempting to arm the system in case of violated zone / tamper presence, the system will reply with viola­ ted zone / tamper number. For more details, please refer to chapter 3.5 Bypassing & Activating Zones.

  • Page 13: Arm By Sms Text Message

    Value: p - partition number, range - [1... 4] Example: 1111_ARM1,3,4 When the system is successfully disarmed, it will reply with confirmation by SMS text message to the user phone number that sent the SMS text message. User ESIM364 Fig. No. 9 MANUAL ELDES ESIM364 V1.2...

  • Page 14: Arm By Ekb2 Keypad

    3.2.4 Arm by EKB2 Keypad 1. To arm the system, enter any out of 30 available 4-digit user passwords using the number keys: EKB2 Enter user password (and select partition): If only 1 partition is enabled: uuuu → OK → If more than 1 partition is enabled: uuuu →...

  • Page 15: Arm By Ekb3/Ekb3W Keypad

    3. When the system is successfully armed, it will reply with confirmation by SMS text message to User 1 phone number (by default) and EKB3/EKB3W red indicator ARMED will light OFF User ESIM364 Fig. No. 15 MANUAL ELDES ESIM364 V1.2...

  • Page 16: Arm By Ibutton® Key

    2. The system will initiate the exit delay countdown (by default – 15 seconds) intended for user to leave the secu­ red area. The countdown is indicated by short beeps provided by ESIM364 buzzer (if any). 3. When the system is successfully armed, it will reply with confirmation by SMS text message to User 1 phone number (by default).

  • Page 17: Arm By Ewk1 - Wireless Key-Fob

    4. When attempting to arm the system in case of violated zone / tamper presence, the system will reply with violated zone / tamper number. For more details, please refer to chapter 3.5 Bypassing & Activating Zones. MANUAL ELDES ESIM364 V1.2...

  • Page 18: Disarm & Turn Off The Alarm By Ewk1 - Wireless Key-Fob

    Disarm the system Fig. No. 22 3. When the system is successfully disarmed, it will reply with confirmation by SMS text message to User 1 phone number (by default). User ESIM364 Fig. No. 23...

  • Page 19: Activating Stay Mode

    (by default). User ESIM364 Fig. No. 24 For more details on how to disarm & turn off the alarm by EKB2 keypad, please refer to chapter 3.2.5 Disarm & Turn off the Alarm by EKB2 Keypad. MANUAL ELDES ESIM364 V1.2...
  • Page 20 2. When the system is successfully armed, it will reply with confirmation by SMS text message to User 1 phone number (by default). User ESIM364 Fig. No. 25 For more details on how to disarm & turn off the alarm by EKB3/EKB3W keypad, please refer to chapter 3.2.7 Disarm &...

  • Page 21: Alarm Indications & Viewing Violated Zones / Tampers

    By default configuration, the system makes a phone call to User 1 in case of alarm. By answering the call, the user is able to listen on his/her mobile phone to what is happening in area surrounding ESIM364 unit. This feature is pro­...

  • Page 22: Bypassing & Activating Zones

    The built-in EKB2 buzzer and ESIM364 buzzer (if any) provide short beeps continuously in case of alarm. In addi­ EKB2 tion, the LCD screen back-light level is boosted and the alarm message (depending on violated zone type or tamper violation) is displayed in the main screen view of EKB2 screen. The buzzer can be silenced by disarming the system using any method.

  • Page 23: Viewing System Information

    • System date & time. • System status: partition armed (ON)/disarmed (OFF). • GSM signal strength level. • Main power supply status. • Temperature of the area surrounding ESIM364 primary & secondary temperature sensors (if any). • State of zones (OK/alarm). User ESIM364 Fig.

  • Page 24: The System

    4. The system will reply with confirmation by SMS text message to the user phone number that sent the SMS text message. User ESIM364 Fig. No. 30 3.8 Viewing Zone & PGM Output Information 1. In order to find out the current zone & PGM output information, send the following SMS text message to the system‘...

  • Page 25: Managing Temperature Information

    Example: 1111_ITEMP:? 6. The system will reply with confirmation by SMS text message to the user phone number that sent the SMS text message. User ESIM364 Fig. No. 33 See also chapter 3.6 Viewing System Information MANUAL ELDES ESIM364 V1.2...

  • Page 26: Indication Of System Faults

    Navigate through the following path using OK and arrow keys to view real-time temperature sensor values: EKB2 Menu path: OK → TEMP SENSORS INFO → OK → 1... 8 3.10 Indication of System Faults Message FLT displayed in the lower left side of the home screen view indicates presence of system faults. In order to find EKB2 out more on the particular system fault, please open menu section FAULTS.
  • Page 27 Zone LED 3 = 3 Zone LED 9 = 24 Zone LED 4 = 4 Zone LED 10 = 30 Zone LED 5 = 5 Zone LED 11 = 36 Zone LED 6 = 6 Zone LED 12 = 42 MANUAL ELDES ESIM364 V1.2...

  • Page 28: Controlling Electrical Appliances

    Value: oo – PGM output number, range – [1... 76]; out-name – PGM output name. Example: 1111_C2:OFF The system will reply with confirmation by SMS text message to the user phone number that sent the SMS text message. User ESIM364 Fig. No. 34...

  • Page 29: Turning On/Off The Electrical Appliances For A Determined Time Period

    Navigate through the following menu path using OK and arrow keys and enter user password to view the event log: EKB2 Menu path: OK → VIEW EVENT LOG → OK → uuuu → OK Value: uuuu ­ 4­digit user password. MANUAL ELDES ESIM364 V1.2...

  • Page 30: If The Alarm System Is Connected To Monitoring Station

    Periodical system information by SMS text message. • Main power loss/restore indication by SMS text message. • Any other SMS text message generated by the system. NOTE: For complete system configuration and control, please refer to ESIM364 installation manual located at www.eldes.lt/en/download...
  • Page 31 MANUAL ELDES ESIM364 V1.2...
  • Page 32 Made in Lithuania. www.eldes.lt iButton is a registered trademark of Maxim Integrated Products, Inc.
