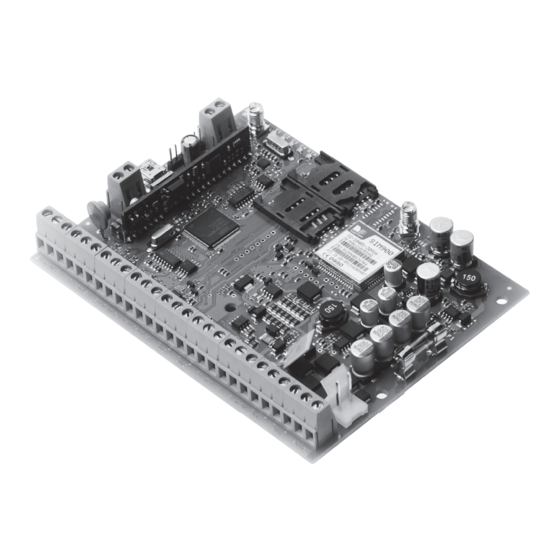

ESIM364
GSM ALARM AND MANAGEMENT SYSTEM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESIM364 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes ESIM364

Summary of Contents for Eldes ESIM364

  • Page 1 ESIM364 GSM ALARM AND MANAGEMENT SYSTEM...
  • Page 2 DO NOT attempt to personally repair the system. System label is on the bottom side of the device. GSM alarm system ESIM364 is a device mounted in limited access areas. Any system repairs must be done only by quali ed, safety aware personnel.

  • Page 3: Table Of Contents

    18.2. PGM Output Expansion ....................................61 18.3. PGM Output Names ......................................62 18.4. Turning PGM Outputs ON and OFF ................................62 18.5. PGM Output Control by Event and Scheduler ............................64 18.6. Wireless PGM Output Type De nitions ............................... 65 MANUAL ELDES ESIM364 V1.0...
  • Page 4 31. DUAL SIM MANAGEMENT ..............................113 31.1. Disabled Mode....................................... 113 31.2. Automatic Mode ......................................113 31.3. Manual Mode ........................................115 32. ELDES WIRED DEVICES ................................117 32.1. RS485 Interface ......................................117 32.2. 1-Wire Interface ......................................131 32.3. Modules Interface ......................................132 33. ELDES WIRELESS DEVICES..............................136 33.1.

  • Page 5: Package Content

    “ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not a liated with any of the cellular providers therefore is not responsible for the quality of cellular service.

  • Page 6: General Information

    * - A mixed combination of EKB2 and EKB3 keypads is supported. The combination can consist of up to 4 keypads in total. ** - Only 1 of these modules can be connected at a time if the module slots are implemented in ESIM364 unit.
  • Page 7 Disabled Alarm Duration & Siren Con gurable by: Parameter Default Value EKB3/ Con guration SMS EKB2 EKB3W Tool Alarm Duration 1 minute EWS2 LED Disabled Bell Squawk Disabled Activate Siren if Wireless Device is Lost Disabled MANUAL ELDES ESIM364 V1.0...
  • Page 8 Low Battery Enabled Siren Fail/Restore Enabled Date/Time Not Set Enabled GSM Connection Failed Disabled GSM Antenna Fail/Restore Disabled Tamper Alarm Disabled Keypad Failed Enabled Temperature Info Enabled System Started Enabled Periodical Info Enabled Wireless Signal Loss Enabled MANUAL ELDES ESIM364 V1.0...
  • Page 9 SIM2 Password (GPRS) Pro le (GPRS) Pro le1 GPRS Attempts Delay Between Attempts (GPRS) 600 seconds Unit ID (GPRS) 0000 Test Period (GPRS) 180 seconds Communication - Primary Communication - Backup 1... 5 Protocol over GPRS EGR100 MANUAL ELDES ESIM364 V1.0...
  • Page 10 Try to Find Operator for a Maximum of 3 times Smart Security Con gurable by: Parameter Default Value EKB3/ Con guration SMS EKB2 EKB3W Tool Smart Security Disabled Server Address con g.eldes.lt Port 8082 Ping Period 180 seconds Time Zone MANUAL ELDES ESIM364 V1.0...
  • Page 11 MANUAL ELDES ESIM364 V1.0...

  • Page 12: Technical Speci Cations

    6 (ATZ mode: 12) Nominal Zone Resistance 5,6k (ATZ Mode: 5,6k and 3,3k ) Number of PGM Outputs on Board ESIM364 PGM Output Circuit Open Collector Output. Output is pulled to COM when turned ON. Maximum Commuting PGM Output Values Voltage –...

  • Page 13: Main Unit, Led & Connector Functionality

    Negative power supply terminal for auxiliary equipment AUX+ Positive power supply terminal for auxiliary equipment AC/DC Main power supply terminals AKU- Backup battery negative terminal AKU+ Backup battery positive terminal * - Optional, implementable on request in advance MANUAL ELDES ESIM364 V1.0...

  • Page 14: Wiring Diagrams

    Example of magnetic door contact wiring 5,6 k 6-Zone mode: Nor- mally open contact with 5,6K end-of- line resistor. Magnet Type 2 Example of 4-wire smoke detector wiring 6-Zone mode: Nor- mally closed contact with 5,6K end-of- line resistor +Vin MANUAL ELDES ESIM364 V1.0...
  • Page 15 Example of motion detector (Z1) and magnetic door contact (Z7) wiring ATZ mode: Tamper, 5,6 k 5,6 k 3,3 k 5,6K end-of-line resistor, 5,6K end-of-line resistor with normally closed Magnet contact and 3,3K end-of-line resistor with normally closed contact. +Vin TAMP MANUAL ELDES ESIM364 V1.0...
  • Page 16 See also 20. SIREN/BELL. NOTE: BELL- is the commuted contact intended for siren control. NOTE: Ensure that the inner resistance of the siren/bell is ranging from 7 through 3,3 , otherwise the system will indicate system fault. MANUAL ELDES ESIM364 V1.0...
  • Page 17 2.3.6. Relay Finder® 40.61.9.12 with Terminal Socket 95.85.3 to PGM Output 1 Wire up relay A2 terminal to PGM output Cx and A1 terminal to AUX+. 2 In addition, connect LED anode terminal to relay A2 terminal and cathode to A1 terminal. COIL RELAY MANUAL ELDES ESIM364 V1.0...
  • Page 18 You may connect only 1 EKB2/EKB3 keypad or a mixed combination of EKB2 and EKB3 keypads. The combination can consist of up to 4 keypads in total. For more details on RS485 device installation, please refer to 32.1. RS485 Interface MANUAL ELDES ESIM364 V1.0...
  • Page 19 If necessary, the RS485 devices can be powered from anexternal 12-14V DC power supply instead of AUX+ and AUX- terminals ATTENTION: The cable between ESIM364 and each RS485 device must be of the same length and can NOT exceed 100 meters. ATTENTION: When wiring more than 1 keypad and/or EPGM1 module, please ensure that the set address of each keypad and/or EPGM1 module is di erent.

  • Page 20: Installation

    Secondary voltage: 17V 2,35A) Tamper switch to AC/DC terminals of ESIM364 system 2. Insert the plastic holders into the appropriate mounting points and x the board of ESIM364 on the holders as indicated below. mounting points MANUAL ELDES ESIM364 V1.0...
  • Page 21 3. If EPGM1 module is to be installed, please install it in the rst and ESIM364 alarm system afterwards. EPGM1 must be mounted on the shorter plastic holders, while ESIM364 – on the longer ones. The mounting points of EPGM1 module are indicated below.
  • Page 22 SIM card into the SIM CARD2 slot. For more details, please refer to 31. DUAL-SIM MANAGEMENT. Inserting a SIM card into SIM CARD1 slot is mandatory as it is the main SIM card slot, while using a SIM card in SIM CARD2 slot is optional. MANUAL ELDES ESIM364 V1.0...
  • Page 23 SMS text message delivery service and phone call connection. NOTE: Even though alarm system ESIM364 installation process is not too complicated, we still recommend to perform it by a person with basic knowledge in electrical engineering and electronics to avoid any system damage.

  • Page 24: General Operation

    If the user does not disarm the system in time, the alarm system will cause an instant alarm. NOTE: The alarm will be caused even if a tamper is violated while the system is disarmed. For more details, please refer to 12. ARMING AND DISARMING. MANUAL ELDES ESIM364 V1.0...

  • Page 25: Configuration Methods

    SMS text message. In order to con gure and control the system by SMS text message, send the text command to the ESIM364 system phone number from one of the preset user phone numbers. The structure of SMS text message consists of 4-digit SMS password (the default SMS password is 0000 –...

  • Page 26: Remote System Con Guration Via Gprs Connection

    The keypads will be inactive when the system is being con gured remotely. Before con guring ESIM364 remotely via GPRS connection, make sure that: SIM card is inserted into SIM CARD1 slot of ESIM364 device (see 2.2. Main Unit, LED & Connector Functionality). Mobile internet service is enabled on the SIM card.
  • Page 27 5.1.2. Connecting to ELDES Con guration Server using ELDES Con guration Tool Software Run ELDES Con guration Tool software. Press Remote Con guration button. In the next window, select Connect to Remote Server (recommended) and press Next button. Enter the received IMEI number in Device IMEI entry.

  • Page 28: Passwords

    0000, which MUST be changed! Administrator password – 4-digit password used for Con guration mode activation by keypad and logging in to ELDES Con guration Tool software. By default, Administrator password is 1470, which is highly recommended to change.

  • Page 29: Multi-Language Support

    The system comes equipped with 2 di erent languages for communication with he user by SMS text messages. The primary SMS language depends on ESIM364 rmware, which is based on the user’s location, while the secondary SMS language is always English.

  • Page 30: User Phone Numbers

    00[international code][area code][local number], example for UK: 004417091111111. This format can be used when set- ting up the phone number by SMS text message, EKB2/EKB3/EKB3W keypad and ELDES Con guration Tool software. Local – The phone numbers must be entered starting with an area code in the following format: [area code][local number], example for UK:017091111111.

  • Page 31: User Phone Number Names

    PHONE NUMBER Value: aaaa – 4-digit administrator password. Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool ATTENTION: NEVER add a phone number of the device’s SIM card as a user phone number! ATTENTION: Once User 1 phone number is set, it will be restricted to modify it only.
  • Page 32 Value: aaaa – 4-digit administrator password. Enter parameter 12 & parameter status value: EKB3/ 12 0 # EKB3W Example: 120# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool MANUAL ELDES ESIM364 V1.0...

  • Page 33: Date And Time

    – [00... 23]; mn – minutes, range – [00... 59]. Example: 66201305291235# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool NOTE: When the system is connected to the monitoring station, the date and time will be automatically synchronized with the monitoring station upon the system startup.

  • Page 34: User Passwords

    Value: us – user password slot, range – [01... 30]; uuuu – 4-digit user password; range – [0000... 9999]. Example: 15021111# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: CONFIGURATION...

  • Page 35: User Password Names

    Example: 7309# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool The Duress password is used when system disarming is demanded by force. When used, the system will disarm as well as it will silently transmit an alert to the monitoring station.

  • Page 36: Ibutton Keys

    11. iBUTTON KEYS An iButton key is a chip enclosed in a stainless steel tab usually implemented in a small plastic holder. ESIM364 system supports up to 5 iButton keys each holding a unique identity code (ID), which is used for system arming and disarming.

  • Page 37: Ibutton Key Names

    Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool To view the ID of the added iButton keys, please refer to the following con guration methods. Menu path: CONFIGURATION aaaa IBUTTON KEYS IBUTTON 1...

  • Page 38: Arming And Disarming

    (-s). The system will then send an SMS text message, containing a list of violated zones/tampers, to user phone number that the system arming was initiated from. If a combination of armed and disarmed ready partitions is present, the system will arm the disarmed ready partitions and skip the armed ones. MANUAL ELDES ESIM364 V1.0...

  • Page 39: Sms Text Message

    When a user phone number is assigned to multiple partitions, the user will be able arm/disarm the corresponding system partitions by sending the SMS text message to the system’s phone number. For example, if User 3 is assigned to Partition 2 and 3, the user will be able MANUAL ELDES ESIM364 V1.0...

  • Page 40: Ekb2 Keypad And User Password

    30 available 4-digit user passwords using the number keys on the keypad (see 10. USER PASSWORDS for user password management). By default, when a valid user password is entered, the system will initiate exit delay, the keypad’s buzzer will emit short beeps and the indicator ARMED will light ON. MANUAL ELDES ESIM364 V1.0...

  • Page 41: Ibutton Key

    For example, if iButton 5 is assigned to Partition 1 and 4, the user will be able to arm/ disarm Partition 1 and 4 by touching iButton 5 to the reader. For more details on how to set iButton key partition, please refer to 23.5. iButton Key Partition. MANUAL ELDES ESIM364 V1.0...

  • Page 42: Ewk1 Wireless Keyfob

    Partition 3. To arm a di erent partition than the EWK1 wireless keyfob is assigned to, bind another EWK1 keyfob to the system and assign it to a di erent partition. For more details on how to manage EWK1 keyfob buttons, please refer to ELDES Con guration Tool software‘s HELP section. 12.7. Arm-Disarm by Zone...

  • Page 43: Egr100 Middle-Ware

    Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: CONFIGURATION aaaa ZONES ARM/DISARM BY ZONE Disable Arm-Disarm by EKB2 Zone method Value: aaaa – 4-digit administrator password. Enter parameter 34 & parameter status value...
  • Page 44 Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool By default, the system sends SMS text message only to the rst available user phone number when the system is successfully armed/ disarmed.

  • Page 45: Exit And Entry Delay

    Example: 7203259# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool NOTE: Alternatively, you can set exit delay value to 0 in order to arm the system without exit delay by any available method.
  • Page 46 Example: 5403259# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool NOTE: Due to battery power saving reasons, EKB3W keypad buzzer will not sound during exit and entry delay if the violated Delay type zone is not of the associated EKB3W keypad.

  • Page 47: Zones

    14.3. 6-Zone Mode By default, ESIM364 alarm system runs in the 6-Zone mode under zone connection Type 1 allowing to connect up to 6 detection devices of NO (normally-open) type to the on-board zone terminals as indicated in the wiring diagram of Type 1. Once a di erent zone connection type is set, the detection device wiring must be done according to the wiring diagram of the associated type.

  • Page 48: Atz (Advanced Technology Zone) Mode

    – Type 3 Example: 382# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool 14.4. ATZ (Advanced Technology Zone) Mode The ATZ mode is a software-based feature that doubles the number of on-board zones and enables two detection devices to be installed per 1 zone terminal.

  • Page 49: Zone Type De Nitions

    39 5 # – Type 5 Example: 395# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool NOTE: The ATZ mode applies to on-board zones only when enabled. 14.5. Zone Type De nitions Follow –...

  • Page 50: Zone Attributes

    56 nn 1 # EKB3W Value: nn – zone number, range – [01... 76]. Example: 56041# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: On-board zone: CONFIGURATION...
  • Page 51 82 nn 1 # EKB3W Value: nn – zone number, range – [01... 76]. Example: 82061# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: Disable Force On-board zone:...

  • Page 52: Bypassing And Activating Zones

    Enter parameter 32 & parameter status value: EKB3/ 32 0 # EKB3W Example: 320# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: EKB2 CONFIGURATION aaaa PRIMARY SETTINGS...

  • Page 53: Zone Names

    Value: ssss – 4-digit SMS password; nn – zone number, range – [1... 76]; zone-name – up to 24 characters zone name. Example: 1111_Z3:Door sensor triggered Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool SMS text message content: ssss_STATUS View zone names Value: ssss –...
  • Page 54 52 nn 0 # EKB3W Value: nn – zone number, range – [01... 76]. Example: 52360# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool SMS text message content: ssss_Znn:ON Enable zone Value: ssss –...

  • Page 55: Stay Mode

    The system can be armed in Stay mode, only if there is at least one zone with Stay attribute enabled. NOTE: Stay mode is not supported by virtual zones. For more details on how to enable Stay attribute for zone, please refer to 14.6. Zone Attributes. MANUAL ELDES ESIM364 V1.0...

  • Page 56: Tampers

    - Tamper alarm EKB3W 25 18 0 # - Wireless signal loss Example: 25180# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: Tamper alarm: CONFIGURATION aaaa SMS MESSAGES 2...

  • Page 57: Alarm Indications And Notifications

    To silent the siren/bell as well as to cease system phone calls and SMS text message sending to the user phone numbers, please disarm the system (see 12. ARMING AND DISARMING). SMS text message content: ssss_INFO View violated zones Value: ssss – 4-digit SMS password. Example: 1111_INFO Menu path: EKB2 VIOLATED ZONES ZONE 1... 76 MANUAL ELDES ESIM364 V1.0...

  • Page 58: Enabling And Disabling Alarm Noti Cations

    29. INDICATION OF SYS- TEM FAULTS. Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool The systemwill automatically send an SMS text message, containing a violated tamper name, View violated tampers to user phone number.
  • Page 59 Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool By, default the system will send SMS text message to preset user phone numbers in case of alarm. To disable/enable this feature, please refer to the following con guration methods.
  • Page 60 Example: 210# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool By default, tamper alarm noti cation by SMS text message is enabled. For more details on how to disable/enable tamper alarm noti cation, please refer to 16.

  • Page 61: Programmable (Pgm) Outputs

    When a PGM output turns ON, the system triggers any device or relay connected to it. ESIM364 comes equipped with four open-collector PGM outputs allowing to connect up to four devices or relays. For more details on PGM output expanding, please refer to 18.2. PGM Output Expansion.

  • Page 62: Pgm Output Names

    EKB3W Example: 330# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool 18.3. PGM Output Names Each PGM output has a name that can be customized by the user. Typically, the name speci es a device type connected to a determined PGM output, for Example: Lights.
  • Page 63 EKB3W Value: oo – PGM output number, range – [01... 76]. Example: 61031# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool SMS text message content: Turn OFF PGM output/...

  • Page 64: Pgm Output Control By Event And Scheduler

    Partition 2 is disarmed. It means that the PGM output C1 will be turned ON when zone Z6 is violated, but only if system’s Partition 2 is disarmed. Manage PGM output Con g control by event & This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool scheduler MANUAL ELDES ESIM364 V1.0...

  • Page 65: Wireless Pgm Output Type De Nitions

    Siren – Operates as siren output that automatically activates during alarm. Typically, this type is used for bell/siren connected to EW1 wireless device. Set output type for Con g individual wireless This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool PGM output MANUAL ELDES ESIM364 V1.0...

  • Page 66: Wireless Devices

    19. WIRELESS DEVICES ESIM364 system has a built-in wireless module for system extension capabilities. The wireless module easily allows the user to bind up to 32 ELDES-made wireless devices to the system. This includes the following: EWP1 – wireless PIR sensor (motion detector).

  • Page 67: Wireless Device Information And Signal Status Monitoring

    If you are unable to bind a wireless device, please restore the wireless device’s parameters to default and try again. For more details on how to restore the default parameters, please refer to the user manual provided along with the wireless device or visit www.eldes.lt/en/...
  • Page 68 – 8-digit wireless device ID code. Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool The system supports up to 32 wireless devices. To view the number of unoccupied wireless device slots in the system, please refer to the...

  • Page 69: Disabling And Enabling Siren If Wireless Signal Is Lost

    Enter parameter 76 & parameter status value: EKB3/ 76 1 # EKB3W Example: 761# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: Disable Siren if EKB2 CONFIGURATION...

  • Page 70: Siren/Bell

    EKB3W Value: tt – alarm duration, range – [00... 10] minutes. Example: 1007# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool SMS text message content: ssss_SIREN View alarm duration Value: ssss –...

  • Page 71: Bell Output Status Monitoring

    Enter parameter 25, noti cation number & parameter status value: EKB3/ 25 08 1 # EKB3W Example: 25081# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: Disable Siren Fail/ EKB2 CONFIGURATION...

  • Page 72: Indication By Ews2 Indicators

    EKB3W Example: 290# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool 20.3. Indication by EWS2 Indicators When enabled, the built-in LED indicators of EWS2 wireless outdoor siren will ash during the alarm. To enable/disable this feature, please refer to the following con guration methods.

  • Page 73: Backup Battery, Mains Power Supply Status Monitoring And Memory

    Enter parameter 25, noti cation number & parameter statusvalue: EKB3/ 25 05 0 # EKB3W Example: 25050# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: Enable Battery Failed EKB2 CONFIGURATION...
  • Page 74 Enter parameter 25, noti cation number & parameter status value: EKB3/ 25 06 1 # EKB3W Example: 25061# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: Disable Low Battery EKB2 CONFIGURATION...
  • Page 75 Example: 25041# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool By default, mains power supply loss and restore delay are 30 and 120 seconds respectively. To set a di erent mains power supply loss and restore delay duration, please refer to the following con guration methods.

  • Page 76: Gsm Connection And Antenna Status Monitoring

    Enter parameter 25, noti cation number & parameter status value: EKB3/ 25 11 1 # EKB3W Example: 25111# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: Disable GSM EKB2 CONFIGURATION...
  • Page 77 Enter parameter 25, noti cation number & parameter status value: EKB3/ 25 12 1 # EKB3W Example: 25121# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: Disable GSM EKB2 CONFIGURATION...

  • Page 78: Partitions

    23. PARTITIONS ESIM364 system comes equipped with a partitioning feature that can divide the alarm system into four independently controlled areas identi ed as Partition 1 through 4, which are all supervised by one alarm system unit. Partitioning can be used in installations where shared alarm system is more practical, such as a house and a garage or within a single multi-storey building.

  • Page 79: Keypad Partition And Keypad Partition Switch

    08]; p – EKB2 partition number, range – [1... 4]; r – EKB3/EKB3W partition number, range – [1... 2]. Example: 51062# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool NOTE: The keypad can only be assigned to one partition.

  • Page 80: User Password Partition

    77 0 # EKB3W Example: 770# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool NOTE: Keypad partition switch can only be used when the system is partitioned. 23.4. User Password Partition User password partition determines which system partition (-s) can be armed/disarm using a certain user password.

  • Page 81: Ibutton Key Partition

    Value: ii – iButton key slot, range – [01... 05]; pv – partition value (see 23. PARTITIONS). Example: 600511# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool 23.6. EWK1 Wireless Keyfob Partition EWK1 wireless keyfob partition determines which system partition can be armed/disarmed using a certain EWK1 wireless keyfob.

  • Page 82: Temperature Sensors

    1. tm.p C (PRIM) | (SEC)... 8. tm.p C EKB2 Value: tm.p – real-time temperature value. Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool SMS text message content: View real-time...

  • Page 83: Primary And Secondary Temperature Sensors

    89 ts # EKB3W Value: ts – temperature sensor slot, range - [01... 08]. Example: 8903# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool SMS text message content: Set secondary ssss_TEMPI:SEC:ts temperature sensor Value: ssss –...

  • Page 84: Setting Up Min And Max Temperature Boundaries. Temperature Info Sms

    1... 8 tm.p C (SEC) Value: tm.p – real-time temperature value. Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool NOTE: Primary and secondary temperature sensors can be set by a single SMS text message, Example: 1111_TEMPI:PRIM:4,SEC:3 24.3.

  • Page 85: Temperature Sensor Names

    Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool NOTE: MIN and MAX boundaries can also be set separately by multiple SMS text messages, Example: 1111_TEMP1:MIN:6 and 1111_ TEMP1:MAX:40 24.4. Temperature Sensor Names The temperature sensor name is included in the Temperature Info SMS when delivered to the User 1 phone number.

  • Page 86: Remote Listening And 2-Way Voice Communication

    25. REMOTE LISTENING AND 2-WAY VOICE COMMUNICATION ESIM364 comes equipped with a microphone that allows the user to listen on his mobile phone to what is happening in the secured area. By installing one of the audio modules EA1 or EA2, the user will be able to have a 2-way voice communication (see 32.3.2. EA1 – Audio Output Module and 32.3.3.

  • Page 87: System Information. Info Sms

    Value: ssss – 4-digit SMS password. Example: 1111_INFO Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool 26.1. Periodic Info SMS By default, the system sends Info SMS to User 1 phone number periodically once a day at 11:00 (frequency – 1 day; time – 11). The mini- mum period is every 1 hour (frequency –...
  • Page 88 EKB3W Example: 110000# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool ATTENTION: Unlike Info SMS upon request, periodic Info SMS text message does not included zone states, PGM output names and status.

  • Page 89: System Notifications

    SMS text message sent to the user in case the wireless signal is lost. Indicated as Tamper x *. ATTENTION: The following methods provide the con guration of the master parameters, which override the noti cation parameters described in 12.9. Disabling and Enabling Arm/Disarm Noti cations. MANUAL ELDES ESIM364 V1.0...
  • Page 90 25 17 0 # - Periodical info 25 18 0 # - Wireless signal loss Example: 25040# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool MANUAL ELDES ESIM364 V1.0...
  • Page 91 25 17 1 # - Periodical info 25 18 1 # - Wireless signal loss Example: 25061# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool MANUAL ELDES ESIM364 V1.0...

  • Page 92: Smsc (Short Message Service Center) Phone Number

    Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits SMSC phone number. Example: 1111_SMS_+4417031111111 ATTENTION: Before setting the SMSC phone number, please check the credit balance of the system’s SIM card. The system will fail to reply if the credit balance is insu cient. MANUAL ELDES ESIM364 V1.0...

  • Page 93: Event Log

    Con g Export/clear event log This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool By default, event log is enabled. To disable/enable this feature, please refer to the following con guration methods.

  • Page 94: Indication Of System Faults

    GSM jamming is detected VIOLATED TAMPER One or more tampers are violated DATE/TIME NOT SET Date/time not set GSM CONNECT FAILED GSM connection is lost GSM ANTENNA FAILED GSM antenna is disconnected/broken WLESS SIGNAL LOST Wireless signal is lost MANUAL ELDES ESIM364 V1.0...
  • Page 95 Zone LED 3 = 3 Zone LED 9 = 24 Zone LED 4 = 4 Zone LED 10 = 30 Zone LED 5 = 5 Zone LED 11 = 36 Zone LED 6 = 6 Zone LED 12 = 42 MANUAL ELDES ESIM364 V1.0...

  • Page 96: Monitoring Station

    EKB3/ 23 1 # EKB3W Example: 231# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool SMS text message content: ssss_SCNSET:OFF Disable MS mode Value: ssss – 4-digit SMS password.

  • Page 97: Data Messages - Events

    Transmitted in case the system is armed by SGS password. password) 1602 Test event/Kronos Transmitted for system online status veri cation purposes. ping 3626 Date/time not set Transmitted in case system date & time is not set. 1900 System started Transmitted on system startup. MANUAL ELDES ESIM364 V1.0...
  • Page 98 User Password 23 User Password 24 User Password 25 User Password 26 User Password 27 User Password 28 User Password 29 User Password 30 Remote Code (EGR100) KeyFob 1 KeyFob 2 KeyFob 3 KeyFob 4 Arm/Disarm by Zone MANUAL ELDES ESIM364 V1.0...
  • Page 99 SYSTEM SHUTDOWN EV DISABLE Keypad fail/restore: CONFIGURATION aaaa MS SETTINGS DATA MESSAGES 2 KEYPAD FAIL/REST DISABLE GPRS connection failed: CONFIGURATION aaaa MS SETTINGS DATA MESSAGES 2 GPRS CONNECT FAIL DISABLE Value: aaaa – 4-digit administrator password. MANUAL ELDES ESIM364 V1.0...
  • Page 100 24 28 0 # – Keypad fail/restore 24 29 0 # – GPRS connection failed Example: 24080# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool MANUAL ELDES ESIM364 V1.0...
  • Page 101 SYSTEM SHUTDOWN EV ENABLE Keypad fail/restore: CONFIGURATION aaaa MS SETTINGS DATA MESSAGES 2 KEYPAD FAIL/REST ENABLE GPRS connection failed: CONFIGURATION aaaa MS SETTINGS DATA MESSAGES 2 GPRS CONNECT FAIL ENABLE Value: aaaa – 4-digit administrator password. MANUAL ELDES ESIM364 V1.0...
  • Page 102 24 28 1 # – Keypad fail/restore 24 29 1 # – GPRS connection failed Example: 24031# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool MANUAL ELDES ESIM364 V1.0...

  • Page 103: Communication

    If a new data message, except Test Event (ping), is generated during Delay after last communication attempt time, the system will immediately attempt to transmit it to the monitoring station, regardless of Delay after last communication attempt being in progress. MANUAL ELDES ESIM364 V1.0...
  • Page 104 The number of attempts, indicated in the diagram, are default and depends on the determined communication method. When using Dual-SIM feature, the Secondary SIM card is involved in the communication process. For more details, please refer NOTE: to 31. DUAL SIM MANAGEMENT. MANUAL ELDES ESIM364 V1.0...
  • Page 105 48 5 # – SMS 48 6 # – connection not in use Example: 484# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: Set backup connection GPRS network: CONFIGURATION...
  • Page 106 NOTE: The system is fully compatible with Kronos NET/Kronos LT monitoring station software for communication via GPRS network. When using a di erent monitoring station software, EGR100 middleware is required. EGR100 is freeware and can be downloaded at www.eldes.lt/ en/download 30.2.1.
  • Page 107 EKB3W Value: add add add add – DNS1 server IP address. Example: 41658211001# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool SMS text message content: Set DNS2 server IP ssss_SETGPRS:DNS2:add.add.add.add...
  • Page 108 Value: ssss – 4-digit SMS password; acc-point-name – up to 31 character APN (Access Point Name) provided by the GSM operator. Example: 1111_SETGPRS:APN:internet Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool SMS text message content: ssss_SETGPRS:USER:usr-name Set user name Value: ssss –...
  • Page 109 Local – The phone numbers must be entered starting with an area code in the following format: [area code][local number], example for UK: 017091111111. This format can be used when setting up the phone number by EKB2/EKB3/EKB3W keypad and ELDES Con g- uration Tool software.
  • Page 110 Local – The phone numbers must be entered starting with an area code in the following format: [area code][local number], example for UK: 017091111111. This format can be used when setting up the phone number by EKB2/EKB3/EKB3W keypad and ELDES Con g- uration Tool software.
  • Page 111 Value: ps – phone number slot, range – [01... 03]; ttteeellnnuumm – up to 15 digits monito- ring station phone number. Example: 5802004417091111111# Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: Delete monitoring...
  • Page 112 Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Menu path: CONFIGURATION aaaa MS SETTINGS CSD SETTINGS Delete monitoring EKB2 station phone number TEL. NUMBER Value: aaaa – 4-digit administrator password.

  • Page 113: Dual Sim Management

    Manual – Provides a fully customizable set up of switching between the SIM cards. FOR ADVANCED USERS ONLY! Con g Manage Dual -SIM This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool feature NOTE: Regardless of the selected mode, only one of the two SIM cards can operate at the same time.
  • Page 114 One of the attempts successful Waits for 600 seconds Transmits all queued up data Delay after last com- Returns to PRIMARY con- munication attempt nection on Primary SIM Returns to PRIMARY con- nection on Primary SIM Continued in next page MANUAL ELDES ESIM364 V1.0...

  • Page 115: Manual Mode

    Return to Primary SIM – Disabled. Send SMS / Call via – Secondary SIM. MS Settings – Communication: Primary – Voice Calls via Secondary SIM. Backup1 – CSD via Primary SIM. Backup2 – GPRS Network via Primary SIM. MANUAL ELDES ESIM364 V1.0...
  • Page 116 The number of attempts, indicated in the diagram, are default and depends on the determined communication method NOTE: If the Return to Primary SIM parameter is enabled, the system would return to the Primary SIM after each data transmission. MANUAL ELDES ESIM364 V1.0...

  • Page 117: Eldes Wired Devices

    Wireless device information display (see 19.2. Wireless Device Information and Signal Status Monitoring). Keypad partition switch (see 23.3. Keypad Partition and Keypad Partition Switch). The system con guration is performed by accessing EKB2 menu and entering the required values. ESIM364 system allows to connect up to 4 EKB2 keypads.
  • Page 118 A0 and A1 pins located on the back side of the keypad are intended to set keypad address. The keypad address is set by putting the jumper (-s) on the pins. ESIM364 system allows to connect up to 4 EKB2 keypads - each set under di erent address. Jumper combinations for dif- ferent keypad address con guration are indicated in the table below.
  • Page 119 A0 A1 Keypad 4 ENTER USER PSW The address of each connected keypad is also indicated in ELDES Con guration Tool software. 32.1.1.2. Installation Remove the screw located on the bottom side of the enclosure (see Fig. No. 2. Detach keypad holder from EKB2 keypad by gently pulling the holder towards yourself (see Fig.
  • Page 120 Keypad EKB2 has one wired zone Z1 and one tamper button. By default, the keypad zone Z1 is disabled. The keypad zone can be enabled by SMS, EKB2 keypad, EKB3 keypad, EKB3W keypad and ELDES Con guration Tool software (see 14.9. Disabling and Enabling Zones). When Z1 is enabled, it operates like any other system zone, therefore a sensor can be connected to it.
  • Page 121 IBUTTON 1... 5 PARTITION USER PSW (17-30) PASSWORD [0001... 9999] PARTITION USER PASSWORD 17... 30 PARTITION REMOVE DURESS PASSWORD N/A | 1... 10 SGS PASSWORD N/A | 1... 10 REMOVE PASSWORD [0001... 9999] Continued in next page MANUAL ELDES ESIM364 V1.0...
  • Page 122 FOLLOW | INSTANT | 24H | DELAY | FIRE | SILENT PARTITION 1... 2 GSM AUDIO ENTRY DELAY [1... 65535] MICROPHONE GAIN [0... 15] STAY DISABLE | ENABLE seconds SPEAKER LEVEL [0... 100] TAMPER NAME PARTITION FORCE DISABLE | ENABLE Continued in next page MANUAL ELDES ESIM364 V1.0...
  • Page 123 VOICE CALLS/SMS ST [0.0.0.0] DNS2 USER ATTEMPTS [1... 10] TCP | UDP PROTOCOL PASSWORD TEL. NUMBER1 15 digits ttteeellnnuumm SERVER PORT PROFILE [1... 65535] TEL. NUMBER2 ttteeellnnuumm 15 digits TEL. NUMBER3 ttteeellnnuumm 15 digits Continued in next page MANUAL ELDES ESIM364 V1.0...
  • Page 124 GPRS | VOICE CALLS | RS485 | CSD | PSTN | SMS | N/A BACKUP CONNECTION4 GPRS | VOICE CALLS | RS485 | CSD | PSTN | SMS | N/A BACKUP CONNECTION5 GPRS | VOICE CALLS | RS485 | CSD | PSTN | SMS | N/A MANUAL ELDES ESIM364 V1.0...
  • Page 125 The system con guration by EKB3 keypad is performed by activating the Con guration mode (see 5. CONFIGURATION METHODS) and en- tering the required parameters & values. ESIM364 system allows to connect up to 4 EKB3 keypads. 32.1.2.1. Technical Speci cations 32.1.2.1.1 Electrical &...
  • Page 126 DIP switches located on the back side of the keypad are intended to set keypad address. The keypad address is con gured by setting the DIP switch positions. ESIM364 alarm system allows to connect up to 4 EKB3 keypads - each set under di erent address. DIP switch combinations for di erent keypad address con guration are indicated in the table below.
  • Page 127 DOWN SIDE BACK SIDE MANUAL ELDES ESIM364 V1.0...
  • Page 128 5,6k Wire up keypad terminals to ESIM364 alarm system respectively – AUX+ to AUX+, AUX- to AUX-, Y to Y, G to G. (see Fig. No. 47). 4. Z1 and COM terminals must be connected with resistor of 5,6k nominal (see Fig. No. 20). As keypad zone Z1 is disabled by default, it can be enabled by SMS, ELDES Con guration Tool, EKB2, EKB3 and EKB3W keypad.
  • Page 129 RS485 interface for communication (green wire) Negative power supply terminal Positive power supply terminal Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9 Z10 Z11 Z12 Z13 Z14 Z15 Z16 STATUS - AUX C2 COM DC+ Y MANUAL ELDES ESIM364 V1.0...
  • Page 130 32.1.3.1.4 EPGM1 Address ESIM364 system allows to connect up to 2 EPGM1 modules - each set under di erent address. The module address can be set by putting or removing the jumper from the A0 and A1 pins implemented in vertical position (see Fig. No. 48). Jumper combinations for di erent EPGM1 module address con guration are indicated in the table below.

  • Page 131: 1-Wire Interface

    Disconnect ESIM364 alarm system main power supply and backup battery. 2. Connect EPGM1 DC+ terminal to ESIM364 AUX+ terminal, EPGM1 COM terminal to ESIM364 AUX- terminal, EPGM1 Y and G termianls must be connected to ESIM364 Y and G terminals respectively (see Fig. No. 49).

  • Page 132: Modules Interface

    32.3. Modules Interface 32.3.1. EPGM8 - Hardwired PGM Output Expansion Module EPGM8 is a PGM output expansion module intended for using with alarm system ESIM364. This module allows to connect up to additional 8 electrical appliances. Main EPGM8 features: 32.3.1.1. Technical Speci cations 32.3.1.1.1 Electrical &...
  • Page 133 TO AUX+ Power up ESIM364 alarm system. 6. Enable EPGM8 mode using EKB2, EKB3, EKB3W keypads or ELDES Con guration Tool software. For more details, please refer to software’s HELP section or 18.2.1. EPGM8 Mode. EPGM8 is ready for use with ESIM364 alarm system.
  • Page 134 32.3.2. EA1 – Audio Output Module EA1 audio output module enables a duplex audio connection for ESIM364 alarm system. Main EA1 features: 32.3.2.1. Technical Speci cations 32.3.2.2. Installation 1. Disconnect ESIM364 alarm system main power supply and backup battery. 2. Insert EA1 pins into appropriate ESIM364 alarm system slots.
  • Page 135 32.3.3. EA2 – Audio Output Module with Ampli er EA2 audio output module enables a duplex audio connection for ESIM364 alarm system. Main EA2 features: 32.3.3.1. Technical Speci cations 32.3.3.2. Installation 1. Disconnect ESIM364 alarm system main power supply and backup battery.

  • Page 136: Eldes Wireless Devices

    The system con guration by EKB3W keypad is performed by activating the Con guration mode (see 5. CONFIGURATION METHODS) and entering the required parameters & values. ESIM364 system allows to connect up to 4 EKB3W keypads. 33.1.1. Technical Speci cations 33.1.1.1.
  • Page 137 Before xing the keypad into the holder please , make sure that the tamper is properly pressed (see Fig. No. 45). Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Con guration Tool soft- ware.
  • Page 138 By default, the keypad zone Z1 is disabled. The keypad zone can be enabled by SMS, EKB2 keypad, EKB3 keypad, EKB3W keypad and ELDES Con guration Tool. software (see 14.9. Disabling and Enabling Zones). When Z1 is enabled, it operates like any other system zone, therefore a sensor can be connected to it.

  • Page 139: Ew1 - Wireless Zone & Pgm Output Expansion Module

    SMS text message or using software ELDES Con guration Tool. It is possible to connect up to 32 EW1 devices to ESIM364 alarm system at a time. The maximum wireless connection range is 150 meters (in open areas).

  • Page 140: Power Supply

    2. Wire up EW1 as indicated in Fig. No. 61 3. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Con guration Tool software. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 141: Ewp1 - Wireless Motion Detector

    EWP1 is a wireless device with built-in PIR movement sensor and operates with ELDES wireless alarm systems. The user only needs to switch on the EWP1 sensor and bind it to ESIM364 alarm system by sending a corresponding command via SMS text message or using soft ware ELDES Con guration Tool.
  • Page 142 3. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Con guration Tool software. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 143: Ewd1 - Wireless Magnetic Door Contact

    Silent zone and in case the panic button is pressed, the system causes silent alarm (no siren is activated). It is possible to connect up to 32 EWD1 devices to ESIM364 alarm system at a time. The maximum wireless connection range is 150 meters (in open areas).
  • Page 144 3. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Con guration Tool software. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 145: Ewk1 - Wireless Key-Fob

    Sound indication by built-in mini buzzer. Key-fob EWK1 – is a wireless device intended to arm and disarm ESIM364 alarm system, to open and close the gates or to control any other device connected to the alarm system. Wireless key-fob EWK1 is compatible with ELDES wireless alarm systems, therefore user can easily bind it to the alarm system using ELDES Con guration Tool software or sending a corresponding SMS command.
  • Page 146 Before inserting the battery, make sure that the battery’s “+” sign is facing the outer side. CR2032 4. Close and screw up the key-fob housing. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Con guration Tool soft- MANUAL ELDES ESIM364 V1.0...

  • Page 147: Ews1 - Wireless Indoor Siren

    EWK1 key-fob supports a Panic Button feature allowing to cause alarm at any time when the speci ed button is pressed. This feature can be con gured using ELDES Con guration Tool software by creating a virtual zone of Silent or 24H type and assigning it to Virtual Alarm option.
  • Page 148 (see Fig. No. 73). the enclosure parts from each other (see Fig. No. 74) Once the enclosure is opened, remove the plastic tab inserted between one of the battery terminals and battery slot contact (see Fig. No. 75). MANUAL ELDES ESIM364 V1.0...
  • Page 149 In case of tamper violation, the alarm is caused regardless of system being armed or disarmed. The wireless connection loss between EWS1 and ESIM364 system leads to alarm. The system identi es this event as a tamper violation and sends alarm by SMS text message and phone call to the user (-s) by default.

  • Page 150: Ews2 - Wireless Outdoor Siren

    Range of operating temperature: -30...+55 EWS2 is a wireless outdoor device with a built-in siren speaker, LED indicators and operates with ELDES wireless alarm systems. EWS2 has to be bind to the alarm system by sending a corresponding SMS text message or using software ELDES Con guration Tool. Upon successful EWS2 binding process, the system adds one wireless zone and one wireless PGM output.
  • Page 151 4. Close EWS2 enclosure (see Fig. No. 79, Fig. No. 78) 5. Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Con guration Tool soft- ware. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.

  • Page 152: Ew1B - Battery-Powered Wireless Zone & Pgm Output Expansion Module

    SMS text message or using software ELDES Con guration Tool. t is possible to connect up to 32 EW1B devices to ESIM364 alarm system at a time. The maximum wireless connection range is 150 meters (in open areas).
  • Page 153 D1, D2 Pins for restoring default parameters BATTERY EW1B status 33.8.2. Installation Unscrew EW1B enclosure (see Fig. No. 83) 2. Detach the front side of the enclosure by pulling the front side up (see Fig. No. 84) MANUAL ELDES ESIM364 V1.0...
  • Page 154 6. Close EW1B enclsoure (see Fig. No. 84, Fig. No. 83) Bind the device to the alarm system by sending a corresponding command via SMS text message or using ELDES Con guration Tool software. Please, refer to the software‘s HELP section or refer to 19.1. Binding, Removing and Replacing Wireless Devices for more details.
  • Page 155 The system sends an SMS message to a preset User 1 as soon as the battery level runs below 5%. NOTE: The battery status can be monitored in real-time using ELDES Con guration Tool software. 33.8.5. Restoring Default Parameters Remove any battery from EW1B.

  • Page 156: Smart Security

    Arm/disarm the system. Control PGM outputs. View system faults and alarms. Monitor GSM signal strength, back-up battery level and temperature. 1. Before running Smart Security on ESIM364, ensure that:: Creating a Smart Security account curity.eldes.lt Register your personal details, veri cation code and press Register button.
  • Page 157 Security ID Value: ssss - 4-digit SMS password. Example: 1111_SMART_ID Con g This operation may be carried out from the PC using the ELDES Con guration Tool software. Tool Device Model –select esim364 from the list. Create button. 4. Controlling the System Unit via Smart Security Devices.
  • Page 158 PayPal. Press PayPal Ex- tend License located in the Devices in Use section of Devices window. tem to complete the purchasing procedure. tends automatically for a speci ed device. MANUAL ELDES ESIM364 V1.0...

  • Page 159: Tehnical Support

    · Temperature sensor broken · Connection wires too long 24H and/or Fire zones do not work · Speci ed zone must be enabled by SMS, ELDES Con guration Tool, EKB2, EKB3 or EKB3W No sound during remote listening · Microphone not connected ·...

  • Page 160: Updating Firmware Via Gprs Connection Remotely

    Comma character is NOT allowed to use in user name and rmware le name. ATTENTION: “ELDES UAB” does not run a FTP server and does not host the rmware les online. Please, contact your local distributor to request the latest rmware le: support@eldes.lt NOTE: It is strongly recommended to restore default parameters after the rmware update.

  • Page 161: Frequently Asked Questions

    Question Answer Yes, ESIM364 device can fully operate without any SIM card inserted. In this case Can ESIM364 operate as standalone device without SIM you will not be able to con gure and control the device by SMS and calls nor to card inserted? receive any SMS reports and calls.
  • Page 162 Tool. What‘s wrong? Microsoft .NET Framework v3.5 is not installed in Windows system. Please, 19. I am unable to run ELDES Con guration Tool - I receive download this package from o cial Microsoft website free of charge and error messages in Windows. Why? install it to your Windows system.

  • Page 163: Related Products

    36. Related Products EKB2 - LCD keypad EKB3 - LED keypad EPGM1 - hardwired zone and PGM output expansion module ME1 - metal cabinet EPGM8 - hardwired PGM output expansion module EA1 - audio output module MANUAL ELDES ESIM364 V1.0...
  • Page 164 ED1T - plastic enclosure with iButton key reader DS18S20 - temperature sensor and temperature sensor EWP1 - wireless PIR sensor (motion detector) EWD1 - wireless magnetic door contact EWS2 - wireless external siren EWS1 - wireless internal siren MANUAL ELDES ESIM364 V1.0...
  • Page 165 EWK1 - wireless keyfob EWF1 – wireless smoke detector EW1B - battery-powered wireless zone and EW1 - wireless zone and PGM output expansion module PGM output expansion module EKB3W – wireless LED keypad MANUAL ELDES ESIM364 V1.0...
  • Page 166 Made in the European Union www.eldes.lt...

Table of Contents
