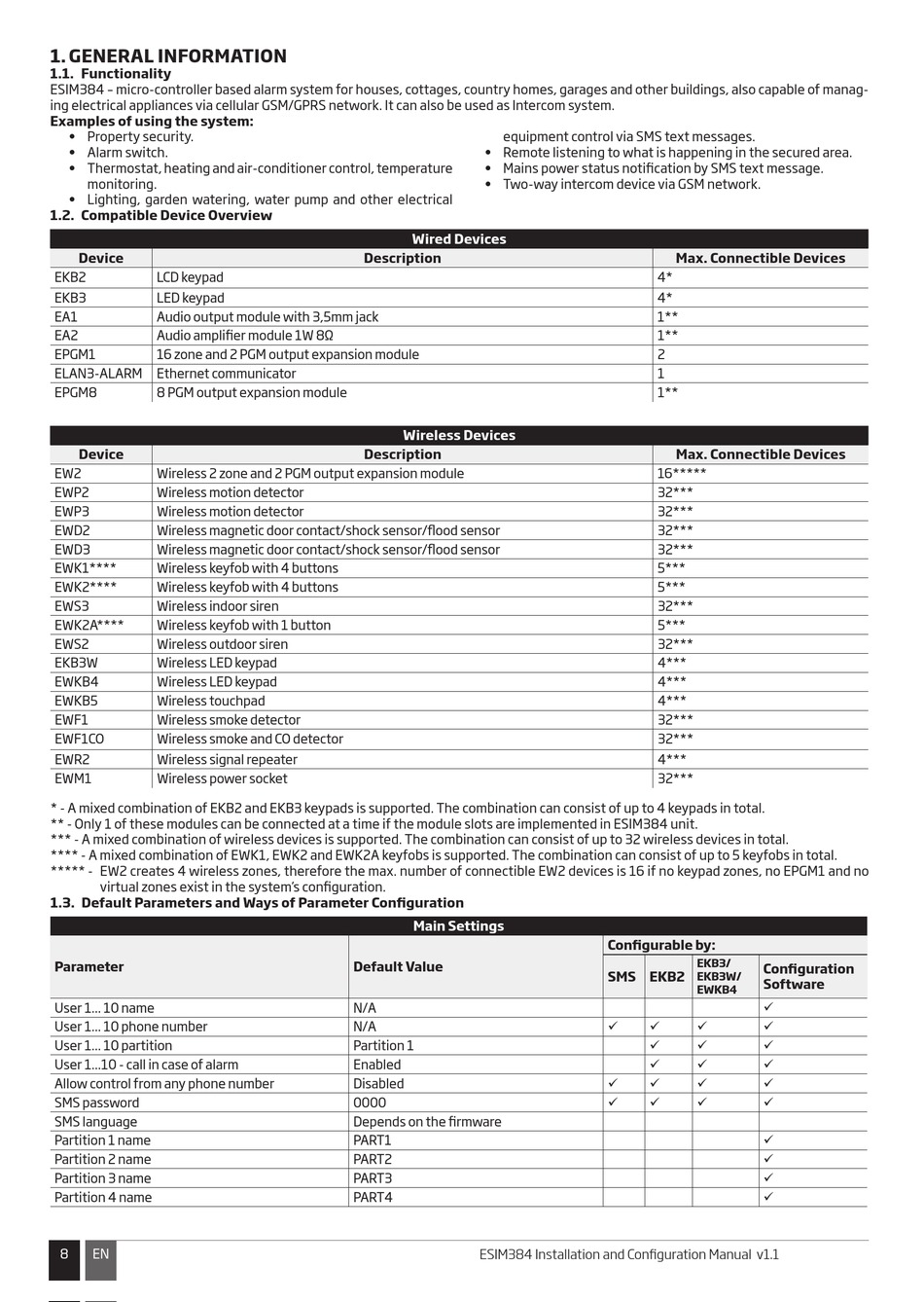

1. GEnEral InforMatIon

1.1. functionality

eSIM384 – micro-controller based alarm system for houses, cottages, country homes, garages and other buildings, also capable of manag-
ing electrical appliances via cellular GSM/GPRS network. It can also be used as Intercom system.
Examples of using the system:
• Property security.
• Alarm switch.
• thermostat, heating and air-conditioner control, temperature
monitoring.
• Lighting, garden watering, water pump and other electrical

1.2. Compatible Device overview

Device
eKB2 LCD keypad
eKB3 LeD keypad
eA1 Audio output module with 3,5mm jack
eA2 Audio amplifier module 1W 8Ω
ePGM1 16 zone and 2 PGM output expansion module
eLAN3-ALARM ethernet communicator
ePGM8 8 PGM output expansion module
Device
eW2 Wireless 2 zone and 2 PGM output expansion module
eWP2 Wireless motion detector
eWP3 Wireless motion detector
eWD2 Wireless magnetic door contact/shock sensor/flood sensor
eWD3 Wireless magnetic door contact/shock sensor/flood sensor
eWK1**** Wireless keyfob with 4 buttons
eWK2**** Wireless keyfob with 4 buttons
eWS3 Wireless indoor siren
eWK2A**** Wireless keyfob with 1 button
eWS2 Wireless outdoor siren
eKB3W Wireless LeD keypad
eWKB4 Wireless LeD keypad
eWKB5 Wireless touchpad
eWF1 Wireless smoke detector
eWF1CO Wireless smoke and CO detector
eWR2 Wireless signal repeater
eWM1 Wireless power socket
* - A mixed combination of eKB2 and eKB3 keypads is supported. the combination can consist of up to 4 keypads in total.
** - Only 1 of these modules can be connected at a time if the module slots are implemented in eSIM384 unit.
*** - A mixed combination of wireless devices is supported. the combination can consist of up to 32 wireless devices in total.
**** - A mixed combination of eWK1, eWK2 and eWK2A keyfobs is supported. the combination can consist of up to 5 keyfobs in total.
***** - eW2 creates 4 wireless zones, therefore the max. number of connectible eW2 devices is 16 if no keypad zones, no ePGM1 and no
virtual zones exist in the system's configuration.

1.3. Default Parameters and Ways of Parameter Configuration

Parameter
User 1... 10 name
User 1... 10 phone number
User 1... 10 partition
User 1...10 - call in case of alarm
Allow control from any phone number
SMS password
SMS language
Partition 1 name
Partition 2 name
Partition 3 name
Partition 4 name
8 8 EN
equipment control via SMS text messages.
• Remote listening to what is happening in the secured area.
• Mains power status notification by SMS text message.
• two-way intercom device via GSM network.
Wired Devices
Description
Wireless Devices
Description
Main Settings
Default Value
N/A
N/A
Partition 1
enabled
Disabled
0000
Depends on the firmware
PARt1
PARt2
PARt3
PARt4
ESIM384 Installation and Configuration Manual v1.1
Max. Connectible Devices
4*
4*
1**
1**
2
1
1**
Max. Connectible Devices
16*****
32***
32***
32***
32***
5***
5***
32***
5***
32***
4***
4***
4***
32***
32***
4***
32***
Configurable by:
EKB3/
Configuration
SMS EKB2
EKB3W/
Software
EWKB4

   
  
  
   
   




