Eldes ESIM264 User Manual
Gsm alarm and management system
Hide thumbs
Also See for ESIM264:
- Installation manual (168 pages) ,
- Manual (132 pages) ,
- User manual (51 pages)
Related Manuals for Eldes ESIM264
Summary of Contents for Eldes ESIM264

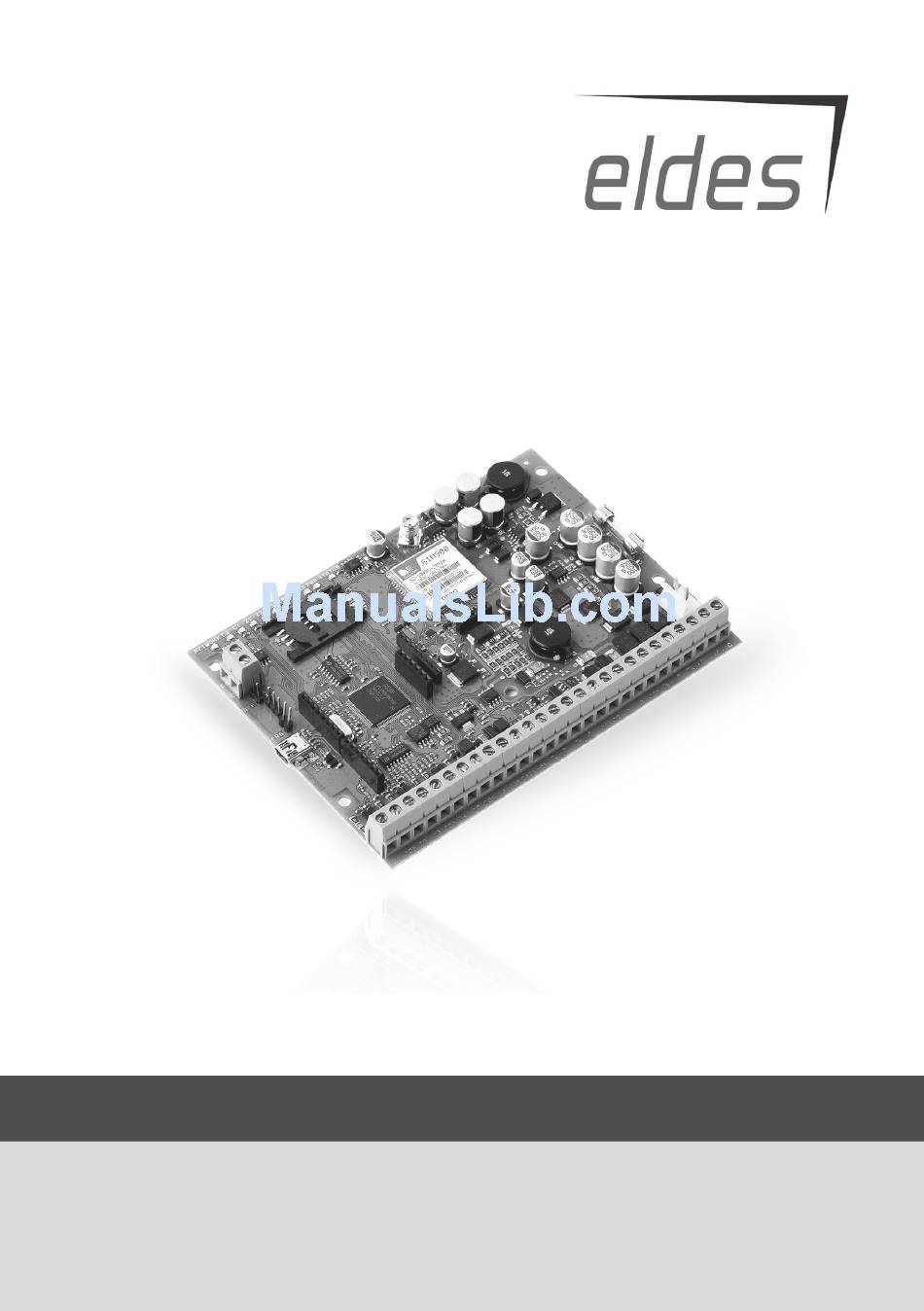

- Page 1 GSM ALARM AND MANAGEMENT SYSTEM ESIM264 USER MANUAL COMPLIES WITH EN 50131-1 GRADE 2, CLASS II REQUIREMENTS...
- Page 2 • System label is on the bottom side of the device. GSM alarm system ESIM264 is a device mounted in limited access areas. Any system repairs must be done only by quali- fied, safety aware personnel. The system must be powered by main 16-24V 50 Hz ~1.5A max or 18-24V 1,5A max DC power supply which must be approved by LST EN 60950-1 standard and be easily accessible nearby the device.
-
Page 3: Table Of Contents
It is not allowed to copy and distribute information in this document or pass to a third party without advanced written authorization by “ELDES UAB”. “ELDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby, “ELDES UAB”... -
Page 4: General Information
1. General Information ESIM264 is an alarm system for private houses, cottages, village houses, garages, warehouses and other buildings, also capable of turning on/off the electrical appliances by SMS message and alarm system keyboard. This alarm system provides a simple thus effec- tive way of use. -
Page 5: Ekb2 Keyboard Overview
1.2 EKB2 Keyboard Overview EKB2 is an LCD keyboard intended for using with ESIM264 alarm system. Temperature Keys Functionality GSM Signal Digital Clock One menu level back / cancel Strength 20,2 00:45 Menu navigation – up System Status Main Screen... - Page 6 EKB2 LCD screen is intended for displaying alarm system status messages and alerts. Message READY is displayed on the screen that no zones are violated or no troubles are present and the system is prepared for arming. Message NOT READY (and TBL) shows up in case of zone violation or if system troubles are present.
-
Page 7: Ekb3 Keyboard Overview
1.3 EKB3 Keyboard Overview EKB3 is a LED keyboard intended for using with ESIM264 alarm system. LED Functionality ARMED READY STAY SYSTEM BYPS ARMED Alarm system is armed /Configuration mode BYPS READY System is prepared for arming SYSTEM System troubles / valid command is being entered... -
Page 8: Basic Configuration & Usage
In order to configure and control the system using SMS message, send the text command to the ESIM264 system phone number from one of the preset user phone numbers. In this user manual the underscore symbol ”_” represents one space character. -
Page 9: Arming, Disarming The System & Turning Off The Alarm
Fig. No. 4 3. When attempting to arm the system in case of violated zone presence, the system will reply with violated zone number. For more details, please, refer to chapter 2.5 Bypassing & Unbypassing Violated Zone. MANUAL ELDES ESIM264 V2.0... -
Page 10: Arm By Sms Message
3. After the system is successfully armed, it will reply with confirmation by SMS message to the user phone number who sent the SMS message. User ESIM264 Fig. No. 5 4. When attempting to arm the system in case of violated zone presence, the system will reply with violated zone number. -
Page 11: Arm By Ekb2/Ekb3 Keyboard
EKB2 Example: 1111OK EKB3 Example: 1111 Fig. No. 9 3. After the system is successfully disarmed, it will reply with confirmation by SMS message to User 1 phone number (by default). User ESIM264 Fig. No. 10 MANUAL ELDES ESIM264 V2.0... -
Page 12: Arm By Ibutton® Key
2. The system will initiate the Exit Delay countdown (by default – 15 seconds) intended for user to leave the secu- red area. The countdown is indicated by short beeps provided by ESIM264 mini-buzzer (if any). 3. After the system is successfully armed, it will reply with confirmation by SMS message to User 1 phone number (by default). -
Page 13: Arm By Ewk1 - Wireless Key-Fob
2. The system will initiate the Exit Delay countdown (by default – 15 seconds) intended for user to leave the secu- red area. 3. After the system is successfully armed, it will reply with confirmation by SMS message to User 1 phone number (by default). User ESIM264 Fig. No. 16 MANUAL ELDES ESIM264 V2.0... -
Page 14: Disarm & Turn Off The Alarm By Ewk1 - Wireless Key-Fob
3. After the system is successfully disarmed, it will reply with confirmation by SMS message to User 1 phone number (by default). User ESIM264 Fig. No. 18 2.3 Activating STAY Mode Stay mode allows the user to remain in the secured area after arming the system. In Stay mode, the system does not EKB2 cause the alarm when the zones, set up to operate under this mode, become violated. -
Page 15: Alarm Indications & Viewing Violated Zones / Tampers
By default configuration, the system makes a phone call to User 1 in case of alarm. By answering the call, the user is able to listen on his/her mobile phone to what is happening in area surrounding ESIM264 unit. This feature is pro- vided by a microphone (if any) connected to ESIM264. -
Page 16: Bypassing & Unbypassing Violated Zone
OK → VIOLATED TAMPERS → TAMPER [1... 44] VIEW VIOLATED TAMPER: The built-in EKB3 mini-buzzer and ESIM264 mini-buzzer (if any) provide short beeps continuously in case of alarm. In EKB3 addition, the violated zone number is indicated by illuminated zone LED or flashing SYSTEM LED (if the violated zone number is above 12). -
Page 17: Viewing System Information
• system date & time; • system status (armed/disarmed); • GSM signal strength level; • main power supply status; • temperature of the area surrounding ESIM264 temperature sensor (if any); • state of zones (OK/alarm). User ESIM264 Fig. No. 21 2.7 Managing Periodical System Information... -
Page 18: Viewing Zone & Pgm Output Information
Example: 1111_INFO:0.0 4. The system will reply with confirmation by SMS message to the user phone number who sent the SMS message. User ESIM264 Fig. No. 23 2.8 Viewing Zone & PGM Output Information 1. In order to find out the current zone & PGM output information, send the following SMS message to the sys- tem‘s phone number from any out of 5 preset user phone numbers:... -
Page 19: Managing Temperature Information
5 preset user phone numbers: SMS text: XXXX_TEMP:0:0 Example: 1111_TEMP:0.0 4. The system will reply with confirmation by SMS message to the user phone number who sent the SMS message. User ESIM264 Fig. No. 26 MANUAL ELDES ESIM264 V2.0... -
Page 20: Trouble Indications
2.10 Trouble Indications Message TBL displayed in the lower left side of the main screen view indicates presence of system troubles. EKB2 In order to find out more on the particular system problem, please, open menu section TROUBLES. The description on each system problem is indicated in the table below. -
Page 21: Controlling Electrical Appliances
Value: Cn – PGM output number, range – [C1... C44] Example: 1111_C2:OFF 3. The system will reply with confirmation by SMS message to the user phone number who sent the SMS message. User ESIM264 Fig. No. 27 MANUAL ELDES ESIM264 V2.0... -
Page 22: If The Alarm System Is Connected To Monitoring Station
3. If the Alarm System is Connected to Monitoring Station The following system features become disabled automatically or may be disabled by your alarm system installer if the system is con- nected to a monitoring station: • Confirmation by SMS message when arming, disarming & turning off the alarm by phone call, SMS message, EKB2/EKB3 keyboard, iButton®... - Page 24 Made in Lithuania. www.eldes.lt iButton is a registered trademark of Maxim Integrated Products, Inc.
