Appendix D Redundant IOC Cards
Setting the Active IOC Card at Power Up

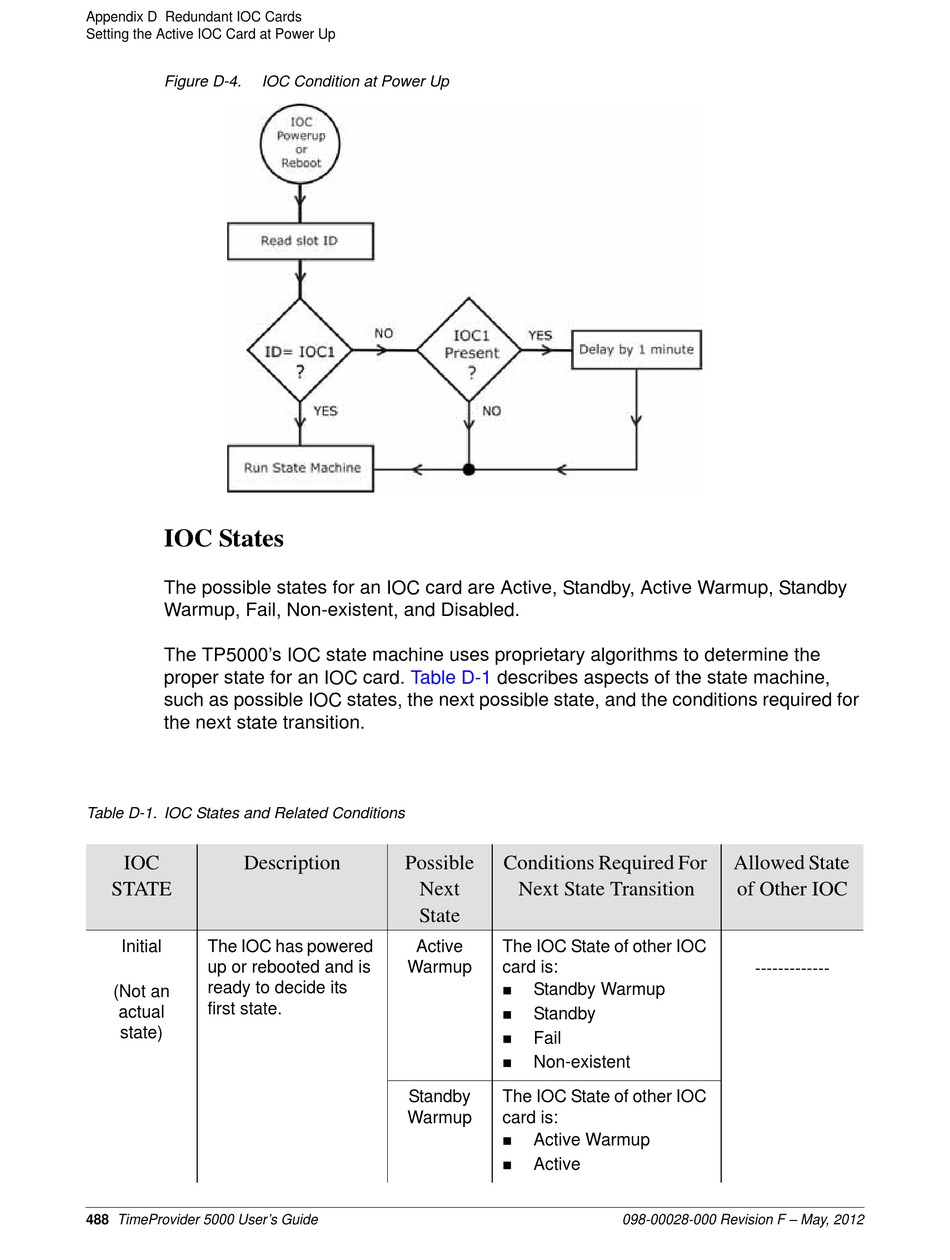

Figure D-4.

IOC Condition at Power Up

IOC States
The possible states for an IOC card are Active, Standby, Active Warmup, Standby
Warmup, Fail, Non-existent, and Disabled.
The TP5000's IOC state machine uses proprietary algorithms to determine the
proper state for an IOC card.
such as possible IOC states, the next possible state, and the conditions required for
the next state transition.
Table D-1. IOC States and Related Conditions
IOC Description
STATE
Initial The IOC has powered
up or rebooted and is
ready to decide its
(Not an
first state.
actual
state)
488 TimeProvider 5000 User's Guide
Table D-1 describes aspects of the state machine,
Possible Conditions Required For
Next Next State Transition
State
Active The IOC State of other IOC
Warmup card is:
Standby Warmup

Standby

Fail

Non-existent

Standby The IOC State of other IOC
Warmup card is:
Active Warmup

Active

Allowed State
of Other IOC
-------------
098-00028-000 Revision F – May, 2012
