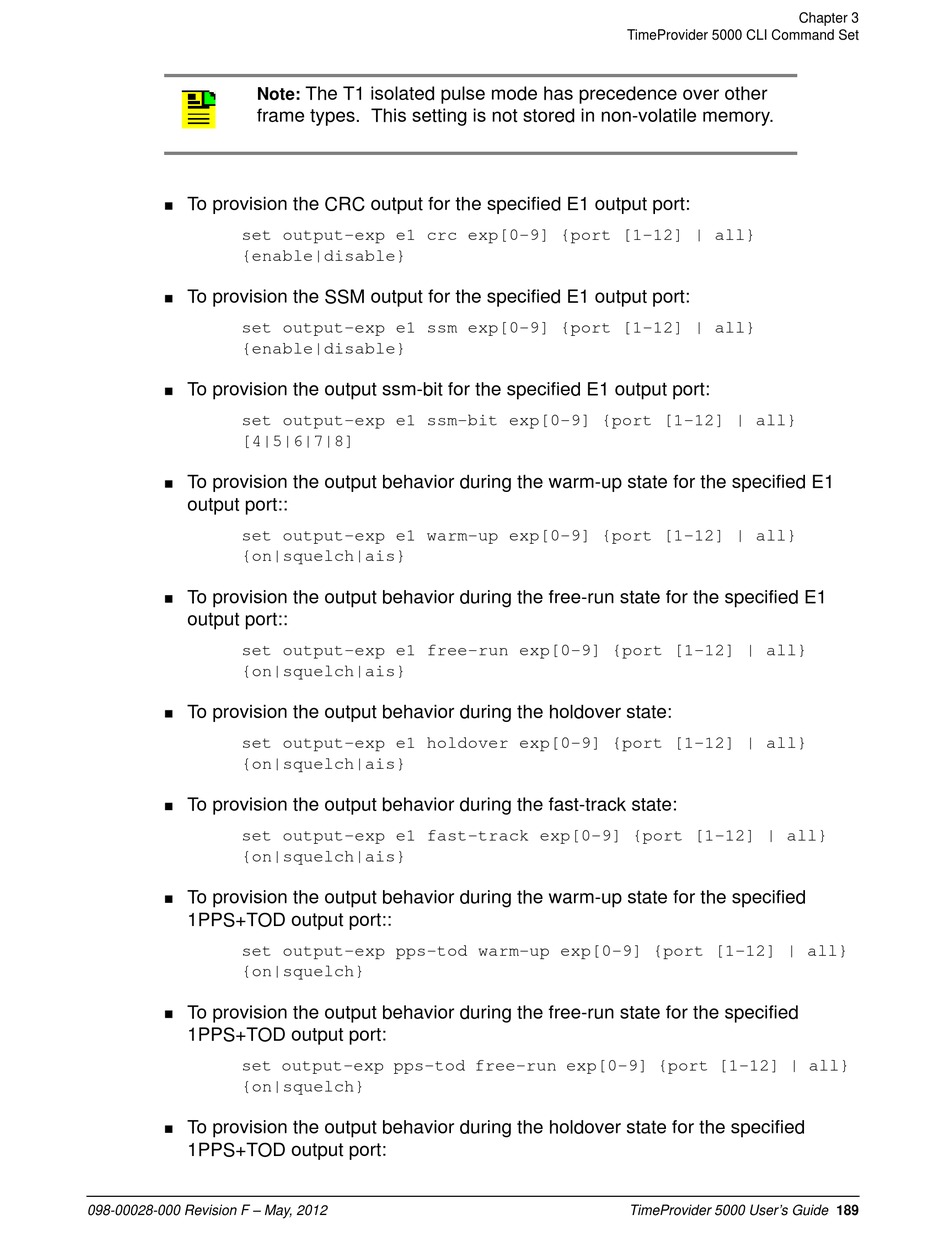

Symmetricom TimeProvider 5000 User Manual page 189

Note:
frame types. This setting is not stored in non-volatile memory.
To provision the CRC output for the specified E1 output port:

set output-exp e1 crc exp[0-9] {port [1-12] | all}
{enable|disable}
To provision the SSM output for the specified E1 output port:

set output-exp e1 ssm exp[0-9] {port [1-12] | all}
{enable|disable}
To provision the output ssm-bit for the specified E1 output port:

set output-exp e1 ssm-bit exp[0-9] {port [1-12] | all}
[4|5|6|7|8]
To provision the output behavior during the warm-up state for the specified E1

output port::
set output-exp e1 warm-up exp[0-9] {port [1-12] | all}
{on|squelch|ais}
To provision the output behavior during the free-run state for the specified E1

output port::
set output-exp e1 free-run exp[0-9] {port [1-12] | all}
{on|squelch|ais}
To provision the output behavior during the holdover state:

set output-exp e1 holdover exp[0-9] {port [1-12] | all}
{on|squelch|ais}
To provision the output behavior during the fast-track state:

set output-exp e1 fast-track exp[0-9] {port [1-12] | all}
{on|squelch|ais}
To provision the output behavior during the warm-up state for the specified

1PPS+TOD output port::
set output-exp pps-tod warm-up exp[0-9] {port [1-12] | all}
{on|squelch}
To provision the output behavior during the free-run state for the specified

1PPS+TOD output port:
set output-exp pps-tod free-run exp[0-9] {port [1-12] | all}
{on|squelch}
To provision the output behavior during the holdover state for the specified

1PPS+TOD output port:
098-00028-000 Revision F – May, 2012
The T1 isolated pulse mode has precedence over other
Chapter 3
TimeProvider 5000 CLI Command Set
TimeProvider 5000 User's Guide 189
