Chapter 3
TimeProvider 5000 CLI Command Set

show inventory

This command displays the installed module inventory information as follows:
model number

user-assigned asset number

IMC and IOC module part numbers

IMC and IOC module CLEI numbers

IMC and IOC module serial numbers

IMC and IOC module hardware versions

IMC and IOC module FPGA versions

IMC and IOC module compatibility mask

IMC and IOC module firmware versions

Exp shelf part number

Exp shelf CLEI number

Exp shelf serial number

Exp shelf hardware version

Exp shelf FPGA version (clock FPGA)

Exp shelf compatibility mask

Exp shelf firmware version

The compatibility information allows the user to verify the compatibility between the
hardware and software for each card. To be compatible, the hex numerical string
displayed for the hardware (HW) of a card must match the numerical string
displayed for the software (SW) of that card. See
strings are generated from a compatibility algorithm.
For IMC-to-IOC compatibility, the numerical strings for the IMC and IOC cards must
match. See Figure
IOC cards must match.

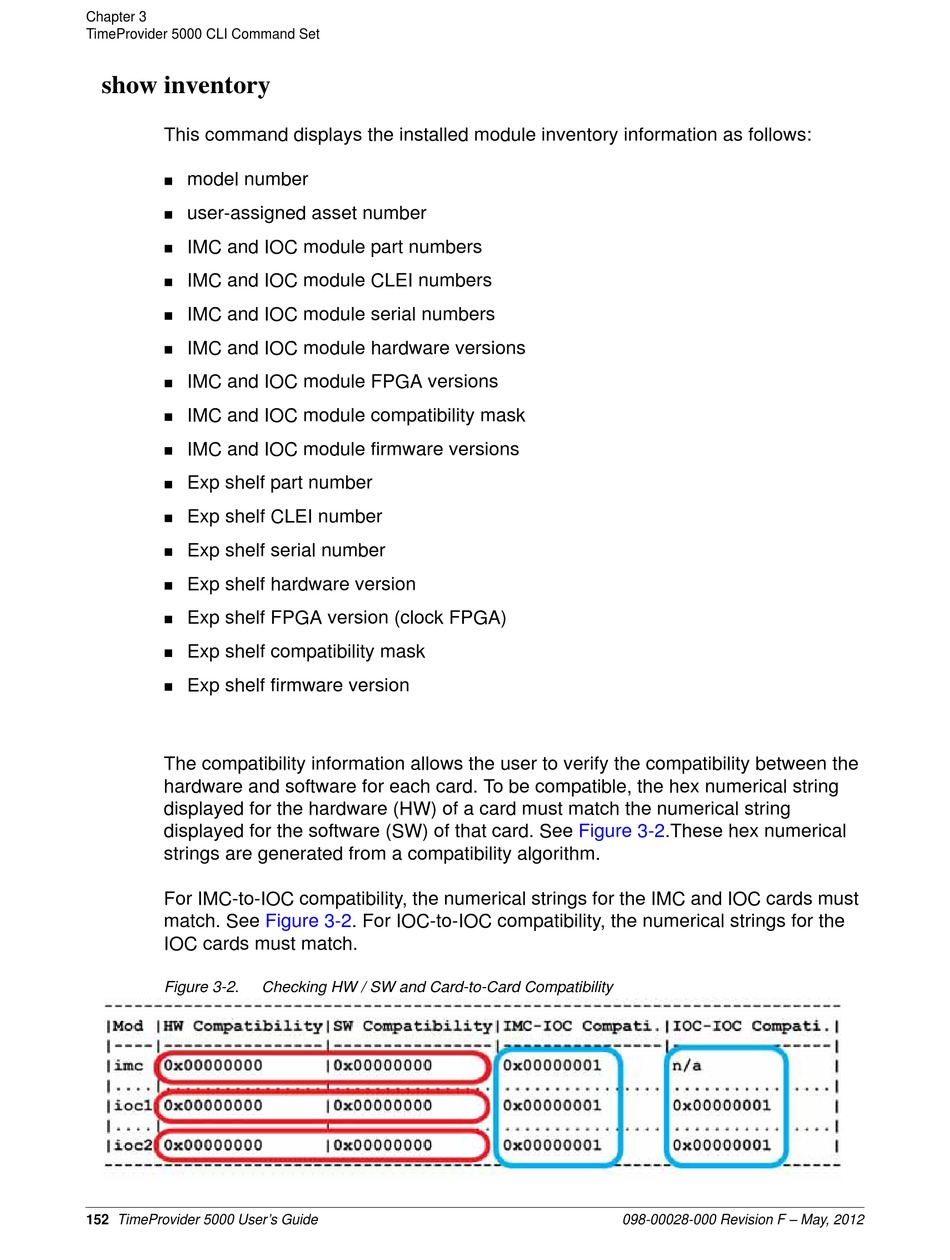

Figure 3-2.

Checking HW / SW and Card-to-Card Compatibility

152 TimeProvider 5000 User's Guide
3-2. For IOC-to-IOC compatibility, the numerical strings for the
Figure 3-2.These hex numerical
098-00028-000 Revision F – May, 2012
