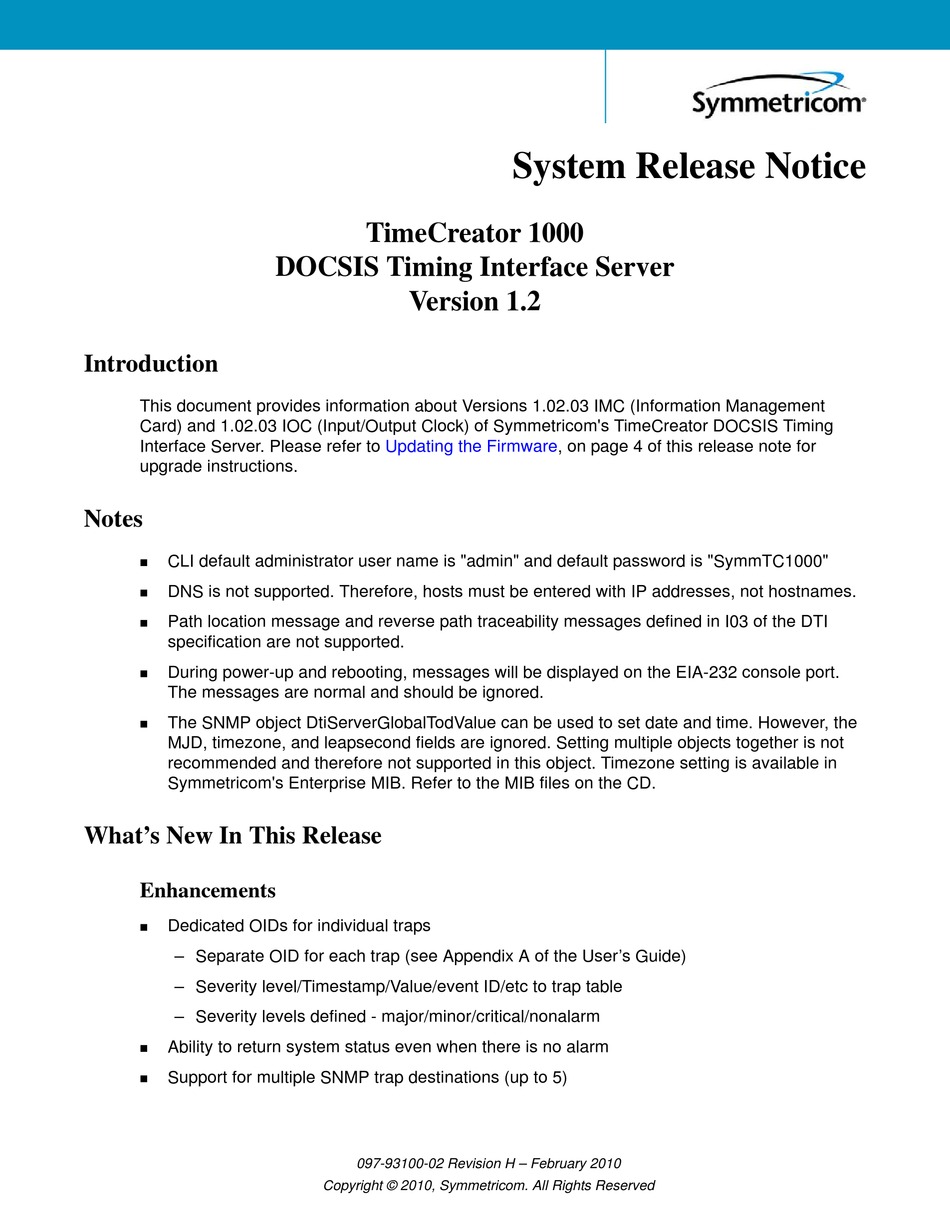

Symmetricom TimeCreator 1000 Release Notice

Introduction

This document provides information about Versions 1.02.03 IMC (Information Management
Card) and 1.02.03 IOC (Input/Output Clock) of Symmetricom's TimeCreator DOCSIS Timing
Interface Server. Please refer to
upgrade instructions.
Notes
CLI default administrator user name is "admin" and default password is "SymmTC1000"

DNS is not supported. Therefore, hosts must be entered with IP addresses, not hostnames.

Path location message and reverse path traceability messages defined in I03 of the DTI

specification are not supported.
During power-up and rebooting, messages will be displayed on the EIA-232 console port.

The messages are normal and should be ignored.
The SNMP object DtiServerGlobalTodValue can be used to set date and time. However, the

MJD, timezone, and leapsecond fields are ignored. Setting multiple objects together is not
recommended and therefore not supported in this object. Timezone setting is available in
Symmetricom's Enterprise MIB. Refer to the MIB files on the CD.
What's New In This Release

Enhancements

Dedicated OIDs for individual traps

– Separate OID for each trap (see Appendix A of the User's Guide)
– Severity level/Timestamp/Value/event ID/etc to trap table
– Severity levels defined - major/minor/critical/nonalarm
Ability to return system status even when there is no alarm

Support for multiple SNMP trap destinations (up to 5)

TimeCreator 1000
DOCSIS Timing Interface Server
Version 1.2
Updating the
097-93100-02 Revision H – February 2010
Copyright © 2010, Symmetricom. All Rights Reserved
System Release Notice
Firmware, on page 4 of this release note for
