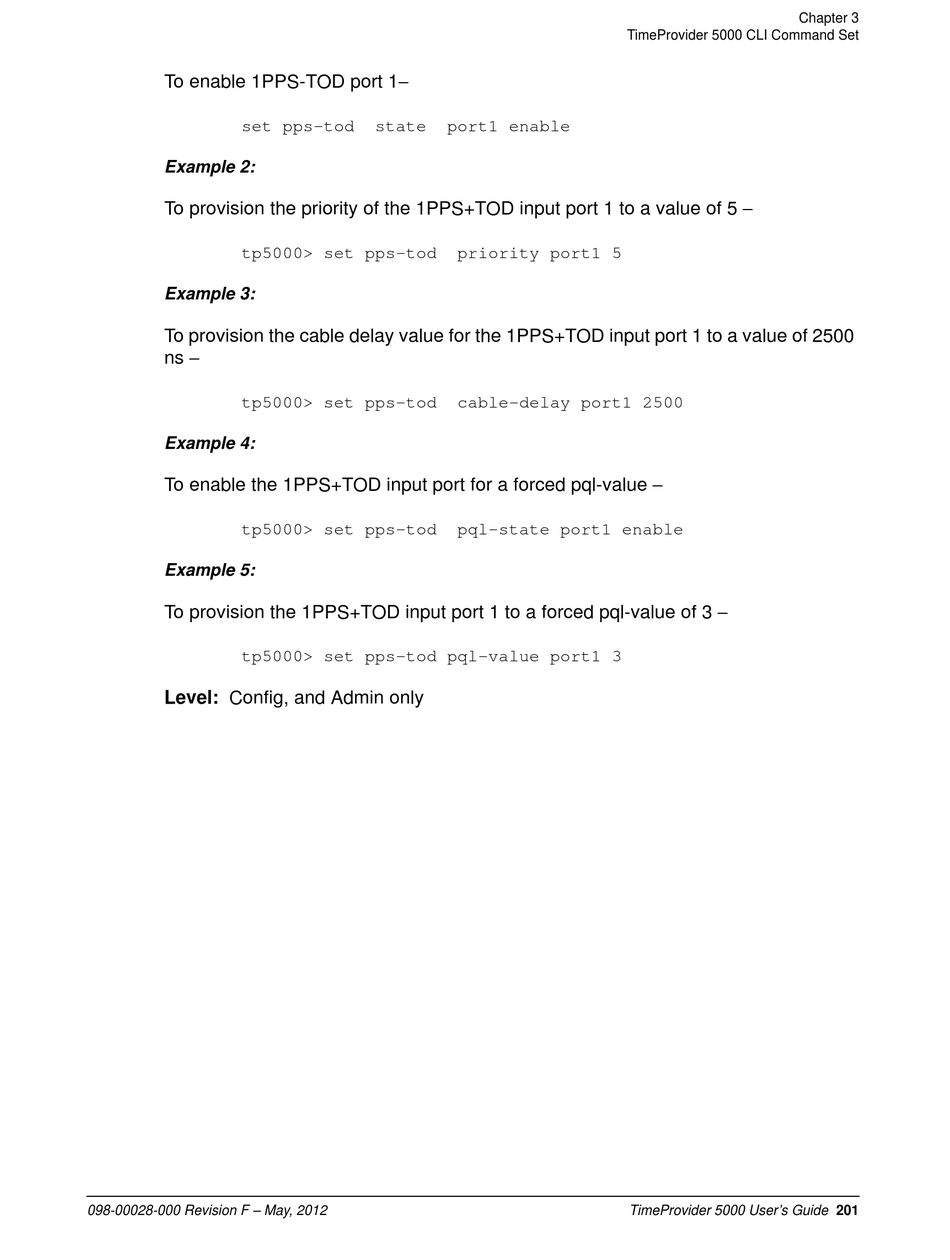

Symmetricom TimeProvider 5000 User Manual page 201

To enable 1PPS-TOD port 1
set pps-tod
Example 2:
To provision the priority of the 1PPS+TOD input port 1 to a value of 5 
tp5000> set pps-tod
Example 3:
To provision the cable delay value for the 1PPS+TOD input port 1 to a value of 2500
ns 
tp5000> set pps-tod
Example 4:
To enable the 1PPS+TOD input port for a forced pql-value 
tp5000> set pps-tod
Example 5:
To provision the 1PPS+TOD input port 1 to a forced pql-value of 3 
tp5000> set pps-tod pql-value port1 3
Level: Config, and Admin only
098-00028-000 Revision F – May, 2012
state port1 enable
priority port1 5
cable-delay port1 2500
pql-state port1 enable
Chapter 3
TimeProvider 5000 CLI Command Set
TimeProvider 5000 User's Guide 201
