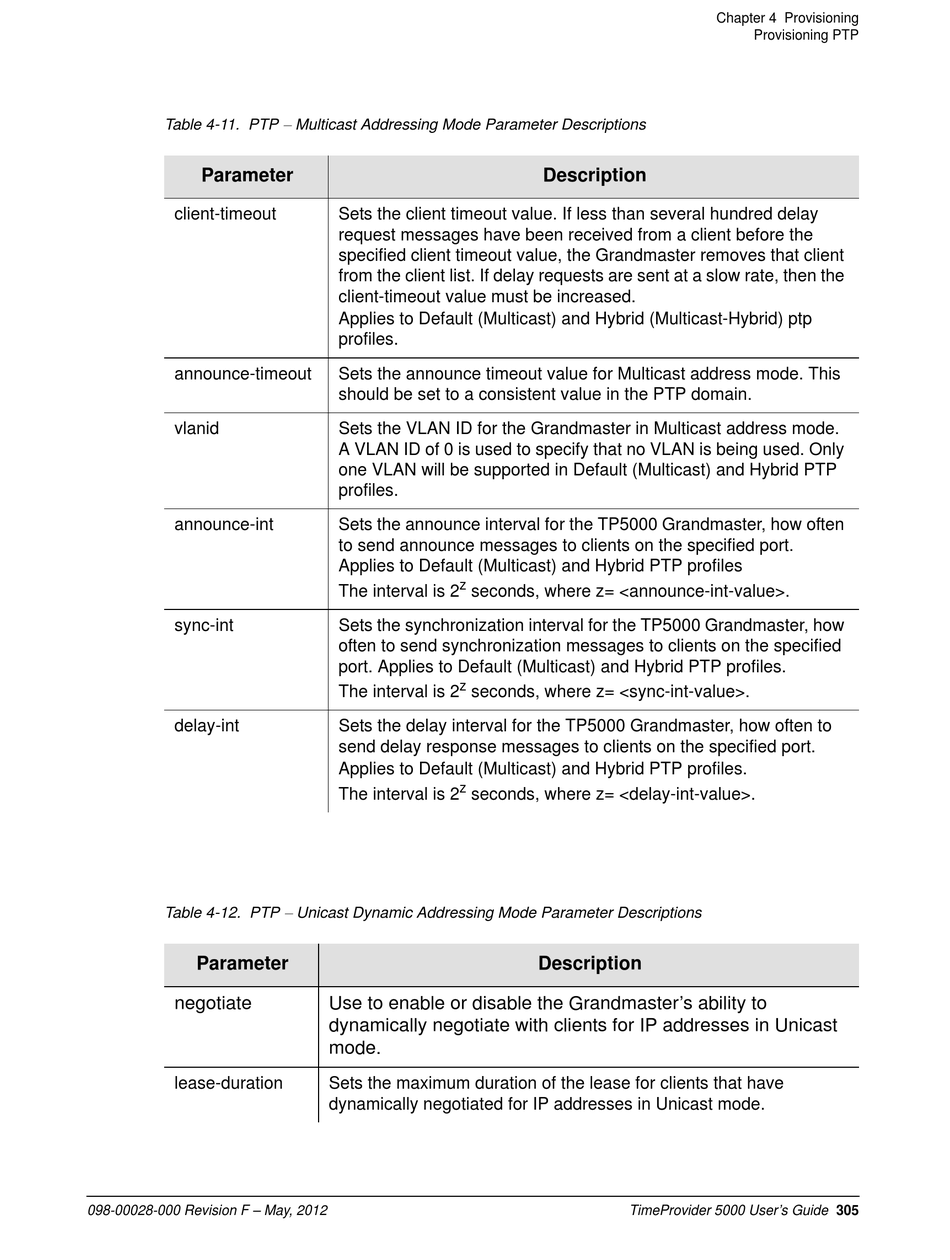

Table 4-11. PTP
Parameter
client-timeout
announce-timeout
vlanid
announce-int
sync-int
delay-int
Table 4-12. PTP
Parameter
negotiate
lease-duration
098-00028-000 Revision F – May, 2012

Multicast Addressing Mode Parameter Descriptions
Sets the client timeout value. If less than several hundred delay
request messages have been received from a client before the
specified client timeout value, the Grandmaster removes that client
from the client list. If delay requests are sent at a slow rate, then the
client-timeout value must be increased.
Applies to Default (Multicast) and Hybrid (Multicast-Hybrid) ptp
profiles.
Sets the announce timeout value for Multicast address mode. This
should be set to a consistent value in the PTP domain.
Sets the VLAN ID for the Grandmaster in Multicast address mode.
A VLAN ID of 0 is used to specify that no VLAN is being used. Only
one VLAN will be supported in Default (Multicast) and Hybrid PTP
profiles.
Sets the announce interval for the TP5000 Grandmaster, how often
to send announce messages to clients on the specified port.
Applies to Default (Multicast) and Hybrid PTP profiles
z
The interval is 2
Sets the synchronization interval for the TP5000 Grandmaster, how
often to send synchronization messages to clients on the specified
port. Applies to Default (Multicast) and Hybrid PTP profiles.
z
The interval is 2
Sets the delay interval for the TP5000 Grandmaster, how often to
send delay response messages to clients on the specified port.
Applies to Default (Multicast) and Hybrid PTP profiles.
z
The interval is 2

Unicast Dynamic Addressing Mode Parameter Descriptions
Use to enable or disable the Grandmaster's ability to
dynamically negotiate with clients for IP addresses in Unicast
mode.
Sets the maximum duration of the lease for clients that have
dynamically negotiated for IP addresses in Unicast mode.
Description
seconds, where z= <announce-int-value>.
seconds, where z= <sync-int-value>.
seconds, where z= <delay-int-value>.
Description
TimeProvider 5000 User's Guide 305
Chapter 4 Provisioning
Provisioning PTP
