Symmetricom TimeProvider 5000 User Manual page 302

Chapter 4 Provisioning
Provisioning PTP

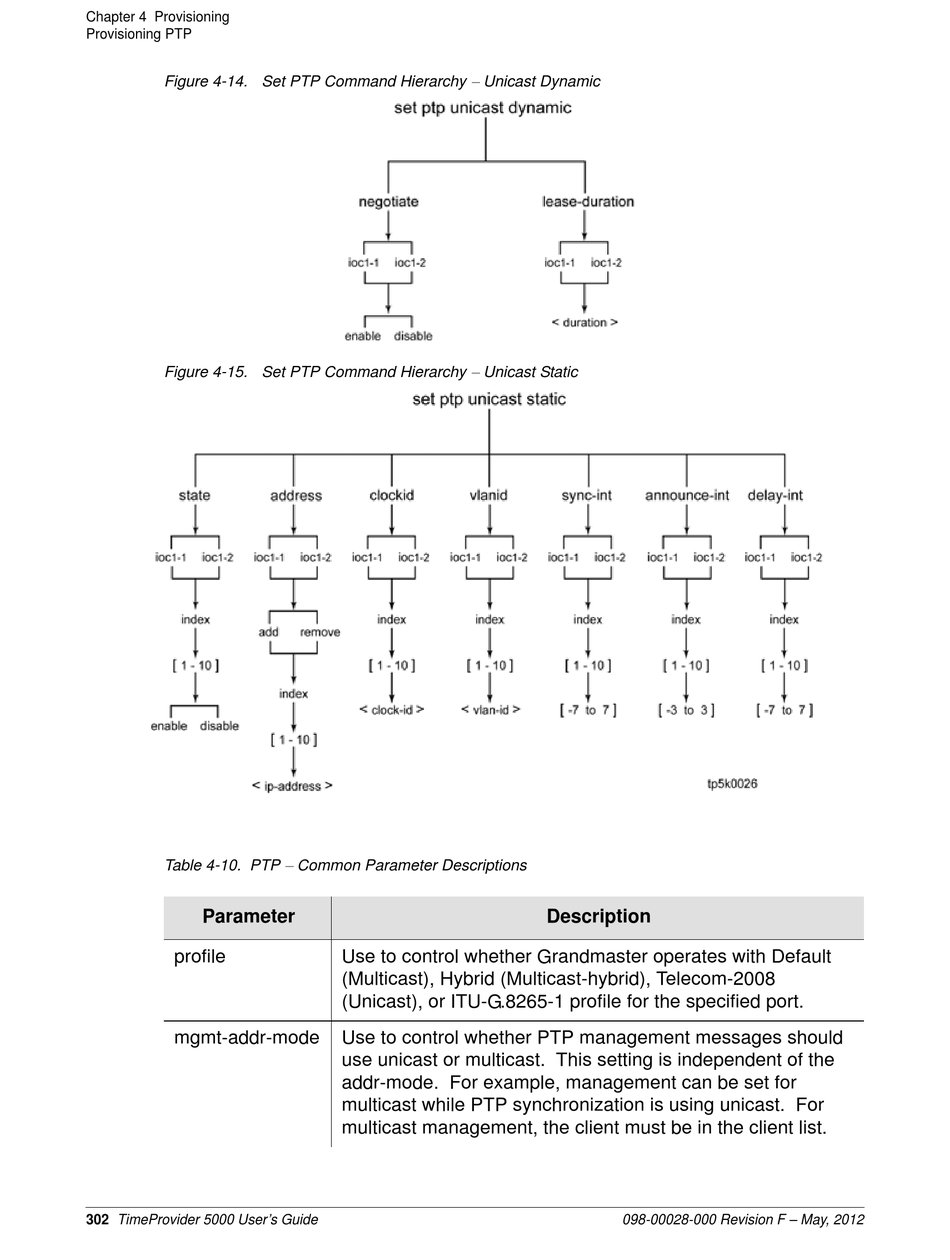

Figure 4-14. Set PTP Command Hierarchy
Figure 4-15. Set PTP Command Hierarchy
Table 4-10. PTP
Parameter
profile
mgmt-addr-mode
302 TimeProvider 5000 User's Guide

Common Parameter Descriptions
Use to control whether Grandmaster operates with Default
(Multicast), Hybrid (Multicast-hybrid), Telecom-2008
(Unicast), or ITU-G.8265-1 profile for the specified port.
Use to control whether PTP management messages should
use unicast or multicast. This setting is independent of the
addr-mode. For example, management can be set for
multicast while PTP synchronization is using unicast. For
multicast management, the client must be in the client list.

Unicast Dynamic

Unicast Static
Description
098-00028-000 Revision F – May, 2012
