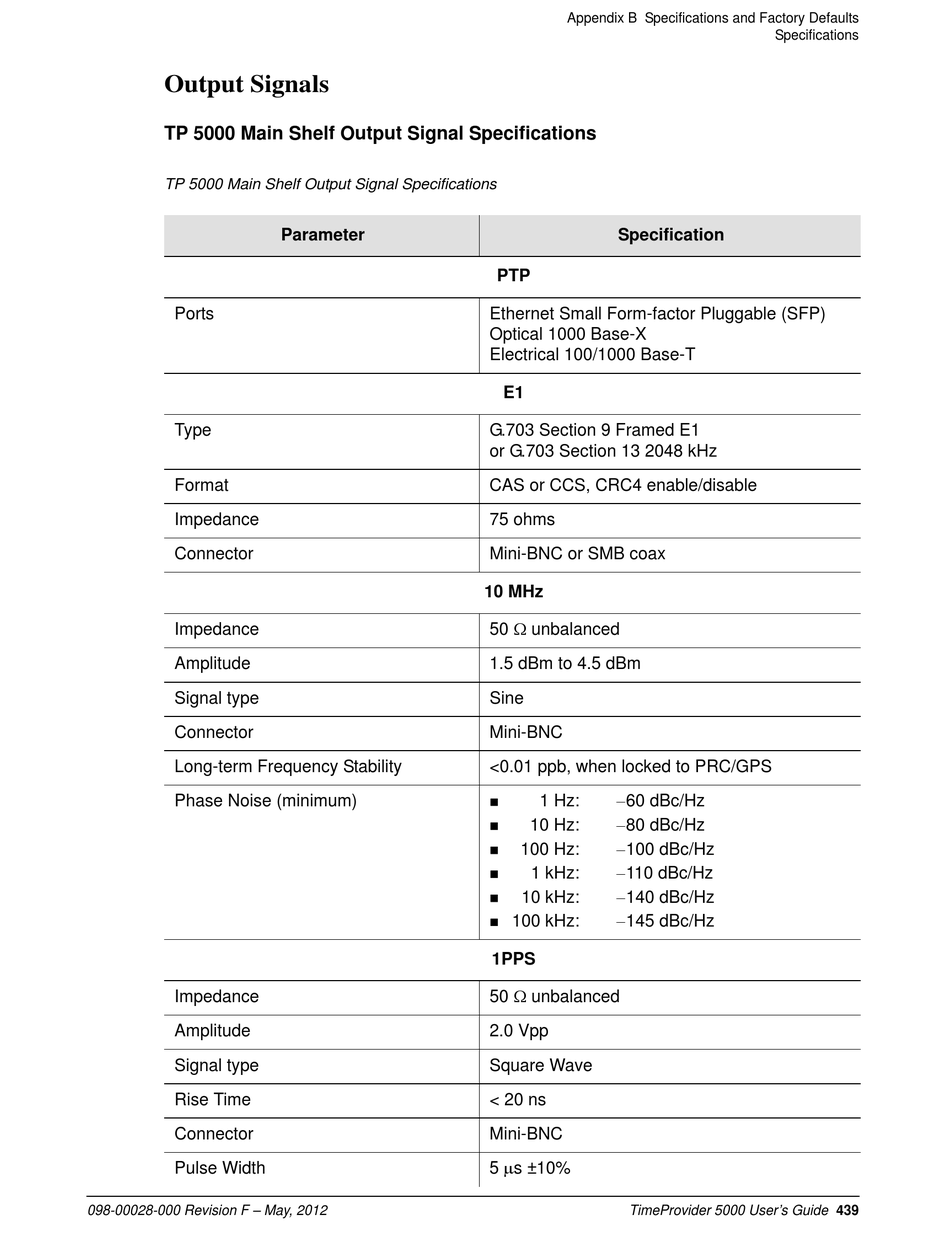

Output Signals

TP 5000 Main Shelf Output Signal Specifications
TP 5000 Main Shelf Output Signal Specifications
Ports
Type
Format
Impedance
Connector
Impedance
Amplitude
Signal type
Connector
Long-term Frequency Stability
Phase Noise (minimum)
Impedance
Amplitude
Signal type
Rise Time
Connector
Pulse Width
098-00028-000 Revision F – May, 2012
Parameter
Appendix B Specifications and Factory Defaults
Specification
PTP
Ethernet Small Form-factor Pluggable (SFP)
Optical 1000 Base-X
Electrical 100/1000 Base-T
E1
G.703 Section 9 Framed E1
or G.703 Section 13 2048 kHz
CAS or CCS, CRC4 enable/disable
75 ohms
Mini-BNC or SMB coax
10 MHz
50  unbalanced
1.5 dBm to 4.5 dBm
Sine
Mini-BNC
<0.01 ppb, when locked to PRC/GPS
60 dBc/Hz
1 Hz:

80 dBc/Hz
10 Hz:

100 dBc/Hz
100 Hz:

110 dBc/Hz
1 kHz:

140 dBc/Hz
10 kHz:

145 dBc/Hz
100 kHz:

1PPS
50  unbalanced
2.0 Vpp
Square Wave
< 20 ns
Mini-BNC
5 s ±10%
TimeProvider 5000 User's Guide 439
Specifications
