Remove the Rear Chassis Subassembly
6.

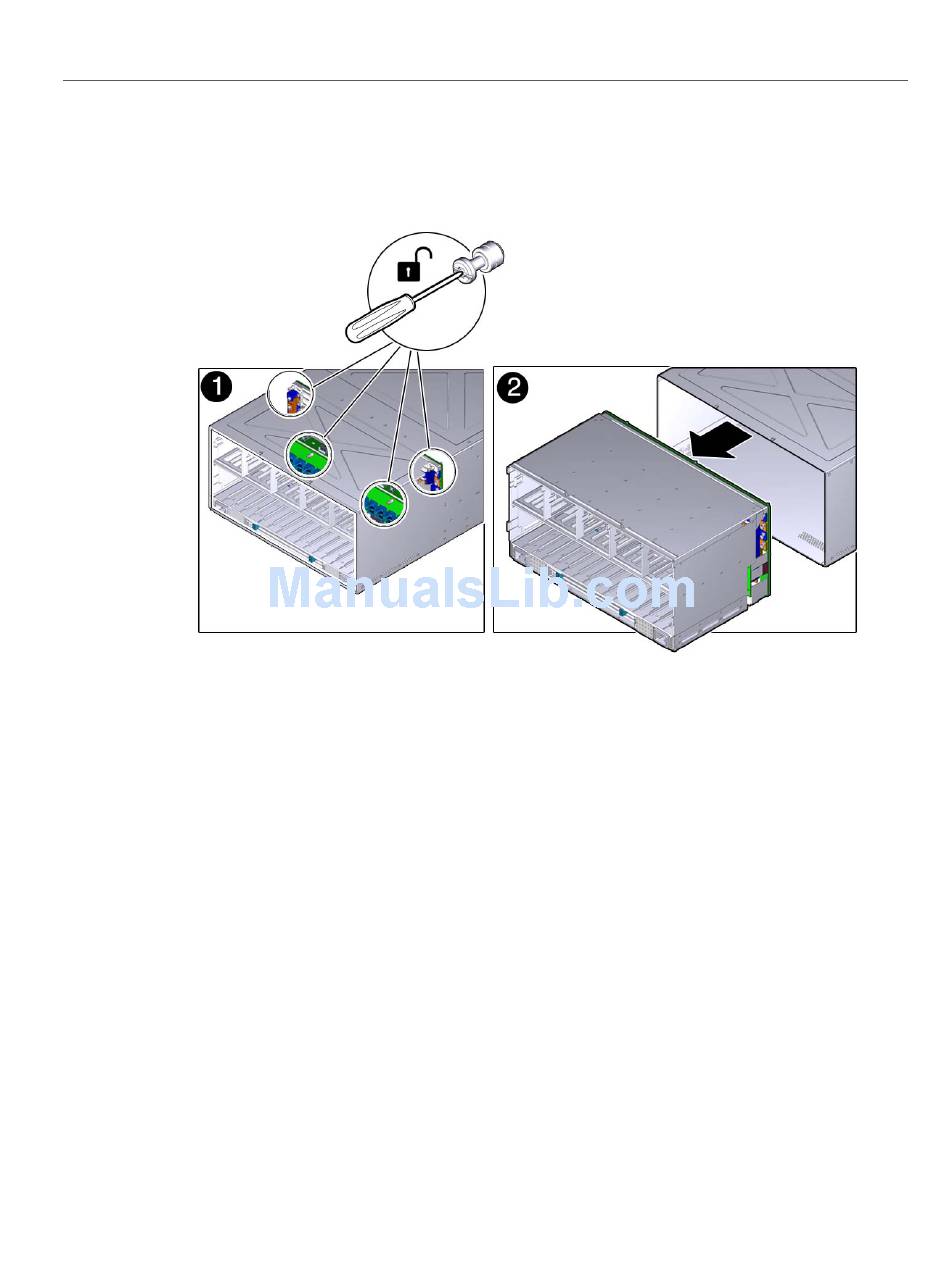

Locate the eight green mounting screws that secure rear chassis subassembly.
7.
Using a Phillips screwdriver, loosen the five screws that secure the rear chassis
subassembly to the system chassis.
Slide the rear chassis subassembly out and away from the server.
8.
Related Information
"Install the Rear Chassis Subassembly" on page 197
■
196
SPARC T7-4 Server Service Manual • May 2017
