Rear Panel Components (Service)

Rear Panel Components (Service)
No.
1
2
3
4

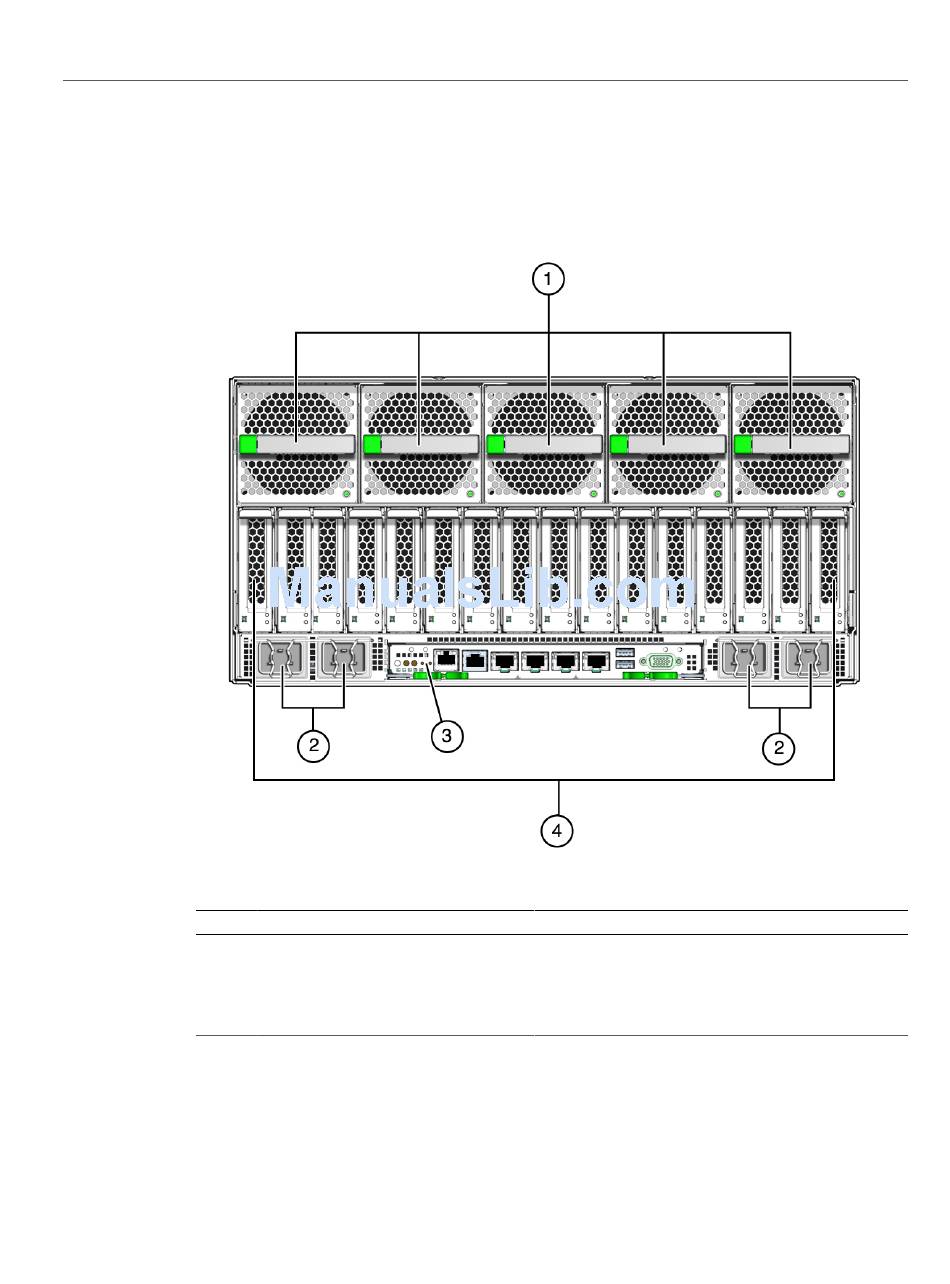

These components are accessible within the rear chassis subassembly, which you can access
after you have removed all the components from the rear of the server.
16 SPARC T7-4 Server Service Manual • May 2017
Description
Fan modules (5)
AC power connectors (4)
Rear I/O module
PCIe carriers (16)
Links
"Servicing Fan Modules" on page 157
"Preparing for Service" on page 43
"Servicing the Rear I/O Module" on page 183
"Servicing PCIe Cards" on page 165
