Install a NVMe Switch Card

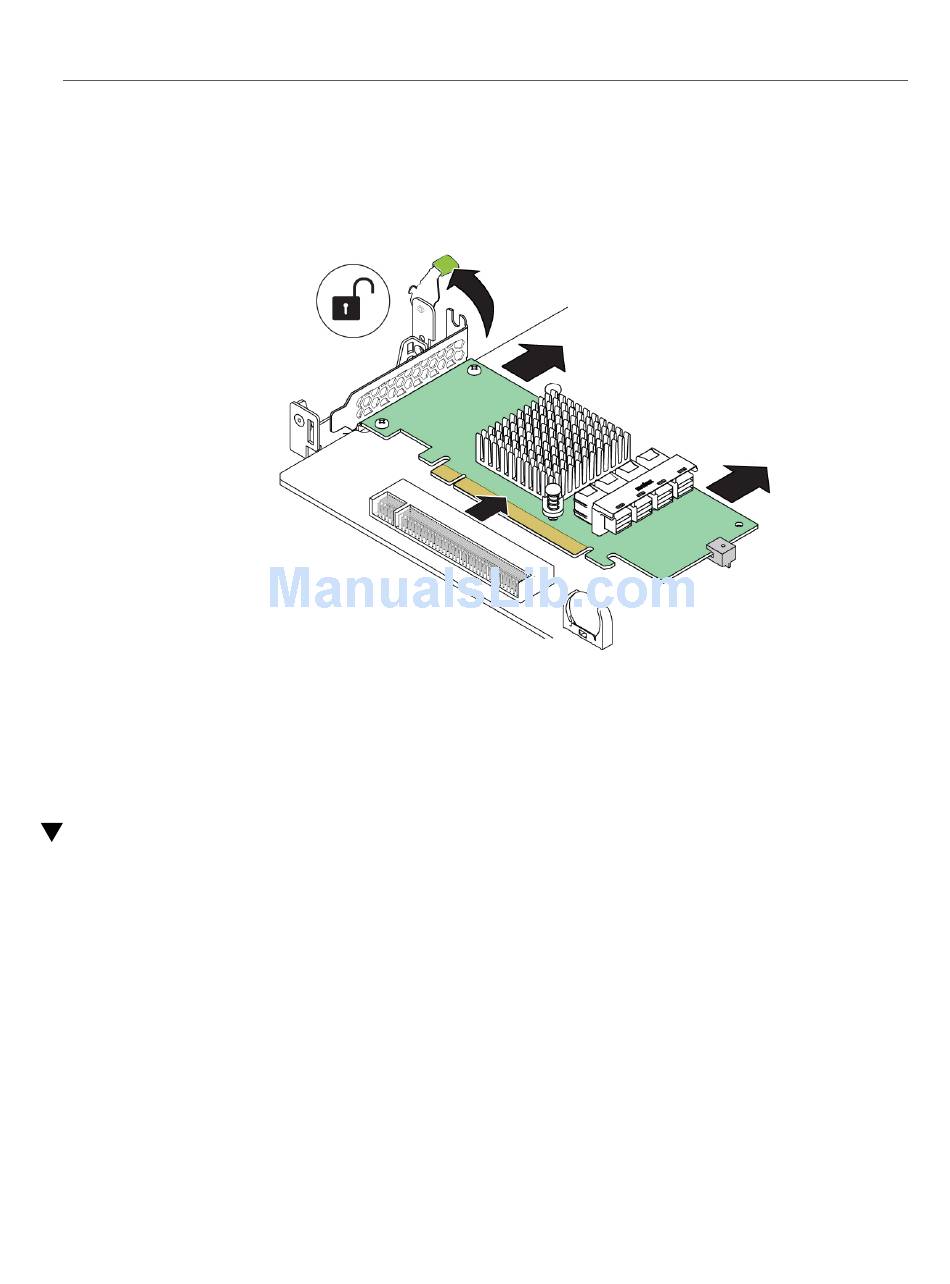

Rotate the retention lever away from the card bracket.
3.
Push the card away from its connector on the motherboard and lift the card out
of the main module.
Install a NVMe Switch Card
1.
Align the NVMe switch card with its connector on the motherboard.
114
SPARC T7-4 Server Service Manual • May 2017
