Oracle SPARC T7-4 Service Manual page 21

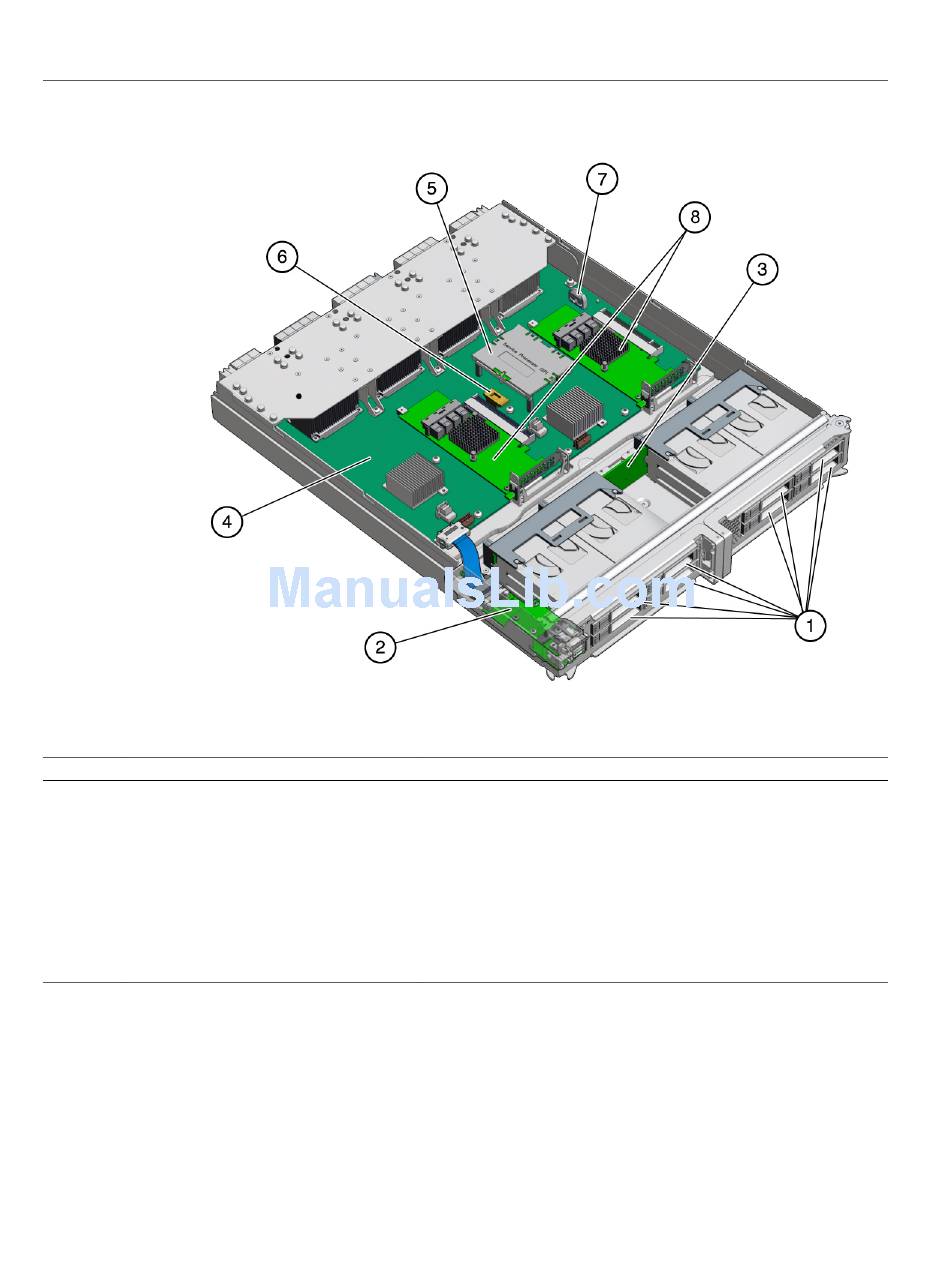

No. Description
1 Hard drives
2 Front I/O assembly and cables
3 Storage backplane
4 Main module motherboard
5 SPM
6 SCC PROM
7 Battery
8 NVMe cards (optional)
Related Information
"Front Panel Components (Service)" on page 14
■
"Rear Panel Components (Service)" on page 16
■
Links
"Servicing Hard Drives" on page 87
"Servicing the Front I/O Assembly" on page 143
"Servicing the Drive Backplane" on page 119
"Servicing the SPM" on page 125
"Servicing the SCC PROM" on page 133
"Servicing the Battery" on page 137
"Servicing NVMe Switch Cards" on page 111
Main Module Components
Identifying Components 21
