Remove the Main Module
If you have removed the main module to service an internal component,
■
remove the cover from the main module.

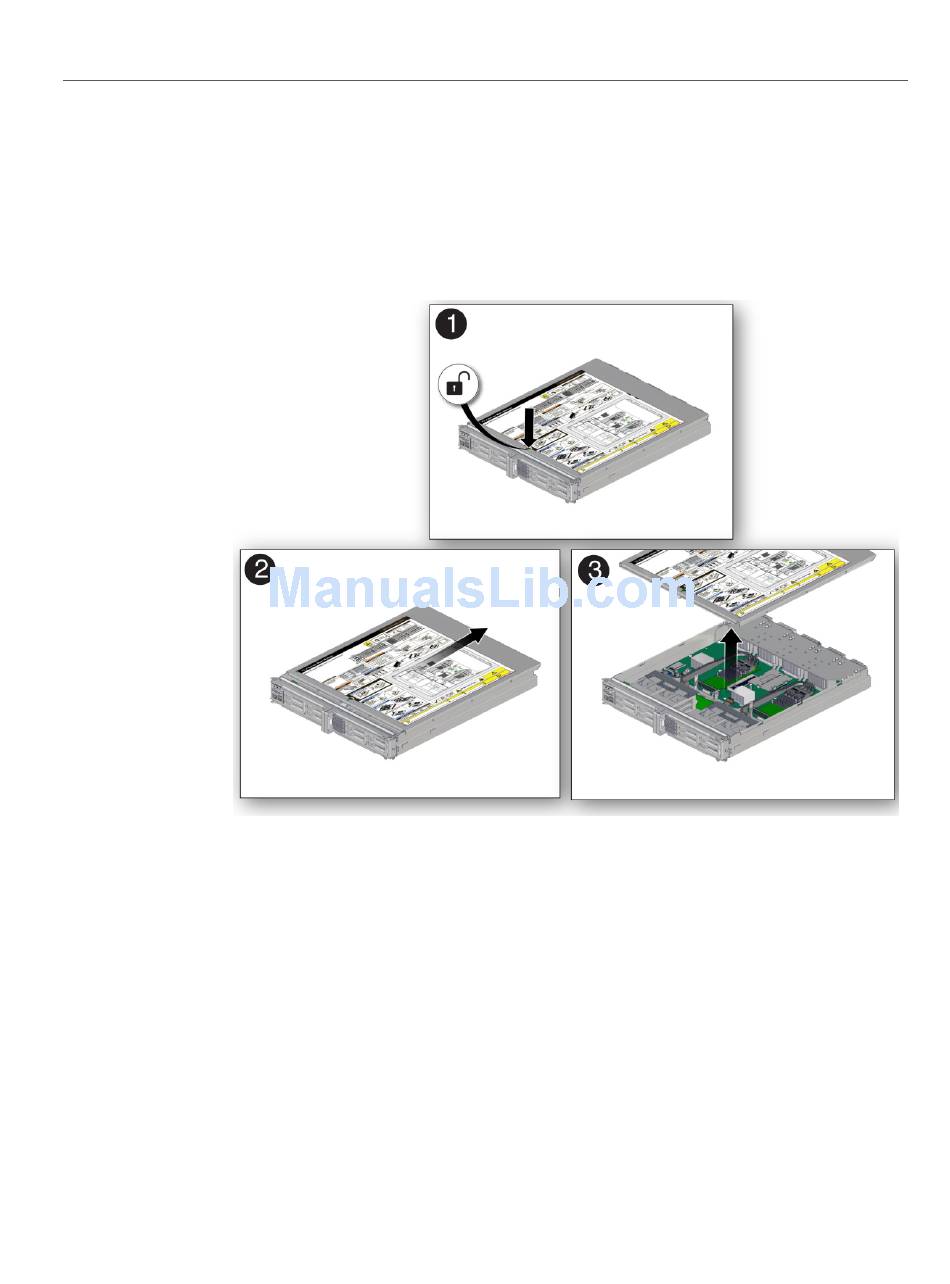

Press the green button near the front edge of the cover and slide the cover back and up off
the main module.
10. Determine your next step.
If you are replacing a main module due to a faulty motherboard, remove all
■
of the internal components, and transfer them to the new main module.
If you are replacing a component inside the main module, use one of the
■
following links:
■
■
104 SPARC T7-4 Server Service Manual • May 2017
"Servicing the SPM" on page 125
"Servicing the Battery" on page 137
