See "Removing Power From the Server" on page
Disconnect the power cords.
4.
See "Disconnect Power Cords" on page
5. Label the cables connected to the ports on the rear I/O module, and then
disconnect the cables from the ports.
You will reconnect the cables to the same ports on the replacement rear I/O module.

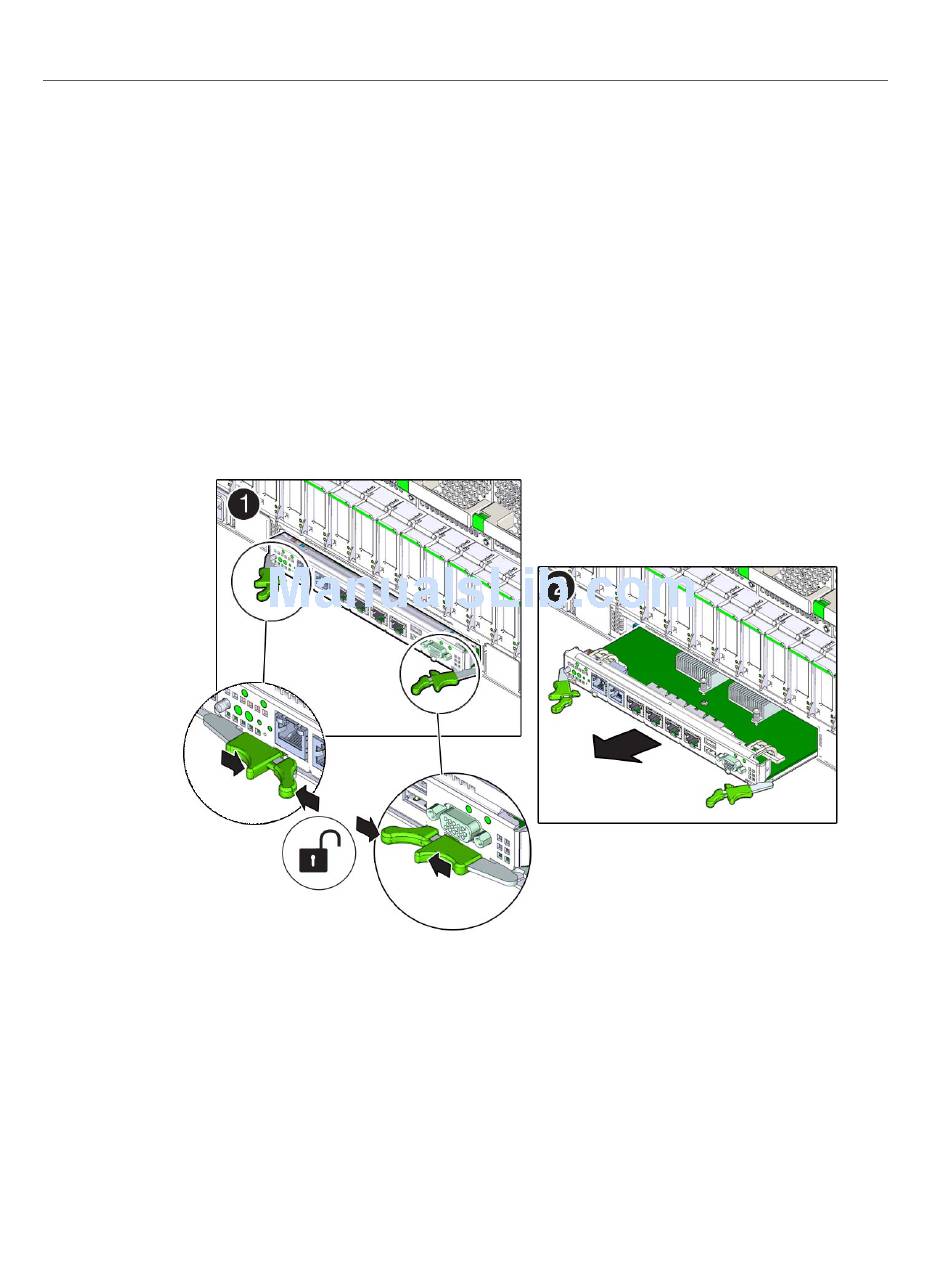

6. Press the green buttons on the rear I/O module ejection levers, and spread the
levers open to eject the rear I/O module.
50.
53.
Servicing the Rear I/O Module
Remove the Rear I/O Module
187
