Fan Module Led; Determine Which Fan Module Is Faulty - Oracle SPARC T7-4 Service Manual

Fan Module LED

Part
1
2
3
4
5
Related Information
"Determine Which Fan Module Is Faulty" on page 158
■
"Remove a Fan Module" on page 159
■
"Install a Fan Module" on page 161
■
"Verify a Fan Module" on page 162
■

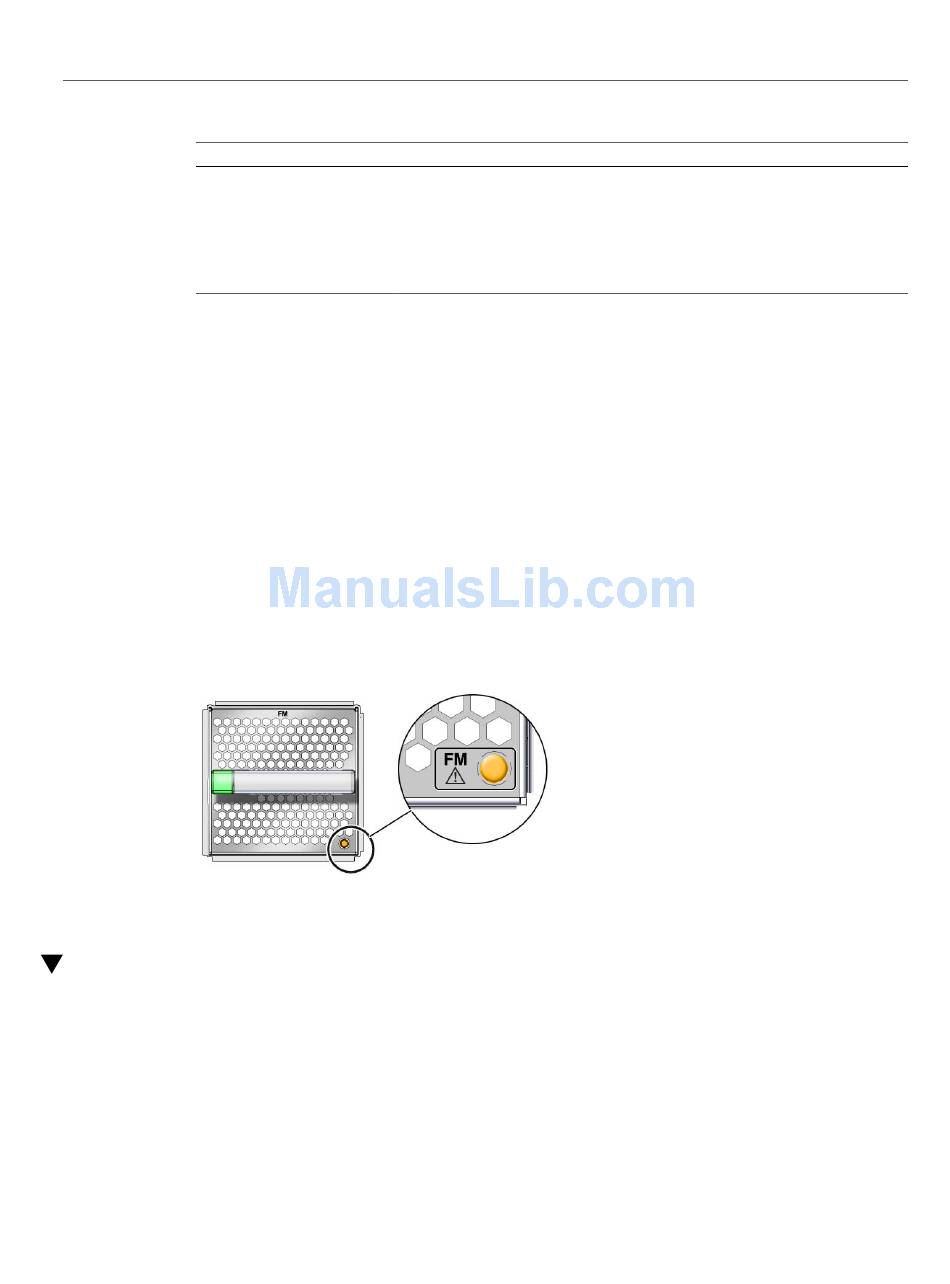

Fan Module LED
Each fan module has a single Service Required LED.

Determine Which Fan Module Is Faulty

The following LEDs are illuminated when a fan module fault is detected:
System Service Required LEDs on the front panel and rear I/O module
■
Server Fan Fail LED on the front panel
■
158 SPARC T7-4 Server Service Manual • May 2017
Description
Fan module 0
Fan module 1
Fan module 2
Fan module 3
Fan module 4
