CDM-710/L Broadcast Satellite Modem
Front Panel Operation

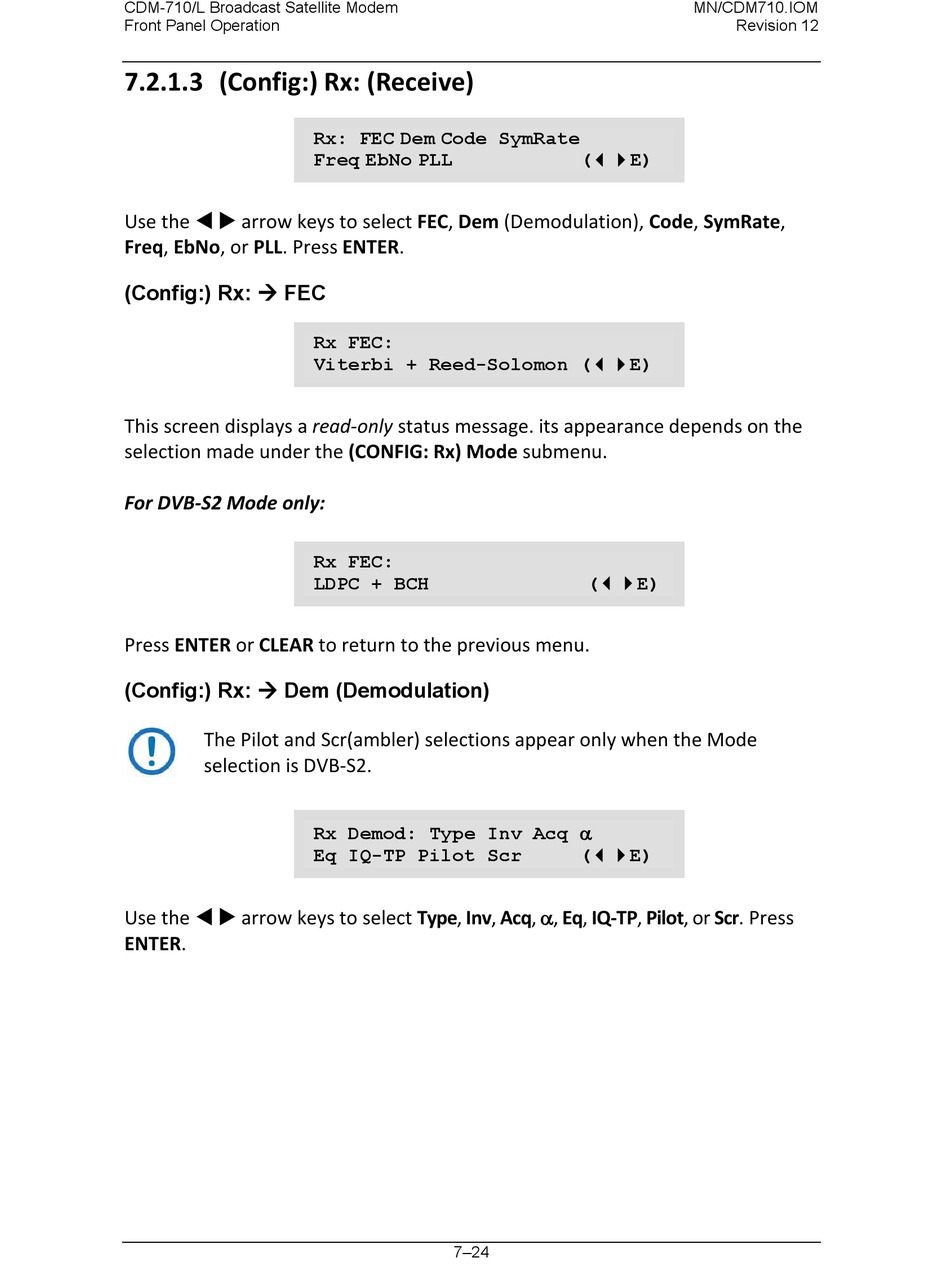

7.2.1.3 (Config:) Rx: (Receive)

Use the   arrow keys to select FEC, Dem (Demodulation), Code, SymRate,
Freq, EbNo, or PLL. Press ENTER.
(Config:) Rx:  FEC
This screen displays a read-only status message. its appearance depends on the
selection made under the (CONFIG: Rx) Mode submenu.
For DVB-S2 Mode only:
Press ENTER or CLEAR to return to the previous menu.
(Config:) Rx:  Dem (Demodulation)
The Pilot and Scr(ambler) selections appear only when the Mode
selection is DVB-S2.
Use the   arrow keys to select Type, Inv, Acq, α, Eq, IQ-TP, Pilot, or Scr. Press
ENTER.
Rx: FEC Dem Code SymRate
Freq EbNo PLL
Rx FEC:
Viterbi + Reed-Solomon (E)
Rx FEC:
LDPC + BCH
Rx Demod: Type Inv Acq α
Eq IQ-TP Pilot Scr
7–24
MN/CDM710.IOM
Revision 12
(E)
(E)
(E)
