File Loading - Icom IC-7800 Instruction Manual

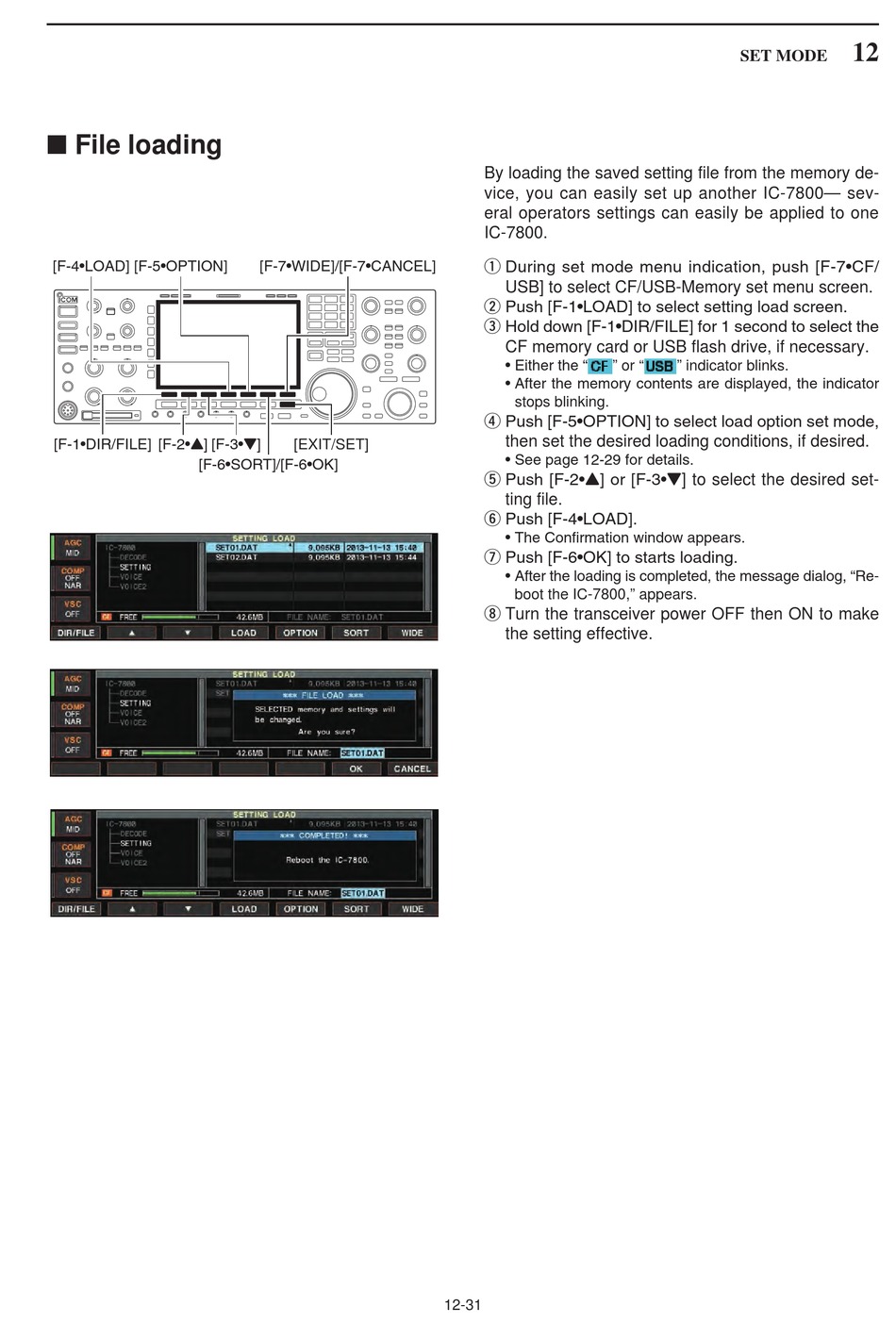

■ File loading

[F-4•LOAD] [F-5•OPTION]
[F-1•DIR/FILE] [F-2•Y] [F-3•Z]
[F-6•SORT]/[F-6•OK]
[F-7•WIDE]/[F-7•CANCEL]
[EXIT/SET]
By loading the saved setting file from the memory de-
vice, you can easily set up another IC-7800— sev-
eral operators settings can easily be applied to one
IC-7800.
q During set mode menu indication, push [F-7•CF/
USB] to select CF/USB-Memory set menu screen.
w Push [F-1•LOAD] to select setting load screen.
e Hold down [F-1•DIR/FILE] for 1 second to select the
CF memory card or USB flash drive, if necessary.
• Either the "
• After the memory contents are displayed, the indicator
stops blinking.
r Push [F-5•OPTION] to select load option set mode,
then set the desired loading conditions, if desired.
• See page 12-29 for details.
t Push [F-2•Y] or [F-3•Z] to select the desired set-
ting file.
y Push [F-4•LOAD].
• The Confirmation window appears.
u Push [F-6•OK] to starts loading.
• After the loading is completed, the message dialog, "Re-
boot the IC-7800," appears.
i Turn the transceiver power OFF then ON to make
the setting effective.
12-31
SET MODE
" or " " indicator blinks.
12
