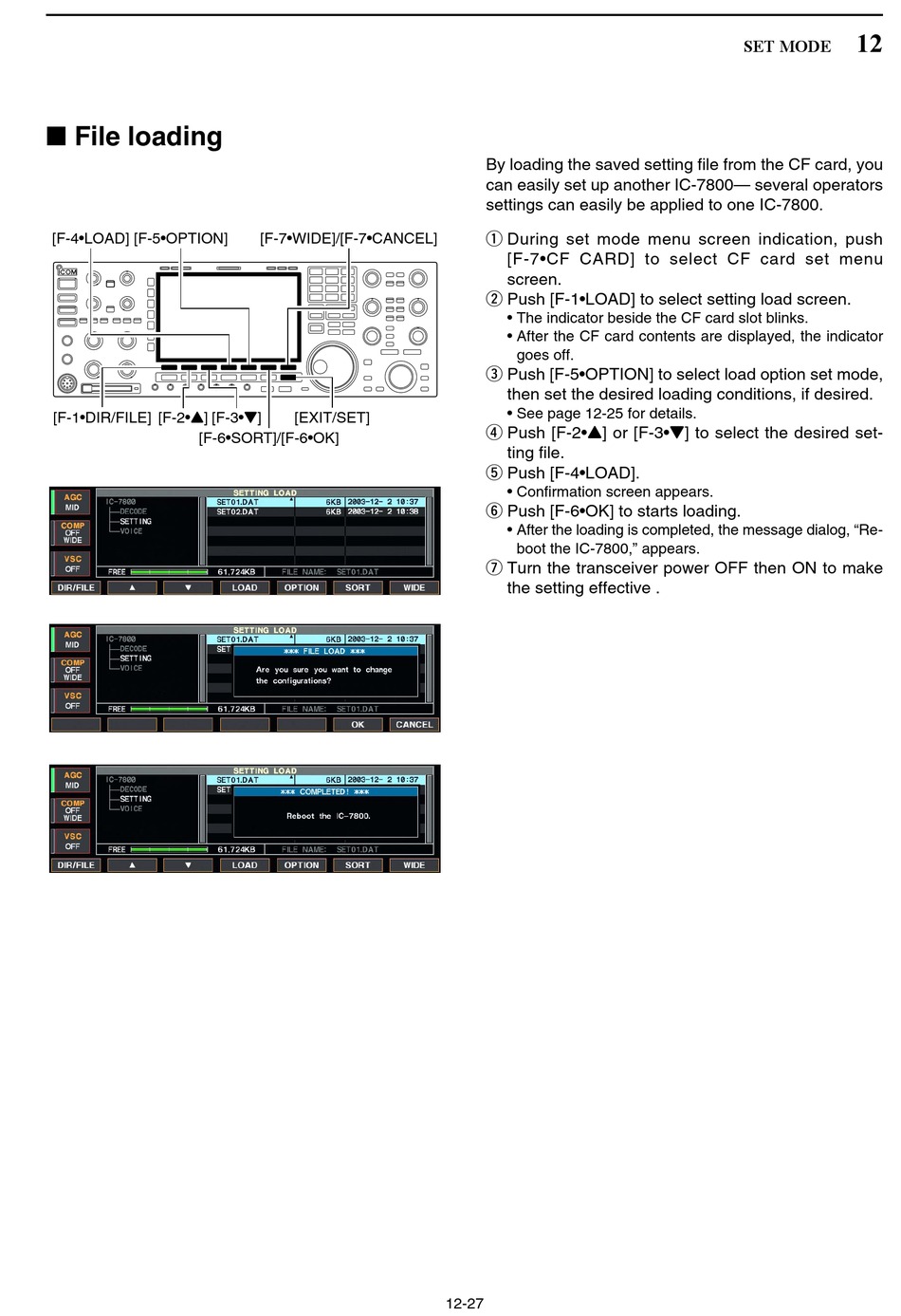

File Loading - Icom IC-7800 Instruction Manual

■ File loading

[F-4•LOAD] [F-5•OPTION]
[F-1•DIR/FILE] [F-2•Y] [F-3•Z]
[F-6•SORT]/[F-6•OK]
[F-7•WIDE]/[F-7•CANCEL]
[EXIT/SET]
By loading the saved setting file from the CF card, you
can easily set up another IC-7800— several operators
settings can easily be applied to one IC-7800.
q During set mode menu screen indication, push
[F-7•CF CARD] to select CF card set menu
screen.
w Push [F-1•LOAD] to select setting load screen.
• The indicator beside the CF card slot blinks.
• After the CF card contents are displayed, the indicator
goes off.
e Push [F-5•OPTION] to select load option set mode,
then set the desired loading conditions, if desired.
• See page 12-25 for details.
r Push [F-2•Y] or [F-3•Z] to select the desired set-
ting file.
t Push [F-4•LOAD].
• Confirmation screen appears.
y Push [F-6•OK] to starts loading.
• After the loading is completed, the message dialog, "Re-
boot the IC-7800," appears.
u Turn the transceiver power OFF then ON to make
the setting effective .
12-27
12
SET MODE
