HP ProCurve Secure Router 7203 dl Advanced Management And Configuration Manual page 871

Using the Web Browser Interface for Advanced Configuration Tasks
Setting Up Virtual Private Networks

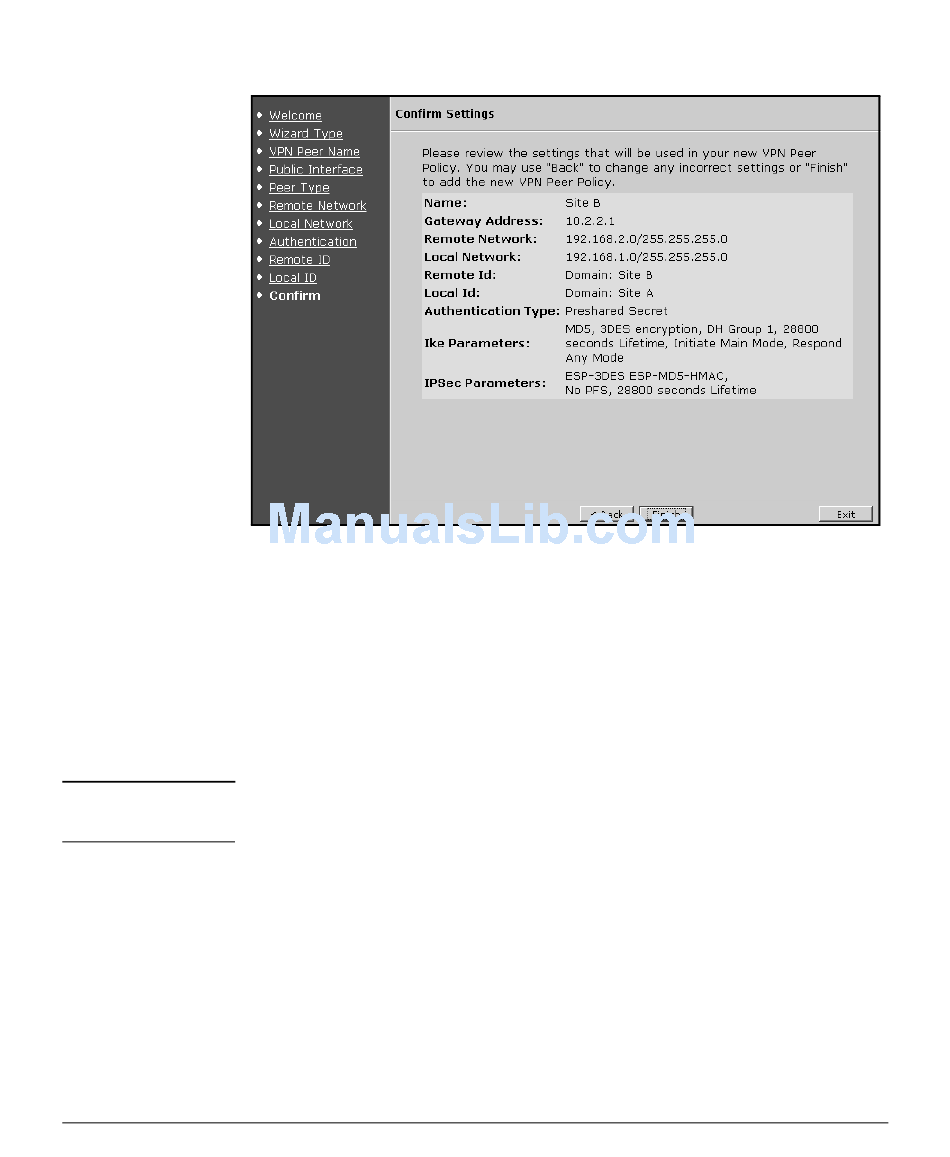

Figure 14-52. Reviewing VPN Settings
Review the information and ensure that it matches your network topology.
Also verify that the default security settings are adequate to enforce your
organization's security policies.
If necessary, use the Back button in the interface window to navigate to the
correct window and alter configurations. You can also select the name of a
window in the left navigation bar. For example, select Remote Network to
change the address for the remote VPN network.
N o t e
If you used Typical setup, but you want to change the security parameters,
you must proceed to the VPN Peers window.
Click Finish to apply the VPN. A window displays telling you that the VPN
policy has been applied. Click Exit to return to the main Web browser
interface.
You should now be at the VPN Peers window.
14-71
