Using the Web Browser Interface for Advanced Configuration Tasks
Setting Up Virtual Private Networks

Public Interface

The wizard will first prompt you for the local router's public interface, or the
interface through which you connect to the VPN peer. Typically, this is the
WAN interface that connects to the Internet. Select this interface from the pull-
down menu.
N o t e
The pull-down menu only includes activated interfaces with an IP address.

Peer Type

Check the circle to indicate whether the peer is static, dynamic, or mobile.

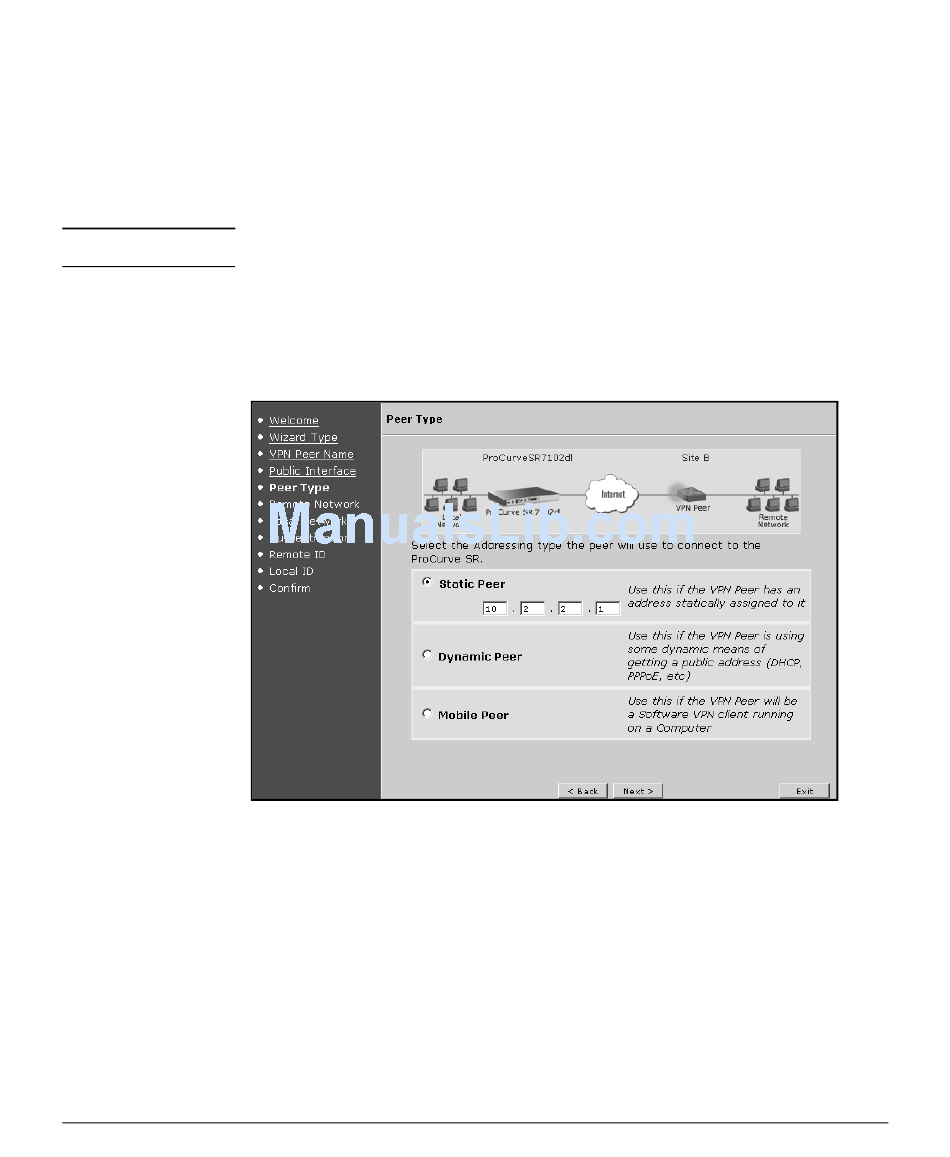

Figure 14-45. Specifying the VPN Peer Type
Site-to-Site Configuration. You must inform the wizard whether the
remote gateway device has a static or dynamic IP address. If the remote device
has a static address, select the Static Peer circle and enter the peer's public
IP address. (This is the address through which the peer connects to you).
You must select the Dynamic peer circle if the remote device receives a
dynamic address—for example, from a DHCP server or a service provider. The
VPN wizard will prompt you to identify the peer (for example, by its domain
name) in a later window.
14-61
