Video Connector; A.3 Video Connector - Sun Oracle Sun Fire X4270 M2 Service Manual

A.3

Video Connector

The video connector (VGA) is an HD-15 connector that can be accessed from the back
panel.

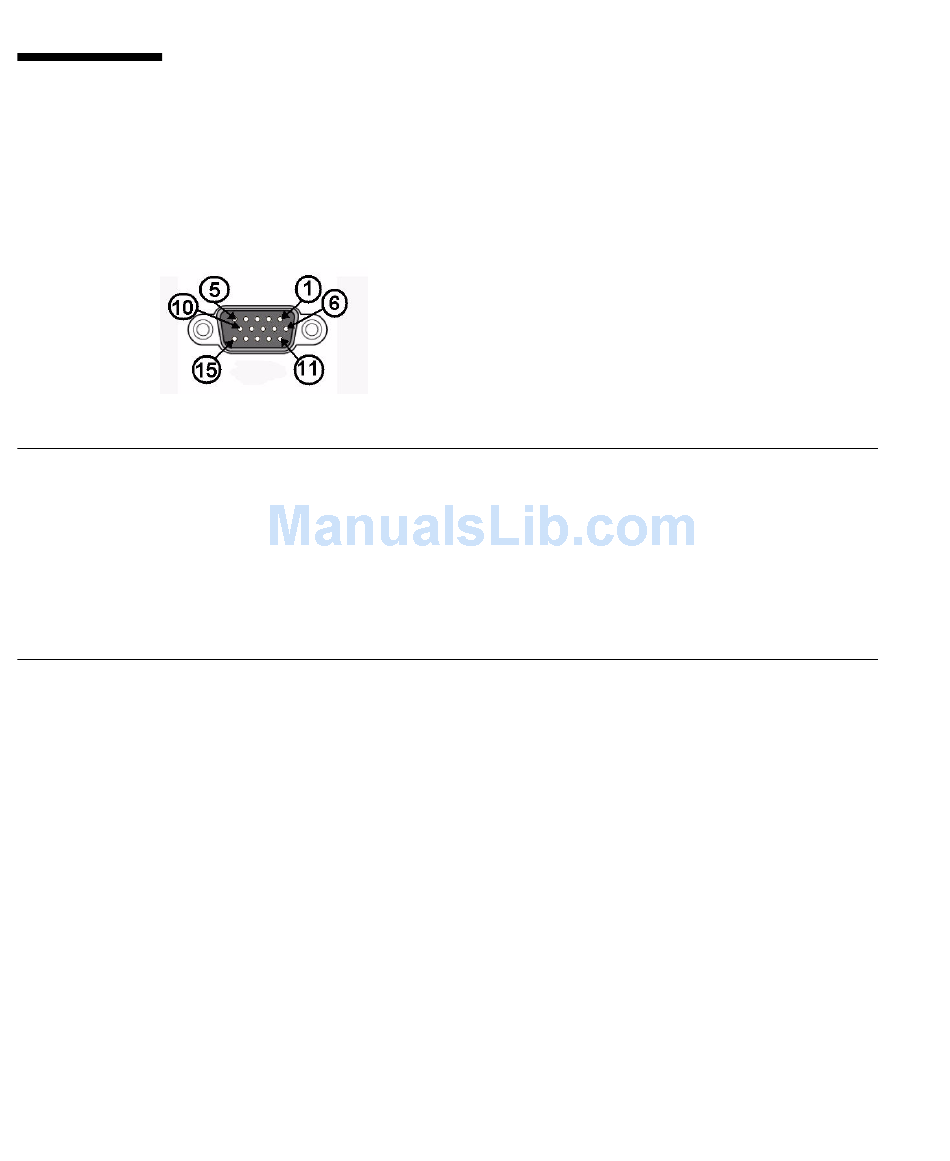

FIGURE A-3
Figure Legend
1 Red Video
2 Green Video
3 Blue Video
4 Monitor ID - Bit 2
5 Ground
6 Red Ground
7 Green Ground
8 Blue Ground
A-4 Sun Fire X4270 M2 Server Service Manual • May 2011
Video Connector Diagram
9 [KEY]
10 Sync Ground
11 Monitor ID - Bit 1
12 Monitor ID - Bit 0
13 Horizontal Sync
14 Vertical Sync
15 N/C (Reserved)
