Step 2. Click the Log icon
In the upper-left corner, click the Refresh button or select a refresh
interval from the drop-down list to obtain the up-to-date session
information.
Click any Source IP or Destination IP for sessions accessed through
the IP address that you click on.
For details of all sessions accessed through CS-2001, go to
Monitoring > Logs > Traffic on the main menu.
of a policy to see the log.

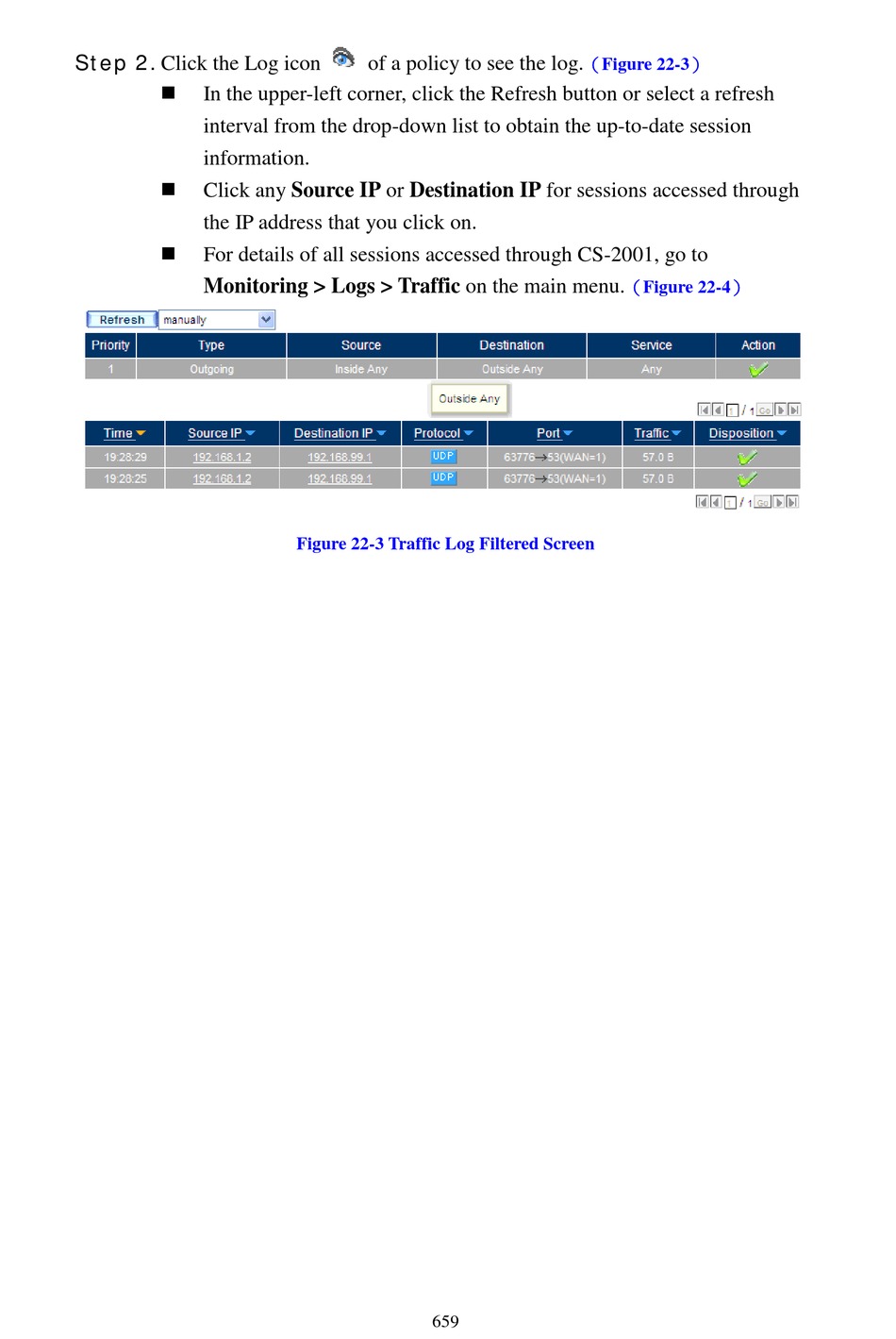

Figure 22-3 Traffic Log Filtered Screen
659
(Figure 22-3)
(Figure 22-4)
